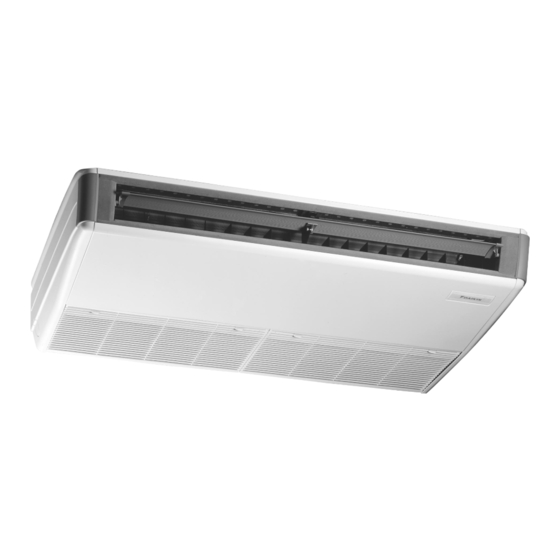

Page 1: Technical Data
TECHNICAL DATA Split-Sky Air FH(Y)GZ/BZ/FHYP-B Ceiling Suspended Unit... - Page 2 Daikin Europe NV is participating Daikin Europe NV is approved by LRQA for its Quality in the EUROVENT Certification Programme. Management System in accordance with the ISO9001 Products are as listed in the EUROVENT standard.
-
Page 3: Table Of Contents
• Ceiling Suspended Unit • R-407C • FH(Y)-GZ/BZ/FHYP-B TABLE OF CONTENTS FH(Y)-GZ/BZ/FHYP-B Features ...................... Specifications ..................Nominal capacity, capacity steps and nominal input Technical specifications Electrical specifications Dimensional drawings ..............Piping diagrams ................. Wiring diagrams ................Sound level ..................... Sound level data Sound pressure spectrum Accessories .................... -
Page 4: Features
• Ceiling Suspended Unit • R-407C • FH(Y)-GZ/BZ/FHYP-B Features + Leaves maximum floor and wall space for furniture, + The (wired) remote control has a programmable timer + Centralised control of several units can be achieved via 3 decoration and fittings + New and even more compact casing (only 960 mm width) wired controls + Extremely quiet in operation both indoors and outdoors... - Page 5 • Ceiling Suspended Unit • R-407C • FH(Y)-GZ/BZ/FHYP-B Specifications NOMINAL CAPACITY and NOMINAL INPUT For indoor units only: INDOOR UNITS FH35BZV1 FH45BZV1 FH60BZV1 NOMINAL INPUT Cooling 0.111 0.111 0.115 For combination indoor units + outdoor units: INDOOR UNITS FH35BZV1 FH45BZV1 FH60BZV1 OUTDOOR UNITS R35GZ7V11...
-
Page 6: Specifications
• Ceiling Suspended Unit • R-407C • FH(Y)-GZ/BZ/FHYP-B Specifications NOMINAL CAPACITY and NOMINAL INPUT For indoor units only: INDOOR UNITS FHYP71BV1 FHYP100BV1 FHYP125BV1 NOMINAL INPUT Cooling 0.117 0.135 0.144 For combination indoor units + outdoor units: INDOOR UNITS FHYP71BV1 FHYP100BV1 FHYP125BV1 OUTDOOR UNITS RP71B7V1/W1/T1... -
Page 7: Electrical Specifications
• Ceiling Suspended Unit • R-407C • FH(Y)-GZ/BZ/FHYP-B Specifications ELECTRICAL SPECIFICATIONS For indoor units only: FH35BZV1 FH45BZV1 FH60BZV1 CURRENT Nominal running cooling current For combination indoor units + outdoor units: FH35BZV1 FH45BZV1 FH60BZV1 R35GZ7V11 R45GZ7V11/W11 R60GZ7W1 CURRENT Nominal running cooling 10.8/3.98 5.6/6.35 current... - Page 8 • Ceiling Suspended Unit • R-407C • FH(Y)-GZ/BZ/FHYP-B Specifications NOMINAL CAPACITY and NOMINAL INPUT For indoor units only: INDOOR UNITS FHY35GZ7V1 FHY45GZ7V1 FHYP60BV1 NOMINAL INPUT Cooling 0.115 Heating For combination indoor units + outdoor units: INDOOR UNITS FHY35GZ7V1 FHY45GZ7V1 FHYP71BV1 OUTDOOR UNITS NOMINAL CAPACITY Cooling (1)
- Page 9 • Ceiling Suspended Unit • R-407C • FH(Y)-GZ/BZ/FHYP-B Specifications NOMINAL CAPACITY and NOMINAL INPUT For indoor units only: INDOOR UNITS FHYP71BV1 FHYP100BV1 FHYP125BV1 NOMINAL INPUT Cooling 0.117 0.135 0.144 Heating For combination indoor units + outdoor units: INDOOR UNITS FHYP71BV1 FHYP100BV1 FHYP125BV1 OUTDOOR UNITS...
- Page 10 • Ceiling Suspended Unit • R-407C • FH(Y)-GZ/BZ/FHYP-B Specifications ELECTRICAL SPECIFICATIONS For indoor units only: FHY35GZ7V1 FHY45GZ7V1 FHYP60BV1 CURRENT Nominal running cooling current heating For combination indoor units + outdoor units: FHY35GZ7V1 FHY45GZ7V1 FHYP60BV1 CURRENT Nominal running cooling current heating Maximum running cooling Twin/triple/double twin application only...
- Page 11 • Ceiling Suspended Unit • R-407C • FH(Y)-GZ/BZ/FHYP-B Dimensional drawings FHY35∼45GZ7V1 unit (mm) DAIKIN name plate Model (See note 2) Drain outlet V.P.20 FH35GZ (for left piping) 12.70 FHY35GZ FH45GZ 15.90 FHY45GZ Slit hole position for rear piping connection (from the front)
-
Page 12: Dimensional Drawings
• Ceiling Suspended Unit • R-407C • FH(Y)-GZ/BZ/FHYP-B Dimensional drawings FH45BZV1 Position slit hole for taking out in piping back (View from the front) (Hanging position) Hanging bolt Position: hole of wall for taking out in piping back (View from the front) 30 or more 30 or more (Service space) - Page 13 • Ceiling Suspended Unit • R-407C • FH(Y)-GZ/BZ/FHYP-B Dimensional drawings FHYP60∼71BV1 Position slit hole for taking out in piping back (View from the front) Hanging bolt (Hanging position) Position: hole of wall for taking out in piping back (View from the front) 30 or more 30 or more (Service space)
- Page 14 • Ceiling Suspended Unit • R-407C • FH(Y)-GZ/BZ/FHYP-B Dimensional drawings FHYP125BV1 Position slit hole for taking out in piping back (View from the front) (Hanging position) Hanging bolt Position: hole of wall for taking out in piping back (View from the front) 30 or more 30 or more (Service space)
-
Page 15: Piping Diagrams
• Ceiling Suspended Unit • R-407C • FH(Y)-GZ/BZ/FHYP-B Piping diagrams FH35∼60BZ FHYP35∼125B Refrigerant pipe connection port diameters Indoor heat exchanger Model FHYP35-45BV1 12.7 FH35BZV1 FH45-60BZV1 15.9 FHYP60-71BV1 15.9 FHYP100-125BV1 19.1 Field piping To outdoor unit Field piping Indoor unit Check valve Flare connection Screw connection Flange connection... -
Page 16: Wiring Diagrams
• Ceiling Suspended Unit • R-407C • FH(Y)-GZ/BZ/FHYP-B Wiring diagrams FH35∼60BZ Wired remote control Notes To outdoor unit 1. D : Terminal F, H : Connector Note) 4 Note) 4 b : Protective earth (screw) Note) 7 Receiver / display unit 2. - Page 17 • Ceiling Suspended Unit • R-407C • FH(Y)-GZ/BZ/FHYP-B Wiring diagrams FHYP35∼125BV1 In case of simultaneous Wired remote operation system. control To outdoor Indoor unit Indoor unit Notes (master) (slave) unit Note) 4 1. D : Terminal F, H : Connector b : Protective earth (screw) 2.
-
Page 18: Sound Level
• Ceiling Suspended Unit • R-407C • FH(Y)-GZ/BZ/FHYP-B Sound level Sound level data Sound pressure level Model 230V Sound power level (H) 50Hz (cooling) Measuring location Cooling only FH35BZ FH45BZ FH60BZ FHYP71B Microphone FHYP100B FHYP125B Sound pressure level Model 230V Sound power level (H) 50Hz (cooling/heating) -
Page 19: Sound Pressure Spectrum
• Ceiling Suspended Unit • R-407C • FH(Y)-GZ/BZ/FHYP-B Sound level Sound pressure spectrum Cooling only FH35BZV1/FHYP35BV1 FH45BZV1/FHYP45BV1 approximate threshold approximate threshold hearing for continuous hearing for continuous noise noise 4D028280 Octave band center frequency (Hz) 4D028281 Octave band center frequency (Hz) FH60BZV1/FHYP60BV1 approximate threshold hearing for continuous... -
Page 20: Sound Pressure Spectrum
• Ceiling Suspended Unit • R-407C • FH(Y)-GZ/BZ/FHYP-B Sound level Sound pressure spectrum FHYP71BV1 FHYP100BV1 approximate threshold approximate threshold hearing for continuous hearing for continuous noise noise 4D028355 Octave band center frequency (Hz) 4D028283 Octave band center frequency (Hz) FHYP125BV1 Note: 1. -
Page 21: Accessories
• Ceiling Suspended Unit • R-407C • FH(Y)-GZ/BZ/FHYP-B Accessories Standard accessories FH(Y)-GZ Staple x4 Drain hose Remote control cord flat head screw X4 1 pc. 1 set Clamp Washer for hanging bracket Clamp 4 pcs. 8 pcs. 1 pc. For liquid pipe For gas pipe Paper pattern for installation Insulation for fitting... -
Page 22: Optional Accessories
• Ceiling Suspended Unit • R-407C • FH(Y)-GZ/BZ/FHYP-B Accessories Optional accessories FHY-GZ Name of option Remark: Drain pump kit KDUJ5F50 Replacement long-life filter Resin net KAFJ501F56 L-type piping kit (for upward direction) for FHY KHFJ5F50 Remote control (wired type) for FHY BRC1B517 Central remote control DCS302B51... -
Page 23: Control Systems
• Ceiling Suspended Unit • R-407C • FH(Y)-GZ/BZ/FHYP-B Control systems Wired remote control BRC1B517 FH(Y)-GZ Fig. 1 BRC1B517 Remote control BRC1B517 • Split - Sky Air • Indoor Units... -
Page 24: Wired Remote Control
• Ceiling Suspended Unit • R-407C • FH(Y)-GZ/BZ/FHYP-B Control systems Wired remote control NAME AND FUNCTION OF EACH SWITCH AND DISPLAY ON THE REMOTE CONTROL (Fig.1) ON/OFF BUTTON DISPLAY ’f’ (DEFROST) Press the button and the system will start. Press the button again and TIMER MODE START/STOP BUTTON the system will stop. - Page 25 • Ceiling Suspended Unit • R-407C • FH(Y)-GZ/BZ/FHYP-B Control systems Operation procedure wired remote control BRC1C517 Remote control BRC1C517 FHYP BRC1C517 Field settings a. Unit NO b. First code NO c. Second code NO d. Mode NO e. Field set mode Procedure 1.
-
Page 26: Safety Device Settings
• Ceiling Suspended Unit • R-407C • FH(Y)-GZ/BZ/FHYP-B Safety device settings FHY-GZ Model Safety devices − − Fuse − − Fan motor thermal fuse (°C) FHY-GZ Off: 130±5 Off: 130±5 Fan motor thermal protector (°C) On: 83±20 On: 83±20 3TW21009-2A Model Safety devices −...
