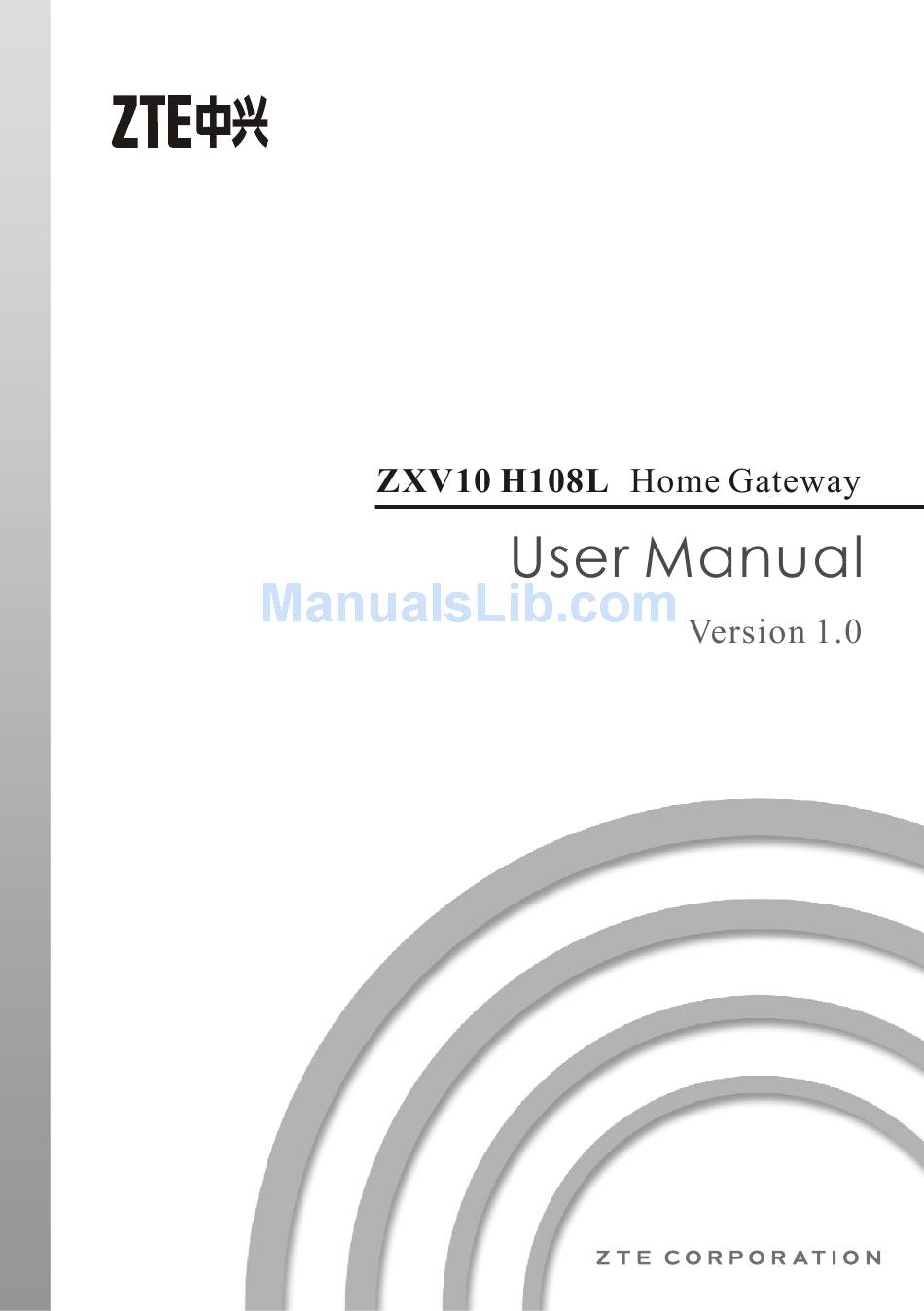

Zte ZXV10H108L User Manual
  1. Manuals
  2. Brands
  3. Zte Manuals
  4. Gateway
  5. ZXV10H108L
  6. User manual

Zte ZXV10H108L User Manual

Hide thumbs

Advertisement

Table of Contents

Advertisement

Table of Contents
loading

Related Manuals for Zte ZXV10H108L

Summary of Contents for Zte ZXV10H108L

  • Page 2: Revision History

    ZTE CORPORATION or its licensors may have current or pending intellectual property rights or appli- cations covering the subject matter of this document. Except as expressly provided in any written license between ZTE CORPORATION and its licensee, the user of this document shall not acquire any license to the subject matter herein.

  • Page 3: For Service

    1 1 1 Safety Safety Instructions Safety Instructions Instructions During Installation and Application Use the power adapter delivered with the product. Other power adapter may make the device unable to work normally or even damage the device. Check load capacity of power socket and power cable. Overloading of power socket or broken power cable may cause an electric shock or fire.

  • Page 4: Product Overview

    2 2 2 Introduction Introduction Introduction Product Overview Overview 2.1 Product Product Overview Thank you for using ZXV10 H108L (hereafter referred to as H108L) Home Gateway. H108L can serve as the center of a home network where various devices can share the Internet connection to provide data, communication, and entertainment services.
  • Page 5 Indicator Status Description Constantly LAN connection is established. LAN1–LAN4 Flashing Data is being transmitted. LAN connection is not established. WLAN RF is switched on. WLAN Flashing Data is being transmitted. WLAN RF is switched off. WPS is switched on and functioning. The indicator will turn off in five minutes.

  • Page 6: Installation

    Name Function Description Ethernet Connects to PC’s network adapter or other network LAN1–LAN4 ports device via RJ-45 cable. Connects to ADSL cable or splitter via RJ-11 DSL socket telephone line. Sockets and buttons on the side panel of H108L Socket and buttons on the side panel of H108L are as follows: The description of sockets and buttons on the side panel of H108L is as follows: Name Function...
  • Page 7 3. If a telephone is required to be installed before the splitter, make sure to connect a voice filter properly to the Line socket of the splitter, and then connect the telephone to the filter. Connect other sockets as the above figure. Notes: Please use the power adapter delivered with the device.
  • Page 8 First approach: Acquire an IP address automatically from H108L via DHCP. a. In the Internet Protocol (TCP/IP) Properties dialog box, check Obtain an IP ad- dress automantically and Obtain DNS server address automatically. b. Click OK to save configuration. Second approach: Specify a static IP address for PC. a.
  • Page 9 2. Input username and password (default username and password are ) and admin admin click Login to enter H108L page. 3. Click Logout at the top-right corner of corresponding page to exit. 4.2 Network Network Configuration Network Configuration Configuration 4.2.1 Creating Creating WAN Creating WAN Connection...
  • Page 10 Parameter Name Description Enable/disable Network Address Translation (NAT). This Enable NAT function can be configured in route mode only. It cannot be configured in bridge mode. Enable/disable VLAN configuration. VLAN ID and 802.1p Enable VLAN are used to define to which VLAN the device belongs as well as the priority.
  • Page 11 4.2.2 WLAN WLAN Configuration WLAN Configuration Configuration 1. Select [Network→WLAN→Basic 11n ] to open the WLAN Basic Parameter page, as shown in the figure below. 2. Set the parameters according to the description below. Parameter Name Description Enable Wireless RF Enable/disable WLAN RF.

  • Page 12: Security Configuration

    Parameter Name Description Transmitting power level. Options: 100%, 80%, 60%, 40% and 20%. The default value is 100%. Transmitting Power Transmitting Power indicates the ration of the output power to the maximum power. The higher the power is, the longer the transmitting distance is. QoS Type The default value is WMM.
  • Page 13 WPA encryption Wi-Fi Protected Access (WPA) includes WPA-PSK, WPA2–PSK, WPA/WPA2–PSK. a. Select WPA-PSK, WPA2–PSK or WPA/WPA2–PSK from the drop-down list of Au- thentication Type option to enable WPA encryption. b. Set the parameters according to the description above. WEP encryption Wired Equivalent Privacy (WEP) is a widely used WLAN security protocol.

  • Page 14: Troubleshooting

    5 5 5 Troubleshooting Troubleshooting Troubleshooting You may encounter some problems when installing or using H108L. Please try the following solutions. If the problem still exists, please contact the service provider for help. Problem Solution The power indicator is off Use standard power adapter, such as the power adapter after the device is switched delivered with the device.

  • Page 15: Physical Specification

    Power supply: Input 220V AC/50Hz, output 12V AC/1A Power: 12W Environmental Requirements Temperature: 0℃- 45℃, humidity: 5%-95%. Qualifications CCC, Network Access License, Wi-Fi, Radio Transmitter Model Authorization. ZTE CORPORATION reserves the right to upgrade or make technical change to this product without further notice.
