Datalogic DSM0400 Quick Reference Manual

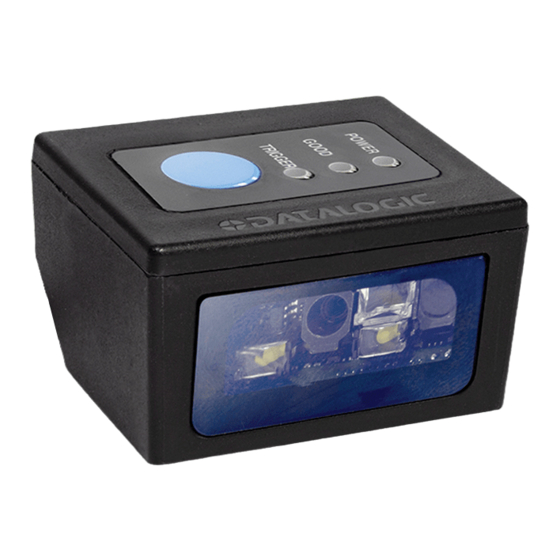

Fixed mount area imager bar code reader
Hide thumbs Also See for DSM0400:
Table of Contents

Advertisement

Quick Links

Download this manual

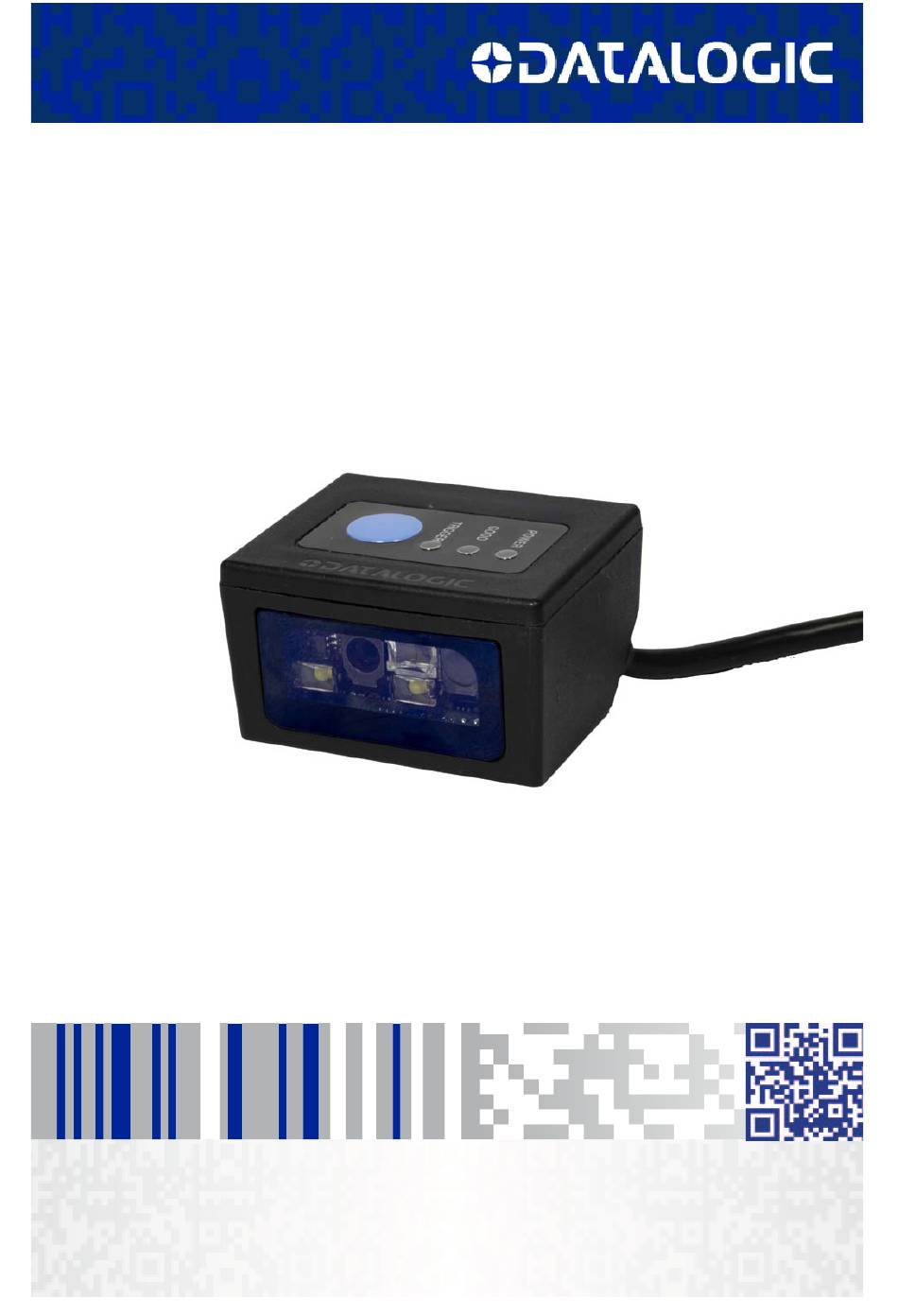

DSM0400
Fixed Mount Area Imager
Bar Code Reader
Quick Reference Guide

Advertisement

Table of Contents
loading

Related Manuals for Datalogic DSM0400

Summary of Contents for Datalogic DSM0400

  • Page 1 DSM0400 Fixed Mount Area Imager Bar Code Reader Quick Reference Guide...
  • Page 2 Datalogic website ( ) or provided on appropri- ate media. If you visit our website and would like to make comments or suggestions about this or other Datalogic publications, please let us know via the "Contact Data- logic" page. Disclaimer...

  • Page 3: Table Of Contents

    DSM04X2-SR models (MP) ............... 22 RS-232 Electrical Connections ..............23 External Trigger (DSM045X models only)..........24 LED and Beeper Indications .................25 Button and LED Status ..................25 Indicators ........................26 Troubleshooting .....................28 DSM0400 Dimensions ...................29 Multi-face Bracket for Mounting in 5 sides ...........31 Quick Reference Guide...
  • Page 4 Angular Mounting Bracket ................32 Ergonomic Recommendations ................33 Cleaning Procedure ....................33 Common Cleaning Solutions ................34 Cleaning enclosure and window surfaces ............34 Datalogic Limited Factory Warranty ..............35 Warranty Coverage..................35 Warranty Claims Process ................. 36 Warranty Exclusions ................. 37 No Assignment ..................37 Risk of Loss....................
  • Page 5 Agreement, request End User to promptly pay all (additional) license fees due and any further damages, if any. 2. License Fee License fees shall be due by End User to Datalogic according to the terms provided for in the rel- evant contract for the purchase of the Datalogic Product. Quick Reference Guide...
  • Page 6 Datalogic Product documentation for the period specified in the same, provided that the Software is used with the Datalogic Product. Datalogic' s entire liability and End User' s sole and exclusive remedy for any breach of the foregoing limited warranty will be, at Datalogic' s option, the provision of a downloadable patch or replacement software.
  • Page 7 Computer Software clause at DFARS 252.227-7013(c)(1)(ii), whichever is applicable. 8.2 If End User is using the Datalogic Product outside of the United States, End User must comply with the applicable local laws of the country in which the Datalogic Product is used and with U.S.
  • Page 8 This provides our customers with the very latest in Datalogic software technology. The only exception to this policy is when the buyer has a signed contract with Datalogic that clearly defines the terms and conditions for making software/firmware changes in products shipped to the buyer.
  • Page 9 Fixed Mount Area Imager Bar Code Reader The DSM0400 is a fully self-contained standard range 2D bar code scanning module for use in self-service kiosks or other semi-auto- mated equipment requiring the ability to read a bar code. It is intended to be an easy integration by system designers with little expertise in scanning technology.
  • Page 10 DSM0400 Fixed Mount Area Imager Bar Code Reader The DSM0400 is an area imaging scanner for OEM applications. It is available in three different data interface versions: • DSM042X Fixed Scanner 2D Imager USB connector • DSM045X Fixed Scanner 2D Imager RS-232 9-pin connector - Compatible with Datalogic 5V switching Power Supply 90ACC0287 (accessory) •...

  • Page 11: List Of Available Models

    List of Available Models List of Available Models The DSM0400 integrates Datalogic Decoding platform and Datalogic Scan Engines, having a wide choice of reading performances: Possible Image Resolutions: • 752x480 WideVGA (WVGA) • 1280x960 1.2MegaPixel (MP) Possible Optics: • Driver License (DL) •...

  • Page 12: Setting Up The Reader

    DSM0400 Fixed Mount Area Imager Bar Code Reader Setting Up the Reader How to connect the DM0400 to the host: Download the correct USB COM driver from: http://www.datalogic.com IMPORTANT • DSM042X models: Install Datalogic USB driver. Con- nect the USB connector to...
  • Page 13 To disconnect the cable, insert a paper clip or similar object into the opening shown, then gently pull the cable. DSM0400 features a cable auto-recognition procedure at startup: • if a RS232 cable is used, the device will always boot in the RS232 interface configuration.

  • Page 14: Rs-232 Interface (Dsm045X Or Dsm049X+Rs232 Cable Models Only)

    DSM0400 Fixed Mount Area Imager Bar Code Reader RS-232 Interface (DSM045X or DSM049X+RS232 cable models only) The reader attaches directly to RS232 port on host, and is powered by an external 5V Datalogic power supply (90ACC0287). The reader auto-detects the RS232 cable and defaults to the RS232 interface with COM parameters: 115200, 8, N, 1, no handshaking, ACK/NAK dis- abled.
  • Page 15 Setting Up the Reader To simulate a serial interface, scan the bar code below: Interface Selection: USB-COM Download the correct USB COM driver from: http://www.data- logic.com. IMPORTANT USB-COMPOSITE (Keyboard + COM) - DEFAULT Interface Selection: USB-COMPOSITE Download the correct USB COM driver from: http://www.data- logic.com.

  • Page 16: Mounting Bracket

    DSM0400 Fixed Mount Area Imager Bar Code Reader Mounting Bracket The DSM0400 can be mounted onto a stationary surface using a bracket as shown below. Just attach to the bottom of the reader using the provided screws, as shown in the figures below. For spe-...
  • Page 17 Setting Up the Reader Quick Reference Guide...

  • Page 18: Angular Bracket (-17° To 25° Angle Mounting)

    DSM0400 Fixed Mount Area Imager Bar Code Reader Angular Bracket (-17° to 25° Angle Mounting) DSM0400...
  • Page 19 Setting Up the Reader Both Brackets applied: N.4 M2x0.4X4 ISO14583 NYLOK 180 T6 SCREWS, N.4 LOCK WASHERS UNI 1751 INCLUDED Quick Reference Guide...

  • Page 20: Programming

    After scanning the interface bar code from the Interfaces sec- tion, you can select other options and customize your reader through use of the programming bar codes available in the DSM0400 Product Reference Guide (PRG). Programming can also be performed using the protocol "Decoded Engine Serial Protocol"...

  • Page 21: Resetting Product Defaults

    You can then repeat if needed. Aiming System A number of options for customizing control of the Aiming System are available. See the DSM0400 PRG for more information and pro- gramming bar codes. Quick Reference Guide...

  • Page 22: Good Read / Green Spot Duration

    DSM0400 Fixed Mount Area Imager Bar Code Reader Good Read / Green Spot Duration Successful reading can be signaled by a good read green spot. Use the bar codes that follow to specify the duration of the good read pointer beam after a good read.

  • Page 23: Operating Modes

    Programming Operating Modes The reader can operate with different behavior, depending on the selected scanning mode. See the PRG for further information on the operation of reading modes and additional programmable features. Trigger single (Default) - Scanning is activated when the button is pushed or through a DESP command or through an external trigger (RS232 interface only).
  • Page 24 DSM0400 Fixed Mount Area Imager Bar Code Reader Operating Modes (continued) ENTER/EXIT PROGRAMMING MODE DEFAULT Operating Mode = Trigger single Operating Mode = Stand Mode (Automatic - Object Sense) Operating Mode = Always On Always On mode is not recommended for continuous operation.

  • Page 25: Technical Features

    Technical Features Technical Features Item Description Physical Characteristics Color Black Height 27mm Dimensions Length 38mm Width 47mm USB version - Approximately 131 g Weight (with cable, RS-232 version - Approximately 155 g without bracket) RJ45 version - Approximately 96g Electrical Characteristics Input Voltage 5 VDC ±...
  • Page 26 DSM0400 Fixed Mount Area Imager Bar Code Reader Item Description Current & Power Typical RMS Input current at 5V in Default Configu- Consumption ration and Trigger Single mode DSM04x1 models (USB connected): ≈ Operating 244 mA** ≈ Standby/Idle 72 mA* ≈...
  • Page 27 Technical Features Performance Characteristics 53 frames/second (Mpixel models) Nominal Frame Rate 60 frames/second (WVGA models) Light Source Dual LEDs Roll (Tilt) Tolerance Up to ± 180° Pitch Tolerance ± 60° Skew (Yaw) Tolerance ± 60° Print Contrast Minimum 25% minimum reflectance Depending on the selected model, see the Field of View tables below...
  • Page 28 All standard 1D codes including: UPC/EAN/JAN, P2 /P5 add-ons; Code 39; Italian Pharmacode 39; Code 128; C128 ISBT; I 2 of 5; Standard 2 of 5; Interleaved 2 of 5; Industrial 2of 5; Datalogic 2of5; IATA; Code 11; Codabar; ABC Codabar; EAN 128; Code 93; MSI/Plessey; RSS-14; BC412; Databar Limited;...

  • Page 29: Dsm04X1 Models (Wvga)

    Technical Features DSM04X1 models (WVGA) Resolution: 752x480 Field of View: 40°H x 26°V Typical Depth of Field Symbology Resolution (mils) Dmin (mm) Dmax (mm) Code 39 Code 39 EAN13 Datamatrix Code 39 a. All labels grade A, ambient light level 300lux, pitch angle 10°, tilt angle 10°, skew angle 0°, room temperature 20°C.

  • Page 30: Dsm04X2-Wa Models (Mp)

    DSM0400 Fixed Mount Area Imager Bar Code Reader DSM04X2-WA models (MP) Resolution: 1280x960 Field of View: 52°H x 40°V Typical Depth of Field Symbology Resolution (mils) Dmin (mm) Dmax (mm) Code 39 Code 39 Datamatrix EAN13 Datamatrix Code 39 a. All labels grade A, ambient light level 300lux, pitch angle 10°, tilt angle 10°, skew angle 0°, room temperature 20°C.

  • Page 31: Rs-232 Electrical Connections

    Technical Features RS-232 Electrical Connections 9-pin Connector Trigger Trigger signal input (see figures below) (DSM045X models only) Transmit Data (output from scanner) Receive Data (input to scanner) Not connected Ground +5Vdc Clear to Send (input to scanner) Request to Send (output from scanner) Default configuration is RS-232: 115200, 8, N, 1, no handshaking, ACK/NAK disabled.

  • Page 32: External Trigger (Dsm045X Models Only)

    External Trigger (DSM045X models only) DSM0400 powered using DB9 pin n°6 and Input Trigger using DB9 pin n°1. DSM0400 DSM0400 Input Trigger using DB9 pin n°1 with an external voltage Vext (acceptable range: from 1V to 5 V). DSM0400 DSM0400...

  • Page 33: Led And Beeper Indications

    LED and Beeper Indications LED and Beeper Indications Button and LED Status The top of the product has a button and three indicator LEDs: ON = Power ON OFF = Power OFF or POWER standby (yellow LED) BLINKS = during USB enu- meration ON = Good Read GOOD...

  • Page 34: Indicators

    Indicators The reader's beeper sounds and its LED illuminates to indicate vari- ous functions or errors on the reader. DSM0400 also projects "Green Spot" on the field of view when the "GOOD" green LED turns on. The following tables list these indications. One exception to the behaviors listed in the tables is that the reader's functions are programmable, and so may or may not be turned on.
  • Page 35 Indicators Indicator Description Beeper The reader is in standby and in Reader in The POWER LED is low power con- Sleep mode sumption (also USB suspend) The reader is in Programming, accepting pro- gramming bar Reader in codes The Trigger LED Program- (eg: a "enter pro- blinks slowly...

  • Page 36: Troubleshooting

    DSM0400 Fixed Mount Area Imager Bar Code Reader Troubleshooting Problem Possible Cause Solution Check system power. No power to the imager. Ensure power supply Nothing happens is connected when the scan but- ton is pulled. Interface or power cables Ensure all cable con- are loose nections are secure.

  • Page 37: Dsm0400 Dimensions

    DSM0400 Dimensions DSM0400 Dimensions Quick Reference Guide...
  • Page 38 DSM0400 Fixed Mount Area Imager Bar Code Reader DSM0400 Dimensions (continued) DSM0400...

  • Page 39: Multi-Face Bracket For Mounting In 5 Sides

    DSM0400 Dimensions Multi-face Bracket for Mounting in 5 sides Quick Reference Guide...

  • Page 40: Angular Mounting Bracket

    DSM0400 Fixed Mount Area Imager Bar Code Reader Angular Mounting Bracket -17° to +25° Possible Angle DSM0400...

  • Page 41: Ergonomic Recommendations

    Ergonomic Recommendations Ergonomic Recommendations In order to avoid or minimize the potential risk of ergonomic injury follow the recommendations below. Consult with your local Health & Safety Manager to ensure that you are adhering to your com- pany’s safety programs to prevent employee injury. CAUTION •...

  • Page 42: Common Cleaning Solutions

    DSM0400 Fixed Mount Area Imager Bar Code Reader Common Cleaning Solutions The cleaners and disinfectants listed below are tested for use on device enclosure: • Chlorine Bleach (diluted 10:1) • Hydrogen Peroxide 3% • Isopropyl Alcohol 70% • Formula 409® Multi-Surface Cleaner •...

  • Page 43: Datalogic Limited Factory Warranty

    Datalogic has no obligation to modify or update prod- ucts once sold. If Datalogic determines that a product has defects in material or work- manship, Datalogic shall, at its sole option repair or replace the product without additional charge for parts and labor, or credit or refund the defective products duly returned to Datalogic.

  • Page 44: Warranty Claims Process

    Customer shall be responsible for packaging and shipping the product to the designated Datalogic service center, with shipping charges prepaid. Datalogic shall pay for the return of the product to Customer if the ship- ment is to a location within the country in which the Datalogic service center is located.

  • Page 45: Warranty Exclusions

    Warranty Exclusions The Datalogic Factory Warranty shall not apply to: any product which has been damaged, modified, altered, repaired or upgraded by other than Datalogic service personnel or its authorized representatives; (ii) any claimed defect, failure or damage which Datalogic determines...

  • Page 46: Risk Of Loss

    DSM0400 Fixed Mount Area Imager Bar Code Reader DATALOGIC BE LIABLE TO CUSTOMER OR ANY THIRD PARTY FOR ANY LOST PROF- ITS, OR ANY INCIDENTAL, CONSEQUENTIAL IN-DIRECT, SPECIAL OR CONTINGENT DAMAGES REGARDLESS OF WHETHER DATALOGIC HAD ADVANCE NOTICE OF THE POSSIBILITY OF SUCH DAMAGES.
  • Page 48 ©2020 Datalogic S.p.A. and/or its affiliates. All rights reserved. Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the U.S.A. and the E.U. Datalogic S.r.l Via S. Vitalino, 13 40012 Calderara di Reno - Italy...
