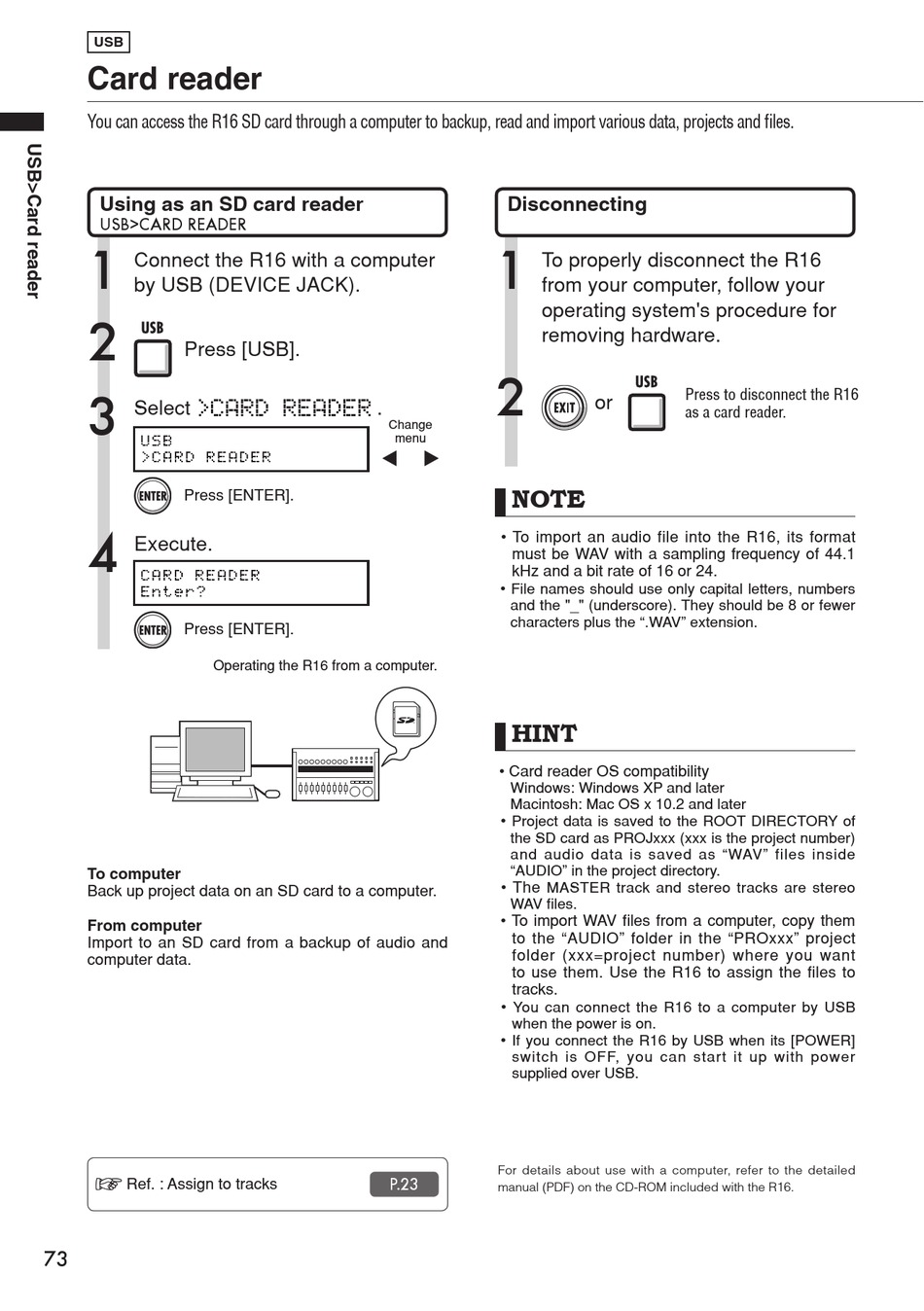

Card Reader - Zoom R16 Operation Manual

USB

Card reader

You can access the R16 SD card through a computer to backup, read and import various data, projects and files.
Using as an SD card reader
USB>CARD READER
1
Connect the R16 with a computer
by USB (DEVICE JACK).
2
Press [USB].
3
Select >CARD R EADER
U S B
> C A R D R E A D E R
Press [ENTER].
4
Execute.
C A R D R E A D E R
E n t e r ?
Press [ENTER].
Operating the R16 from a computer.
To computer
Back up project data on an SD card to a computer.
From computer
Import to an SD card from a backup of audio and
computer data.
Ref. : Assign to tracks
73
Disconnecting
1
To properly disconnect the R16
from your computer, follow your
operating system's procedure for
removing hardware.
2
.
Change
menu
NOTE
must be WAV with a sampling frequency of 44.1
kHz and a bit rate of 16 or 24.
File names should use only capital letters, numbers
and the "_" (underscore). They should be 8 or fewer
characters plus the ".WAV" extension.
HINT
Windows: Windows XP and later
Macintosh: Mac OS x 10.2 and later
Project data is saved to the ROOT DIRECTORY of
the SD card as PROJxxx (xxx is the project number)
and audio data is saved as "WAV" files inside
"AUDIO" in the project directory.
MASTER track and stereo tracks are stereo
WAV files.
to the "AUDIO" folder in the "PROxxx" project
folder (xxx=project number) where you want
to use them. Use the R16 to assign the files to
tracks.
You can connect the R16 to a computer by USB
when the power is on.
If you connect the R16 by USB when its [POWER]
switch is OFF, you can start it up with power
supplied over USB.
For details about use with a computer, refer to the detailed
P.23
manual (PDF) on the CD-ROM included with the R16.
Press to disconnect the R16
or
as a card reader.
