4. Apply a generous amount of the included grease
to the Upright Axle (48) and to two Small Wave
Washers (118).
Insert the Upright Axle (48) through the Upright
(5) and center it. Slide a Small Wave Washer
(118) onto each side of the Upright Axle.
Identify the Right and Left Upper Body Legs (6,
7), which are marked with "Right" and "Left" stick-
ers, and orient them as shown.
Slide the Right and Left Upper Body Legs (6, 7)
onto each side of the Upright Axle (48).
Tighten an M8 x 16mm Patch Screw (102) and
an M8 x 23mm x 2mm Washer (126) into each
end of the Upright Axle (48).

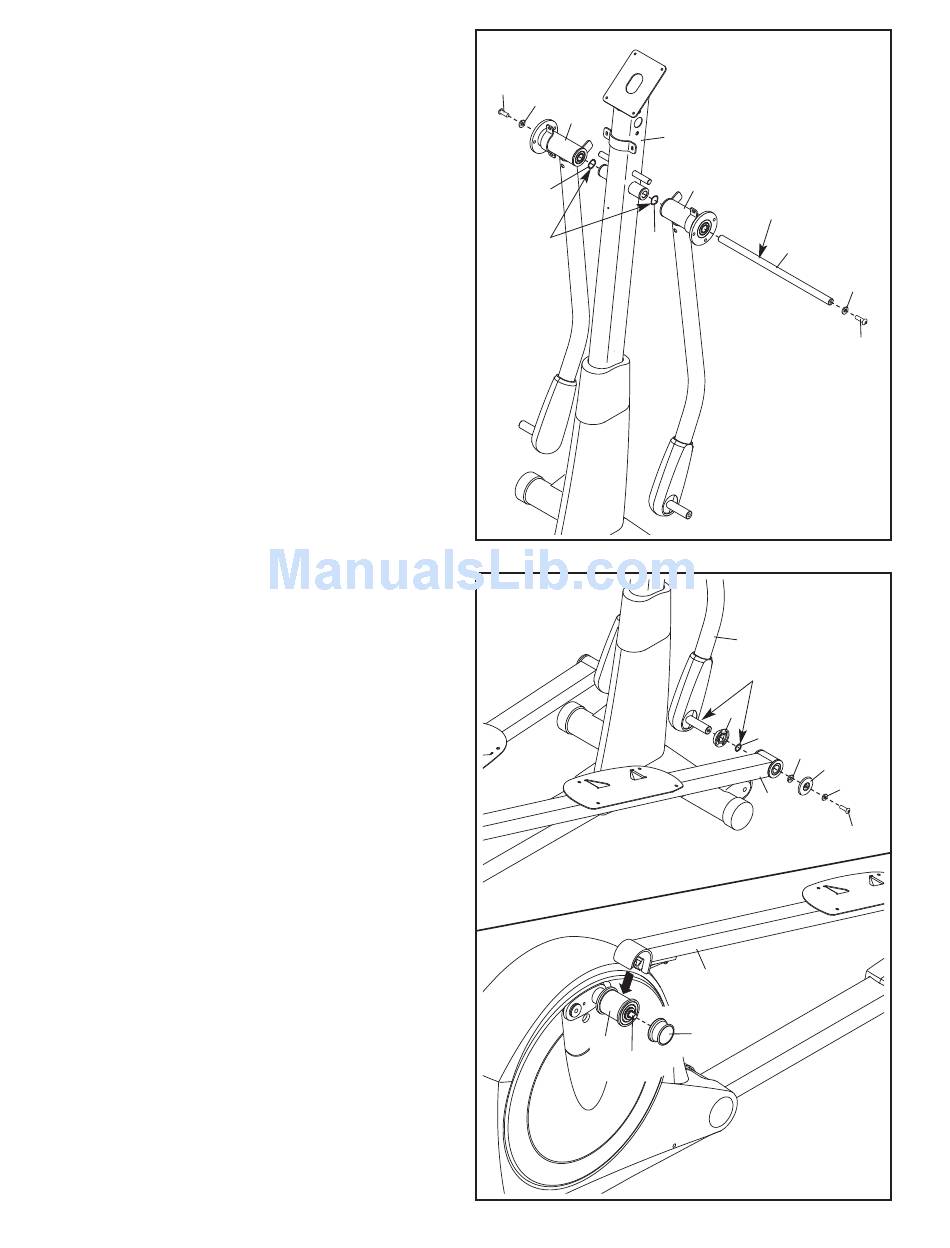

5. See the upper drawing. Apply some of the
included grease to the axle on the Right Upper
Body Leg (6) and to a Medium Wave Washer
(119).
Slide a Leg Spacer (55) and the Medium Wave
Washer (119) onto the Right Upper Body Leg
(6). Make sure that the flat side of the Leg
Spacer is facing outward.
Identify the Right Pedal Arm (12), which is
marked with a "Right" sticker, and orient it as
shown. Slide the Right Pedal Arm onto the
Right Upper Body Leg (6).
Attach the Right Pedal Arm (12) with an M8 x
23mm Shoulder Patch Screw (121), an M8 x
16mm x 2mm Washer (120), an Axle Cover
(56), and an M8 x 23.5mm x 1mm Washer
(110).
See the lower drawing. Press the Right Pedal
Arm (12) onto the right Adjustment Sleeve (46).
Make sure that the Right Pedal Arm latches
into place.
Tighten an Adjustment Knob (45) onto the right
Adjustment Pin (44).
Repeat this step on the other side of the
elliptical exerciser.
