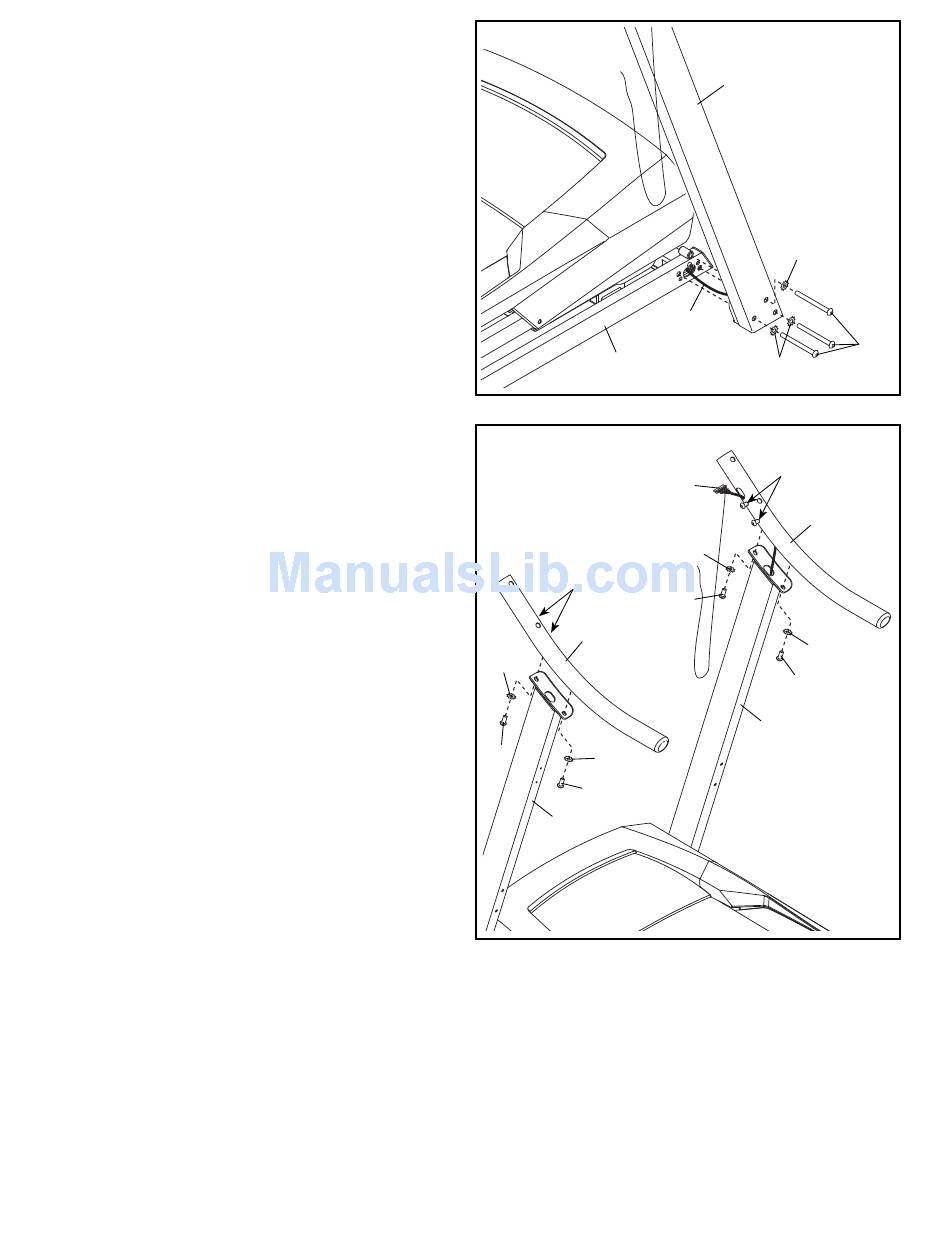

5. Hold the Right Upright (76) against the Base
(74). Be careful not to pinch the Upright
Wire (63).
Insert a 3/8" x 3 1/4" Screw (2) with a 3/8" Star
Washer (3) into the top hole in the Right Upright
(76). Then, partially tighten the Screw into the
Base (74).
Partially tighten two more 3/8" x 3 1/4" Screws
(2) with two 3/8" Star Washers (3) into the Right
Upright (76) and the Base (74); do not fully

tighten the Screws yet.

Attach the Left Upright (not shown) in the
same way. Note: There are no wires on the left
side.
6. Identify the Left and Right Handrails (59, 64).
Remove the four 5/16" x 3/4" Screws (5) and
four 5/16" Star Washers (6) from the bottoms
and sides of each Handrail.
Hold the Right Handrail (64) near the Right
Upright (76). Insert the wire tie on the Upright
Wire (63) through the hole in the bottom and pull
it out of the hole in the side of the Right Handrail
as shown. Then, pull the Upright Wire through
the Right Handrail.
Attach the Right Handrail (64) to the Right
Upright (76) with two of the 5/16" x 3/4" Screws
(5) and two of the 5/16" Star Washers (6) that
you just removed. Make sure not to pinch the
Upright Wire (63). Start both Screws, and
then tighten them.
Attach the Left Handrail (59) to the Left
Upright (66) as described above. Note: There
are no wires on the left side.
