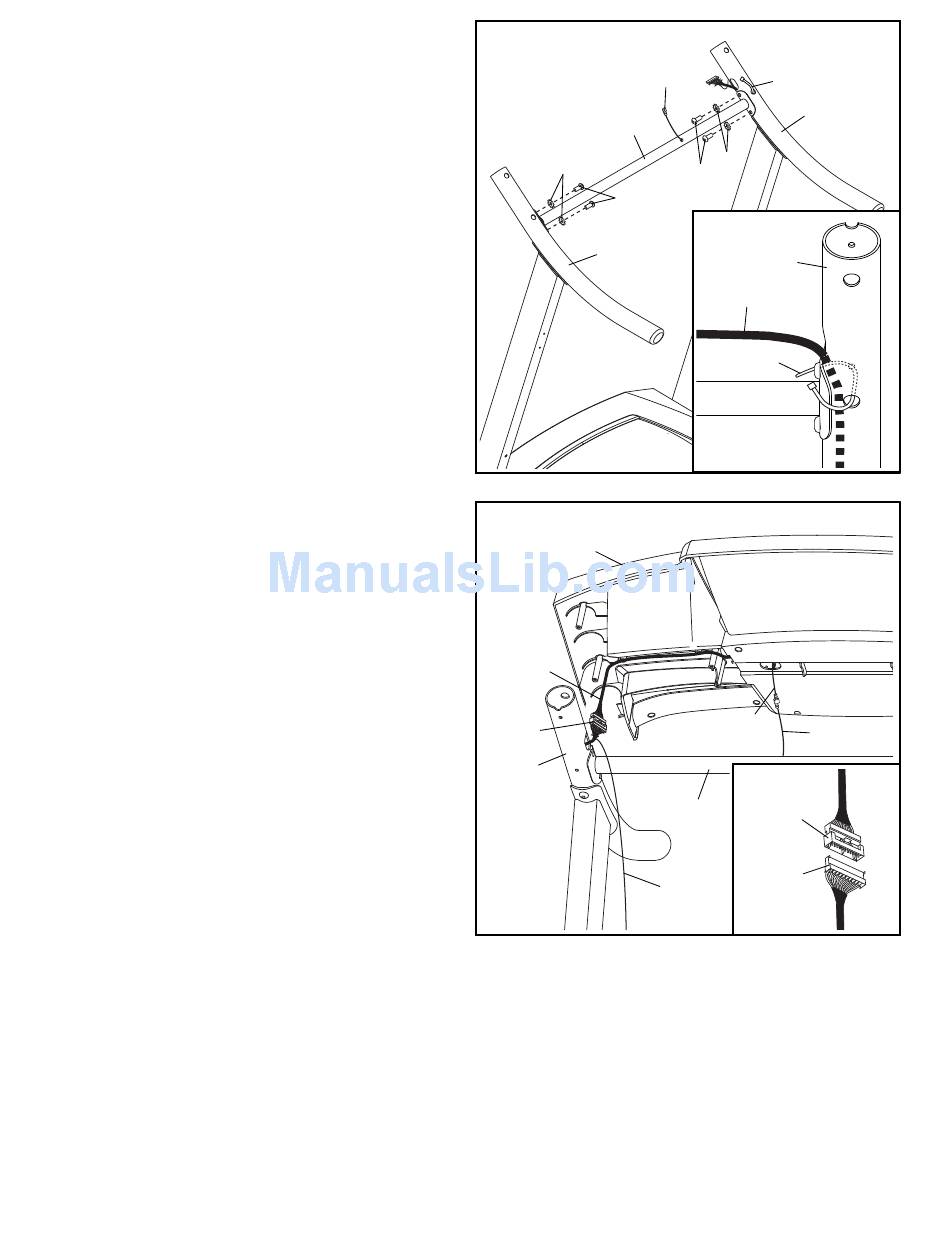

7. Position the Console Crossbar (61) between
the Left and Right Handrails (59, 64) with the
Console Ground Wire (47) positioned as shown.
Attach the Console Crossbar (61) to the Left and
Right Handrails (59, 64) with the other four 5/16"
x 3/4" Screws (5) and the other four 5/16" Star
Washers (6) that you removed in step 5. Start
all four Screws, and then tighten them.
See the inset drawing. Insert the included tie
(C) through the indicated holes in the top and
bottom of the Right Handrail (64) as shown.
Make sure that the Upright Wire (63) has been
secured to the side shown and then tighten the
wire tie.
8. With the help of a second person, hold the con-
sole assembly near the Right Handrail (64).
Connect the Upright Wire (63) to the console
wire. See the inset drawing. The connectors
should slide together easily and snap into
place. If they do not, turn one connector and try
again. IF YOU DO NOT CONNECT THE CON-
NECTORS PROPERLY, THE CONSOLE MAY
BECOME DAMAGED WHEN YOU TURN ON
THE POWER. Then, remove the wire tie from
the Upright Wire.
Connect the Console Ground Wire (47) on the
Console Crossbar (61) to the ground wire on the
console.
