Function

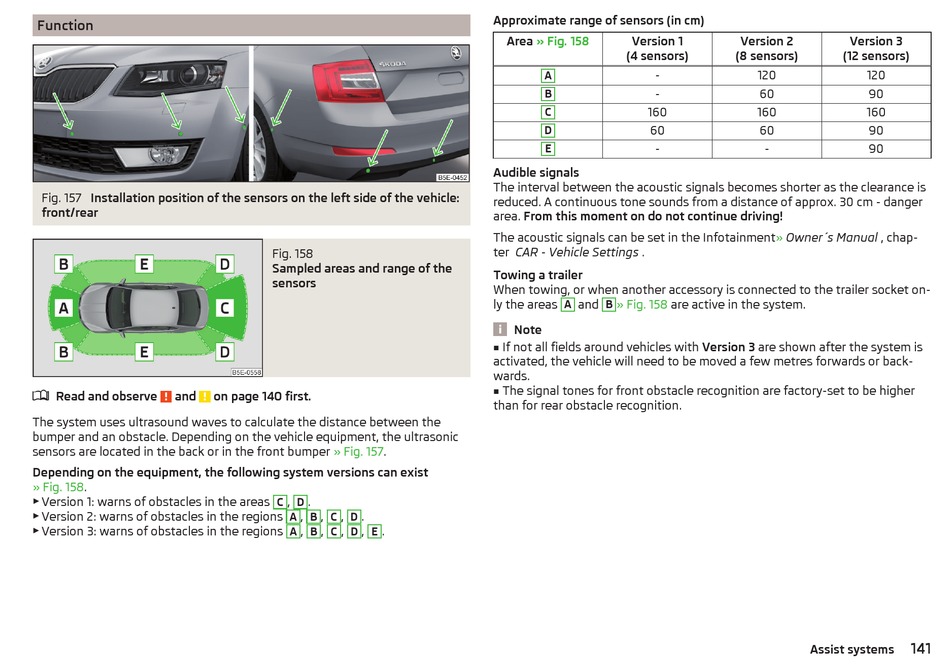

Fig. 157 Installation position of the sensors on the left side of the vehicle:
front/rear

Read and observe and
The system uses ultrasound waves to calculate the distance between the
bumper and an obstacle. Depending on the vehicle equipment, the ultrasonic
sensors are located in the back or in the front bumper
Depending on the equipment, the following system versions can exist
» Fig. 158.
▶
Version 1: warns of obstacles in the areas
▶
Version 2: warns of obstacles in the regions
▶
Version 3: warns of obstacles in the regions
Fig. 158
Sampled areas and range of the
sensors
on page 140 first.
» Fig. 157.
, .
C D
, , , .
A B C D
, , , , .
A B C D E
Approximate range of sensors (in cm)
Area » Fig. 158 Version 1
(4 sensors)
-
A
-
B
160
C
60
D
-
E
Audible signals
The interval between the acoustic signals becomes shorter as the clearance is
reduced. A continuous tone sounds from a distance of approx. 30 cm - danger
area. From this moment on do not continue driving!
The acoustic signals can be set in the
ter CAR - Vehicle Settings .
Towing a trailer
When towing, or when another accessory is connected to the trailer socket on-
ly the areas and » Fig. 158 are active in the system.
A B
Note
If not all fields around vehicles with Version 3 are shown after the system is
■
activated, the vehicle will need to be moved a few metres forwards or back-
wards.
The signal tones for front obstacle recognition are factory-set to be higher
■
than for rear obstacle recognition.
Version 2 Version 3
(8 sensors) (12 sensors)
120 120
60 90
160 160
60 90
- 90
