Metra Electronics 99-7954 Installation Instructions Manual

For suzuki sx4 2007-up
Hide thumbs

Advertisement

Quick Links

Download this manual

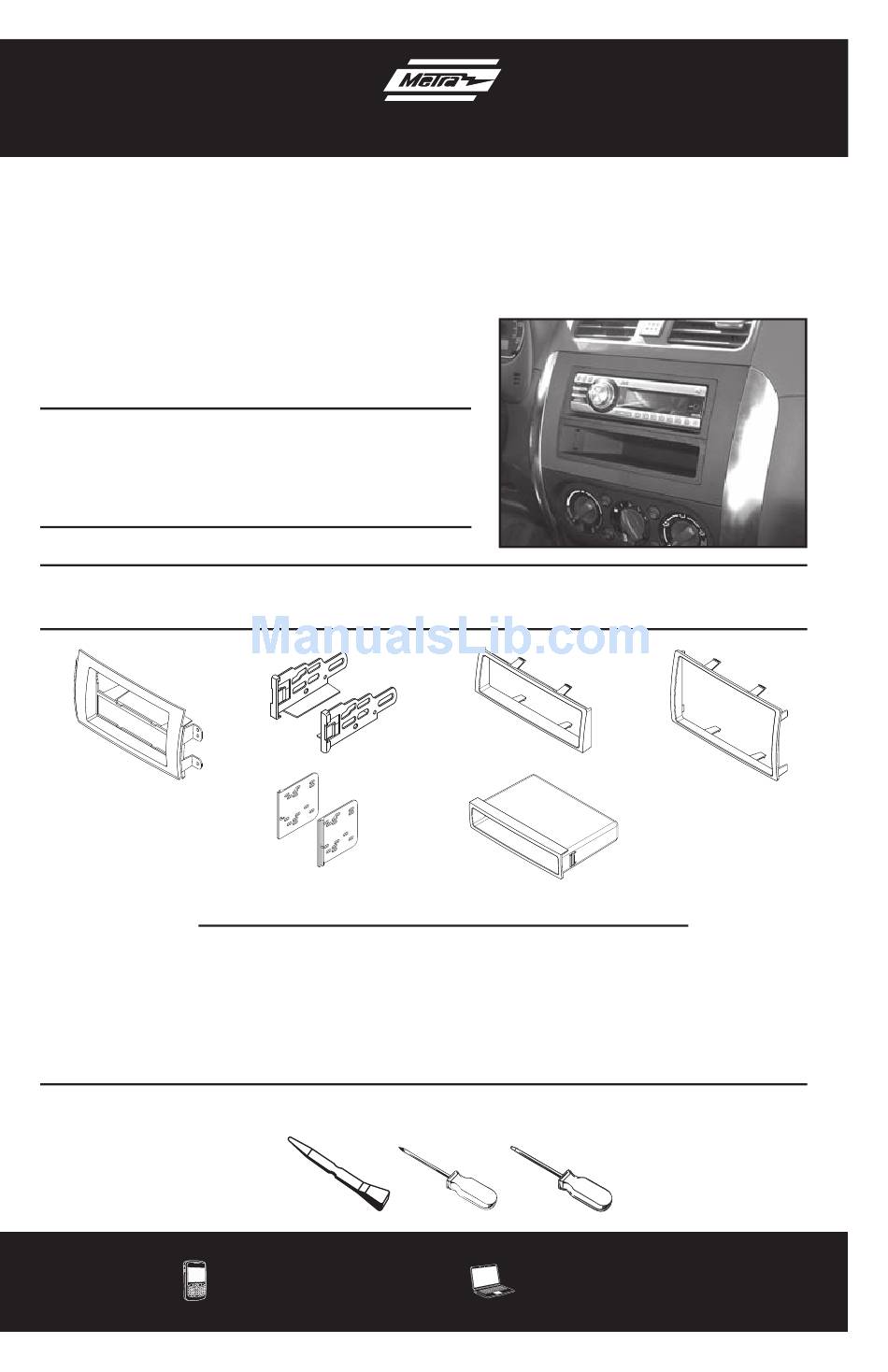

INSTALLATION INSTRUCTIONS FOR PART 99-7954
KIT FEATURES
• DIN radio provision with pocket
• ISO mount radio provision with pocket
• Double DIN radio provision
• Stacked ISO units provision

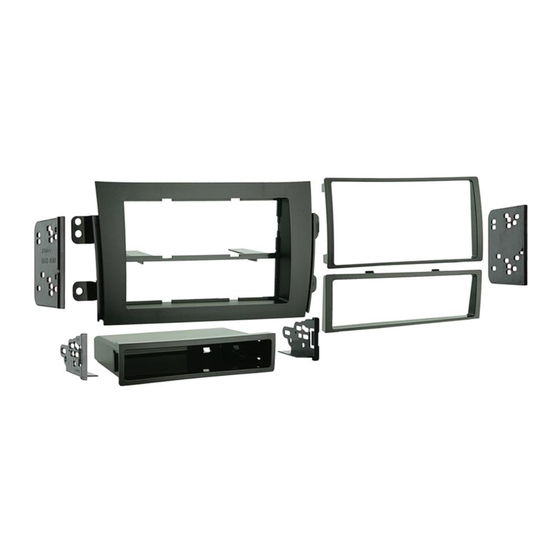

KIT COMPONENTS
• A) Radio Housing • B) ISO Brackets • C) ISO Trim Plate • D) Double DIN Trim Plate
• E) Double DIN Brackets • F) Pocket
A
WIRING & ANTENNA CONNECTIONS (Sold Separately)
Wiring Harness:
• 70-1721 - Honda harness 1998-up
Antenna Adapter:
• Not Required
Panel Removal Tool • Phillips Screwdriver • Small Flat Blade Screwdriver
APPLICATIONS
Suzuki SX4 2007-up
99-7954
B
E
TOOLS REQUIRED
METRA. THE WORLD'S BEST KITS.™
1-800-221-0932
© COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION
C
F
metraonline.com
D

Advertisement

loading

Related Manuals for Metra Electronics 99-7954

Summary of Contents for Metra Electronics 99-7954

  • Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-7954 Suzuki SX4 2007-up KIT FEATURES • DIN radio provision with pocket • ISO mount radio provision with pocket • Double DIN radio provision • Stacked ISO units provision KIT COMPONENTS • A) Radio Housing • B) ISO Brackets • C) ISO Trim Plate • D) Double DIN Trim Plate •...

  • Page 2: Table Of Contents

    All accessories, switches, and especially air bag indicator lights must be plugged in before reconnecting the battery or cycling the ignition. *NOTE: Refer also to the instructions included with the aftermarket radio. 99-7954 NOWLEDGE IS OWER Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry.

  • Page 3: Dash Disassembly

    Dash Disassembly 1. Unclip and remove the (2) outside trim panels. (Figure A) 2. Remove (4) Phillips screws securing the radio to the sub dash. Unplug and remove radio. (Figure B) Continue to kit assembly 99-7954 (Figure A) (Figure B)

  • Page 4: Kit Assembly

    Kit Assembly 99-7954 DIN radio provision with pocket 1. Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter from Metra or AXXESS. Re-connect the negative battery terminal and test the unit for proper operation.

  • Page 5: Iso Mount Radio Provision With Pocket

    Kit Assembly 99-7954 ISO mount radio provision with pocket 1. Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter from Metra or AXXESS. Re-connect the negative battery terminal and test the unit for proper operation.

  • Page 6: Double Din Radio Provision

    Kit Assembly 99-7954 Double DIN radio provision 1. Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter from Metra or AXXESS. Re-connect the negative battery terminal and test the unit for proper operation. 2. Cut and remove the center bar from the radio housing.

  • Page 7: Stacked Iso Units Provision

    Kit Assembly 99-7954 Stacked ISO units provision 1. Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter from Metra or AXXESS. Re-connect the negative battery terminal and test the unit for proper operation. 2. Cut and remove the center bar from the radio housing.
  • Page 8 INSTALLATION INSTRUCTIONS FOR PART 99-7954 METRA. THE WORLD’S BEST KITS.™ metraonline.com 1-800-221-0932 © COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION...
