ASSEMBLY
Assembly requires two people. Place all parts of the PROFORM
remove the packing materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires a phillips screwdriver
rubber mallet

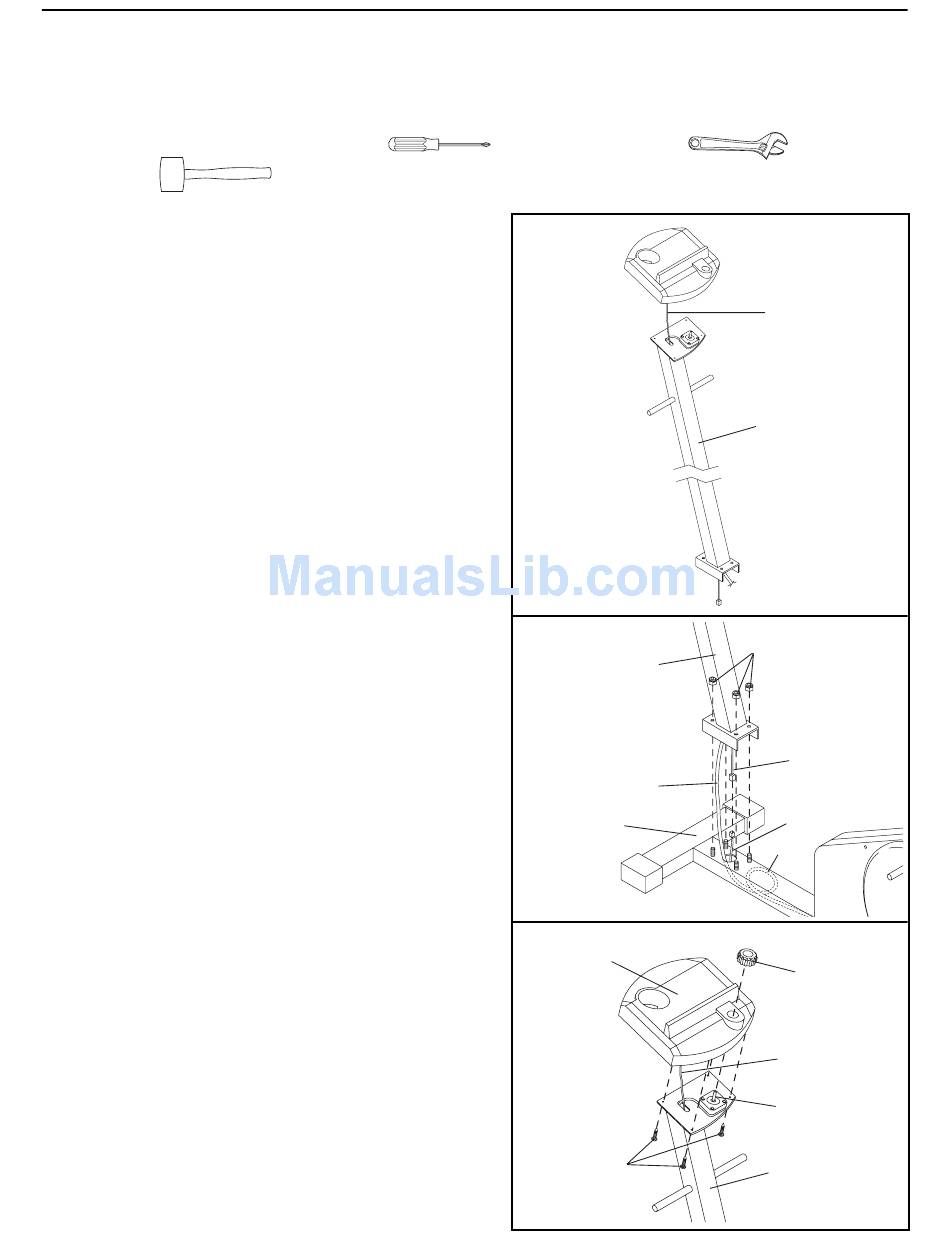

1. Feed the console wire down into the Upright (3), until
the end of the console wire extends from the lower
end of the Upright. Gently pull the end of the console
wire to remove any slack.
2. While another person holds the Upright (3), connect
the console wire to the Sensor Wire (25). After the
wires are connected, gently pull the upper end of
the console wire to remove any slack between the
Upright (3) and the Frame (1).
Bend the Resistance Cable (26) into a loop as shown
at the right, and push the loop into the Frame (1).
Slide the Upright (3) onto the welded bolts on the
Frame (1). Be careful to avoid pinching the wires.
Tighten a 3/8Ó Nylon Locknut (29) onto each welded
bolt.
3. Feed the console wire back down into the Upright (3).
Attach the Console (6) to the Upright with four #8 x
3/4Ó Screws (44). Be careful to avoid pinching the
console wire.
Press the Resistance Knob (50) onto the Resistance
Control (26).
.
¨
REVOLUTION in a cleared area and
, an adjustable wrench
1
2
26
1
3
6
44
6
, and a
Console
Wire
3
29
3
Console
Wire
25
Loop
50
Console
Wire
26
3
