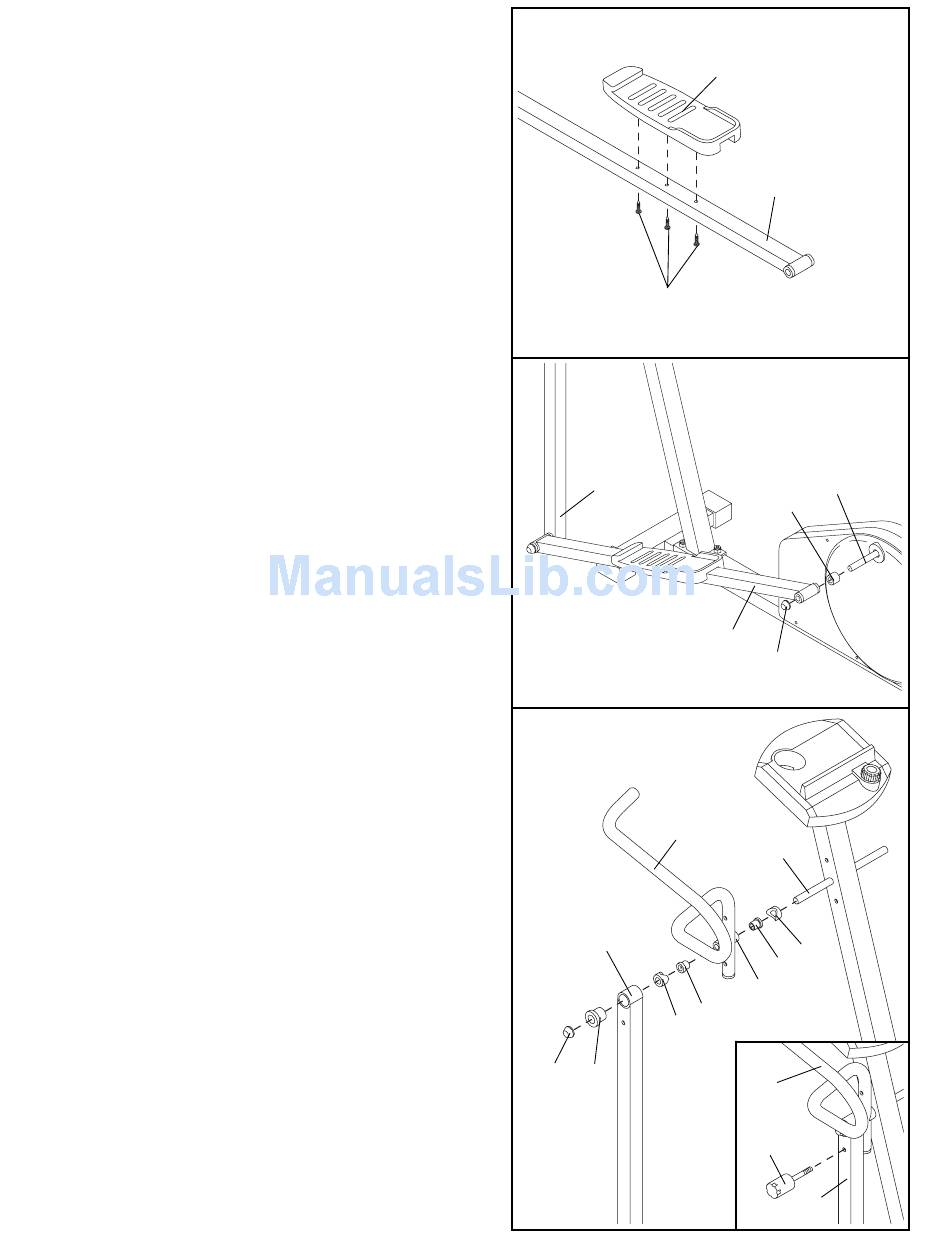

4. Attach a Pedal (31) to one of the Pedal Arms (12)
with three #8 x 3/4Ó Round Head Screws (16).
Repeat this step to attach a Pedal to the other Pedal
Arm (not shown).
5. Slide a Pedal Arm Spacer (41) onto the axle on the
left Pulley Arm (34). Slide the left Pedal Arm (12) onto
the axle. Be careful not to confuse the left Pedal
Arm with the right Pedal Arm (not shown); look at
the position of the Link Arm (10) to identify the
left Pedal Arm.
Refer to the PART IDENTIFICATION CHART on page
5 and identify the 3/4Ó Axle Caps (43). Tap a 3/4Ó Axle
Cap onto the axle on the left Pulley Arm (34).
Repeat this step to attach the right Pedal Arm (not
shown).
6. Push two Pivot Bushings (56) into the indicated tube
in the Left Handlebar (8). Press a Link Arm Bushing
(49) into the upper end of the left Link Arm (10) as
shown at the right.
Slide two Handlebar Spacers (55) and the Left
Handlebar (8) onto the left axle on the Upright (3).
Make sure that the Handlebar Spacers are in the
positions shown. Next, slide the left Link Arm (10)
onto the axle. Tap a 5/8Ó Axle Cap (57) onto the axle.
Refer to the inset drawing. Align the lower hole in the
Left Handlebar (8) with the hole in the Link Arm (10).
Insert a Lock Knob (58) into the Link Arm and tighten
the Lock Knob into the Left Handlebar.
Repeat this step to attach the Right Handlebar and
the right Link Arm (not shown).
