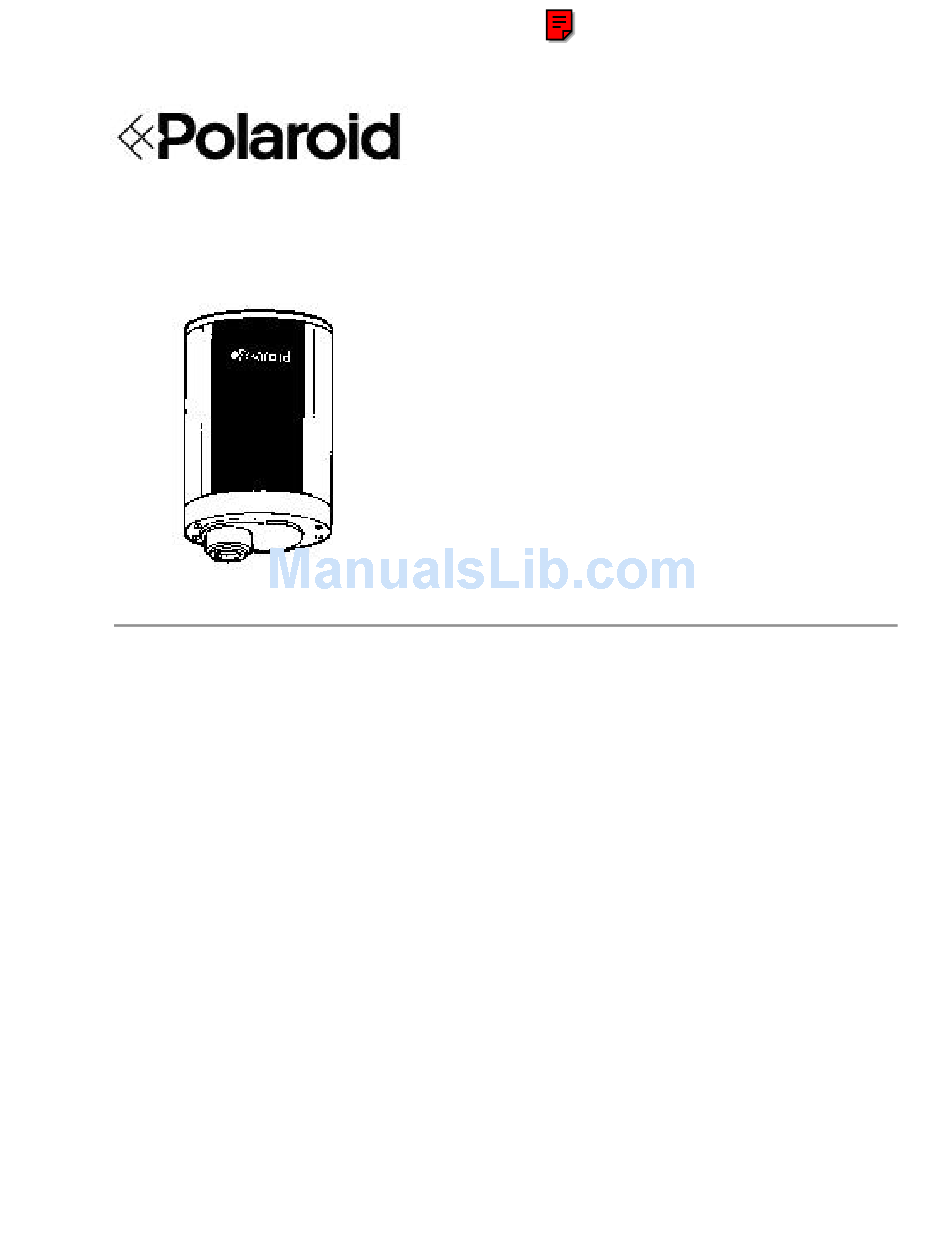

Repair Manual
Digital Microscope Camera
September 1997
Americas Business Center
Technical Services
201 Burlington Road
Bedford MA 01730
TEL: 1.781.386.5309
FAX: 1.781.386.5988

Advertisement

Table of Contents
loading

Related Manuals for Polaroid Digital Microscope Camera

Summary of Contents for Polaroid Digital Microscope Camera

  • Page 1 Repair Manual Digital Microscope Camera September 1997 Americas Business Center Technical Services 201 Burlington Road Bedford MA 01730 TEL: 1.781.386.5309 FAX: 1.781.386.5988...

  • Page 2: Table Of Contents

    DMC Repair Manual Table of Contents Table of Contents 1. Camera Overview ....................Overview ........................ Features ......................... Specifications ......................2. Parts Replacement ....................Required Tools and Equipment................Cautions ......................... Electrostatic Discharge Warning ................Inspection and Cleaning ..................Connectors ......................Screw Replacement (Front and Rear Panels) ............Disassembly/Assembly of Camera ...............
  • Page 3 DMC Repair Manual Table of Contents Shutter Assembly ....................Removal........................ Installation ......................Electronics Assembly (Front End /Back End Boards) ..........Removal........................ Installation ......................Vanity Panel ......................Removal........................ Installation ......................XSYNC Connector ....................Removal........................ Installation ......................3. Testing and Adjustments ..................LabView ........................
  • Page 4 DMC Repair Manual Table of Contents Dust Test ......................Required Test Equipment and Tools ..............Equipment Setup ....................Test Procedure ....................Cleaning Anti-Alias Optical filter and CCD Window ..........Required Test Equipment and Tools ..............Equipment Setup ....................Test Procedure ....................Changing Camera Serial Number ................

  • Page 5: Camera Overview

    1. Camera Overview...
  • Page 6 DMC Repair Manual Camera Overview 1. Camera Overview Contents Overview ......................7 Features ......................8 Specifications..................... 11...

  • Page 7: Overview

    DMC Repair Manual Camera Overview Overview This section of the Repair Manual gives an overview of the Digital Microscope Camera (DMC). It only provides the necessary information pertaining to features and specifications for the camera. Note: For detailed information pertaining to setting up the camera, installing and starting its software, assigning SCSI ID's and checking SCSI connections, and using application software, refer to the DMC User Guide.

  • Page 8: Features

    DMC Repair Manual Camera Overview Features Table 1-1 list and describes the features of the camera. Table 1-1. Camera Features Feature Description Power Switch Turns the camera on and off. Strobe X-sync Connector Connector for electronic flash, if used with the camera. Termination Selector Turns camera SCSI termination on or off.
  • Page 9 Software Diskettes TWAIN driver (for Windows 95 and Windows NT only), Plug-in software for PowerMac/PowerPC systems, and Polaroid DMC Direct camera utility software for Windows 95, Windows NT, and PowerMac/ PowerPC systems. DMC TWAIN Driver : Using the TWAIN driver requires an image-processing application (not provided) compatible with the TWAIN specification.
  • Page 10 DMC Repair Manual Camera Overview Table 1-1. CameraFeatures (Con't) Feature Description C-mount Accepts standard C-mount adapter for attachment to microscopes, other optical instruments and C-mount lenses. Note: Attaching the camera to amicroscope requires . a 63 or 1:1 C-mount adapter (not provided) compatible with your microscope.

  • Page 11: Specifications

    5% to 90%, No condensation Preview Mode: Black and white, up to 5 frames/second Sensor Resolution and Size: - Polaroid one million pixel, 12.15 CCD Output Formats: Super High Resolution 1600 x 1200 pixels, 24-bit color 16.7 million colors, 5.6 MB file...
  • Page 12 10 MB available 10 MB available SCSI ASPI compliant SCSI adapter card Digitized Image Tiff Tiff Formats Software: (Included with Camera) Polaroid Direct Photo Polaroid Direct Photo Image Capture Image Capture Camera Utility Camera Utility PhotoShop Compliant Twain Compliant Plug-in Plug-in...

  • Page 13: Parts Replacement

    2. Parts Replacement...
  • Page 14 DMC Repair Manual Parts Replacement 2. Parts Replacement Contents Required Tools and Equipment ................ Cautions ......................Electrostatic Discharge Warning ..............Inspection and Cleaning.................. Connectors ..................... Screw Replacement (Front and Rear Panels) ..........Disassembly/Assembly of Camera ..............Bottom Extrusion .................... Removal....................... Installation ....................
  • Page 15 DMC Repair Manual Parts Replacement Electronics Assembly (Front End /Back End Boards) ........Removal....................... Installation ....................Vanity Panel ....................Removal....................... Installation ....................XSYNC Connector ..................Removal....................... Installation ....................

  • Page 16: Required Tools And Equipment

    DMC Repair Manual Parts Replacement Required Tools and Equipment • Anti-static mat • ESD wrist strap • Lens cleaning tissue • Dust and static free wiping cloth (Texwipe type TX309) • RTV Sealant (Dow Corning 3140) • Cotton gloves or finger cots •...

  • Page 17: Cautions

    DMC Repair Manual Parts Replacement Cautions Electrostatic Digital Microscope Camera circuitry can easily be damaged by small Discharge static discharges. Always use an anti-static mat and an ESD wrist- Warning strap when disassembling, assembling or repairing the camera with the bottom extrusion removed.

  • Page 18: Disassembly/Assembly Of Camera

    Parts Replacement Disassembly/Assembly of Camera This section of the Repair Manual describes the Digital Microscope Camera's disassembly and assembly procedures. Before performing any of the procedures described in this section, make sure that the camera has been turned off and that its power pack has been unplugged.

  • Page 19: Installation

    DMC Repair Manual Parts Replacement Installation 1. Position the bottom extrusion onto the camera assembly making sure its tripod mount screw hole faces the front panel. 2. Install and tighten the two (2) screws that secures the bottom extrusion to the rear panel. 3.

  • Page 20: Rear Panel And Xsync Assembly

    DMC Repair Manual Parts Replacement Rear Panel and XSYNC Assembly (Figure 2-3) Removal 1. Remove the bottom extrusion. 2. Remove the two (2) screws that secures SCSI connector J5 to the rear panel. 3. Remove the two (2) screws securing the rear panel to the top extrusion. 4.

  • Page 21: Front Panel And Optics Assembly

    DMC Repair Manual Parts Replacement Front Panel and Optics Assembly (Figure 2-4) Removal 1. Remove the bottom extrusion. 2. Remove the two (2) screws securing the front panel to the top extrusion. 3. Gently pull off the front panel and optics assembly from the top extrusion. Note: Be careful not to: •...

  • Page 22: Installation

    DMC Repair Manual Parts Replacement Installation 1. Reconnect the shutter flex to connector J1 and the CCD imager flex to connector J5 and on the front end board. 2. Push in connector J1 clamp to secure the shutter flex and connector J5 to secure the CCD imager flex.

  • Page 23: Ccd Imager

    DMC Repair Manual Parts Replacement CCD Imager (Figure 2-5) Removal 1. Remove the bottom extrusion. 2. Remove the front panel and optics assembly. 3. Place the front panel and the optics assembly onto an anti-static mat. 4. Remove the three (3) screws securing the CCD imager retainer to its front panel supports. 5.

  • Page 24: Installation

    DMC Repair Manual Parts Replacement Installation 1. Insert the CCD flex into CCD imager connector J1. 2. Push in connector J1 clamp to secure the CCD imager flex. 3. Insert the CCD imager into the optical mount making sure that the three (3) gold pads on the CCD imager PC board are aligned with the three (3) tabs on the optical mount.

  • Page 25: Optics Assembly

    DMC Repair Manual Parts Replacement Optics Assembly (Figure 2-6) Removal 1. Remove the bottom extrusion. 2. Remove the front panel and optics assembly. 3. Place the front panel and the optics assembly onto an anti-static mat. 4. Remove the three (3) screws securing the optics assembly to its front panel supports. 5.

  • Page 26: Installation

    DMC Repair Manual Parts Replacement Installation 1. Place the optics assembly onto its front panel supports. 2. Insert the CCD imager into the optical mount making sure that the three (3) gold pads on the CCD imager PC board are aligned with the three (3) plastic tabs on the optical mount. 3.

  • Page 27: Anti-Alias Optical Filter Assembly

    DMC Repair Manual Parts Replacement Anti-Alias Optical Filter Assembly (Figure 2-7) Removal 1. Remove the bottom extrusion. 2. Remove the front panel and optics assembly. 3. Place the front panel and the optics assembly onto an anti-static mat. 4. Remove the three (3) screws securing the optics assembly to its front panel supports. 5.

  • Page 28: Installation

    DMC Repair Manual Parts Replacement 8. Using the spanner nut tool, remove the spanner nut securing the anti-alias optical filter in the optical mount. Note: Make sure that the pins are properly inserted into the two (2) holes located on the spanner nut being careful not to scratch or damage the anti-alias optical filter.
  • Page 29 DMC Repair Manual Parts Replacement 8. Place the backing pad over the CCD imager PC board making sure that the small and large tabs are properly positioned. 9. Place the CCD retainer over the CCD imager and backing pad assembly. 10.

  • Page 30: Shutter Assembly

    DMC Repair Manual Parts Replacement Shutter Assembly (Figure 2-8) Removal 1. Remove the bottom extrusion. 2. Remove the front panel and optics assembly. 3. Place the front panel and the optics assembly onto an anti-static mat. 4. Remove the three (3) screws securing the optics assembly to its front panel supports. 5.

  • Page 31: Installation

    DMC Repair Manual Parts Replacement Installation 1. Slide the shutter assembly into the optical mount between the two (2) screw positions. 2. Place the optical mount into the optical mount fixture with the threads facing down. 3. Install and tighten the two (2) screws that secures the shutter assembly to the optical mount. 4.

  • Page 32: Electronics Assembly (Front End /Back End Boards)

    DMC Repair Manual Parts Replacement Electronics Assembly (Front End/Back End Boards) (Figure 2-9) Removal 1. Remove the bottom extrusion. 2. Remove the front panel and optics assembly. 3. Remove the four (4) screws and star washers that secures the electronics assembly to the top extrusion supports: 4.

  • Page 33: Installation

    DMC Repair Manual Parts Replacement Installation 1. Connect the back end board (male connector J3) to the front end board (female connector J3). 2. Slide the electronics assembly into the top extrusion. Notes: • Electronic assembly must slide in from the end furthest from the notch on the base of the top extrusion.

  • Page 34: Vanity Panel

    DMC Repair Manual Parts Replacement Vanity Panel (Figure 2-10) Removal 1. Remove the four (4) screws that secures the front panel to the top and bottom extrusion. 2. Gently pull out the front panel just far enough not to disconnect the CCD and shutter flex. 3.

  • Page 35: Xsync Connector

    DMC Repair Manual Parts Replacement XSYNC Connector (Figure 2-11) Removal 1. Remove the rear panel and XSYNC assembly. 2. Using a small flat scredriver, remove the screw securing the XSYNC cable to the XSYNC assembly. Note: XSYNC assembly consists of: •...

  • Page 36: Installation

    DMC Repair Manual Parts Replacement Installation 1. Slide the white nylon shoulder washer onto the XSYNC cable assembly making sure that its brim faces the XSYNC cable assembly. 2. Slide the lug cable over the nut. 3. Snap the black inner shoulder washer over the lug cable and nut making sure that its flat side faces the lug cable.
  • Page 37 3. Testing and Adjustment...

  • Page 38: Testing And Adjustments

    DMC Repair Manual Testing & Adjustment 3. Testing and Adjustment Contents LabView ......................... 40 Overview ......................40 Front Panel ......................40 Block Diagram ....................40 Icon/Connector ....................41 Test Software ...................... 41 Tester Operation ....................41 Starting the Tester ..................... 41 Stopping the Tester ...................
  • Page 39 DMC Repair Manual Testing & Adjustment Cleaning Anti-Alias Optical filter and CCD Window ..........69 Required Test Equipment and Tools ............... 69 Equipment Setup .................... 69 Test Procedure ....................70 Changing Camera Serial Number ............... 72 Required Test Equipment and Tools ............... 72 Equipment Setup ....................

  • Page 40: Labview

    (VI's) instead of writing text-based programs. VI's can be used to acquire data from plug-in boards and programmable instruments such as Digital Microscope Camera (DMC). VI's can also be assembled to analyze data and to present results through graphical user interfaces.

  • Page 41: Icon/Connector

    DMC Repair Manual Testing & Adjustment analysis VI's, Sub VI components which call other VI's, and network and file I/O functions that store or retrieve data in ASCII, binary, or spreadsheet formats. Icon/Connector The icon/connector is the calling interface. The icon is the graphical ID of the VI, and the connector assigns controls and indicators to VI input and output terminals.

  • Page 42: Stopping The Tester

    DMC Repair Manual Testing & Adjustment Stopping the Tester Note: The Tester should not be stopped in the middle of a test sequence. However, if an emergency situation occurs, use the following steps to stop and restart the Tester. 1. Click the mouse on the stop to completely stop the DMC's test sequence.

  • Page 43: Testing And Adjustment Guidelines

    DMC Repair Manual Testing&Adjustment Testing Guidelines As the selected LabView test program runs, many windows and dialog boxes appear and disappear throughout the test process. Use the following test guidelines to perform the requested user tasks. • Yes/No Click on appropriate response (Yes or No). Dialog Boxes •...

  • Page 44: Testing And Adjustments

    DMC Repair Manual Testing & Adjustment Testing and Adjustments Pretest Required Test Equipment and Tools • Power Computing Power PC or equivalent • SCSI Cable • Camera Test Fixture (Nest) • 1-ohm Resistor Box • 0 - 10 Vdc Power Supply •...
  • Page 45 DMC Repair Manual Testing & Adjustment 6. Connect the 1-ohm resistor box 6 Vdc output cable to the camera power jack. 7. Connect the computer ribbon cable to the 1-ohm resistor box. 8. Turn on the test equipment as follows: •...

  • Page 46: Pretest Equipment Test Setup

    DMC Repair Manual Testing & Adjustment Equipment Resolution Setup Chart Power Computing Power PC Foil DMC Pretest External Power Target Fixture Supply (6 Vdc) LED (Red) Pretest Fixture Power Supply MacBeth Color Checker Chart Camera 1-Ohm SCSI Cable Resistor Box Camera Test Fixture (Nest)

  • Page 47: Test Procedure

    DMC Repair Manual Testing & Adjustment Test Procedure 1. If applicable, enter user password. 2. Double click on the hard drive (HD) icon. The HD windows appears. HD Icon 3. Double click on the DMC folder. The DMC window appears. 4.
  • Page 48 DMC Repair Manual Testing & Adjustment Note: This Pretest VI does not run automatically. Each test must be run manually by not the particular test passed ( Pass ) or failed ( Fail If the particular test failed, stop the test and fix the camera. Resume tests after camera has been fixed.
  • Page 49 DMC Repair Manual Testing & Adjustment Set Defaults Test • Click on the Set Defaults button. The Set Defaults screen appears. Defaults • Click on the Defaults button. The action sets the EEPROM test defaults. Snap Test • Click on the Snap test button. A window appears on the Pretest VI panel indicating that the Snap test is running.
  • Page 50 DMC Repair Manual Testing & Adjustment Flair & Bloom • Click on the Flair & Bloom button. A window appears on the Pretest VI panel indicating that the Flair and Bloom test is running. It also prompts you place a piece of white paper approximately 1 foot in front of the camera to check for dark spots.
  • Page 51 DMC Repair Manual Testing & Adjustment Dark Image Test • Click on the Dark Image Test button. A dark image appears prompting you to check the image for noise and horizontal streaks. • Click the appropriate button (Yes or No). SCSI ID Switch •...

  • Page 52: Calibration

    • Camera SCSI Cable • Camera Test Fixture (Nest) • Keithly 485 AutoRanging Picoammeter or Equivalent • Polaroid Model B Light Source (DMC Blue Box) with Photodiode attached to glass • Diorama Test Bench • PDC Diorama Camera Test Fixture (Nest) •...

  • Page 53: Equipment Setup

    DMC Repair Manual Testing & Adjustment Equipment Setup (Figures 3-2 through 3-4) 1. Attach the Navitar CCTV 12.5mm C-mount lens onto the camera lens. 2. Set the lens to f-stop 8 at infinity. 3. Connect the SCSI cable from the host computer SCSI connector to the camera SCSI connector.

  • Page 54: Calibration Test Equipment Setup

    DMC Repair Manual Testing & Adjustment Photodiode Camera Power Picoammeter Supply Power Computing Power PC Model B Light Box Camera Camera Nest SCSI Cable Camera Figure 3-2. Calibration test equipment setup (ambient) Checker/Resolution Neutral Density MacBeth Color Target Filter Checker Chart Auxiliary Strobe Camera Power...

  • Page 55: Calibration Test Equipment Setup (Neutral Density Filter)

    DMC Repair Manual Testing & Adjustment MacBeth Color Neutral Density Checker Chart Filter Checker/Resolution Camera Power Target Supply Auxiliary Strobe Power Computing Power PC Diorama Camera Bench SCSI Cable Diorama Camera Camera Nest Figure 3-4. Calibration test equipment setup (neutral density filter)

  • Page 56: Test Procedure

    DMC Repair Manual Testing & Adjustment Test Procedure 1. If applicable, enter user password. 2. Double click on the host computer hard drive (HD) icon. The hard drive (HD) windows appears. HD Icon 3. Double click on the DMC folder. The DMC window appears. 4.
  • Page 57 DMC Repair Manual Testing & Adjustment 7. Set calibration test parameters as follows: (Test parameters located at left side of displayed calibration test panel.) • Do no tests to OFF • Do all tests to ON • Load defaults to OFF Note: Usually Do all test to ON is selected.
  • Page 58 DMC Repair Manual Testing & Adjustment 13. Set the light box to 50 Cd/Ft Note: The calibration table affixed to the light box indicates the equivalent diode current for the particular light box setting. Adjust the light until the Keithly 485 AutoRanging Picoammeter reads the specified diode current.
  • Page 59 DMC Repair Manual Testing & Adjustment 16. Move camera to focus test station making sure that it is properly placed onto test fixture. Caution Make sure that the power cord is not disconnected when moving the camera from the ambient test station to the focus test station.
  • Page 60 DMC Repair Manual Testing & Adjustment 30. Click on the Cancel button. The screen displays the Cal Archive window indicating whether or not a particular calibration test passed ( Pass ) or failed ( Fail Note: If any of the calibration tests failed ( Fail ), refer to the Calibration Troubleshooting Guide in the DMC Repair Manual to determine the cause of the failure.

  • Page 61: Image Performance

    DMC Repair Manual Testing & Adjustment Image Performance Test Required Test Equipment and Tools • Power Computing Power PC or equivalent • DMC Switching Power Supply • Camera SCSI Cable • C-mount lens (Navitar CCTV 12.5mm) • Universal Camera Test Fixture (Nest) •...

  • Page 62: Image Performance Test Equipment Setup

    DMC Repair Manual Testing & Adjustment 7. Turn on the camera as follows: • If applicable, set the SCSI ID to 4. • Set the Termination Selector to Off (0). • Set Power Switch to On (0). Kyoritso Camera Power Light Box Supply Power Computing...

  • Page 63: Test Procedure

    DMC Repair Manual Testing & Adjustment Test Procedure 1. If applicable, enter user password. 2. Double click on the hard drive (HD) icon. The HD windows appears. HD Icon 3. Double click on the DMC folder. The DMC window appears. 4.
  • Page 64 DMC Repair Manual Testing & Adjustment 6. Click on the white arrow. Arrow should change to black. This action automatically starts the selected LabView VI test program. 7. Upon completion of the image performance procedure, the screen displays a panel indicating whether or not a particular image performance test passed (Pass) or failed (Fail).

  • Page 65: Dust Test

    DMC Repair Manual Testing & Adjustment Dust Test Required Test Equipment and Tools • Power Computing Power PC or equivalent • DMC Switching Power Supply • Camera SCSI Cable • Universal Camera Test Fixture (Nest) • Dolan Jenner Light Source •...

  • Page 66: Test Procedure

    DMC Repair Manual Testing & Adjustment Camera Power Dolan Jenner Black Tube Supply Light Source 4” x 6’ Power Computing Power PC Camera SCSI Cable Universal Camera Nest Camera Figure 3-6. Dust test setup Test Procedure 1. If applicable, enter user password. 2.
  • Page 67 DMC Repair Manual Testing & Adjustment 4. Double click on the Dust Buster VI icon. This action loads the selected LabView VI test program. 5. Once the LabView VI test program is loaded, the front panel appears indicating that the selected LabView VI test program is waiting for run instructions.
  • Page 68 DMC Repair Manual Testing & Adjustment 8. Upon completion of the dust buster procedure, the screen displays the dust particles. Window Pass Fail 9. If their are less than 10 dust particles in the total window area, camera OK. Proceed to step 10.

  • Page 69: Cleaning Anti-Alias Optical Filter And Ccd Window

    DMC Repair Manual Testing & Adjustment Cleaning Anti-Alias Optical Filter and CCD Window Required Test Equipment and Tools • Mac Centris 650 Computer or equivalent • DMC Switching Power Supply • Camera SCSI Cable • Universal Camera Test Fixture (Nest) Equipment Setup (Figure 3-7) 1.

  • Page 70: Test Procedure

    DMC Repair Manual Testing & Adjustment Camera Power Supply Mac Centris 650 Computer Camera Universal SCSI Cable Camera Nest Camera Figure 3-7. Cleaning anti-alias optical filter and CCD window test setup Test Procedure 1. If applicable, enter user password. 2. Double click on the hard drive (HD) icon. The HD windows appears. HD Icon 3.
  • Page 71 DMC Repair Manual Testing & Adjustment 5. Once the LabView VI test program is loaded, the Collimation front panel appears. 6. Click on the white run arrow. Arrow should change to black. 7. Click on the red Open Shutter Fully button. Camera shutter should open. 8.

  • Page 72: Changing Camera Serial Number

    DMC Repair Manual Testing & Adjustment Changing Camera Serial Number Note: This program is used to update the cameras serial number when the CCD is changed. Since the CCD contains the EEPROM, the serial number would be lost when the CCD is changed (either no serial number will be present, or a previously assigned number which was used by a different camera may be in the new CCD EEPROM.

  • Page 73: Test Procedure

    DMC Repair Manual Testing & Adjustment Camera Power Supply Power Computing Power PC Camera Universal SCSI Cable Camera Nest Camera Figure 3-8. Changing serial number test setup Test Procedure 1. If applicable, enter user password. 2. Double click on the hard drive (HD) icon. The HD windows appears. HD Icon 3.
  • Page 74 DMC Repair Manual Testing & Adjustment 4. Double click on the Manual Serial # icon. This action loads the selected LabView VI test program. 5. Once the LabView VI test program is loaded, the Manual Serial # front panel appears. 7.
  • Page 75 DMC Repair Manual Testing & Adjustment 9. Select Preferences and then double click on the LabView Preferences box. The Find local file Desktop window appears. 10. Select and double click on the Hard Drive box. The Find local file Hard Drive window appears.
  • Page 76 DMC Repair Manual Testing & Adjustment 12. Select and double click on SD serial # local log box. A window appears indicating the serial number to be entered. 13. Check the serial number to be entered. Notes: • If the serial number to be entered is correct, click on OK. •...
