Polaroid Macro 5 SLR Repair Manual

Slr camera
Hide thumbs Also See for Macro 5 SLR:
Table of Contents

Advertisement

Quick Links

See also: User Manual
Repair Manual
Macro 5 SLR Camera
October 1998
Rev replaces September 1996
Americas Business Center
Technical Services
201 Burlington Road
Bedford MA 01730
TEL: 1.781.386.5309
FAX: 1.781.386.5988

Advertisement

Table of Contents
loading

Related Manuals for Polaroid Macro 5 SLR

Summary of Contents for Polaroid Macro 5 SLR

  • Page 1 Repair Manual Macro 5 SLR Camera October 1998 Rev replaces September 1996 Americas Business Center Technical Services 201 Burlington Road Bedford MA 01730 TEL: 1.781.386.5309 FAX: 1.781.386.5988...

  • Page 2: Table Of Contents

    Repair Manual Macro 5 SLR Camera Contents Purpose of this Manual ........3 Organization of this Manual ......3 Other Documents Required for Service .... 3 List of Illustrations ..........4 Section 1. Camera Description ......6 Section 2. Theory of Operation ......20 Section 3.

  • Page 3: Purpose Of This Manual

    Macro 5 SLR Camera Repair Manual Purpose of this Manual This service manual is intended as a reference guide for Polaroid and Polaroid authorized service personnel. Organization of this Manual Camera Description. General information about camera capabilities and applications. Theory of Operation. Detailed explanation of how the various camera components function during the picture-taking sequence.

  • Page 4: List Of Illustrations

    Repair Manual Macro 5 SLR Camera List of Illustrations Section 1. Camera Description Figure 1-1 Macro 5 SLR Camera ................8 Figure 1-2 Macro 5 SLR Features ................10 Figure 1-3 Control Panel ..................14 Section 2. Theory of Operation Figure 2-1 Camera Setup..................23 Figure 2-2 Picture Taking ..................26...
  • Page 5 Macro 5 SLR Camera Repair Manual List of Illustrations (continued) Figure 5-8 S1/S2 PC Board..................53 Figure 5-9 Control Panel ..................55 Figure 5-10 Logic PC Board..................58 Figure 5-11 Camera back..................60 Figure 5-12 Encoder Plate and Lower Turret Plate ..........62 Figure 5-12a Encoder PC Board ................63 Figure 5-13 Turret Assembly...................65...

  • Page 6: Section 1. Camera Description

    Macro 5 SLR Camera Repair Manual Section 1. Camera Description IMPORTANT SAFETY INSTRUCTIONS ............. 7 General ........................ 8 Features ....................... 9 Camera ......................9 Control Panel ....................14 Specifications ..................... 18...

  • Page 7: Important Safety Instructions

    Repair Manual Macro 5 SLR Camera IMPORTANT SAFETY INSTRUCTIONS When servicing the Macro 5 SLR camera, always follow basic safety precautions. CAUTION THE FILM USED BY THE CAMERA CONTAINS A CAUSTIC JELLY THAT IS SAFELY PACKED INSIDE THE FILM PACK. IF YOU SHOULD ACCIDENTLY GET...

  • Page 8: Figure 1-1 Macro 5 Slr Camera

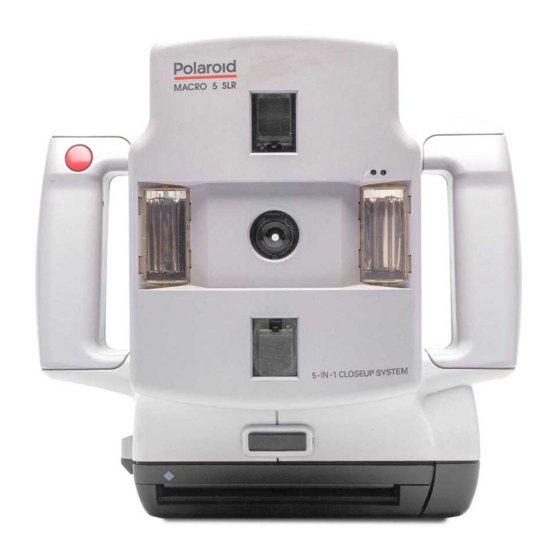

    Macro 5 SLR Camera Repair Manual General The Polaroid Macro 5 SLR (Figure 1-1) is a fully automatic, close-up portable camera. It is designed for medical and dental documentation, quality control, law enforcement, and other applications that requires close-up photographs.

  • Page 9: Features

    Macro 5 SLR Camera Repair Manual Features Camera Basic Macro 5 SLR features include: (Figure 1-2) • Camera Back (Film Holder) • Film Door Release Button • Two Built-In Electronic Flash Units • Lens • Dual Light Rangefinder (Ranging Lights) •...

  • Page 10: Figure 1-2 Macro 5 Slr Features

    Right Hand Grip Left Hand Grip Electronic Flash Electronic Flash Lens Rangefinder Aim Light Camera Back Film Door Release Button Camera Back Door Magnification Selector Battery Compartment Door Viewfinder Battery Compartment (inside grip) Control Panel Figure 1-2 Macro 5 SLR Features...
  • Page 11 Repair Manual Macro 5 SLR Camera Table 1-1. Macro 5 SLR Camera Features (Cont’d) Camera Feature Description Two Built-In The two built-in electronic flash units Electronic Flash Units provide even illumination at all magnification settings. Either flash unit can be turned off if side lighting is needed to show texture or elevation.
  • Page 12 Repair Manual Macro 5 SLR Camera Table 1-1. Macro 5 SLR Camera Features (Cont’d) Camera Feature Description Battery Compartment Door The battery compartment slides open to replace the four (4) Alkaline batteries in the Battery compartment. Battery Compartment The battery compartment contains four (4) AA batteries that provides power for the dual-light rangefinder.
  • Page 13 Macro 5 SLR Camera Repair Manual Table 1-1. Macro 5 SLR Camera Features (Cont’d) Camera Feature Description Red Shutter (S1) Button The red shutter (S1) button turns on the ranging lights and actuates the shutter and the flash unit/s when pressed.

  • Page 14: Figure 1-3 Control Panel

    Repair Manual Macro 5 SLR Camera Control Panel Figure 1-3 shows the Macro 5 SLR control panel. Table 1-2 describes its features. Reset Button Flash Control Magnification Date/Time Selector Button/Status Lights Indicators Buttons Power Button Lighten/Darken Picture Date/Time Controls Counter...
  • Page 15 Macro 5 SLR Camera Repair Manual Table 1-2. Control Panel Features Camera Feature Description POWER Button Turns the camera On. The flash units begin charging. The camera turns off if the power button is pressed again, or after 30 seconds of inactivity.
  • Page 16 Macro 5 SLR Camera Repair Manual Table 1-2. Control Panel Features (Cont’d) Camera Feature Description Lighten/Darken Controls Makes the picture lighter or darker. Each setting increases or decreases exposure by 1/3 f-stop. The center light is the nominal setting. Pressing the white arrow lightens the picture (increases exposure);...
  • Page 17 Displays the selected date/time sequence. Date/Time Selector Buttons Selects the desired date/time sequence to be printed on the picture. Note: Refer to the Macro 5 SLR User's Guide for information on how to select or set the current date/time desired.

  • Page 18: Specifications

    Macro 5 SLR Camera Repair Manual Specifications Operating Power Ranging Lights: Four (4) AA Alkaline batteries (standard or rechargeable) Camera: Film pack battery. Flash Unit Two built-in flash units. Shutter Speed Fixed (1/50 second). Polaroid Film Types Polaroid High Definition.
  • Page 19 Macro 5 SLR Camera Repair Manual Specifications (Cont’d) Magnification: Lens-to-subject Lens focal Effective lens Depth distance length aperture of field 0.2x (20%) 52in./130cm 221mm f/20 10.6in./27cm 0.4x (40%) 26in./66cm 188mm f/34 3.8in./10cm 1x (100%) 9.9in./25cm 128mm f/47 0.86in./2.2cm 2x (200%) 4.8in./13cm...

  • Page 20: Section 2. Theory Of Operation

    Macro 5 SLR Camera Repair Manual Section 2. Theory of Operation Operation ......................21 Camera Setup ....................21 Picture Taking ....................24...
  • Page 21 1. Set the camera to the desired magnification. Note: If the magnification selector is improperly set (between settings), the camera will not function. For detailed information on how to select magnification, refer to the Macro 5 SLR User's Guide. Magnification: Lens-to-subject...
  • Page 22 (ready). Note: Normally both flash units will be on. For detailed information on how to select either the left or right flash, refer to the Macro 5 SLR User's Guide.

  • Page 23: Figure 2-1 Camera Setup

    Macro 5 SLR Camera Repair Manual Camera Set-Up Install batteries Load film pack Set camera parameters Magnification Exposure Date/Time Strobe(s) Filter Take Picture To Figure 2-2 Figure 2-1 Camera Setup...
  • Page 24 Repair Manual Macro 5 SLR Camera Picture Taking 1. Turn on the camera by lightly pressing the shutter (S1/S2 switch) button. This closes the S1 switch. Closing the S1 switch: • Turns on the top and bottom range (aim) lights to focus the camera.
  • Page 25 For detailed information on how to properly focus and frame the subject, refer to the Macro 5 SLR User's Guide. 4. Once the camera is properly focused and the status lights are green, press the shutter button (S1/S2) all the way in to take the picture. This action closes the S2 switch.

  • Page 26: Figure 2-2 Picture Taking

    Macro 5 SLR Camera Repair Manual Picture Taking From Figure 2-1 Lightly press shutter button S1/S2 If S1 button released, range lights go out in 15 seconds. Press S1 button lightly to turn on again. S1 closes Self-check routine Range lights ON...

  • Page 27: Section 3. Adjustments

    Repair Manual Macro 5 SLR Camera Section 3. Adjustments Ranging (Aim) Lights Adjustment ............... 28 Grid Adjustment....................31...

  • Page 28: Figure 3-1 Camera Test Fixture

    Macro 5 SLR Camera Repair Manual Ranging (Aim) Lights Adjustment 1. Place the camera onto the test fixture as shown in Figure 3-1. Test Target area Camera Test Fixture Figure 3-1 Camera Test Fixture 2. Set the magnification selector knob to its 1X position.

  • Page 29: Figure 3-2 Range Light Adjustment

    Macro 5 SLR Camera Repair Manual Figure 3-2 Range Light Adjustment 5. Adjust range lights as follows: • Remove the front cover as explained in section 4 of this service manual. • Determine which range light is out of adjustment.

  • Page 30: Figure 3-3 Range Light Adjustments

    Macro 5 SLR Camera Repair Manual Clamp Clamp Screw Up/Down Adjustment Side-to-Side Adjustment Figure 3-3 Range Light Adjustments...

  • Page 31: Figure 3-4 Grid Position

    Macro 5 SLR Camera Repair Manual Grid Adjustment Note: Make sure the range lights are properly adjusted before adjusting the camera grid. 1. Take a picture of the test target. 2. Using a felt tip pen, draw diagonal lines from corner-to- corner on the picture of the test target (Figure 3-4).

  • Page 32: Figure 3-5 Grid Adjustments

    Macro 5 SLR Camera Repair Manual Up/Down Adjustment Screw Side-to-Side Adjustment Screw Figure 3-5 Grid Adjustments...

  • Page 33: Section 4. Troubleshooting

    Macro 5 SLR Camera Repair Manual Section 4. Troubleshooting Diagnostics Module .................... 34...
  • Page 34 Macro 5 SLR Camera Repair Manual Diagnostics Module A diagnostics module is currently being created. This module is a CD, titled Module 5 Star, that will assist in diagnosing camera malfunctions. It will be available shortly. For ordering, the part number is CPS506.

  • Page 35: Section 5. Parts Replacement

    Macro 5 SLR Camera Repair Manual Section 5. Parts Replacement Required Tools and Equipment ................37 Electrostatic Discharge Warning ................ 38 Inspection and Cleaning..................38 Disassembly/Assembly of Camera..............38 Left/Right Cover (Includes Front Cover)............. 39 1. Removal (Figure 5-1, 5-2 and 5-2a) ............39 2.
  • Page 36 Macro 5 SLR Camera Repair Manual Logic PC Board ....................57 1. Removal (Figure 5-10) ................57 2. Reassembly....................58 Camera Back ..................... 59 1. Removal (Figure 5-11) ................59 2. Reassembly....................60 Encoder Plate and PC Board ................62 1.

  • Page 37: Required Tools And Equipment

    Macro 5 SLR Camera Repair Manual Required Tools and Equipment • Pencil Soldering Iron • Solder Sucker • Anti-Static Mat and Wrist Strap • Standard Tool Kit • Torx Driver (6" Apex Torx T-10 Tip) • Small Pair of Diagonal Cutters •...

  • Page 38: Electrostatic Discharge Warning

    Macro 5 SLR Camera Repair Manual Electrostatic Discharge Warning The camera circuitry can easily be damaged by static discharges. Always use an anti-static mat and a wrist-strap when servicing the camera's PC Boards. Inspection and Cleaning Whenever disassembling the camera for parts replacement, always inspect the following assemblies for dust and debris (reagent developer).

  • Page 39: Left/Right Cover (Includes Front Cover)

    Macro 5 SLR Camera Repair Manual Left/Right Cover (Includes Front Cover) 1. Removal (Figure 5-1, 5-2 and 5-2a) a. Turn off power by pressing the POWER button on the camera's control panel. b. Disconnect the camera’s power source as follows: Slide the battery cover open, unsnap the battery cable clip, and lift out the battery holder.

  • Page 40: Figure 5-1 Camera Disassembly

    Macro 5 SLR Camera Repair Manual Turret Assembly Turret Knob Vinyl Pad Front Cover Door Button Assembly Adapter Figure 5-1 Camera Disassembly j. Using a torx driver, remove the screw securing the bottom of the right cover to the camera back (Figure 5-2).

  • Page 41: Figure 5-2 Left/Right Bottom Screw Location

    Repair Manual Macro 5 SLR Camera Note: Front cover assembly is still attached to the left/right cover assembly. n Disconnect both trigger cables (J31) from the trigger PC boards (Figure 5-2a). Note: This should free the left/right - front cover assembly from the rear cover and camera back.

  • Page 42: Reassembly

    Repair Manual Macro 5 SLR Camera 2. Reassembly a. Connect the trigger cables (J31) to its applicable trigger PC boards. Note: Make sure each cable is properly dressed and secured by the white cable clamps attached to the side of the left/right cover.

  • Page 43: Figure 5-3 Front Cover

    Macro 5 SLR Camera Repair Manual Front Cover 1. Removal (Figure 5-3) a. Remove the left/right cover assembly as explained on page 39. b. Using a torx driver, remove the four (4) screws securing the front cover to the left/right covers.

  • Page 44: Reassembly

    Repair Manual Macro 5 SLR Camera 2. Reassembly a. Using a torx driver, install and tighten the four (4) screws that secure the front cover to the left/right covers. b. Install the left/right cover assembly as explained on page 42.

  • Page 45: Figure 5-4 Rear Cover

    Macro 5 SLR Camera Repair Manual Rear Cover 1. Removal (Figures 5-2 and 5-4) a. Remove the left/right cover assembly as explained on page 39. b. Using a torx driver, remove the screw securing the bottom of the rear (right side) cover to the camera back (Figure 5-4).

  • Page 46: Reassembly

    Macro 5 SLR Camera Repair Manual 2. Reassembly a. Install the rear cover to the camera back. b. Using a torx driver, install and tighten the screw that secures the bottom of the rear (left side) cover to the camera back.

  • Page 47: Figure 5-5 Bottom Cover

    Repair Manual Macro 5 SLR Camera Bottom Cover 1. Removal (Figure 5-5) a. Remove the left/right cover assembly as explained on page 39. Note: This assembly includes the front cover. b. Remove the rear cover as explained on page 45.

  • Page 48: Reassembly

    Macro 5 SLR Camera Repair Manual 2. Reassembly a. Place the bottom cover onto the camera back making sure that its two (2) alignment holes properly align with the support posts on the camera back.. b. Using a torx driver, install and tighten the three (3) screws securing the bottom cover to the camera back.

  • Page 49: Figure 5-6 Strobe Pc Board

    Macro 5 SLR Camera Repair Manual Strobe PC Board Caution: Shock Hazard - High Voltage Note: Use a dump stick to fully discharge the strobe capacitors before attempting to remove or replace the strobe PC board. 1. Removal (Figure 5-6) a.

  • Page 50: Reassembly

    Macro 5 SLR Camera Repair Manual 2. Reassembly a. Connect the following electrical cables: • J41 • J42 • J43 • J44 b. Install the strobe PC board making sure that it is properly positioned in its slotted bracket on the rear cover.

  • Page 51: Trigger Pc Boards

    Macro 5 SLR Camera Repair Manual Trigger PC Boards Caution: Shock Hazard - High Voltage Note: Use a dump stick to fully discharge the strobe capacitors before attempting to remove or replace the trigger PC board. 1. Removal (Figure 5-7) a.

  • Page 52: Figure 5-7 Trigger Pc Boards

    Macro 5 SLR Camera Repair Manual White Trigger Wire Trigger PC Boards Figure 5-7 Trigger PC Boards 2. Reassembly a. Place the new the trigger PC board onto its front cover support mounts. b. Using a torx driver, install and tighten the two (2) screws that secure the trigger PC board to its front cover support mounts.

  • Page 53: Figure 5-8 S1/S2 Pc Board

    Macro 5 SLR Camera Repair Manual S1/S2 PC Board 1. Removal (Figure 5-8) a. Remove the left/right cover assembly as explained on page 39. b. Using a small pair of diagonal pliers, cut the ty-wrap securing the S1/S2 electrical cable to the right strobe cable.

  • Page 54: Reassembly

    Macro 5 SLR Camera Repair Manual 2. Reassembly a. Place the new the S1/S2 PC board onto its right hand grip support mounts. Note: Make sure the large end of the S1 button spring is inserted into the S1 button before the S1/S2 PC board is placed onto its support mounts.

  • Page 55: Figure 5-9 Control Panel

    Macro 5 SLR Camera Repair Manual Control Panel Caution: Shock Hazard - High Voltage Note: Use a dump stick to fully discharge the strobe capacitors before attempting to remove or replace the control panel. 1. Removal (Figure 5-9) a. Remove the left/right cover assembly as explained on page 39.

  • Page 56: Reassembly

    Macro 5 SLR Camera Repair Manual 2. Reassembly a. Connect electrical cable J11 (X-Sync IN/OUT) to the logic PC board. Note: Be careful not to break the two black wires soldered to the X-Sync receptacle on the control panel. b. Align the two (2) posts on the control panel with the holes on the logic PC board and then gently push in the control panel.

  • Page 57: Logic Pc Board

    Macro 5 SLR Camera Repair Manual Logic PC Board Caution: Shock Hazard - High Voltage Notes: • Use a dump stick to fully discharge the strobe capacitors before attempting to remove or replace the control panel. • The logic PC board firmware (CPU chip) can easily be damaged by static discharges.

  • Page 58: Figure 5-10 Logic Pc Board

    Macro 5 SLR Camera Repair Manual Logic PC Board Figure 5-10 Logic PC Board 2. Reassembly a. Gently slide in the logic PC board making sure that its slot aligns with the support hook on the camera back.. b. Connect the following electrical cables to the logic PC board: •...

  • Page 59: Camera Back

    Macro 5 SLR Camera Repair Manual Camera Back Caution: Shock Hazard - High Voltage Note: Use a dump stick to fully discharge the strobe capacitors before attempting to remove or replace the camera back. 1. Removal (Figure 5-11) a. Remove the left/right cover assembly as explained on page 39.

  • Page 60: Figure 5-11 Camera Back

    Macro 5 SLR Camera Repair Manual Cone Assembly Support Plate Camera Back Figure 5-11 Camera Back 2. Reassembly a. Place cone/turret assembly onto the camera back. Notes: Make sure the: • Cone alignment holes are properly located over the camera back pins.
  • Page 61 Macro 5 SLR Camera Repair Manual c. Connect the following electrical cables from the logic PC board: • J15 (Piezo) • J16 (Date Code Module) • J23 (Film Door Switch) • J25 (Camera Back Flex) Note: If it was necessary to remove the strobe and logic PC boards and control panel during the removal of the camera back, make sure that these components are properly reassembled.

  • Page 62: Figure 5-12 Encoder Plate And Lower Turret Plate

    Macro 5 SLR Camera Repair Manual Encoder Plate and PC Board 1. Removal (Figure 5-12 and 5-12a) a. Remove the left/right cover assembly as explained on page 39. b. Rotate the turret assembly to its 3x position to expose one of the screws that secures the encoder plate to the lower turret plate.

  • Page 63: Figure 5-12A Encoder Pc Board

    Macro 5 SLR Camera Repair Manual Encoder PC Board To J24 on Logic Board Figure 5-12a Encoder PC Board...

  • Page 64: Reassembly

    Macro 5 SLR Camera Repair Manual 2. Reassembly a. Rotate the turret assembly to its 1x position. b. Gently slide in the encoder plate making sure its mounting holes align with the screw holes on the lower turret plate. Note: Be careful not to break any of its plastic sensor fingers.

  • Page 65: Figure 5-13 Turret Assembly

    Macro 5 SLR Camera Repair Manual Turret Assembly 1. Removal (Figure 5-13) a. Remove the left/right cover assembly as explained on page 39. b. Remove the encoder plate and PC board as explained on page 62. c. Using a pair of C-ring pliers, remove the top and lower pivot plate C-rings.

  • Page 66: Reassembly

    Macro 5 SLR Camera Repair Manual 2. Reassembly a. Slide the turret assembly onto its pivot pins and then insert the top and lower turret bushings onto their respective pivot pins. b. Using a pair of C-ring pliers, install the top and lower pivot plate C-rings to secure the turret assembly to its pivot pins.

  • Page 67: Figure 5-14 Shutter Solenoid Assembly

    Macro 5 SLR Camera Repair Manual Shutter Solenoid Assembly 1. Removal (Figure 5-14) a. Remove the left/right cover assembly as explained on page 39. b. Disconnect the solenoid cable wires from the solenoid pins. c. Using tweezers, disconnect the shutter extension spring from the shutter pivot post.

  • Page 68: Reassembly

    Macro 5 SLR Camera Repair Manual 2. Reassembly a. Place the solenoid assembly onto the viewfinder support posts. b. Using a torx driver, install and tighten the two (2) screws that secure the solenoid assembly to the viewfinder housing. c. Using tweezers, connect the shutter extension spring to the shutter pivot post.

  • Page 69: Figure 5-15 Aim Light Cable Assembly

    Macro 5 SLR Camera Repair Manual Bulb (Aim Light) Bracket Assembly 1. Removal (Figure 5-15) a. Remove the left/right cover assembly as explained on page 39. b. Remove the rear cover assembly as explained on page 45. c. Disconnect electrical cable J14 from the logic PC board.

  • Page 70: Reassembly

    Macro 5 SLR Camera Repair Manual 2. Reassembly a. Install the aim light cable assembly - includes both aim lights. Note: Make sure the aim light cable is properly dressed - around the viewfinder and cone cable claps. b. Using a torx driver, install and tighten the screws that secure the aim lights to their respective bracket assemblies.

  • Page 71: Figure 5-16 Date Code Module

    Repair Manual Macro 5 SLR Camera Date Code Module 1. Removal (Figure 5-16) a. Remove the left/right cover assembly as explained on page 39. b. Remove the rear cover assembly as explained on page 45. c. Remove the bottom cover as explained on page 47.

  • Page 72: Reassembly

    Repair Manual Macro 5 SLR Camera 2. Reassembly a. Install the date code module onto its camera back rail slot. b. Using a torx driver, tighten the six (6) screws that secures the camera back to the cone assembly. c. Connect electrical cable J16 to the logic PC board.

  • Page 73: Firmware (Logic Pc Board)

    Macro 5 SLR Camera Repair Manual Firmware (Logic PC Board) Caution: Shock Hazard - High Voltage Notes: • Use a dump stick to fully discharge the strobe capacitors before attempting to remove or replace the system firmware (CPU chip). • The CPU chip can easily be damaged by static discharges.

  • Page 74: Figure 5-17 Firmware Cpu

    Repair Manual Macro 5 SLR Camera Logic Board CPU Chip Figure 5-17 Firmware CPU 2. Reassembly a. Properly position the replacement CPU squarely into its socket making sure that its beveled corner goes to the beveled corner of the socket.

  • Page 75: Section 6. Schematics

    Macro 5 SLR Camera Repair Manual Section 6. Schematics Figure 6-1 S1/S2 PC Board ..................76 Figure 6-2 Encoder PC Board..................77 Figure 6-3 Trigger PC Board..................78 Figure 6-4 Strobe PC Board (1 of 1) ................79 Figure 6-5 Strobe PC Board (2 of 2) ................80 Figure 6-6 Logic PC Board (1 of 1) ................81...
  • Page 76 Macro 5 SLR Camera Repair Manual Figure 6-1 S1/S2 PC Board...

  • Page 77: Figure 6-2 Encoder Pc Board

    Repair Manual Macro 5 SLR Camera Figure 6-2 Encoder PC Board...

  • Page 78: Figure 6-3 Trigger Pc Board

    Macro 5 SLR Camera Repair Manual Figure 6-3 Trigger PC Board...

  • Page 79: Figure 6-4 Strobe Pc Board (1 Of 2)

    Macro 5 SLR Camera Repair Manual Figure 6-4 Strobe PC Board (1 of 1)

  • Page 80: Figure 6-5 Strobe Pc Board (2 Of 2)

    Macro 5 SLR Camera Repair Manual Figure 6-5 Strobe PC Board (2 of 2)

  • Page 81: Figure 6-6 Logic Pc Board (1 Of 2)

    Macro 5 SLR Camera Repair Manual Figure 6-6 Logic PC Board (1 of 1)

  • Page 82: Figure 6-7 Logic Pc Board (1 Of 2)

    Macro 5 SLR Camera Repair Manual Figure 6-7 Logic PC Board (2 of 2)

  • Page 83: Figure 6-8 Communication Pc Board

    Macro 5 SLR Camera Repair Manual Figure 6-8 Communication PC Board...
