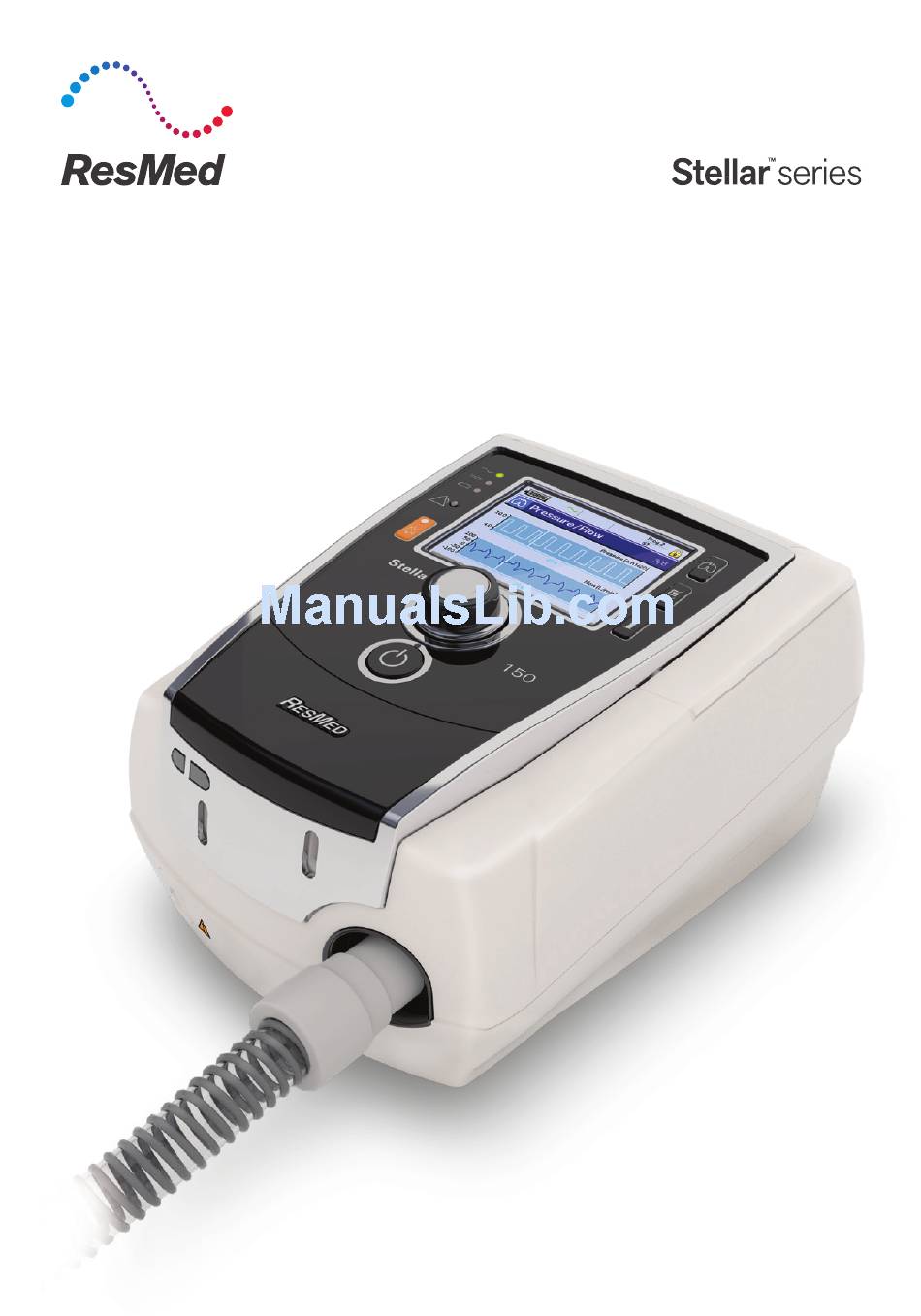

- Page 1 Adult and paediatric ventilators Quick Setup Guide English...
- Page 2 AC locking clip *If not using an external humidifier, connect the HMEF to the ResMed Leak Valve. ** The ResMed Leak Valve or the HMEF can be connected to standardised tracheostomy interfaces including connector pieces like catheter mounts. The catheter mount and the external humidifier are not part of the ResMed component.
-
Page 3: About The Control Panel
About the control panel External power supply LED Mains power LED LCD screen On when operating on mains power. On when external battery is connected. Menu button Navigate through the menus Monitoring Internal battery LED Setup On when internal battery is in use. Info Flashes when device is turned off and battery is charging. -
Page 4: Treatment Settings
Learn Circuit configuration Do not connect patient interfaces prior to performing the Learn Circuit. Patient interfaces include any components placed after the ResMed Leak Valve (eg, HMEF , catheter mount, tracheostomy tube). With an external humidifier Without an external humidifier... -
Page 5: Using The Menus
Using the menus Menu overview SETUP MONITORING INFO Treatment Clinical Settings Event Summary Monitoring Leak Pressure / Flow Alarm Settings Minute Ventilation MV/Resp Rate Tidal Volume or MV/Va (iVAPS Mode) Respiratory Rate Options Leak I:E Ratio Tidal Volume Pressure Support Synchronisation Oximetry SpO 2... - Page 6 Overview Clinical Settings SETUP Clinical Settings Advanced Settings CPAP Mode S Mode ST Mode T Mode iVAPS Mode PAC Mode Note: iVAPS mode is only available in Stellar 150.
- Page 7 Overview Alarm Settings and Options SETUP Alarm Settings Configuration Menu Options...
- Page 8 ResMed (UK) Ltd 96 Jubilee Ave Milton Park Abingdon Oxfordshire OX14 4RW UK See www.resmed.com for other ResMed locations worldwide. For patent information, see www.resmed.com/ip. ResMed and Stellar are trademarks of ResMed Ltd. ResMed and Stellar are registered in U.S. Patent and Trademark Office.
