- Page 1 User guide English...
- Page 2 Indications for use AirCurve 10 VAuto The AirCurve 10 VAuto device is indicated for the treatment of obstructive sleep apnoea (OSA) in patients weighing more than 30 kg. It is intended for home and hospital use. The humidifier is intended for single patient use in the home environment and re-use in a hospital/institutional environment.
- Page 3 At a glance The AirCurve 10 includes the following: Device ™ HumidAir humidifier Air tubing Power supply unit Travel bag SD card (already inserted). Contact your care provider for a range of accessories available for use with the device including: ...
- Page 4 About the control panel Press to start/stop therapy. Start/Stop button Press and hold for three seconds to enter power save mode. Turn to navigate the menu and press to select an option. Dial Turn to adjust a selected option and press to save your change.
- Page 5 6. Connect the free end of the air tubing firmly onto the assembled mask. See the mask user guide for detailed information. Recommended masks are available on www.resmed.com. Recommended water type (France only) The following water types are recommended for use in the humidifier: ...
- Page 6 If power is interrupted during therapy, the device will automatically restart therapy when power is restored. The AirCurve 10 device has a light sensor that adjusts the screen brightness based on the light in the room.
- Page 7 The Home screen is displayed. My Options Your AirCurve 10 device has been set up for your needs by your care provider, but you may find you want to make small adjustments to make your therapy more comfortable. Highlight My Options and press the dial to see your current settings.
- Page 8 Caring for your device It is important that you regularly clean your AirCurve 10 device to make sure you receive optimal therapy. The following sections will help you with disassembling, cleaning, checking and reassembling your device.

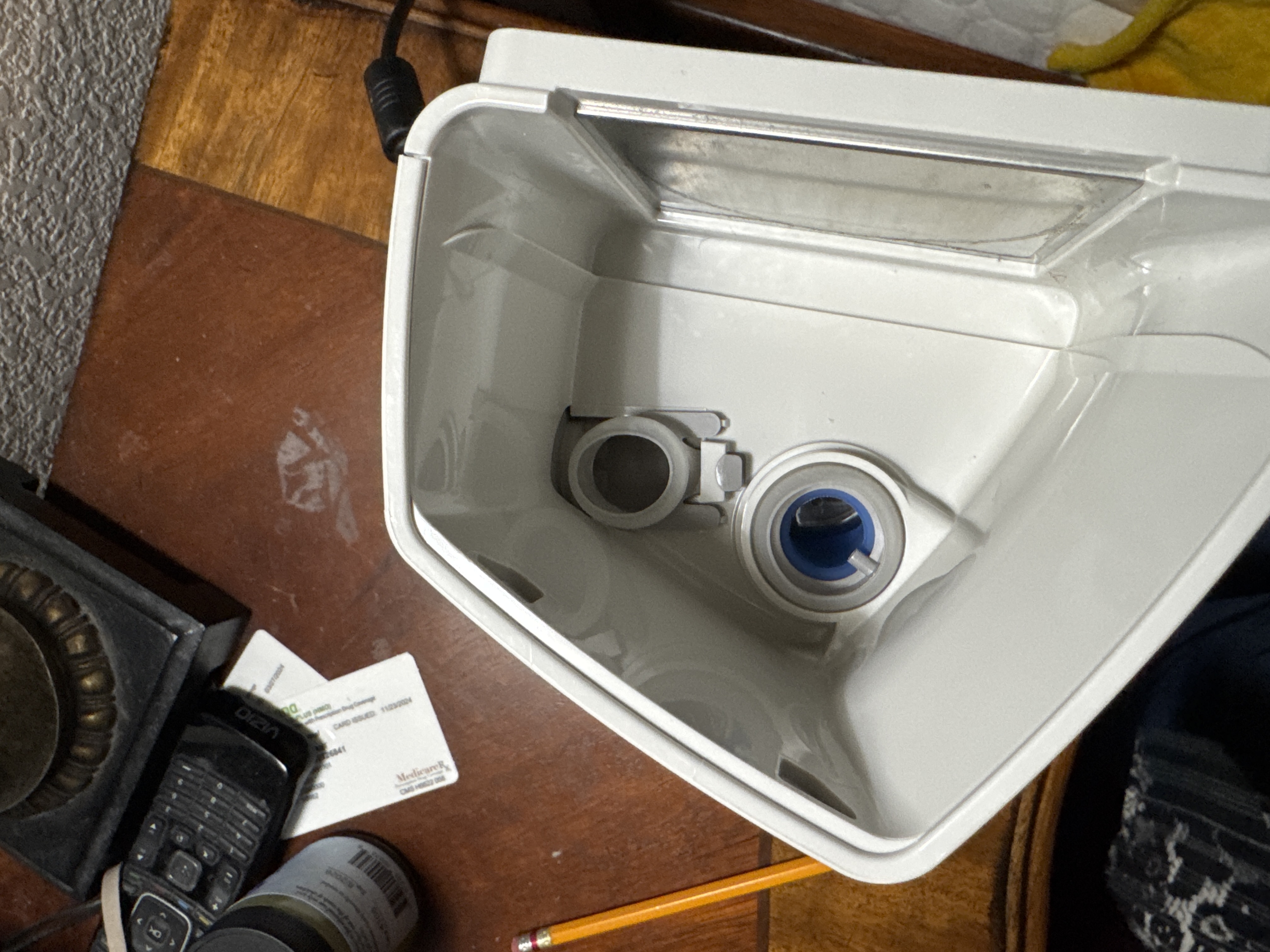

- Page 9 Disassembling 1. Hold the humidifier at the top and bottom, press it gently and pull it away from the device. 2. Open the humidifier and discard any remaining water. 3. Hold the cuff of the air tubing and gently pull it away from the device. 4.
- Page 10 4. Connect the free end of the air tubing firmly onto the assembled mask. Therapy data Your AirCurve 10 device records your therapy data for you and your care provider so they can view and make changes to your therapy if required. The data is recorded and then transferred to your care provider wirelessly or via an SD card.
- Page 11 Note: The SD card should not be used for any other purpose. Travelling You can take your AirCurve 10 device with you wherever you go. Just keep the following in mind: Use the travel bag provided to prevent damage to the device.
- Page 12 Troubleshooting If you have any problems, have a look at the following troubleshooting topics. If you are not able to fix the problem, contact your care provider or ResMed. Do not try to open the device. General troubleshooting Problem/possible cause...
- Page 13 Problem/possible cause Solution My screen is black Backlight on the screen may have turned off. It turns off Press Home or the dial to turn it back on. automatically after a short period of time. Power may not be connected. Connect the power supply and make sure the plug is fully inserted.
- Page 14 Device message/possible cause Solution Mask may be fitted incorrectly. Make sure your mask is fitted correctly. See your mask user guide for fitting instructions or use the Mask Fit function to check your mask fit and seal. Tubing blocked, check your tubing Air tubing may be blocked.
- Page 15 If you notice any unexplained changes in the performance of the device, if it is making unusual sounds, if the device or the power supply are dropped or mishandled, or if the enclosure is broken, discontinue use and contact your care provider or your ResMed Service Centre.
- Page 16 CAUTION Use only ResMed parts and accessories with the device. Non-ResMed parts may reduce the effectiveness of the treatment and/or damage the device. Use only vented masks recommended by ResMed or by the prescribing doctor with this device.
- Page 17 Electromagnetic compatibility The AirCurve 10 complies with all applicable electromagnetic compatibility requirements (EMC) according to IEC60601-1- 2:2007, for residential, commercial and light industry environments. It is recommended that mobile communication devices are kept at least 1 m away from the device.
- Page 18 Wireless module Technology used: 2G GSM It is recommended that the device is a minimum distance of 2 cm from the body during operation. Not applicable to masks, tubes or accessories Operating pressure range S, VAuto: 2 to 25 cm H O (2 to 25 hPa) CPAP: 4 to 20 cm H...
- Page 19 Accuracy may be reduced by the presence of leaks, supplemental oxygen, tidal volumes <100 mL or minute ventilation <3 L/min. Measurement accuracy verified as per EN ISO 10651-6:2009 for Home Care Ventilatory Support Devices (Figure 101 and Table 101) using nominal ResMed mask vent flows. Pressure accuracy...
- Page 20 ResMed. ResMed recommends that the AirCurve 10 device be inspected and serviced by an authorised ResMed Service Centre if there is any sign of wear or concern with device function. Otherwise, service and inspection of the products generally should not be required during their design life.
- Page 21 Portable diagnostic/screening devices This warranty is only available to the initial consumer. It is not transferable. If the product fails under conditions of normal use, ResMed will repair or replace, at its option, the defective product or any of its components.
- Page 22 See www.resmed.com for other ResMed locations worldwide. For patent information, see www.resmed.com/ip. Air10, AirCurve, AirView, ClimateLine, EPR, HumidAir, ResScan, SlimLine, SmartStart, TiControl and VSync are trademarks of ResMed Ltd. AutoSet, ClimateLine, EPR, SlimLine and SmartStart are registered in U.S. Patent and Trademark Office. SD Logo is a trademark of SD-3C, LLC.
