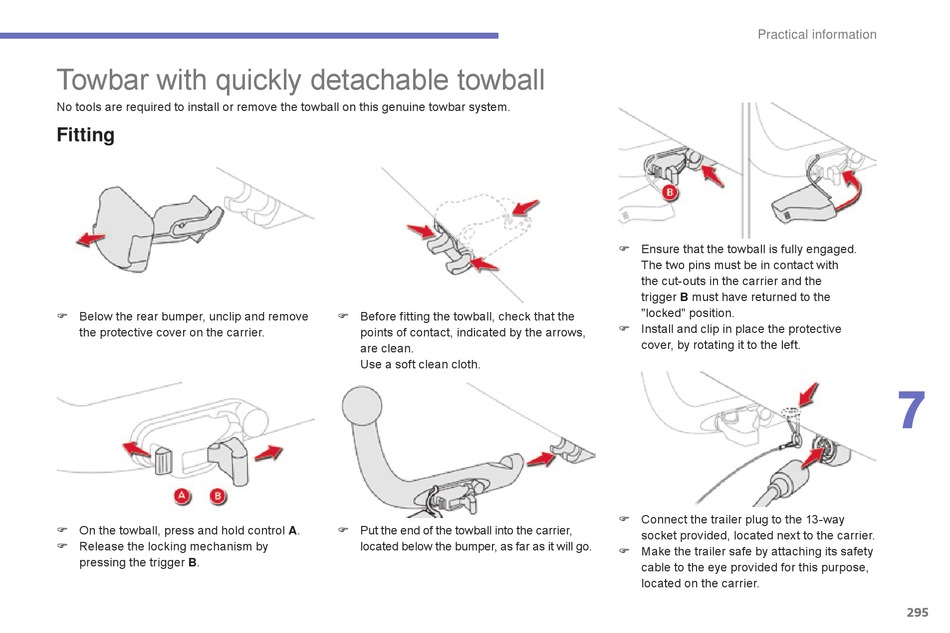

Towbar with quickly detachable towball
No tools are required to install or remove the towball on this genuine towbar system.
Fitting
F Below the rear bumper, unclip and remove
the protective cover on the carrier.
F On the towball, press and hold control A.
F Release the locking mechanism by
pressing the trigger B.
F Before fitting the towball, check that the
points of contact, indicated by the arrows,
are clean.
Use a soft clean cloth.
F Put the end of the towball into the carrier,
located below the bumper, as far as it will go.
Practical information
F Ensure that the towball is fully engaged.
The two pins must be in contact with
the cut-outs in the carrier and the
trigger B must have returned to the
"locked" position.
F Install and clip in place the protective
cover, by rotating it to the left.
F Connect the trailer plug to the 13-way
socket provided, located next to the carrier.
F Make the trailer safe by attaching its safety
cable to the eye provided for this purpose,
located on the carrier.
7
295
