Installation instructions
NOTE!
Exhaust holes not required for condenser dryers.
ASKO dryers can be installed beneath a cabinet
or worktop with a minimum height of 34" (864
mm). There must be a gap of about 1/2" (12 mm)
all around the machine, including between the
rear edge of the machine top panel and the back
wall. The opening width must be at least 24-1/2"
(622 mm). The condensing models work best
when they have good air circulation. Install the
dryer so the condensed water will continuously
flow into a drain or sink, you will need a drain
outlet behind the unit. The maximum drain height
is 40" (1016 mm).
NOTE!
The height adjustment for the dryer is 33-1/2" to
34-1/2" (850 mm to 876 mm). Do not raise it higher
than 34-1/2" (876 mm). Hole measurements are
from center of hole.
Install in a closet
ASKO's front panel controls make it possible to
install the washers and dryers in a closet. Make
sure there is a ½" (12mm) minimum clearance
between units and cabinet or wall. To ensure
proper ventilation, we recommend louvered
doors, particularly
Otherwise there must be ventilation openings in

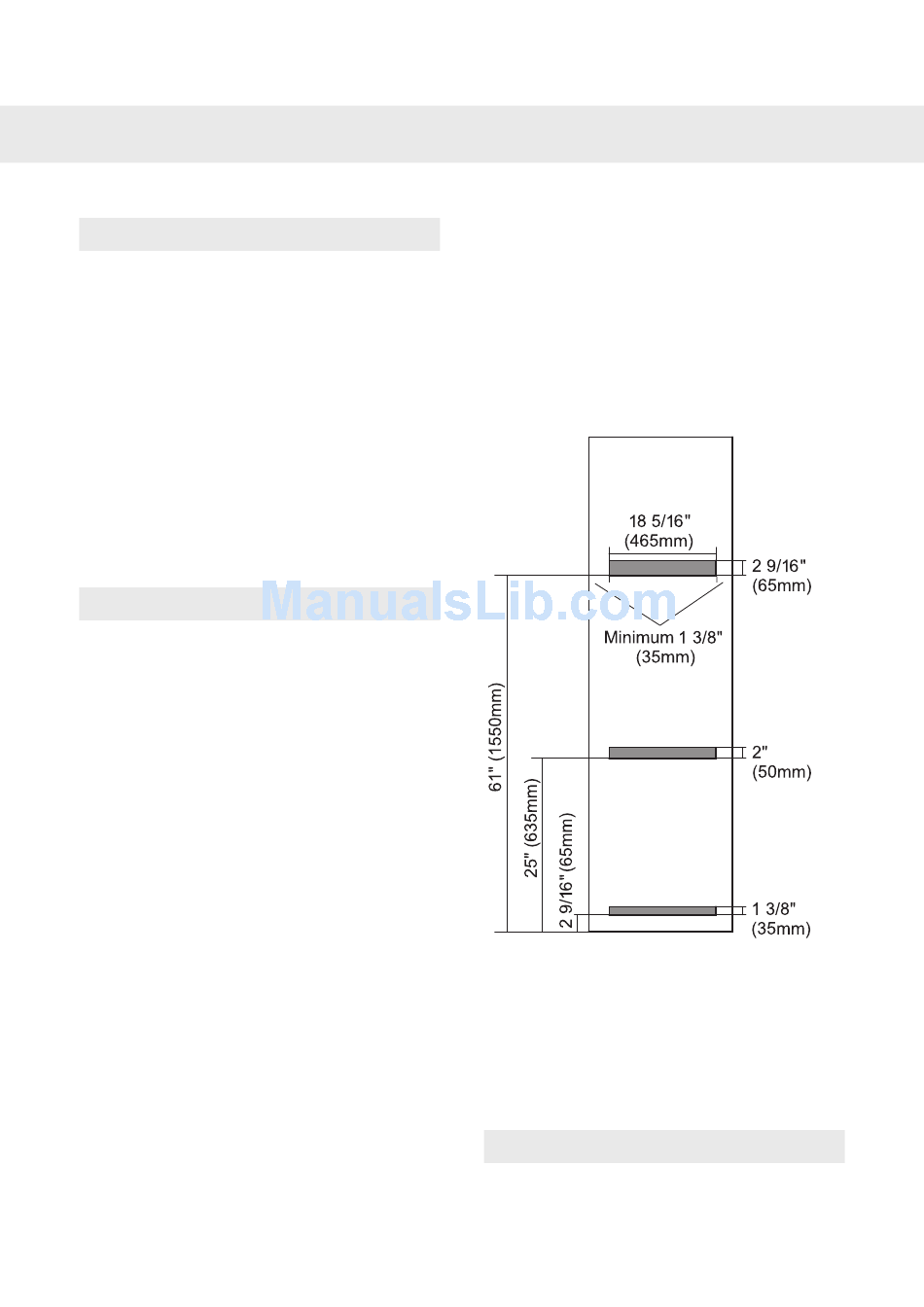

the door. See illustration for minimum ventilation
openings:

Condensed water

Install the dryer so the condensed water will
continuously flow into a drain or sink. To do this,
follow the instructions below:
1. Connect the rubber hose supplied with the
dryer to the blue nipple.
2. Run the hose to a drain or sink, as illustrated.
NOTE!
The drain hose must not be more than 40" above
the floor.
Customer Care Center
1-800-898-1879
www.askona.com
for condenser dryers.
