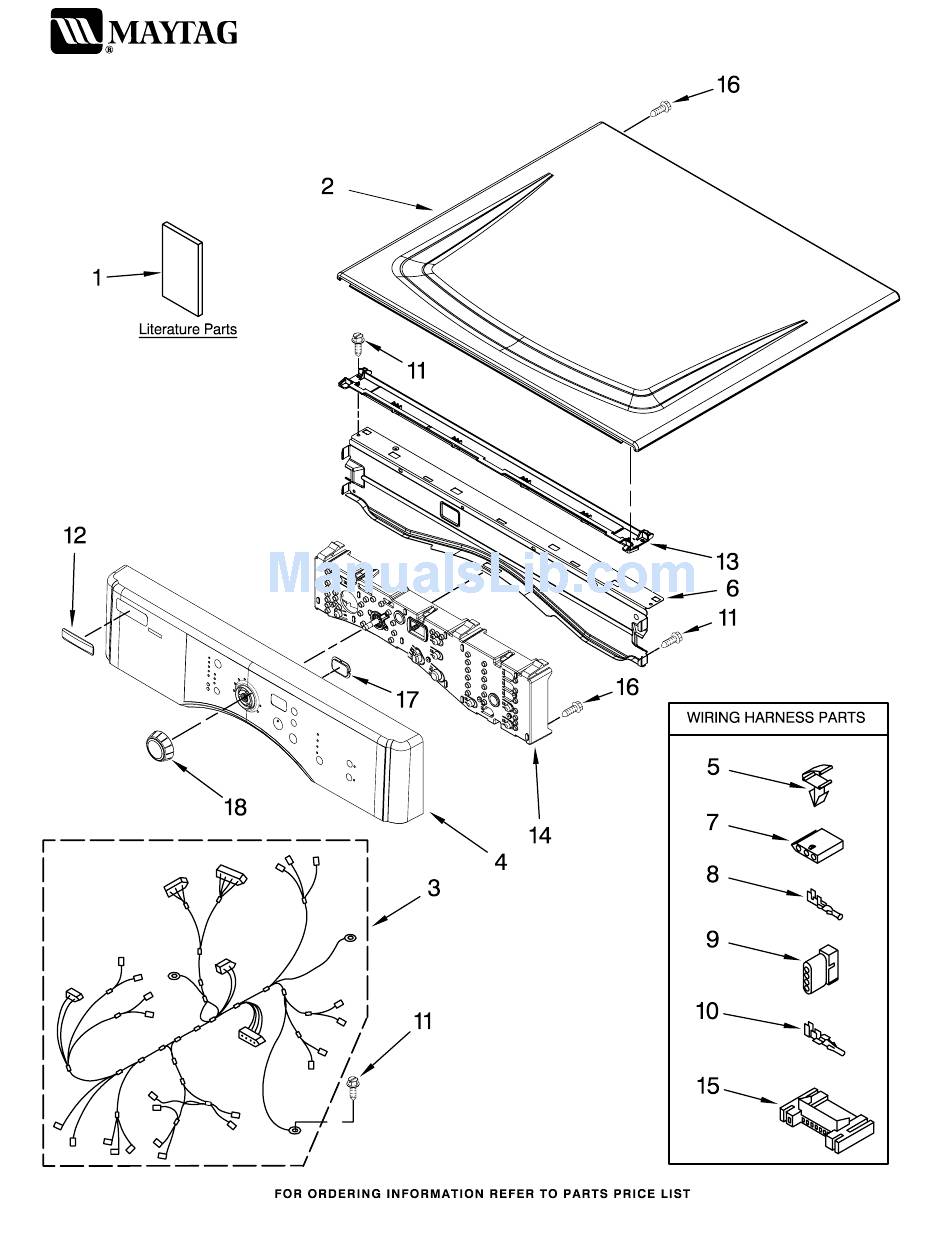

- Page 1 TOP AND CONSOLE PARTS 27" GAS DRYER For Model: MGDZ400TQ2 (Designer White) Part No. W10180625 Rev. A 12−07 Printed in U.S.A. (LAN)
- Page 2 TOP AND CONSOLE PARTS For Model: MGDZ400TQ2 (Designer White) Illus. Part DESCRIPTION Literature Parts W10112943 Use & Care Guide W10117403 Guide, Quick Start W10133923 Tech Sheet 8563730 Top 3 W10110973 Harness, Main 4 W10117384 Panel, Console (Includes Illus. 19.) 3394427 Clip, Harness...
-
Page 3: Cabinet Parts
CABINET PARTS For Model: MGDZ400TQ2 (Designer White) W10180625... - Page 4 3388672 Pulley Assembly 3978776 Bracket, Gas Pipe 8066120 Lever, Snap Switch 3394081 Wire, Belt Switch 343641 Screw, 8−18 x 1/2 233520 Washer, Thrust CABINET PARTS For Model: MGDZ400TQ2 (Designer White) Illus. Part DESCRIPTION 8574875 Assembly, Door Switch 20 W10121334 Washer 8066115 Cover−Plate...
- Page 5 BULKHEAD PARTS For Model: MGDZ400TQ2 (Designer White) W10180625...
- Page 6 359625 Screw, 8−18 x 1/2 8572105 Clip, Exhaust Pipe 8533971 Screw, 8−18 x 5/16 693995 Screw, 8−18 x 3/8 16 W10001120 Nut, 3/8−16 (L.H.) BULKHEAD PARTS For Model: MGDZ400TQ2 (Designer White) Illus. Part DESCRIPTION 17 W10080170 Bulkhead, Rear 3387459 Washer, Support 8575325 Shaft, L.H.
-
Page 7: Burner Assembly
8576353 BURNER ASSEMBLY For Model: MGDZ400TQ2 (Designer White) AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES BA−153A W10180625... - Page 8 8576353 BURNER ASSEMBLY For Model: MGDZ400TQ2 USE WITH TYPE 1 − NATURAL AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES Illus. Part 8576353 Burner Assembly 688617 Tube, Burner 694298 Bracket, Ignitor 686590 Ignitor 3393909 Screw & Washer 343641 Screw, 10−16 x 1/2...
-
Page 9: Door Parts
9742177 Screw, 8−18 x 5/8 3400618 Screw, 6−32 x 3/8 8579663 Seal, Window 7 W10117478 Handle, Door (Includes Illus. 20.) W10180625 DOOR PARTS For Model: MGDZ400TQ2 (Designer White) Illus. Part DESCRIPTION 8 W10159996 Screw, 10−24 x 3/64 3393258 Screw 8578933 Door Assembly... - Page 10 OPTIONAL PARTS (NOT INCLUDED) For Model: MGDZ400TQ2 (Designer White) Illus. Part DESCRIPTION PAINT, TOUCH−UP (1/2oz.) 72017 White PAINT, PRESSURIZED SPRAY (12 oz.) 350930 White 350938 Primer, Gray PAINT, BULK (1 qt.) 799344 White (Uncut) ACCESSORY PARTS 8529894 Hold Down Kit...
