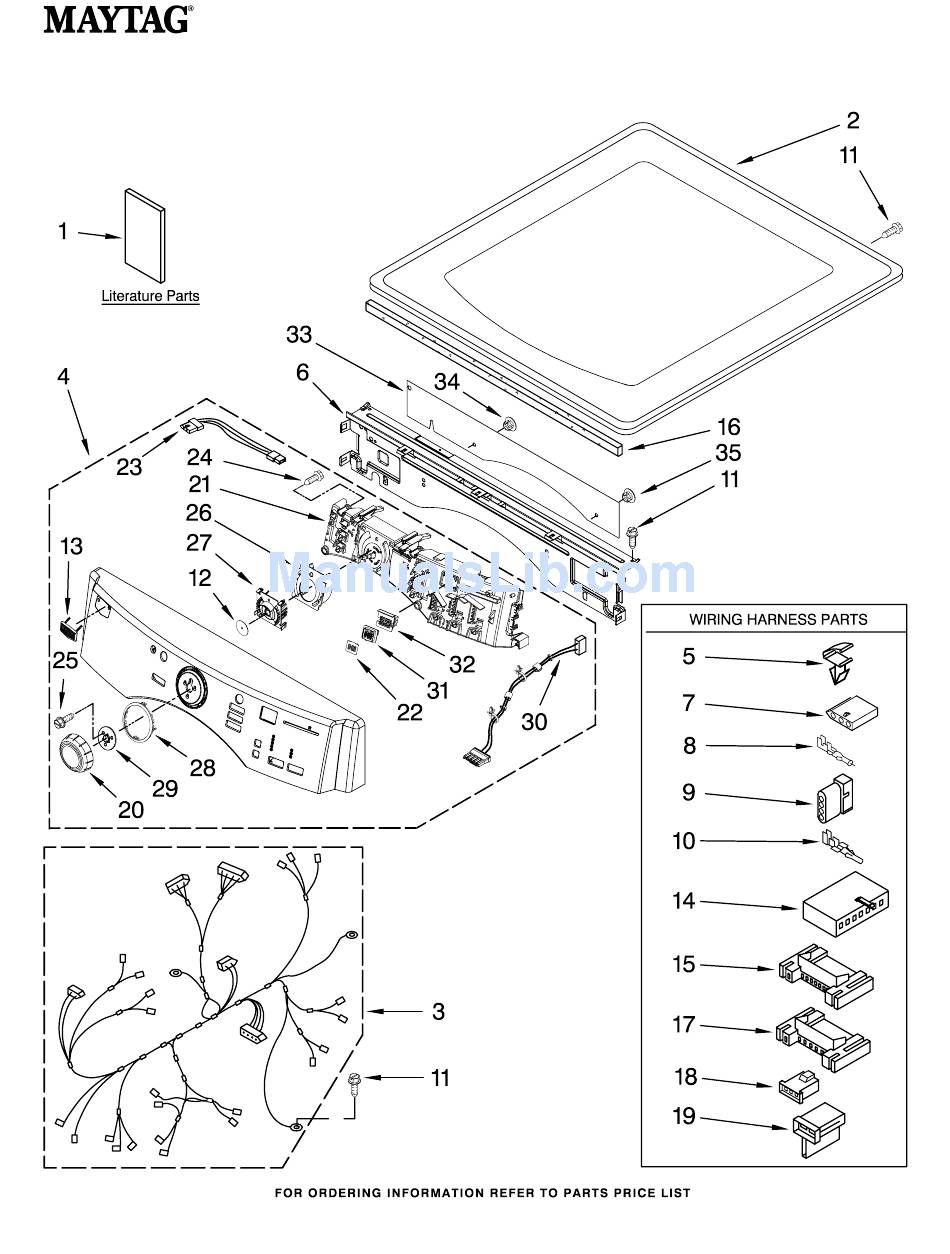

- Page 1 TOP AND CONSOLE PARTS 29" GAS DRYER For Models: MGDE900VW0, MGDE900VJ0 (White) (Oxide) 10−09 Printed in U.S.A. (MP)(bay) Part No. W10245881 Rev. A...
- Page 2 W10164456 Oxide 3394427 Clip, Harness 6 W10215656 Bracket, Console (Includes No. 16) 353424 Connector, Sensor 94614 Terminal 3936144 Plug, Terminal 94613 Terminal For Models: MGDE900VW0, MGDE900VJ0 (White) (Oxide) Illus. Part DESCRIPTION 98139 Screw, 8−18 x 1/2 8572039 Seal, User Interface...
-
Page 3: Cabinet Parts
CABINET PARTS For Models: MGDE900VW0, MGDE900VJ0 (White) (Oxide) W10245881... - Page 4 3978776 Bracket, Gas Pipe 8066120 Lever, Snap Switch 15 W10167612 Wire, Belt Switch 16 W10128772 Sound Panel 17 W10121334 Washer, Flat Plastic CABINET PARTS For Models: MGDE900VW0, MGDE900VJ0 (White) (Oxide) Illus. Part DESCRIPTION 18 W10128087 Assembly, Door Switch 690997 Tri Ring 8066115 Cover−Plate...
- Page 5 BULKHEAD PARTS For Models: MGDE900VW0, MGDE900VJ0 (White) (Oxide) W10245881...
- Page 6 3387459 Washer, Support 8575325 Shaft, L.H. Thread 690997 Ring, Tri 8536973 Roller, Support 8066224 Exhaust Pipe 22 W10153423 Housing, Outlet 489463 Screw, 8−18 x 5/8 BULKHEAD PARTS For Models: MGDE900VW0, MGDE900VJ0 (White) (Oxide) Illus. Part DESCRIPTION 24 W10181467 Complete Drum Assembly 25 W10219342 Screw, 8−16 x 1/2...
-
Page 7: Burner Assembly
8576353 BURNER ASSEMBLY For Models: MGDE900VW0, MGDE900VJ0 (White) (Oxide) USE WITH TYPE 1 − NATURAL AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES BA−153 W10245881... - Page 8 8576353 BURNER ASSEMBLY For Models: MGDE900VW0, MGDE900VJ0 USE WITH TYPE 1 − NATURAL AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES Illus. Part 8576353 Burner Assembly 688617 Tube, Burner 694298 Bracket, Ignitor 686590 Ignitor 3393909 Screw & Washer 343641 Screw, 10−16 x 1/2...
-
Page 9: Door Parts
Door Hinge 9742177 Screw, 8−18 x 5/8 8519356 Retainer−Window (Upper) 8519354 Retainer−Window (Lower) 7 W10193522 Handle Ring W10245881 DOOR PARTS For Models: MGDE900VW0, MGDE900VJ0 (White) (Oxide) Illus. Part DESCRIPTION 8 W10159996 Screw, 10−24 x 5/16 9 W10048910 Screw−Plug 8577819 Door Assembly... - Page 10 OPTIONAL PARTS (NOT INCLUDED) For Models: MGDE900VW0, MGDE900VJ0 (White) Illus. Part DESCRIPTION PAINT, TOUCH−UP (1/2oz.) 72017 White PAINT, PRESSURIZED SPRAY (12 oz.) 350930 White 350938 Primer, Gray PAINT, BULK (1 qt.) 799344 White (Uncut) ACCESSORY PARTS 8529894 Hold Down Kit...
