Limited Warranty
Maxim Manufacturing Corporation, through its dealers will repair or replace any part, or parts
of the MS50B, MS30B, or MS50BR or handles that are defective in material or workmanship or
both. Transportation charges on parts submitted for repair or replacement under this
Warranty must be borne by the purchaser. The original sales receipt must be submitted as
proof of purchase date. The sales receipt will be returned. Maxim Manufacturing Corporation
assumes no liability for labor charges made in performance of this warranty.
The Warranty Periods are as follows:
A. Frame for 1 year
B. Handles for 1 year
C. Transmissions for 1 year
The Throttle Cable, Tires, Fasteners, and belt are not warranted because during normal service
they are subject to wear.
The Warranty on the Frame is Void if:
A. Frame is broken or bent due to abuse.
B. Wheels are bent or broken due to impact.
C. Altering of engine or its components has occurred.
All warranties are voided if the Tiller has been altered, used under abnormal conditions,
or subject to abuse, misuse, neglect, improper maintenance, or rented.
The Engine is warranted by the engine manufacturer, not by Maxim Manufacturing Corporation.
See Engine Owner's Manual for information regarding engine warranty.
Should you experience problems with your tiller take it back to your authorized Maxim
dealer or distributor to make warranty claims.
Maxim Manufacturing is not liable for any damage claim or liability claim, personal or oth-
erwise, resulting from the operation of this tiller in any way.
Maxim Manufacturing Corporation • Sebastopol, MS 39359 • (601) 625-7471 • 336745 • 2/2003

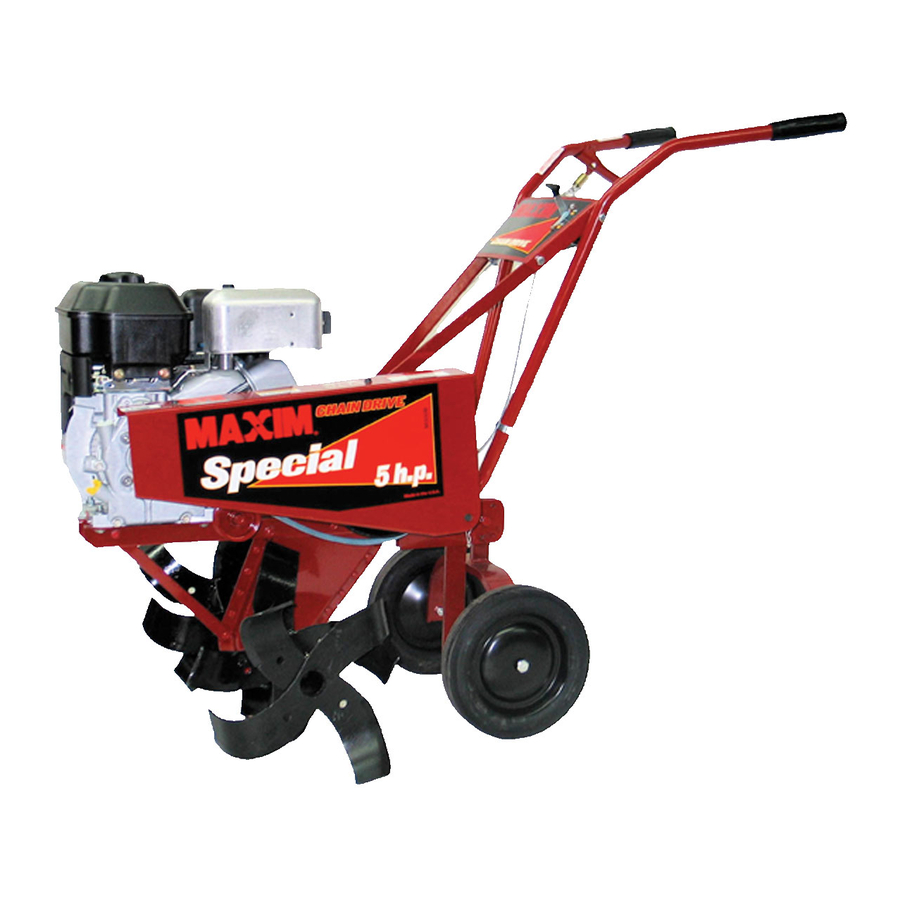

Maxim Chain Drive Tiller
Operator's Manual and Parts List
MS50B • MS30B • MS50BR
WARNING
If incorrectly used this machine can cause severe injury. Those who use and maintain the
machine should be trained in its proper use, warned of its dangers, and should read the
entire manual before attempting to set up, operate, adjust or service the machine.
READ THIS MANUAL.
RETAIN IT FOR FUTURE REFERENCE.
Advertisement
Related Manuals for Maxim MS50B, MS30B, MS50BR
Summary of Contents for Maxim MS50B, MS30B, MS50BR
-
Page 1: Read This Manual
Should you experience problems with your tiller take it back to your authorized Maxim dealer or distributor to make warranty claims. Maxim Manufacturing is not liable for any damage claim or liability claim, personal or oth- erwise, resulting from the operation of this tiller in any way. -
Page 2: Safe Practices For Garden Tillers
PREPARATION age and repair the damage before restarting and operating Check the tiller to make certain it is in good operating con- the tiller. dition. If the unit should start to vibrate abnormally, stop the Check tines to be sure they are free of any obstruction. -
Page 3: Table Of Contents
Always refer to operator’s manual for important details if Store gasoline in a safe container. Store the container in tiller is to be stored for extended period. IMPORTANT: THIS UNIT IS EQUIPPED WITH AN INTERNAL COMBUSTION ENGINE, AND SHOULD NOT BE USED ON OR NEAR ANY UNIMPROVED FOREST-COVERED, BRUSH COVERED OR GRASS COVERED LAND UNLESS THE ENGINE’S EXHAUST SYSTEM IS EQUIPPED WITH A SPARK ARREST-... -
Page 4: Set-Up Instructions
SET UP INSTRUCTIONS UNPACKING Do not attempt to lift the tiller from the carton. After opening the top, cut all four corners and lay the sides flat on the floor or working space. Take out all unassembled parts, bag of parts, and pro- tective packing. -
Page 5: General Information
(see page 7). The Maxim Chain Drive is the most versatile power unit ever developed for the home gardener and does a soil preparation job second to none, so a few minutes spent in studying the following instruc- tions will pay many dividends. -
Page 6: Operation
2. Make sure clutch lever is in disengaged position. 3. Start at the top of 10” pulley and begin removing belt in clockwise direction (facing tiller from left side). If tension on belt is too great the idler pulley may be pulled downward to relieve pressure on belt.
