Maxim Hi‐Wheel Plow
BHW – 24
Owners Guide
Address: 20195 South Diamond Lake Rd. Suite 100
Rogers, MN 55374
Website: www.maximmfg.com
E-mail: sales@maximmfg.com
Phone Number: (800) 621-2789
Owners Guide Part Number: MBHW24B.MAX
Advertisement
Related Manuals for Maxim BHW-24
Summary of Contents for Maxim BHW-24
- Page 1 Maxim Manufacturing: Address: 20195 South Diamond Lake Rd. Suite 100 Rogers, MN 55374 Website: www.maximmfg.com E-mail: sales@maximmfg.com Phone Number: (800) 621-2789...
- Page 2 Thank you for purchasing the Maxim Hi‐Wheel Plow Proudly made in the USA Tools needed for Assembly: ½” Wrench – (Quantity: 2) OR ½” Socket and ½” Wrench 9/16 Wrench (Quantity: 2) Note: ‐See page 3 for Parts List and Assembly Diagram ‐See page 4 for Fastener Identification ...

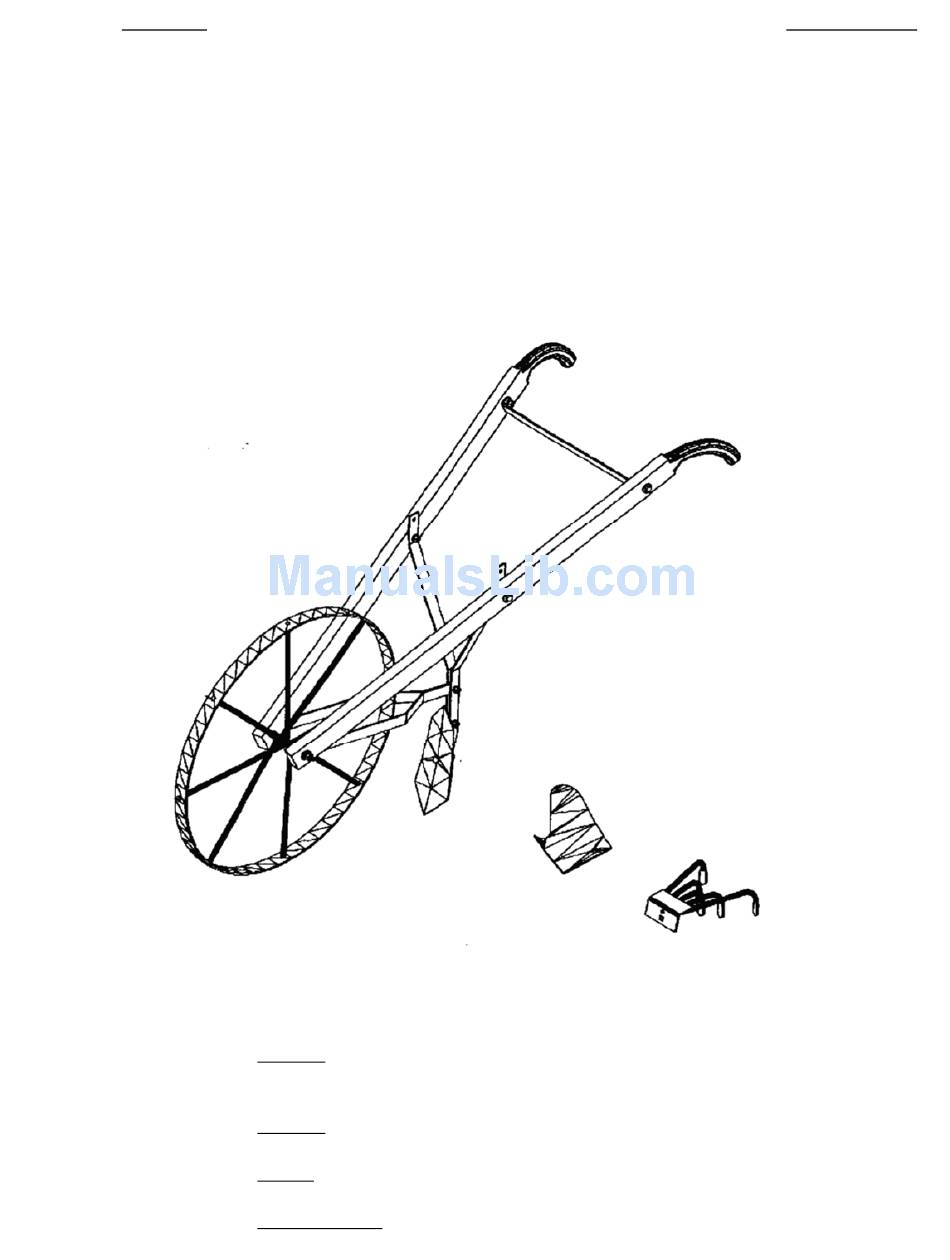

- Page 3 Maxim Hi‐Wheel Plow Assembly Instructions Model Number: BHW‐24 Step 1: Unpacking Wheel Plow Box Step 2: Hex Bolt/Flat Washer through Handle ‐Locate a 3/8 x 5 1/2” bolt (Ref. #11) . Place one ‐Remove all pieces from box and make sure you 3/8” flat washer (Ref. #8) on the bolt and insert have all of the necessary parts. through one of the handles (Ref. #1) ‐Refer to the Parts List on page 3. Step 3: Plow Support Brace/Wheel Step 4: Securing the Other Plow Support Brace/Handle ...
- Page 4 Step 5: Cross Brace Step 6: Lower Plow Supports 1.) Secure cross brace (Ref. #2) by placing a 5/16” flat 1.) Locate a 5/16” x 1 ¾” Hex Bolt (Ref. #7) and place a washer (Ref. #8) on the 5/16” x 1 ¾” bolt (Ref. #7) and 5/16” flat washer (Ref. #8) on the bolt, then put it inserting it through the upper most hole on the handle through the handle (Ref. #1). (Ref. #1) and the screw hole of the cross brace. 2.) Place the Right Hand Lower Plow Support (Ref. #3A) 2.) Fasten with a 5/16” lock washer (Ref. #9) and on the bolt, followed by a 5/16” lock washer (Ref. #9) 5/16” hex nut (Ref. #10) and 5/16” hex nut (Ref. #10) 3.) Repeat same steps for the other handle 3.) Repeat the same steps for the Left Hand Lower Plow Support (Ref. #3B) on the left handle Step 7: Connect Lower/Plow Support Braces Step 8: Connect Remaining Lower Plow Support Holes ‐With a 5/16” x 1 ¼” Hex Bolt (Ref. #12), connect the ‐Insert a 5/16” x 1 1/4” Hex bolt (Ref. #12) through each Lower Plow Supports (Ref. #3A/3B) to the of the remaining Lower Plow Support holes. outside of the Plow Support Braces (Ref. #4). ‐Add a 5/16” x 7/8” x .280 Spacer (Ref. #14) to each bolt. ‐Secure with 5/16” lock washer (Ref. #9) and ‐Secure with a 5/16” lock washer (Ref. #9) and a 5/16” Hex Nut (Ref. #10). 5/16” Hex Nut (Ref. #10). ...
- Page 5 Step 9: Connecting the Plow’s Attachments ‐To attach the Turn Shovel (Ref. #15), 5‐Finger Cultivator (Ref. #16), or the Double Pointed Shovel (Ref. #17): Place one 5/16” Flat washer (Ref. #8) onto a 5/16” x 1 ¾” hex bolt (Ref. #7) and insert through the hole in the attachment, then the opening between the spacers (Ref. #14) in the lower brace. Secure with a 5/16” flat washer (Ref. #8), 5/16” lock washer (Ref. #9), and a 5/16” hex nut (Ref. #10). BHW‐24 Hi‐Wheel Plow Parts List: Reference # Required Part Number Description 360410 (-S) Handles Pair (-S for Single Handle) 360411 Cross Brace 360412-R...
- Page 6 Maxim Hi‐Wheel Plow BHW‐24‐ Fastener Identification: *If you are missing any fasteners, please contact us at (800) 621‐2789* P 4 ...
