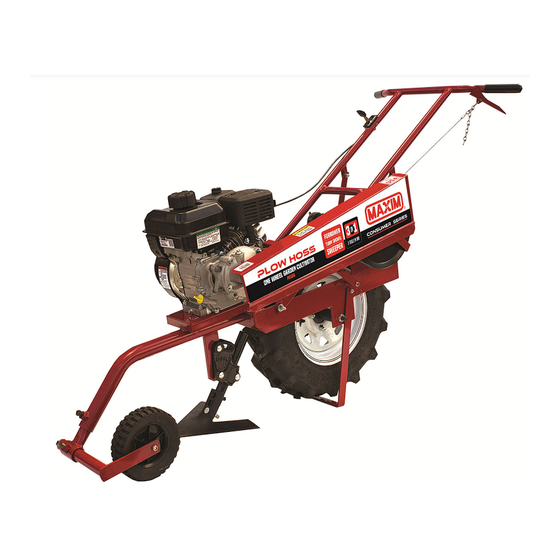

Maxim PH50B Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Owner's Manual
WARNING
USE EXTREME CAUTION WHILE USING THIS EQUIPMENT. INJURY CAN OCCUR.
READ CAREFULLY AND UNDERSTAND ALL ASSEMBLY AND SAFE OPERATION
INSTRUCTIONS BEFORE OPERATING. FAILURE TO FOLLOW THE SAFETY RULES
AND OTHER BASIC SAFETY PRECAUTIONS MAY RESULT IN SERIOUS PERSONAL
INJURY.
800-621-2789
PH50B Rev A.4
PH50B
MPH50BA.4
Page 1

Advertisement

Table of Contents
loading

Related Manuals for Maxim PH50B

Summary of Contents for Maxim PH50B

  • Page 1 USE EXTREME CAUTION WHILE USING THIS EQUIPMENT. INJURY CAN OCCUR. READ CAREFULLY AND UNDERSTAND ALL ASSEMBLY AND SAFE OPERATION INSTRUCTIONS BEFORE OPERATING. FAILURE TO FOLLOW THE SAFETY RULES AND OTHER BASIC SAFETY PRECAUTIONS MAY RESULT IN SERIOUS PERSONAL INJURY. 800-621-2789 PH50B Rev A.4 Page 1...

  • Page 2: Table Of Contents

    4.5 ... Front Wheel Installation .............................. 22 4.6 ... Final Set-up ..................................22 4.7 ... Before Starting Unit ............................... 23 4.8 ... To Start Unit ..................................23 4.9 ... To Stop Unit ..................................23 800-621-2789 PH50B Rev A.4 Page 2...
  • Page 3 9.1 ... Wheel Chain and Bearings ............................31 9.2 ... Clutch Lever Pivots................................31 STORAGE ................................... 31 9.3 ... Idler Arms Pivot ................................31 10.1 . Engine ....................................31 TRANSPORTING ..............................31 10.2 . Plow ....................................... 31 800-621-2789 PH50B Rev A.4 Page 3...
  • Page 4 In the state of California, a spark arrester is required by law (section 4442 of the California public resources code). Other states may have similar laws. Federal laws apply on federal lands. See your authorized service center for a spark arrester. 800-621-2789 PH50B Rev A.4 Page 4...

  • Page 5: Introduction

    PH50B 1 INTRODUCTION Plows like a mule without the kick! Maxim’s Plow Hoss is a one-wheel garden cultivator with a selection of plows - does everything a mule and plow used to do only faster. With all steel construction and simplicity of maintenance and operation, count on years of weed control Please read this entire manual before assembly and use.
  • Page 6 SAFETY INSTUCTIONS THAT FOLLOW THIS SIGNAL WORD ARE NOT OBEYED. ⚠ WARNING CALIFONINA PROPOSITION 65 WARNING ENGINE EXHAUST FROM THIS PRODUCT CONTAINS CHEMICALS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER, BIRTH DEFECTS, OR OTHER REPRODUCTIVE HARM. 800-621-2789 PH50B Rev A.4 Page 6...

  • Page 7: Operation References/Terminology

    The parts and components used on your Maxim plow have been specifically engineered for Maxim plow and should only be replaced with Maxim parts. Contact your local Maxim Dealer for OEM replacement parts or contact our customer service department for assistance in parts, 800-621-2789 PH50B Rev A.4...

  • Page 8: Model Identification

    Plow Serial Number 1.8 Further Assistance Your dealer and all of us at Maxim want you to be pleased with your plow. Should you require further assistance or have questions regarding your plow, please contact your local dealer where you purchased your plow. If you are unable to satisfy your needs by your local dealer, please...
  • Page 9 If the equipment should start to vibrate abnormally, stop the engine (motor), push the ON/OFF switch to the OFF position. • Regularly inspect the machine. Make sure parts are not bent, damaged or loose. 800-621-2789 PH50B Rev A.4 Page 9...

  • Page 10: Product-Specific Safety Rules

    • The plow should not move when the engine is idling. If they do, contact your local dealer or Maxim technical service for instruction. • If an object becomes lodged in the plow, push the ON/OFF switch, mounted on engine, to the OFF position, then allow the machine to cool before attempting to remove the foreign object.
  • Page 11 Never point the exhaust towards anyone. People should always be a minimum of ten feet away from the operation of the engine and its attachments. Do not change the engine governor settings or over-speed the engine. • 800-621-2789 PH50B Rev A.4 Page 11...
  • Page 12 When storing gasoline or equipment with fuel in the tank, store away from furnaces, • stoves, water heaters or other appliances that have a pilot light or other ignition source because they can ignite gasoline vapors. 800-621-2789 PH50B Rev A.4 Page 12...
  • Page 13 Allow machine to cool before storing. Stop and inspect the equipment if you strike an object. Repair, if necessary, before • restarting. • Clean and replace safety and instruction decals as necessary. 800-621-2789 PH50B Rev A.4 Page 13...

  • Page 14: Safety Decals

    These decals are easily applied and will act as a constant visual reminder to you, and others who may use the equipment, to follow the safety instructions necessary for safe, effective operation of your plow. Item # 366720 Item # 336726 Item # 336799 Item # ZS001 Item # 799546 800-621-2789 PH50B Rev A.4 Page 14...

  • Page 15: Training

    Do not start engine until you set machine on ground to be plowed. 3. Hold the handle with your left hand while pulling the starter rope with your right. Be sure the machine will not roll or tip during the starting operation. 800-621-2789 PH50B Rev A.4 Page 15...
  • Page 16 26. Be careful when plowing in hard ground. The plow may catch in the ground and suddenly stop. If this occurs, let go of the clutch lever and lift plow handles up to clear plow. Use caution when beginning to engage the dirt with the plow. 800-621-2789 PH50B Rev A.4 Page 16...

  • Page 17: Maintenance And Storage

    9. Maximum operating results and safety can only be expected if the machine is maintained and operated correctly. 10. Always refer to the storage instructions (Section 10) for important details if the plow is to be stored for an extended period. 800-621-2789 PH50B Rev A.4 Page 17...

  • Page 18: Parts Breakdown

    PH50B 3 PARTS BREAKDOWN Belt Guard Decal Part # 336726 800-621-2789 PH50B Rev A.4 Page 18...

  • Page 19: Parts List

    NUT, NYLOCK, JAM, 1/2-13, GF, ZP 86383 NUT, NYLOCK, 3/8-16, GR5, ZINC 272212 BELT, AP62 86454 KEY-SQUARE 3/16 X 1 336666 PULLEY, 10" X 3/4" (PH50B) 86740 1/4-20 NUT, NYLON INSERT 336690 SHANK, PLOW FOOT - PAINT 87268 5/16-18 X 5/16 SETSCREW ZN 336691 R.H.

  • Page 20: General Information

    PH50B General Information Engine Briggs & Stratton, 127cc Gear Reduction Handles 1” – 14 Gauge Steel Tractor Lug 6-12 Super Sure Grip Included Accessories 7” Turn Shovel, 12” Sweep, 8” Furrower Tractor Lug 6-12 Super Sure Grip Dimensions (L x W x H) 77”...

  • Page 21: Throttle Control & Manual Holder Installation

    PH50B 4. Mount right handle brace to handle along with the bottom mount of the manual tube, using one 5/16 x 1” bolt, as shown below. 4.2 Throttle Control & Manual holder Installation 1. Position throttle control to right handle along with top mount of manual holder and fasten with one ¼...

  • Page 22: Front Wheel Installation

    PH50B 4.5 Front Wheel Installation 1. Insert vertical wheel adjustment pipe mount into frame pipe mount and tighten using one ½ x ¾” lock bolt. 2. Insert pipe for front wheel side adjustment into the vertical mount horizontal noted in #1 above.

  • Page 23: Before Starting Unit

    PH50B 3. Fill the fuel tank. Use clean, fresh, unleaded gasoline 86 octane or higher. Never use fuel with more than 10% ethanol. Never use E85 Fuel Fill the tank completely. DO NOT MIX OIL WITH GASOLINE. 4.7 Before Starting Unit READ ALL INSTRUCTIONS CAREFULLY 1.

  • Page 24: Throttle Control Lever

    PH50B 3. The ground speed of the plow is controlled by the use of the throttle control lever and will vary given the ground condition and plow depth. 5.2 Throttle Control Lever The throttle control lever, located on the right handle bar, controls engine speed. The further ahead the lever the faster the engine will run, pulling the further back will bring it to idle.

  • Page 25: Starting The Engine

    PH50B 6.2 Starting the Engine Before starting the engine, check the machine against the Set-Up instructions (section 4) to see that it is properly assembled. Review the safety suggestion and operating instructions for safe and proper use of the plow.

  • Page 26: Checking And Adding Oil

    PH50B 6.5 Checking and adding Oil 1. Be sure the engine is located on a level surface before checking or refilling oil. Clean around oil fill area. 2. Be sure engine is cool. 3. Unscrew dipstick and wipe clean with cloth.

  • Page 27: Operation

    PH50B 6.8 Operation ⚠ IMPORTANT: Keep hands clear of belt and tines while engine is running. ⚠ WARNING: For safe operation, the power to drive wheel should immediately stop when clutch lever is released. If it does not, adjust belt and cable tension as described in Section 7 in this manual.

  • Page 28: Adjustments

    PH50B 7 ADJUSTMENTS ⚠ DANGER To avoid possible serious bodily injury, when performing any adjustments, remove the spark plug wire and place the wire away from the plug to prevent accidental starting. 7.1 Clutch Adjustment Proper clutch adjust is very important. Minor adjustment, if needed, can be made by using the links on the clutch cable chain only.

  • Page 29: Plow Height Adjustment And Front Wheel Adjustment

    PH50B 7.3 Plow Height Adjustment and Front Wheel Adjustment Plow height is adjusted by inserting the Vertical Wheel adjustment into the Frame pipe mount at desired height and tightening the lock bolt. Frame pipe mount Vertical wheel adjustment Wheel side adjustment A secondary height adjustment would be at the front wheel side adjustment, by rotating the wheel mounting frame.

  • Page 30: Dual Filter Element Air Cleaner

    PH50B 6. Use a high-quality detergent oil – refer to your engine owner’s manual for oil requirements. 7. Add oil as necessary to keep oil level as indicated. Detergent oils keep the engine cleaner and reduce the formation of gum and varnish deposits. Nothing should be added to the recommended oil.

  • Page 31: Lubrication

    PH50B ⚠ NOTE: Do not use a garden hose or pressure washing equipment, it can force water into the air cleaner. Water in the air cleaner will soak the filter element and can enter the carburetor or engine cylinder, causing damage.
  • Page 32 PH50B 12 WARRANTY 12.1 Warranty/Product Registration Please register your product immediately after purchase. You can do that by visiting our website at www.maximmfg.com and complete our online product registration. Or, complete the following warranty/production registration form on the next page and...
  • Page 33 PH50B Or, Fax completed form to: 763-428-4821 20195 South Diamond Lake Road, STE 100 Rogers, MN 55374 800.621-2789 www.maximmfg.com...
  • Page 34 PH50B This page intentionally left blank 20195 South Diamond Lake Road, STE 100 Rogers, MN 55374 800.621-2789 www.maximmfg.com...
  • Page 35 PH50B 20195 South Diamond Lake Road, STE 100 Rogers, MN 55374 800.621-2789 www.maximmfg.com...
  • Page 36 PH50B Maxim 20195 South Diamond Lake Road Suite 100 Rogers, MN 55374 www.maximmfg.com 800-621-2789 20195 South Diamond Lake Road, STE 100 Rogers, MN 55374 800.621-2789 www.maximmfg.com...
