Owner's Manual
WARNING
USE EXTREME CAUTION WHILE USING THIS EQUIPMENT. INJURY CAN OCCUR.
READ CAREFULLY AND UNDERSTAND ALL ASSEMBLY AND SAFE OPERATION
INSTRUCTIONS BEFORE OPERATING. FAILURE TO FOLLOW THE SAFETY RULES
AND OTHER BASIC SAFETY PRECAUTIONS MAY RESULT IN SERIOUS PERSONAL
INJURY.
20195 South Diamond Lake Road, STE 100
Rogers, MN 55374
800.621-2789
RMT55H
MRMT55HB
1
Advertisement
Table of Contents
Related Manuals for Maxim MT PRO Series
Summary of Contents for Maxim MT PRO Series
- Page 1 RMT55H Owner’s Manual MRMT55HB WARNING USE EXTREME CAUTION WHILE USING THIS EQUIPMENT. INJURY CAN OCCUR. READ CAREFULLY AND UNDERSTAND ALL ASSEMBLY AND SAFE OPERATION INSTRUCTIONS BEFORE OPERATING. FAILURE TO FOLLOW THE SAFETY RULES AND OTHER BASIC SAFETY PRECAUTIONS MAY RESULT IN SERIOUS PERSONAL INJURY.
-
Page 2: Table Of Contents
RMT55H INTRODUCTION ................................ 5 Table of Contents 1.1 ... Application ....................................5 1.2 ... Benefits ....................................5 1.3 ... Navigating This Manual ..............................5 1.4 ... Warnings and Safety Precautions ..........................5 1.5 ... Operation References/Terminology ..........................7 1.6 ... Owner Assistance ................................8 1.7 ... Model Identification ................................8 SAFETY .................................. - Page 3 RMT55H 6.2 ... Starting the Engine ................................. 24 6.3 ... Pre-Start ....................................24 6.4 ... Filling Fuel Tank ................................24 6.5 ... Checking and adding Oil .............................. 25 6.6 ... Cold Starting Procedure ............................... 25 6.7 ... Stopping Engine ................................26 6.8 ...
- Page 4 RMT55H ⚠ WARNING READ ENTIRE MANUAL BEFORE ATTEMPTING TO OPERATE MACHINE If incorrectly used, this machine can cause severe injury. Those who use and maintain this machine should be trained in its proper use, warned of its dangers, and should read the entire manual before attempting to set up, operate, adjust, or service this machine.
-
Page 5: Introduction

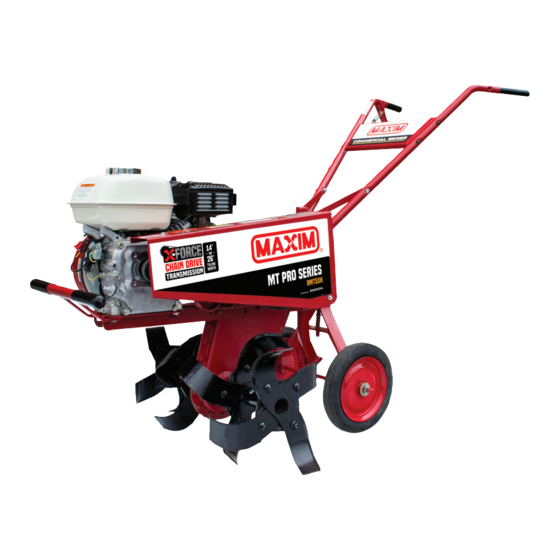

RMT55H 1 INTRODUCTION Maxim front tine tillers feature heavy gauge steel, heat treated tines, lift bar and a ruggedly built transmission. For additional durability, an extra heavy-duty frame. It’s this simple, yet sturdy design that makes Maxim tillers low maintenance and easy to use. - Page 6 RMT55H SPECIAL MESSAGES Your manual contains special message to bring attention to potential safety concerns, machine damage as well as helpful operating and servicing information. Please read all the information carefully to avoid injury and machine damage. This information alerts you to potential hazards that could hurt you or others.
-
Page 7: Operation References/Terminology
RMT55H ⚠ WARNING CALIFONINA PROPOSITION 65 WARNING ENGINE EXHAUST FROM THIS PRODUCT CONTAINS CHEMICALS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER, BIRTH DEFECTS, OR OTHER REPRODUCTIVE HARM. ⚠ WARNING YOU MUST READ, UNDERSTAND AND COMPLY WITH ALL SAFETY AND OPERATING INSTRUCTIONS IN THIS MANUAL BEFORE ATTEMPTING TO SETUP AND OPERATE YOUR MACHINE. -
Page 8: Owner Assistance
Engine Serial Number 1.8 Further Assistance Your dealer and all of us at Maxim want you to be pleased with your tiller. Should you require further assistance or have questions regarding your tiller, please contact your local dealer where you purchased your tiller. If you are unable to satisfy your needs by your local dealer, please... -
Page 9: Safety
RMT55H 2 SAFETY 2.1 General Safety Rules Read, understand and follow all instructions on the machine and in the manual(s). Be • thoroughly familiar with the controls and proper use of the machine before starting. Use this equipment for its intended purpose only. •... -
Page 10: Product-Specific Safety Rules
The tines of the tiller should not rotate when the engine is idling. If they do, contact your local dealer or Maxim technical service for instruction. If an object becomes lodged in the tines, flip the ON/OFF switch to the OFF position, then •... - Page 11 RMT55H cause nausea, fainting or death, in addition to drowsiness, dizziness and confusion. If you experience any of these symptoms, seek fresh air and medical attention immediately. ⚠ WARNING NGINES GIVE OFF CARBON MONOXIDE AN ODORLESS COLORLESS POISONOUS GAS ARBON MONOXIDE MAY BE PRESENT EVEN IF YOU DO NOT SMELL OR SEE ANY ENGINE EXHAUST REATHING CARBON MONOXIDE CAN CAUSE NAUSEA...
- Page 12 RMT55H GASOLINE FIRES AND HANDLING FUEL SAFELY ⚠ Warning gasoline is highly flammable and explosive You can be burned or seriously injured when handling fuel. Use extreme care when handling gasoline or other fuels. They are flammable and vapors are explosive. •...
- Page 13 RMT55H BURNS AND FIRES The muffler, muffler guard and other parts of the engine become extremely hot during the operation of the engine. These parts remain extremely hot after the engine has stopped. • Never remove the muffler guard from the engine. •...
-
Page 14: Safety Decals
RMT55H • To guard against engine over-heating, always have engine air filter mounted and clean. • Inspect machine before storage. When not in use, flip the ignition ON/OFF switch to the OFF position and store indoors in a dry place locked or otherwise inaccessible to children. •... -
Page 15: Training
RMT55H 2.5 Training 1. Read the Owner’s Manual carefully. Be thoroughly familiar with the controls and the proper use of the equipment. Know how to stop the unit and disengage the tines quickly. 2. Never allow children to operate the equipment. Never allow adults to operate the equipment without proper instructions. -
Page 16: Maintenance And Storage
RMT55H 8. Before cleaning, repairing, or inspecting, shut off the engine and make certain all moving parts have stopped. Disconnect the spark plug wire, and keep the wire away from the plug to prevent accidental starting. 9. Do not run the engine indoors; exhaust fumes are dangerous. 10. -
Page 17: Parts Breakdown
RMT55H 3 PARTS BREAKDOWN 3.1 Tine Assembly Breakdown Ref. Part # Description 130761 Tine Assembly 80049 Bolt, Hex, 3/8-16 x 1.00, Zinc 86383 Nut, Nylock, 3/8-16, GR5, Zinc 130762 R.H. Slasher Blade #3554R (HD)-Blk 130763 L.H. Slasher Blade #3555L (HD)-Blk 130776 Inner Hub –... -
Page 18: Frame Parts Breakdown
RMT55H 3.2 Frame Parts Breakdown MT PRO SERIES rmt55h PN 336919 PN 87619 Belt Guard Decal Cross Brace Decal Made In USA Decal Part # 336920 Part # 336919 Part # 797158 20195 South Diamond Lake Road, STE 100 Rogers, MN 55374... - Page 19 RMT55H Ref. Part # Description Ref. Part # Description 130761 SLASHER TINE SET (HD) 359341 BRACKET,LOW B/GUARD-PAINT 359335 SPACER, TRANS. -FORM<7/8"> 87373 NUT, CLIP, 1/4-20, 0025-015, BLACK 359325 LEVER, IDLER - CUT/PUNCH 359343 BRACKET,UPPER B/GUARD-PAINT 130701 HITCH CASTING 336678 BRACE. HANDLE BAR - PAINT 336686 DEPTH BAR - PAINT 80027...
-
Page 20: Transmission Parts Breakdown
RMT55H 3.3 Transmission Parts Breakdown Ref. Part # Description Ref. Part # Description 130400 359297 Idler Bearing, #SCH912 Complete Transmission Assembly 80045 Bolt, HHCS, 5/16-18 x 2 ¾, GR5 Zinc 359298 Bushing, Idler Cluster 80150 5/16-18 Serrated Flange Nut 359299 Washer, Transmission –... -
Page 21: General Information
RMT55H 3.4 General Information Engine Honda GX160UT2QX2, 163cc Transmission Chain Drive Tine speed (max) 72 RPM Heavy-Duty Slasher Tines w/ Replaceable, Tines Bolt-On Blades Tilling width 14” or 26” Tilling depth Up to 10” Drag Bar Heavy-Duty w/ Spring Loaded Pin Handles 1”-12”... -
Page 22: Final Set-Up
RMT55H right handle bar and cross brace. Route the clutch cable through guide with the adjustment at the top. 6. Install the handle bar cross brace between the handle bars using two ¼” – 20 x 1 ½”, one ¼ - 20 x 1 ¾” HHSF, one ¼ - 20 x 2 hex bolts, nylon lock nuts. Install manual tube by aligning top mounting hole on manual tube with upper left handle bolt on cross brace. -
Page 23: Throttle Control Lever
RMT55H 3. Pushing down means slowing down or even standing still. This directs the drag stake into the soil, thus holding the tiller back. 4. Adjust throttle for desired speed and depth of tines. 5.3 Throttle Control Lever The throttle control lever, located on the engine, controls engine speed. When starting, place control lever in center position. -
Page 24: Starting The Engine
RMT55H ⚠ DANGER: Never operate the tiller without proper guards, plates, or other safety devices in place. Serious injury or death could result. ⚠ WARNING: Do not attempt to start or operate this tiller until you are completely familiar with location and use of each control necessary to operate this tiller. -
Page 25: Checking And Adding Oil
RMT55H ⚠ CAUTION ENGINE IS SHIPPED FROM FACTORY WITHOUT OIL YOU MUST ADD ENGINE OIL BEFORE STARTING ENGINE IF ENGINE IS STARTED WITHOUT OIL ENGINE MAY BE DAMAGED BEYOND REPAIR AND WILL NOT BE COVERED BY WARRANTY . FUEL AND NEVER STORE ENGINE WITH FUEL IN THE TANK INDOORS FUEL VAPORS ARE HIGHLY FLAMMABLE AN ADULT ONLY MUST ALWAYS HANDLE AND FILL THE ENGINE WITH FUEL... -
Page 26: Stopping Engine
RMT55H 4. Repeat steps number 2-3 above until engine starts. If engine fails to start after 3 pulls on the rope, repeat step number 1 above as necessary. Slowly move choke control to RUN position after engine has responded and engine warms up. 5. -
Page 27: Operation Tips
RMT55H the wheel frame bar allowing the spring-loaded pin to reposition and lock wheels in the up position. For weeding or cultivation, wheels may be left down if you prefer. 2. Adjust the drag stake for comfortable operation. This is done by pulling the spring-loaded locking pin from the drop stake locking hub and sliding the drag stake down or up. -
Page 28: Adjustments
RMT55H 7 ADJUSTMENTS ⚠ DANGER To avoid possible serious bodily injury, when performing any adjustments, remove the spark plug wire and place the wire away from the plug to prevent accidental starting. 7.1 Clutch Adjustment Proper clutch adjust is very important. Minor adjustment, if needed, can be made by using the links on the clutch cable chain only. -
Page 29: Tine Adjustment
RMT55H 7.3 Tine Adjustment The standard tilling width is 26” with both inner and outer tine assemblies mounted. Tilling width is 14” with outer assemblies removed. 1. To remove outer tine assemblies from inner tine assemblies, remove pin clip from clevis pin. -
Page 30: Dual Filter Element Air Cleaner
RMT55H 8.3 Dual Filter Element Air Cleaner Clean cartridge at three month intervals or every 50 hours, whichever occurs first. ⚠ NOTE: Service more often under dust conditions. 1. Remove the wing nut from the air cleaner cover and remove cover. 2. -
Page 31: Lubrication
RMT55H 2. Wash the engine by hand, and be careful to prevent water or debris from entering the air cleaner. ⚠ NOTE: Do not use a garden hose or pressure washing equipment, it can force water into the air cleaner. Water in the air cleaner will soak the filter element and can enter the carburetor or engine cylinder, causing damage. -
Page 32: Storage
RMT55H 10 STORAGE 10.1 Engine 1. If your tiller is to be stored over 30 days, please see your Engine Owner’s Manual for storage information. The engine should be completely drained of fuel to prevent gum deposits from forming on essential carburetor parts, fuel filter, fuel lines and tank. 2. -
Page 33: Warranty
Or, complete the following warranty/production registration form on the next page and return to: Maxim Attn: Warranty Registration Department 20195 South Diamond Lake Road, STE 100 Rogers, MN 55374 20195 South Diamond Lake Road, STE 100 Rogers, MN 55374 800.621-2789... -
Page 34: South Diamond Lake Road, Ste
RMT55H Or, Fax completed form to: 763-428-4821 20195 South Diamond Lake Road, STE 100 Rogers, MN 55374 800.621-2789... - Page 35 RMT55H 20195 South Diamond Lake Road, STE 100 Rogers, MN 55374 800.621-2789...
- Page 36 RMT55H 20195 South Diamond Lake Road, STE 100 Rogers, MN 55374 800.621-2789...
