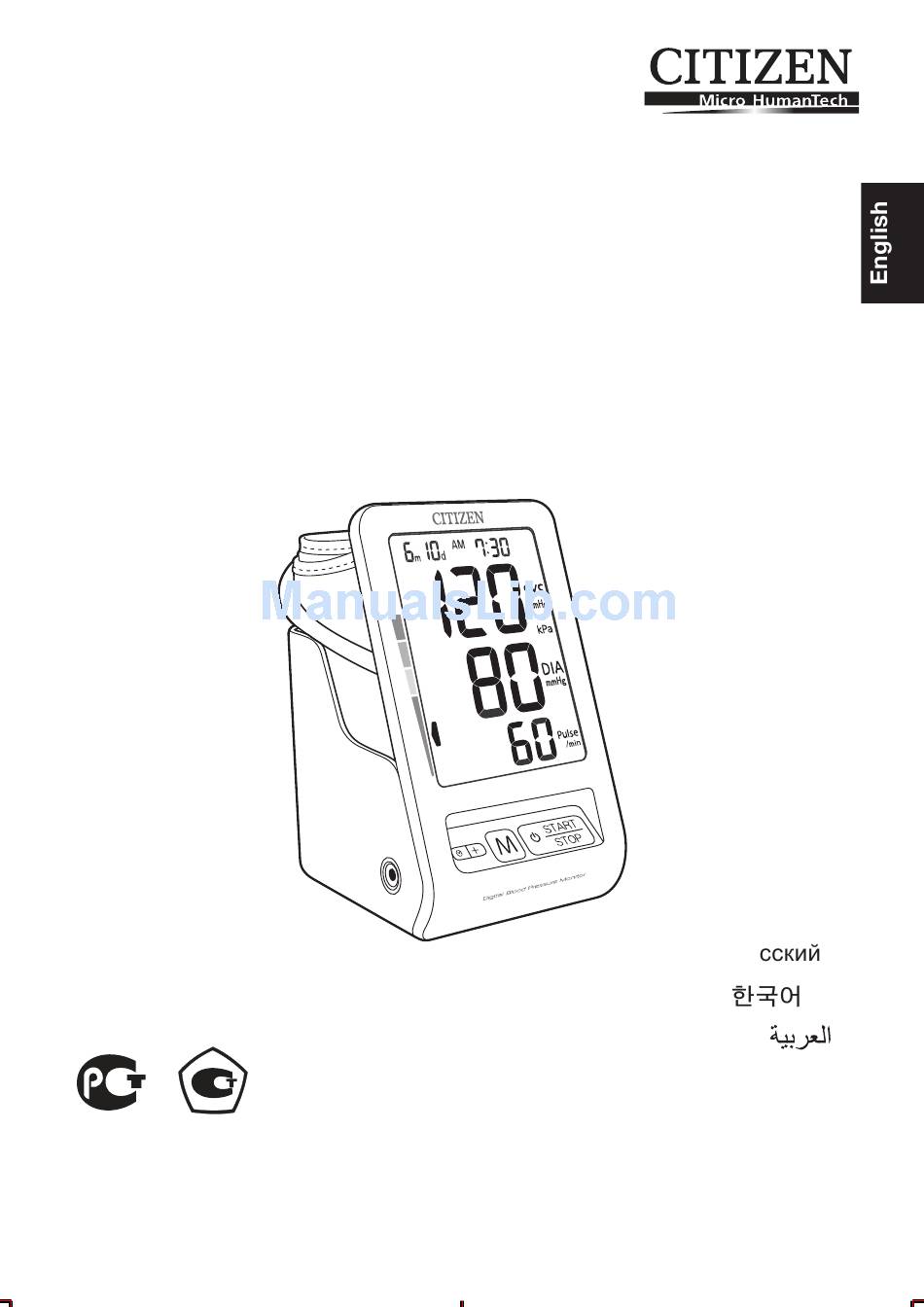

- Page 1 INSTRUCTION MANUAL DIGITAL BLOOD PRESSURE MONITOR CH-456 English Español Français * Please read all of the information in the instruction manual before operating the monitor. 1501...
-
Page 2: Table Of Contents
English Contents 1 - GENERAL REMARKS 3 - PRECAUTIONS FOR USE AND MAINTENANCE 6 - IDENTIFICATION OF PARTS 7 - LOADING THE BATTERIES 7 - REMOVING THE BATTERIES 8 - USING AC ADAPTER (OPTION) 9 - TIME ADJUSTMENT 10 - MEASURING YOUR BLOOD PRESSURE 13 - TIPS FOR OBTAINING ACCURATE MEASUREMENTS 14 - CALLING UP THE DATA STORED IN MEMORY 15 - ABOUT “BLOOD PRESSURE”... - Page 3 Wrap the cuff around your arm and tighten it so that one finger can be inserted between the cuff and arm. ( See page 10, 11) DO NOT measure your blood pressure after bathing or drinking. Measure your blood pressure where the room temperature is around 20°C. DO NOT measure your blood pressure when it is too cold (below 10°C) or too hot (above 40°C) in the room.
-
Page 4: Precautions For Use And Maintenance
PRECAUTIONS FOR USE AND MAINTENANCE Precautions for use If you suffer from heart disease, high blood pressure or other circulatory disease, consult your physician before using the monitor. Inflating to a higher pressure may result in bruising where the cuff is applied. If the cuff pressure feels abnormal or you experience any other irregularity while using the cuff, reduce the pressure immediately by pressing the “START/STOP”... -
Page 5: Nature And Frequency Of Maintenance
Maintenance Precautions DO NOT store the blood pressure monitor in locations exposed to direct sunlight, high temperatures (over 60°C), low temperatures (below -20°C), high relative humidity (over 95%) or excessive amounts of dust. Make sure to store the blood pressure monitor, where children, pets and or pests are not there. -
Page 6: Protect The Nature Environment
The blood pressure measuring device is generally recommended to have the monitor inspected every two years to ensure correct functioning and accuracy. Please contact a distributor. Name : CITIZEN SYSTEMS JAPAN CO., LTD. Address : 6-1-12, Tanashi-cho, Nishi-Tokyo-shi, Tokyo 188-8511, Japan... -
Page 7: Identification Of Parts

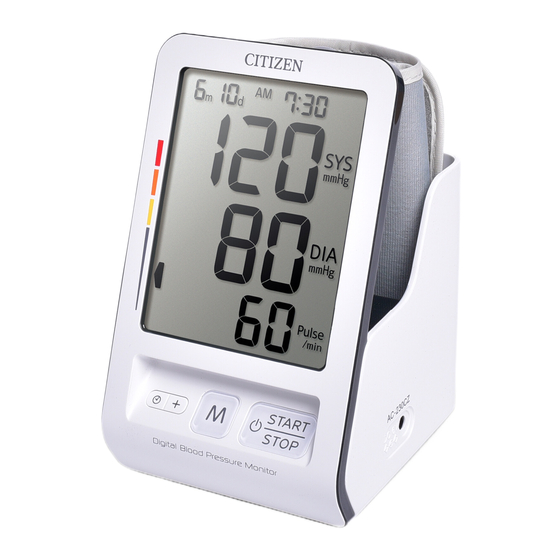

IDENTIFICATION OF PARTS Component names <Main Unit> <Cuff> Display* Air hose Blue marker Cuff holding pocket Metal hoop Air hose connector START/STOP Switch wStand-by Air hose socket MEMORY Switch Date/Time Set Switch Adjust Switch Battery compartment** *See page 6 for the display icons. **See page 7 for the Battery compartment <Display>... -
Page 8: Loading The Batteries
LOADING THE BATTERIES (Batteries supplied with the unit should be loaded in compartment before you use the blood pressure monitor.) * When you install the batteries for the first time after purchase, the monitor will display the clock setting screen. Follow step 2 and subsequent steps in TIME ADJUSTMENT ( See page 9) to set the clock. -
Page 9: Using Ac Adapter (Option
USING AC ADAPTER (OPTION) Using the optional dedicated AC adapter (model: AC-230CZ) for the CITIZEN blood pressure monitor (CH-456) allows you to measure your blood pressure without having to worry about the amount of remaining charge in the batteries. The CH-456 and AC-230CZ should be used indoors in dry Warning location. -
Page 10: Time Adjustment
TIME ADJUSTMENT Setting the clock enables measurements to be accurately recorded. The monitor can record the date and time of measurement as well as the measurement results. Be sure to set the clock after inserting the batteries. Set the date first and then the time. * When you install the batteries for the first time, the monitor will display the clock setting screen. -
Page 11: Measuring Your Blood Pressure
MEASURING YOUR BLOOD PRESSURE Plug the air hose connector into the main unit. • Plug the air hose connector firmly into the air hose socket on the main unit, as illustrated. Air hose connector Air hose socket ATTACHING THE CUFF Before applying your blood pressure cuff, be sure you have selected the appropriate size cuff: Cuff (model: SCN-003) fits arm circumference: 22-32 cm... - Page 12 Pull the end of the cuff outwards so that the cuff is snug around your arm and then secure the end to the hook- and-loop fastener. Place your arm on a table or the like, so that the center of the cuff comes to the height of your heart.
- Page 13 The measurement results are displayed. • Once measurement is complete, the cuff deflates and the measurement results (systolic/diastolic blood pressure values, pulse) are displayed. * Provided there is no error in the Hypertension measurement results, they are stored classification indicator automatically.
-
Page 14: Tips For Obtaining Accurate Measurements
Hypertension ClassiÞ cation Indicator The measured blood pressure value is displayed according to the WHO standards. See page 2) SYSTOLIC (mmHg) Grade 3 Hypertension (severe) Grade 2 Hypertension (moderate) Grade 1 Hypertension (mild) High-Normal Normal Optimal 90 100 DIASTOLIC (mmHg) TIPS FOR OBTAINING ACCURATE MEASUREMENTS Your blood pressure varies according to your posture, the time of day and a range of other factors. -
Page 15: Calling Up The Data Stored In Memory
CALLING UP THE DATA STORED IN MEMORY 90 measurement results can be stored in Memory. The average value is calculated automatically to help you manage your daily health. Press the Memory switch once. * Example of display when the Memory switch is pressed. Memory switch indicating the average value appears at the bottom of the display. -
Page 16: About "Blood Pressure
• The value stored in memory is numbered in the order of measurements. For example, when 90 sets of data are stored in memory, the data number 1 represents the latest data. Data number: 1, 2, 3, ..89, 90 The latest data The earliest data HOW TO DELETE THE DATA... -
Page 17: Blood Pressure Q&A
BLOOD PRESSURE Q&A Why is the blood pressure measured at home different from that measured by the physician or at a hospital? Your blood pressure may vary due to exercise, the ambient temperature or your mental state. When you have a physician or nurse measure your blood pressure, the pressure value is likely to be 10 to 20 mmHg higher than usual due to anxiety and/or stress. -
Page 18: Before Requesting Repairs Or Testing
DISPLAY MARK CONDITION/CAUSE CORRECTIVE ACTION Appears when the pulse Attach the cuff properly again. rate falls outside the Take deep breaths to relax, and measuring range (below measure again. ( See page 39 beats/min. or above 13 “TIPS FOR OBTAINING 181 beats/min.) ACCURATE MEASUREMENT”.) The unit does not... -
Page 19: Specifications
• CITIZEN is a registered trademark of Citizen Holdings Co., Japan. • Design and Specification are subject to change without notice.
