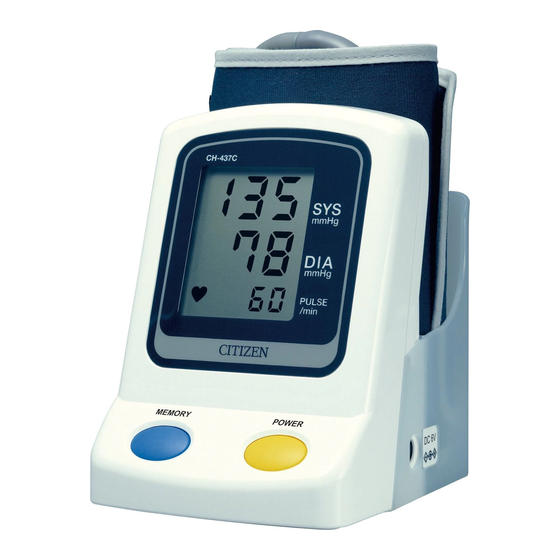

- Page 1 INSTRUCTION MANUAL DIGITAL BLOOD PRESSURE MONITOR CH-437C English Español Português Deutsch - Eng 1 -...
-
Page 2: General Remarks
GENERAL REMARKS General remarks on blood pressure and blood pressure measurement 1. If the cuff is to be deflated quickly, depress “POWER” switch. . The attached cuff is suited for an arm circumstance of cm to 3 cm. 3. When attaching the cuff, the air hose should be placed on the inside of your arm on top of the arterial. - Page 3 GENERAL REMARKS 7. DO NOT try to measure blood pressure immediately after drinking coffee or tea or smoking. 8. Measure blood pressure with a relaxed and quiet posture. Keep the center of the cuff at the level of your heart, and DO NOT move your arm or talk. 9.
-
Page 4: Precaution For Use And Maintenance
PRECAUTION FOR USE AND MAINTENANCE Precaution for use 1. If you suffer from heart disease, high blood pressure or other circulatory disease, please consult your doctor first. . If you feel abnormal pressure of the cuff during use or any other irregularity, reduce the pressure by immediately switching off the power or remove the batteries and consult the sales outlet where purchased. -
Page 5: Nature And Frequency Of Maintenance
PRECAUTION FOR USE AND MAINTENANCE 14. If you use a cardiac pacemaker, consult your doctor before use. 15. Be sure to use this unit only for measuring blood pressure. DO NOT use it for any other purpose. 16. DO NOT use this unit on an infant. 17. -
Page 6: Reference European Standard
PRECAUTION FOR USE AND MAINTENANCE WEEE MARK If you want to dispose this product, do not mix with general household waste. There is a separate collection systems for used electronics products in accordance with legislation under the WEEE Directive (Directive 00/96/EC) and is effective only within European Union. - Page 7 PRECAUTION FOR USE AND MAINTENANCE Safety Precautions before Using AC Adapter When you use the blood pressure monitor connected to the AC adapter (Ref. AC-30CZ), pay attention to the following remarks. • DO NOT remove or insert the AC adapter with a wet hand. DO NOT get the AC adapter wet or DO NOT wash it in water.
-
Page 8: Identification Of Parts
IDENTIFICATION OF PARTS Systolic blood pressure display section Diastolic blood pressure display section PULSE Pulse display /min. section POWER switch Stand-by Air Hose socket MEMORY switch Battery compartment cover Arm cuff Air hose plug Air hose AC adapter socket Pocket (for storing arm cuff) - Eng 8 -... - Page 9 HOW TO LOAD BATTERIES Remove the plugs. Remove the air hose plug and AC adapter plug. Air hose AC adapter plug plug Remove the Pocket. draw While pressing the lock section on the bottom of the pocket, pull the pocket in the direction of the arrow.
- Page 10 HOW TO LOAD BATTERIES Place the batteries in the compartment. Fit the batteries paying attention to the positive + and negative – terminals. * If the blood pressure monitor is left unused for an extended period of time, the batteries should be removed from the compartment.
- Page 11 HOW TO LOAD BATTERIES Re-attach the pocket. Match the guides at the right and left sides of the pocket with those on the monitor body and slide the pocket till it clicks. HOW TO UNLOAD THE BATTERIES Remove the plug, pocket and battery compartment cover.
- Page 12 HOW TO LOAD BATTERIES Remove each battery from top to bottom by lifting up its end, rotating it in the direction of the arrow with your fingertip. Re-attach the battery compartment cover and the pocket. See page 9 "HOW TO LOAD BATTERIES".) Replacing the batteries •...
- Page 13 HOW TO USE AC ADAPTER (OPTION) When the optional AC adapter, exclusive for the Citizen blood pressure monitor (CH-437C) is used, you can measure blood pressure without paying attention to the residue of the batteries. I n s e r t t h e A C a d a p t e r p l u g into the socket on the blood pressure monitor body.
- Page 14 POINTS FOR ACCURATE MEASUREMENT Blood pressure varies with posture, the time of day or numerous other factors. It is recommended to measure blood pressure at the same time each day in the same posture. ■ Measurement in sitting posture 1 Place your arm on a table or similar surface stretching out the portion from the elbow to the hand.
- Page 15 HOW TO WRAP THE ARM CUFF Unroll the arm cuff. metal bar • When the arm cuff comes off, pass it through metal bar, directing the Velcro-attached side Velcro to the outer surface. Put the arm cuff around your arm so that the air hose comes to the left palm side.
- Page 16 HOW TO WRAP THE ARM CUFF Draw the end of the arm cuff to fit it on the arm and secure with Velcro. • Carefully place the arm taking care to obtain adequate tightness, not too tight or loose. Adequate tightness is obtained when you can place a finger between the cuff and your arm.
- Page 17 HOW TO MEASURE YOUR BLOOD PRESSURE To get an accurate blood pressure measurement, you need to start by setting the pressure cuff on your arm to the correct starting pressure. The correct starting pressure level for you is your systolic blood pressure (the higher of your two blood pressure readings) plus 40 mmHg.
- Page 18 HOW TO MEASURE YOU BLOOD PRESSURE Insert the air hose plug into the case of the unit. Sit in the recommended position. See page 14 "POINTS FOR ACCURATE MEASUREMENTS".) Measure your blood pressure. Press to start inflating the cuff. You can select either the "AUTO" or "MANUAL" mode to set the correct starting pressure.
- Page 19 HOW TO MEASURE YOUR BLOOD PRESSURE After a measurement is obtained, press The power will be turned off. Store the arm cuff in the pocket. Wind the air hose around the arm cuff and store the cuff in the pocket. Automatic Power Off Function About 3 minutes after the last measurement was obtained, the power will be turned off, automatically.
- Page 20 HOW TO MEASURE YOU BLOOD PRESSURE ◆Automatic Pressurizing mode In this mode, the pressure in the cuff is raised to the correct level automatically, according to the previous measurement stored in memory, and your blood pressure is measured. Press The cuff is inflated immediately after the mark is turned on and then off.
- Page 21 HOW TO MEASURE YOUR BLOOD PRESSURE When your pulse is detected, the mark will blink and pressure will be shown in the Diastolic Blood Pressure readout. (Diastolic blood pressure is the lower number of your two blood pressure readings). After the measurement has been taken and recorded, the air inside the arm cuff will be released and the measurement results (Systolic/Diastolic blood pressure and pulse rate) will appear.
- Page 22 HOW TO MEASURE YOU BLOOD PRESSURE ◆Manual Pressurizing mode You can change the starting pressure setting by pressing the Press The cuff starts to inflate. The pressure will continue to increase while the is pressed. Your systolic blood pressure When the pressure indicator reaches the Starting pressure for you correct starting pressure for you, stop pressing the...
- Page 23 HOW TO MEASURE YOUR BLOOD PRESSURE The cuff pressure will be set the pressure value you decided when you stop pressing the , and the monitor will start measuring your blood pressure. • The starting pressure can be set between 160 and 80 mmHg manually.
- Page 24 HOW TO CALL UP DATA STORED IN MEMORY The automatically stored data (measurement results) can be called up for reference. The data stored in memory cannot be called up during measurement. ● Measurements stored in memory are assigned "a memory number" in the order of measurement and up to 7 measurements can be stored in the memory.
-
Page 25: Error Indications
ERROR INDICATIONS DISPLAY MARK CONDITION/CASE CORRECTIVE ACTION Pressure was insufficient. Wrap the cuff around your arm again and measure your blood pressure using the Manual Pressurizing mode. See page "Manual Pressurizing mode".) Pressure was insufficient. Re-wrap the arm cuff snugly. Appears when the blood Take another reading, making pressure could not be... -
Page 26: What Is Blood Pressure
ABOUT "BLOOD PRESSURE" What is blood pressure? The heart is a pump that circulates blood throughout your body. Blood is pumped from the heart at a constant pressure into arteries. This pressure is called the arterial blood pressure, which represents, in general, blood pressure. - Page 27 QUESTIONS AND ANSWERS ON BLOOD PRESSURE Why is the blood pressure measured at home different from that measured at the doctor or a hospital? Blood pressure may vary with exercising, ambient temperature or mental states. When you have a doctor or nurse measure your blood pressure, the pressure value is likely to be 10 to 0 mmHg higher than usual because of concern and nervousness.
- Page 28 BEFORE ASKING FOR REPAIR/INSPECTION Be sure to check the following before sending your blood pressure monitor for repair/inspection. Calibration: The blood pressure measuring device is generally recommended to have the monitor inspected every two years to ensure correct functioning and accuracy. Please contact a distributor.
-
Page 29: Specifications
SPECIFICATIONS Measurement Principle Oscillometric Method Display Digital Display Measuring Range Pressure 0 to 80 mmHg (in 1 mmHg increments) Pulse 40 to 180 beats/min. Accuracy Pressure ±3 mmHg Pulse ±5% of Reading Inflation Automatic Inflation by Internal Pump Inflation setting Auto inflation setting (140 to 50 mmHg) Manual inflation setting (160 to 80 mmHg) Memory function... - Page 30 ● CITIZEN is a registered trademark of CITIZEN Holdings CO., Japan. CITIZEN es una marca registrada de CITIZEN Holdings CO., Japón. “CITIZEN”和“西鐵城”是日本法人西鐵城控股株式會社的注冊商標 ● Design and Specification are subject to change without notice. 6-1-12, Tanashi-cho, Nishi-Tokyo-shi, Tokyo 188-8511, Japan http://www.citizen-systems.co.jp/ E-mail: sales-oe@systems.citizen.co.jp...
