Summary of Contents for Citizen REF CH-456

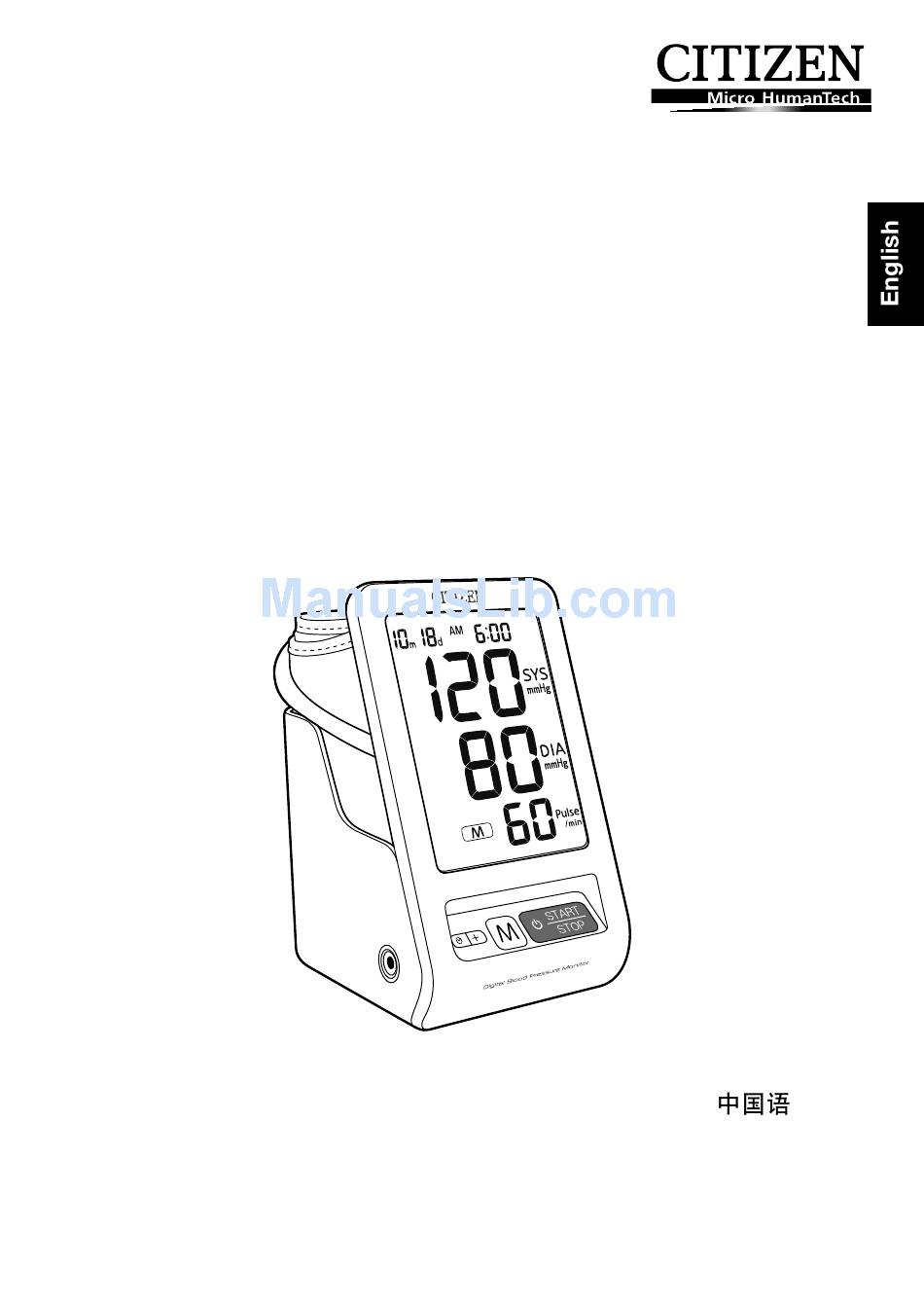

- Page 1 INSTRUCTION MANUAL CITIZEN SELF-STORING BLOOD PRESSURE ARM MONITOR CH-456 English Español Português Deutsch Italiano Français 1101...
-
Page 2: Table Of Contents
24 - ABOUT “BLOOD PRESSURE” 25 - BLOOD PRESSURE Q&A 26 - BEFORE REQUESTING REPAIRS OR TESTING 27 - SPECIFICATIONS Ensure that you have all the following components [OPTION] INSTRUCTION MANUAL CITIZEN SELF-STORING BLOOD PRESSURE ARM MONITOR CH-456 • AC Adapter English Español Português... -
Page 3: General Remarks
GENERAL REMARKS General remarks on blood pressure and blood pressure measurement To defl ate the cuff quickly, press the “START/STOP” switch. Before applying your blood pressure cuff, be sure you have selected the appropriate size cuff: Adult Cuff fi ts arm circumference: 22-32 cm When attaching the cuff, adjust the position of the cuff so that the blue marker is located in the center of your arm and the hem of the cuff is 1-2 cm for Adult Cuff above your elbow. - Page 4 GENERAL REMARKS DO NOT try to measure your blood pressure immediately after drinking coffee or tea or after smoking. Measure your blood pressure when you are relaxed and still. Keep the center of the cuff at the level of your heart and DO NOT move your arm or talk. DO NOT measure blood pressure when the cuff has been on your arm for a few minutes or more.
-
Page 5: Precautions For Use And Maintenance
PRECAUTIONS FOR USE AND MAINTENANCE Precautions for use If you suffer from heart disease, high blood pressure or other circulatory disease, consult your physician before using the monitor. Infl ating to a higher pressure may result in bruising where the cuff is applied. If the cuff pressure feels abnormal or you experience any other irregularity while using the cuff, reduce the pressure immediately by pressing the “START/STOP”... - Page 6 PRECAUTIONS FOR USE AND MAINTENANCE 16. Be sure to use only our authorized parts and accessories. Parts and accessories not approved for use with the device may damage the unit. 17. DO NOT use this unit on infants. 18. Blood pressure measurement may not be possible for anyone with common arrhythmias such as atrial or ventricular premature beats or atrial fi...
-
Page 7: Nature And Frequency Of Maintenance
The blood pressure measuring device is generally recommended to have the monitor inspected every two years to ensure correct functioning and accuracy. Please contact a distributor. Name : CITIZEN SYSTEMS JAPAN CO., LTD Address : 6-1-12, Tanashi-cho, Nishi-Tokyo-shi, Tokyo 188-8511, Japan... -
Page 8: Identification Of Parts

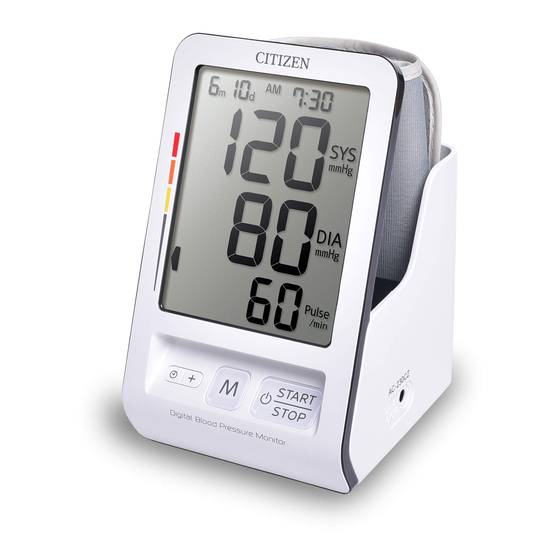

IDENTIFICATION OF PARTS Component names <Main Unit> Display* Cuff holding pocket START/STOP Switch a Stand-by Air hose socket MEMORY Switch Date/Time Set Switch Adjust Switch Battery compartment** *See page 9 for the display icons. **See page 10 for the Battery compartment - Eng 8 -... - Page 9 IDENTIFICATION OF PARTS <Cuff> Air hose Blue marker Metal hoop Air hose connector <Display> Date display Time display Battery icon Systolic blood pressure display Diastolic blood pressure display Irregular Heartbeat (IHB) Indicator* Body Movement Pulse display Indicator* Memory icon Average Indicator * See page 19 for the Body Movement Indicator and Irregular Heartbeat (IHB) Indicator.
-
Page 10: Loading The Batteries
LOADING THE BATTERIES (Batteries supplied with the unit should be loaded in compartment before you use the blood pressure monitor.) * When you install the batteries for the fi rst time after purchase, the monitor will display the clock setting screen. Follow step 2 and subsequent steps in TIME ADJUSTMENT ( See page 13) to set the clock. -
Page 11: Removing The Batteries
LOADING THE BATTERIES Close the battery cover. Fitting the lugs of the cover at the mating recesses of the battery compartment body, push the hook to close the cover. Fit the lugs (projections) at the recesses. REMOVING THE BATTERIES • When the icon is displayed or nothing appears in the display, replace the old batteries with four new ones. -
Page 12: Using Ac Adapter (Option)
USING AC ADAPTER (OPTION) Using the optional dedicated AC adapter (model:AC-230CZ) for the CITIZEN blood pressure monitor (CH-456) allows you to measure your blood pressure without having to worry about the amount of remaining charge in the batteries.) Insert the AC adapter plug into the socket on the blood pressure monitor. -
Page 13: Time Adjustment
TIME ADJUSTMENT Setting the clock enables measurements to be accurately recorded. The monitor can record the date and time of measurement as well as the measurement results. Be sure to set the clock after inserting the batteries. Set the date fi rst and then the time. * When you install the batteries for the fi... - Page 14 TIME ADJUSTMENT Press the Adjust switch to adjust the “hour”. Press Adjust switch to increase the number by one. Press Date/Time Set switch to confi rm the setting. The “hour” is set and the “minutes” indicator blinks. Press the Adjust switch to adjust the “minutes”. Press Adjust switch to increase the number by one.
-
Page 15: Measuring Your Blood Pressure
MEASURING YOUR BLOOD PRESSURE ATTACHING THE CUFF Before applying your blood pressure cuff, be sure you have selected the appropriate size cuff: Adult Cuff fi ts arm circumference: 22-32 cm Unroll the cuff and thread the end through the metal hoop so that the side with the hook-and-loop fastener is on the outside. - Page 16 MEASURING YOUR BLOOD PRESSURE Pull the end of the cuff outwards so that the cuff is snug around your arm and then secure the end to the hook-and-loop fastener. Place your arm on a table or the like, so that the center of the cuff comes to the height of your heart.
- Page 17 MEASURING YOUR BLOOD PRESSURE Plug the air hose connector into the main unit. • Plug the air hose connector fi rmly into the air hose socket on the main unit, as illustrated. Air hose connector Air hose socket Place the cuff at the height of the heart. See page 20) Press the START/STOP switch (the blue switch).
- Page 18 MEASURING YOUR BLOOD PRESSURE The measurement results are displayed. • Once measurement is complete, the cuff defl ates and the measurement results (systolic/diastolic blood pressure values, pulse) are displayed. Irregular Heartbeat * Provided there is no error in the (IHB) Indicator measurement results, they are See page 19) stored automatically.
-
Page 19: Automatic Power Off Feature
MEASURING YOUR BLOOD PRESSURE The Body Movement Indicator is displayed on the measurement results display if you move your hand or arm during measurement, causing a substantial pressure change to be detected. • If the Body Movement Indicator is displayed, measure your blood pressure again. -
Page 20: Tips For Obtaining Accurate Measurements
TIPS FOR OBTAINING ACCURATE MEASUREMENTS Your blood pressure varies according to your posture, the time of day and a range of other factors. Ideally, you should measure your blood pressure in the same posture at the same time every day. ■... -
Page 21: Calling Up The Data Stored In Memory
CALLING UP THE DATA STORED IN MEMORY 90 measurement results can be stored in Memory. The average value is calculated automatically to help you manage your daily health. Press the Memory switch once. Memory switch * Example of display when the Memory switch is pressed. - Page 22 CALLING UP THE DATA STORED IN MEMORY If you press the Memory switch again, past measurement data are displayed. Each time you press the switch, the measurement data are displayed in order from the most recent to the oldest. * You can fast-forward the data numbers in display by pressing and holding the Memory switch.
-
Page 23: Key To Display Icons
KEY TO DISPLAY ICONS DISPLAY MARK CONDITION/CAUSE CORRECTIVE ACTION Appears when the cuff is Attach the cuff properly and attached too loose. measure again. See page 15 “ATTACHING THE CUFF”) Appears when the cuff is not attached correctly and the pulse cannot be detected. -
Page 24: About "Blood Pressure
ABOUT “BLOOD PRESSURE” What is blood pressure? The heart is a pump that circulates blood throughout your body. Blood is pumped from the heart at a constant pressure into arteries. This pressure is called the arterial blood pressure and represents, in general terms, your blood pressure. Blood pressure is indicated by several kinds of pressures, including the systolic pressure that occurs when the heart pumps blood, and the diastolic pressure that occurs when blood returns to the heart. -
Page 25: Blood Pressure Q&A
BLOOD PRESSURE Q&A Why is the blood pressure measured at home different from that measured by the physician or at a hospital? Your blood pressure may vary due to exercise, the ambient temperature or your mental state. When you have a physician or nurse measure your blood pressure, the pressure value is likely to be 10 to 20 mmHg higher than usual due to anxiety and/ or stress. -
Page 26: Before Requesting Repairs Or Testing
BEFORE REQUESTING REPAIRS OR TESTING Make sure to check the following before sending your blood pressure monitor away to be tested or repaired. Problem Checks Response Display stays blank when Check whether the Replace all the batteries you press the “START/ batteries are dead. -
Page 27: Specifications
SPECIFICATIONS Model Number: CH-456 Measurement system: Oscillometric method Measurement Localization Upper Arm Cuff: Soft cuff Adult cuff circumference range: 22.0 – 32.0 cm Pressure 0 to 280 mmHg Measurement range: Pulse 40 to 180 pulse/min Pressure ±3 mmHg Accuracy: Pulse ±5% of reading Pressure 3 digits... - Page 28 CITIZEN is a registered trade mark of Citizen Holdings Co., Ltd., Japan. CITIZEN es una marca registrada de Citizen Holdings Co., Ltd., Japón. CITIZEN é uma marca comercial da Citizen Holdings Co., Ltd., Japão. CITIZEN ist eine eingetragene Marke von Citizen Holdings Co., Ltd., Japan.
