Page 1: Quick Start
QUICK START INSTALL ATION GUIDE... - Page 2 !!!---WARNING---!!! FOR RACING VEHICLE USE ONLY Note: This product is not for use on roads or vehicles subject to emission control requirements and is not legal for use or installation on motor vehicles operated on public highways in the State of California or other States where similar emission and decibel regulation laws may apply.

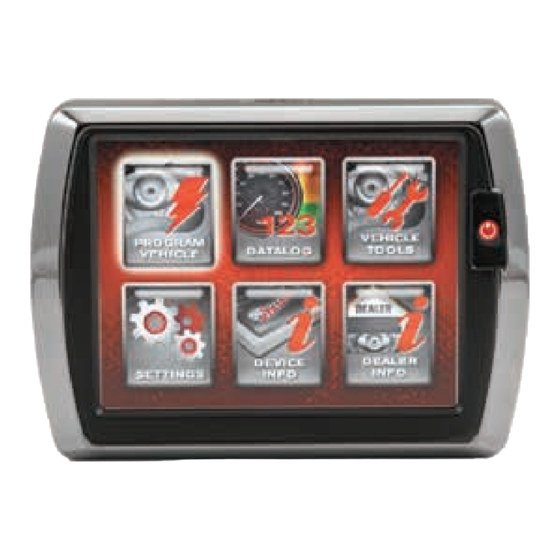

- Page 3 1 Dual-Lock Velcro 1 Software CD Quick Start Guide MOLEX 8 PIN VEHICLE INTERFACE CONNECTION USB MINI-B PORT DYNOJET CAN-LINK EXPANSION INTEGRATED AMPS 4 HOLE PORT THREADED INSERTS FOR MOUNTING (MOUNTING SCREWS INCLUDED) VEHICLE DIAGNOSTIC INTERFACE CABLE Power Vision Quick Start Guide - 3...
- Page 4 WINPV SOFTWARE INSTALLATION INSTALLATION FROM DOWNLOAD • To Download the latest WinPV software visit www.flashyourharley.com • From the top navigation menu, select SUPPORT then select SOFTWARE/FIRMWARE/ MANUALS from the fly-out menu. • Select the download link on the right and be sure to download the proper installer for your oper- ating system. Note: The Zip File Compressed option is just a compressed version for faster downloading. This file will need to first be extracted with the appropriate software before installation. • Save the downloaded file in a convenient location such as your desktop.
- Page 5 Note: To install WinPV, you must accept this agreement. If you do not, Setup will close. Next you are given the option to modify what applications and features the installer will install. Note: Dynojet recommends that you do not change any of the default options or default locations. • Read the summary of your settings and click Next to continue. Windows Vista and 7 Users A Windows Security warning will pop up during the installation process. This is...
- Page 6 POWER VISION DRIVER INSTALLATION WINDOWS XP DRIVER INSTALLATION • Using the USB cable, • Select Install from a list • Select Search for the best connect the Dynojet Power or specific location and driver in these locations. Vision to your computer. click Next. • Verify the location points to • The Found New Hardware your Power Vision folder in window will open. Program Files. • Select Yes, this time only • Click Next.
- Page 7 Select PV Update Client • Click Start on the Windows task bar and click All Programs. • Select PowerVision >PV Update Client. • Select the desired update to install. • Click the Download and Install Selected Updates Button to begin the update process. For firmware and Tune database updates; For Software and Update Client updates; Once the updates download, the software Once the selected downloads are installed install wizard will be started to install the into the Power Vision, a message will display newer version of the software. if the update was successful or not. See page 5 for further details. • Click Ok to complete. The update client will need to be restarted for any further updates. Power Vision Quick Start Guide - 7...
- Page 8 FIG. B • Connect the Power Vision to the ECM’s • Route the Power Vision cable away from any diagnostic port. moving or hot parts. Dynojet recommends using zip ties to Note: The Power Vision may be damaged if installed improperly. secure the cable to existing non-moving components. The location of the diagnostic port varies depend- ing on model, so please refer to a service manual or contact Dynojet for the exact location.
- Page 9 Note: 2012-2013 models are CAN using the PV-2. 2002-2007 Touring Models Diagnostic connector is located behind the right hand side cover. Connector is Light 2002-2015 V-Rod Models- Grey in color with black rubber plug installed. Shown on Page 8 Note: Requires removing the Right side saddle bag. Diagnostic connector is located behind the Right Front frame cover. Connector is Light Grey in color with black rubber plug installed. Note: Tools required to access. Power Vision Quick Start Guide - 9...
- Page 10 Power Vision to your bike’s ECM. You can flash your ECM with tunes as many times as you like, but the Power Vision will only be permitted to flash tunes to the ECM it’s locked to. The Power Vision’s other features, like datalogging / monitoring, diagnostics, clearing adaptive values, etc.
- Page 11 In order to gain full access to your tune files, you’ll need to download them from the Power Vision to WinPV, our custom tuning software.
- Page 12 Note: You can edit any tune that’s loaded in the Tune Manager prior to flashing your ECM. The Power Vision allows you to make basic adjustments to your tunes directly on the device without using a computer. In order to gain full access to your tune files, you’ll need to download them from the Power Vision to WinPV,...
- Page 13 Note: You can edit any tune that’s loaded in the Tune Manager prior turn the bike off for 10 to flashing your ECM. The Power Vision allows you to make basic seconds. adjustments to your tunes directly on the device without using a • Select Edit to edit this tune.
- Page 14 ECM to “understand” the wideband signal (from Target Tune) and allows the ECM to accurately achieve the target AFR. THERE ARE THREE VERSIONS OF THE AUTOTUNE PROCESS FOR THE POWER VISION. TARGET AUTOTUNE PRO TUNE...
- Page 15 POWER VISION VISOR AND QUICK CLIP SYSTEM This optional accessory will result in better screen visibility and a provision to quickly detach the Power Vision from your bike. Made from high quality, tough ABS plastic with a black chrome finish on the visor, this optional accessory is a functional enhancement that looks great as well. The embedded “NutSerts” allow you to securely attach the Visor / Quick Clip accessory to a mounting system with an AMPS 4-hole pattern. VIDEO TUTORIALS Visit flashyourharley.com for the latest video tutorials on the Power Vision and accessories. WWW.FLASHYOURHARLEY.COM Power Vision Quick Start Guide - 15...
- Page 16 States where similar emission and decibel regulation laws may apply. The user shall determine suitability of the product for his or her use. The user shall assume all risk and liability in violation of regulations and any incurred financial obligations due to vehicle inspections or emissions tests. © 2015 DYNOJET RESEARCH ALL RIGHTS RESERVED...
