    Content General Application ........................4 Firmware Upgrade ........................4 Using the Web Configurator ....................4 Using FTP: .......................... 4 Setting up different SFP port ..................... 6 Configuring and applying the profiles to subscriber ports ..........6 PPPoE Service ..........................9 Hardware/Firmware for deployment ................
  • Page 3 Triple Play ..........................23 Queue Rate Service ......................... 35...

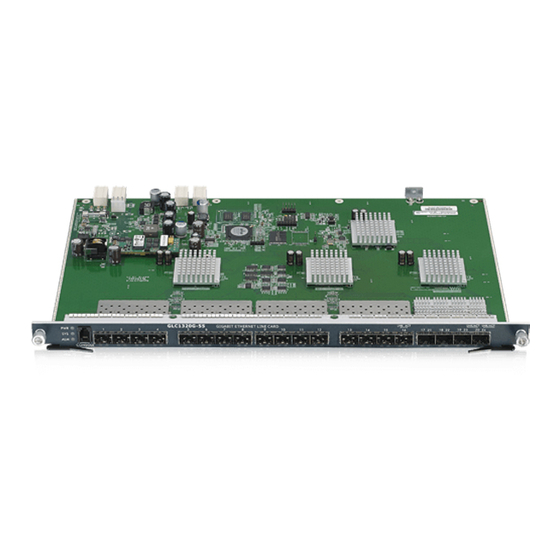

  • Page 4: General Application

    Download (and unzip) firmware for the correct model to your computer. b. Click Maintenance > Firmware Upgrade in the navigator panel to display the following screen. *Note: we use IES-5106 (MSC1224GB+GLC1320G-55) as an example in the following description. c. Select the ID of the line card you want to upgrade.
  • Page 5 “put firmware.bin fw-GLC1320G-55” transfers the firmware on your computer (firmware.bin) to the GLC1320G-55. g. Enter “bye” to log out from the IES-5106.
  • Page 6: Setting Up Different Sfp Port

    For this example, you want to provide low line speed to subscribers on ports 1 to 12 and high line speed to business subscribers on ports 13 to 24. *Note: we use IES-5106 (MSC1224GB+GLC1320G-55) as an example in the following description.
  • Page 7 1.2 Configuration example using the CLI: a. High Speed profile setup : MSC1224GB# profile ratelimit set high 512000 512000 b. Low Speed profile setup : MSC1224GB# profile ratelimit set low 64 64 c. Save Current configuration MSC1224GB# config save 1.3 Profile assignment a.
  • Page 8 d. CLI commands: MSG1224GB# port enet ratelimit 1-1~12 High MSG1224GB#port enet ratelimit 1-1~12 Low MSC1224GB# port enable 1-1~24 MSC1224GB# config save 2. FMG3024-D10A 2.1 General setup a. Click Network setting > Broadband in the navigation panel to display the following screen. b.
  • Page 9: Pppoe Service

    IES-5106 (MSC1224GB, GLC1320G-55), FMG3024-D10A and SMG-700. The client shall be able to enjoy INTERNET access by simply plugging the Ethernet cable to the CPE, i.e. FMG3024-D10A. *Note: we use IES-5106 (MSC1224GB+GLC1320G-55) as an example in the following description. *Note: We use ZyXEL FMG3024-D10A in this case.
  • Page 10: Ip Domain Topology

    tagged with VLAN=100. IES-5106 untags the incoming PPPoE traffic from the CPE, and relays it to the BRAS, SMG-700. The SMG-700 shall be able to establish the PPPoE connection by authenticating the username/password with the help of the WinRADIUS server, and relay the traffic to the NAT router, to allow the client to be able to access INTERNET.
  • Page 11: Smg-700 Configuration On Ies-5106

    SMG-700 configuration on IES-5106 1. Interface Configuration a. Go to Network Setting > Interface Configuration. b. Select “up1” as the uplink Interface. c. Input the IP Address for the uplink interface, e.g. ”172.168.23.10”. d. Input the IP Subnet Mask for the uplink interface, e.g. “255.255.255.0”. e.
  • Page 12: Isp Info Setting Configuration

    3. ISP Info Setting Configuration a. Go to Service Setting > ISP Info Setting. b. Input the ISP Domain Name, e.g. “test.com”. c. Select the Authentication Method, e.g. “PAP”. d. Select the Authentication Server, e.g. “Radius”. e. Click Add. f. Click the test.com ISP Domain Name just created to edit it. g.
  • Page 13: Win Radius

    4. Win RADIUS a. Make sure that WinRADIUS v4.00 is properly installed on a PC (OS: WinXP) with the IP of the NIC configured as IP: 172.168.23.101/24. b. Check if the NAS Secret and the Authorization and Accounting ports match the settings in the SMG-700.
  • Page 14 d. Check if the account is successfully created.
  • Page 15: Coe Configurations

    COE configurations VLAN configuration a. Go to VLAN > VLAN. b. Check the Enable box. c. Input the Name, e.g. “100”. d. Input the VID, e.g. “100”. e. Set enet1 to be “fixed” and check the Tx Tagging box. f. Click Apply. g.
  • Page 16: Fmg3024-D10A Configurations

    FMG3024-D10A configurations 1. WAN configuration a. Go to Network Setting > Broadband b. Input the Name, e.g. “INTERNET” c. Select the “Routing” Mode. d. Set the WANService Type to “PPP over Ethernet(PPPoE)” e. Type the User Name, e.g. “SFP@test.com”. f. Type the Password, e.g. “1234”. g.
  • Page 17: Verification

    2. Verification FMG3024-D10A Check the status on the homepage: The PPPoE connection was successful!
  • Page 18: Igmp Snooping Igmp Filtering Application

    Setting up IGMP snooping/IGMP filtering In this section, we will show you how to configure IGMP snooping and filtering on the IES-5106(MSC1224GB + GLC1320G-55). For details on configuring a video server and the corresponding subscriber device, refer to the documentation that comes with the devices.
  • Page 19: Ies-5106 Setting

    On the IES-5106, create an IGMP filter profile and apply the profile to port 1. Then apply the profile to the GLC1320G-55 port (2-1). Save the settings to make it take effect.
  • Page 20 c. Fill the Start IP and the End IP. d. Click the Apply button.
  • Page 21: Limiting Internet Access To Users On Specific Sfp Port

    Internet or allow computers with specific MAC addresses to access the Internet. These tasks can be easily done with the port security and MAC address filtering features on the IES-5106(MSC1224GB+GLC1320G-55). *Note: we use IES-5106 (MSC1224GB+GLC1320G-55) as an example in the following description. *Note: We use ZyXEL FMG3024-D10A in this case...
  • Page 22 the changes take effect. a. In the navigation panel, click ACL > MAC Filter b. Select the slot and port and click Load button. c. Click the Enable check box. d. Select the Mode > Accept. e. Enter the MAC address 00:a0:c5:12:34:56 f.
  • Page 23 VLAN 102 Data Voice Video  (*Note : We use COE MSC1224GB+GLC1320G-55 as an example in this case and we use IES-5106 in the following description.)  (*Note 2: We use CPE FMG3024-D10A as an example in this case.) ...
  • Page 24 1.2. Set up the IP address Click Sys > IP Setup and set the IP address of the IES-5106 to and the subnet mask to 255.255.255.0 for this example network. 1.3. Create an Enet profile Click Profile > Rate Limit in the navigation panel to display the configuration screen.
  • Page 25 1.4. Apply the Rate limit profile to SFP ports. Click Port > Enet to display the configuration screen and then select to which Ethernet ports you would like to apply the Rate limit profile you have just created. For this example, choose Slot 2 and Port 1. Select Enable and select In640_Eg128 in the Rate Limit Profile field.
  • Page 26 a. Create VLAN 1 VLAN 1 is created by default. Click Modify and select the Tag option. Click Apply save the configuration. b. Create VLAN 102 Configure a new VLAN and enter 102 in the VID field. Select the Tag option.
  • Page 27 c. Create VLAN 103 Configure a new VLAN and enter 103 in the VID field. Select the Tag option. Click Apply to save the configuration. 1.6. Configure VLANs on ENET Port 3 a. Configure VLAN 1 Select Index 1 and click Modify. Select the Tag option for Enet3. Click Apply to save the changes.
  • Page 28 b. Configure VLAN 102 Select Index 102 and click Modify. Select the Tag option for Enet3. Click Apply to save the changes. c. Configure VLAN 103 Select Index 103 and click Modify. Select the Tag option for enet3. Click Tag option for up1. Click Apply to save the changes.
  • Page 29 1.7. Enable IGMP Proxy on the IES-5106 Click Multicast > IGMP in the navigation panel to display the configuration screen. Select Enable_IGMP_Proxy in the IGMP Mode field and click Apply to save the changes. 1.8. Enter 103 in the Add Static Query VLAN field and click Apply to save the changes.
  • Page 30 1.9. Save the configuration permanently on the IES-5106. Click Config Save > Config Save in the navigation panel and then click Save to save. Configuring the FMG3024-D10A 2.1. Log into the web configurator on the FMG3024-D10A. The default management IP address is 192.168.1.1. Enter the default password ‘1234’ to log into the device.
  • Page 31 2.3. Create a new interface for Video, set VLAN to 102, and the Priority to 7. 2.4. Create a new interface for Voice, set VLAN to 103, and the Priority to 7. 2.5. Check whether all the settings are correct.
  • Page 32 MES3500 Settings 3.1. Log into the web configurator on the MES3500. The default management IP address is 192.168.1.1. Enter the default password ‘1234’ to log into the device. 3.2. Set the IP address of the MES-3500 to 192.168.1.200. Click Basic Setting> IP Setup in the navigation panel and enter 192.168.1.100 in the IP Address field and enter 255.255.255.0 in the IP Subnet Mask field.
  • Page 33 3.3. Enable IGMP Snooping on the MES3500 to allow multicast traffic to pass through. Click Advance Setting> Multicast in the navigation panel to display the configuration screen. Click Multicast setting and select Active in the IGMP Snooping field to enable this feature. 3.4.
  • Page 35 (Q7) is transmitted first. We can guarantee the data rate to flow through this queue. (*Note: We use IES-5106 (MSC1224GB+GLC1320G-55) as an example in this case and in the following description.) 1.
  • Page 36 2. Click Profile > Queue Rate Limit in the navigation panel to display the IES-5106 configuration screen. Select the Queue Rate Limit Profile > IPTV (The profile we just setup). Then Click the Apply button.
