Operating Instructions

Dishwasher
Save these instructions for future reference
Dear customer,
Thank you for choosing this quality product from ASKO. We
hope it will meet all of your expectations and fullfill your needs
for many years to come. The Scandinavian design is a combi-
nation of clean lines, everyday functionality and high quality.
These are the hallmarks for all of our products and this is why
they are so highly appreciated all over the world.
To get the most out of your new ASKO product, we recommend
that you read the installation and operating instructions before
using the machine.

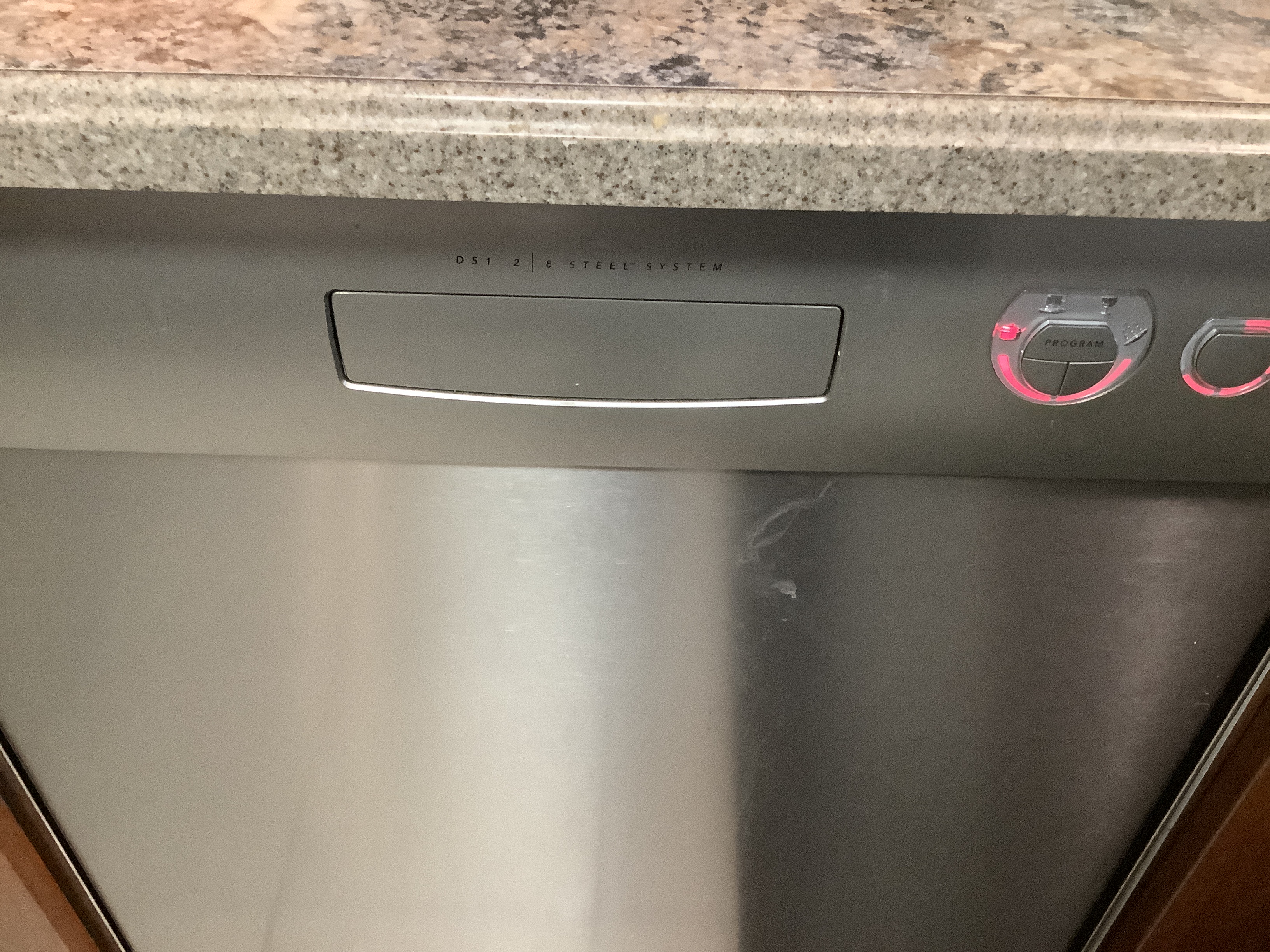

ASKO D5122

Advertisement

Table of Contents
loading

Related Manuals for Asko D5122

Summary of Contents for Asko D5122

  • Page 1: Operating Instructions

    These are the hallmarks for all of our products and this is why they are so highly appreciated all over the world. To get the most out of your new ASKO product, we recommend that you read the installation and operating instructions before using the machine.

  • Page 2: Table Of Contents

    Contents Before doing your first wash Important safety instructions Child safety Parts of the dishwasher* Technical data Baskets* Control panel Detergent Dispenser Basic Course Load the baskets correctly Dishwashing detergent Switch on the main switch Select program Select Option Press start Standby mode Programs Heavy wash...

  • Page 3: Before Doing Your First Wash

    Before doing your first wash Read through the directions for use Read through the directions for use before starting to use your machine, especially the Safety, Child Safety, and Basic Course sec- tions. Take care with certain materials Read the Fragile Dishes section before washing china with unglazed decoration or other household goods made of plastic, wood, or crystal requiring careful treatment.

  • Page 4: Important Safety Instructions

    Important safety instructions This manual does not cover all possible conditions and situations that may occur. Common sense and caution should always be used when installing, operating, and maintaining any appliance. • Read all instructions before using the dishwasher. • Dishwashers must be electrically grounded. Read the Installation Instructions for details.

  • Page 5: Child Safety

    Child safety Child safety tips Dishwasher detergents and rinse aids are corrosive, so always keep them out of reach of children. • Should a child swallow dishwasher deter- gent or rinse aid, give plenty to drink im- mediately, i.e., one or two glasses of milk or water.

  • Page 6: Parts Of The Dishwasher

    Parts of the dishwasher* 1. Upper basket 2. Spray arms 3. Cutlery basket 4. Lower basket 5. Dishwasher detergent compartment 6. Main power switch 7. Rinse Aid Compartment 8. Filter 9. Serial tag and rating plate *Details may differ depending on the model and market! Technical data Height...

  • Page 7: Baskets

    Baskets* Upper basket Lower basket Cutlery basket *Details may differ depending on the model and market! 1. Wine glass shelf 2. Cup rack 3. Knife stop 4. Cutlery basket with door and folding handle Customer Care Center 1-800-898-1879 www.askousa.com...

  • Page 8: Control Panel

    Control panel P R O G R A M P R O G R A M 1. Program selector 2. Heavy wash 3. Normal wash 4. Quick wash Detergent Dispenser S T A R T S T A R T S T O P S T O P 5.

  • Page 9: Basic Course

    Basic Course Below are step-by-step instructions to help you achieve the best possible dishwashing results. Load the baskets correctly! Thanks to Self Cleaning System, you do not need to rinse the dishes under running water. Simply remove large food particles and debris. Convenient and environ- mentally-friendly! Place glasses, cups, bowls, side plates, and saucers in the upper basket.

  • Page 10: Switch On The Main Switch

    Twelve grains and higher is extremely hard water and detergent alone may not be enough. You may need to use a water soft- ener to maximize the performance of your dishwasher. Also, in areas with hard water (9+) you may need to wash at lower temper- atures to prevent hard water deposits from forming in tank and wash system.

  • Page 11: Press Start

    Press start The dishwasher will now start. It man- ages the entire wash automatically. Ensure that the door is properly closed or the ma- chine will not start. The display shows ‘Program started’. If the door is open or not properly closed, ‘Close door’...

  • Page 12: Programs

    Programs Select a program by pressing the program selector one or more times until the required program symbol lights up. See the Program guide below. Heavy wash The Heavy Wash program should be used for heavily soiled dishes, e.g. saucepans, pots and gratin dishes.

  • Page 13: Program Description

    Program Description Programview Programs Heavy Normal Program For heavily For nor- info soiled loads, mally soiled such as pots, loads such pans, casse- as plates, roles, etc. glasses, bowls, and lightly soiled pans. Options Prewashes 2 prewashes 2 prewashes with SCS* Mainwash *** 160°F 150°F...

  • Page 14: Options

    Options Select options To select an option, press one of the option buttons. Temperature selection * * With the temperature option but- ton you can select the wash temperature yourself. You can vary the temperatures as follows: Normal Heavy: 160°F (70°C) 130°F (55°C) Normal: 150°F (65°C) 130°F (55°C) Quick:...

  • Page 15: Eco-Dishwashing

    Eco-dishwashing Only wash full loads Waiting to run the wash until the machine is full saves energy. Wash at a lower temperature If the dishes are only lightly soiled you can run a Quick wash program and reduce the temperature to 86°F (30°C). Select a program with Economy dry To save energy, select Economy dry.

  • Page 16: Fragile Dishes

    Fragile dishes A number of household goods are not suit- able for machine washing. This can be due to a variety of reasons. Certain materials cannot withstand intense heat; others can be damaged by the dishwasher detergent. Fragile decoration China with decoration on top of the glaze (the goods have a rough feel) should not be machine washed.

  • Page 17: Cleaning

    Cleaning The dishwasher’s inner container is made of stainless steel and is kept clean through nor- mal use. However, if you have calciferous (hard) water, lime deposits can form in the dishwasher. In this case, run a normal wash program with two tablespoons of citric acid in the dishwasher detergent compartment.

  • Page 18: Drain Pump

    2. Lift the coarse filter and the pipe section straight up by the handle. 3. Remove the fine filter. 4. Clean the fine filter and the pipe section with a washing-up brush. Replace in reverse order. Make sure the edges seal properly when replacing the fine filter.

  • Page 19: Spray Arms

    If you still cannot start the machine and a humming noise can be heard, then the over- filling protection has been activated. • Shutoff the water • Remove the plug from the wall socket • Call Service CAUTION! Do not forget to replace the small pump ac- cess plug.

  • Page 20: Rinse Aid

    Rinse aid Adding rinse aid In some cases, drying can be made more ef- ficient by using rinse aid. To fill with rinse aid: 1. Turn and lift up the cover of the rinse aid compartment to the right of the dispenser. This is where you top up and set the amount of rinse aid to be dispensed in each wash.

  • Page 21: Fault Indications

    Fault indications Indication Type of fault L2 flashing Too much water in the dishwasher P R O G R A M P R O G R A M S T A R T S T A R T S T O P S T O P Customer Care Center 1-800-898-1879...

  • Page 22: Troubleshooting

    Troubleshooting Problems The dishes are not clean Stains or a film on the china Possible causes • The spray arms are not rotating. • Old dishwasher detergent. NB! Detergent is a perishable. • Incorrect dosage of deter- gent. • Insufficiently powerful dish- washing program.

  • Page 23: The China Has A Whitish-Blue Sticky Film

    Problems The china has a whitish- blue sticky film Stains on stainless steel or silver Stains which remain after dishwashing Rattling sound during dis- hwashing The machine will not start To restart the machine, press Start/stop for 3 sec- onds. Now select a new programme and press Start/stop.

  • Page 24: Water Remains In The Machine

    Problems Water remains in the machine Bad odour in the machine Possible causes • Obstruction in the drain hose. • Kinks in the drain hose. • The filters are clogged. • Objects in the drain pump. • Dirt along the strips and in corners Customer Care Center 1-800-898-1879...

  • Page 25: Performance Information

    Performance information Energy standard USA: Technical data Height: Width: Depth: Weight: Water pressure Electrical connection: Rated power: *The weight can vary due to varying specifications. Loading of performance test Upper basket with 10 place settings AHAM DW-1 ANSI/AHAM DW-1-2005 34-3/8” - 36-1/2” 874-927mm 24”...

  • Page 26: Service And Guarantee

    5. Replacement parts or repair labor costs for units operated outside the continental United States. 6. Pickup and delivery. ASKO washers are designed to be repaired in the home. In no event shall Asko Appli- ances Inc. be responsible for any incidental or consequential dam- ages.
  • Page 27 Full Warranty from date of purchase. For warranty service, contact our Customer Care Center at the number listed below. Before calling for service or contacting Asko Appliances Inc. regarding a warranty issue, make a note of the model, type name, and serial number.

  • Page 28: Quick Guide

    Quick Guide 1. Load the baskets correctly! Thanks to the Self Cleaning System you don’t need to rinse the dishes, simply scrape large food particles and debris. 2. Dispensing dishwasher detergent The detergent compartment has a small compartment for pre-wash and one for main wash. 3.
