Operating Instructions

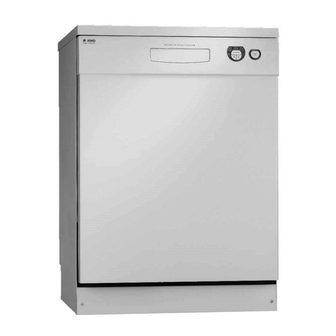

Dishwasher
Dear customer,
Thank you for choosing this quality product from ASKO. We hope it will meet
all of your expectations and full fill your needs for many years to come.
The Scandinavian design is a combination of clean lines, everyday functionality
and high quality. This is the hallmarks for all of our products and this is why
they are so highly appreciated all over the world.
To get the most out of your new ASKO product, we recommend that you
read the installation and operating instructions before using the machine.
D5122
Operating Instructions
Advertisement
Table of Contents
Related Manuals for Asko D5122aADA
Summary of Contents for Asko D5122aADA
-
Page 1: Operating Instructions
Dishwasher Dear customer, Thank you for choosing this quality product from ASKO. We hope it will meet all of your expectations and full fill your needs for many years to come. The Scandinavian design is a combination of clean lines, everyday functionality and high quality. -
Page 2: Table Of Contents
Contents Before doing your first wash Important safety instructions Child safety Parts of the dishwasher Technical data Baskets Control panel Detergent Dispenser Basic Course Programs Program Description Options Eco-dishwashing Fragile dishes Cleaning Rinse aid Fault indications Troubleshooting Performance information Service and guarantee Quick Guide Customer Care Center 1-800-898-1879... -
Page 3: Before Doing Your First Wash
Before doing your first wash Read through the directions for Read through the directions for use before star- ting to use your machine, especially the Safety, Child Safety, and Basic Course sections. Take care with certain materials Read the Fragile Dishes section before washing china with unglazed decoration or other hous- ehold goods made of plastic, wood, or crystal requiring careful treatment. -
Page 4: Important Safety Instructions
Important safety instructions This manual does not cover all possible condi- tions and situations that may occur. Common sense and caution should always be used when installing, operating, and maintaining any appli- ance. • Read all instructions before using the dishwas- her. -
Page 5: Child Safety
Child safety Child safety tips Dishwasher detergents and rinse aids are cor- rosive, so always keep them out of reach of children. • Should a child swallow dishwasher detergent or rinse aid, give plenty to drink immediately, i.e., one or two glasses of milk or water. Do not try to induce vomiting. -
Page 6: Parts Of The Dishwasher
Parts of the dishwasher* 1. Upper basket 2. Spray arms 3. Cutlery basket Cutlery basket basket �. Lower basket 5. Dishwasher detergent compartment 6. �ain power switch 7. Rinse Aid Compartment 8. Filter 9. Serial tag and rating plate Serial tag and rating plate *Details may differ depending on the model and market! Technical data... -
Page 7: Baskets
Baskets* Upper basket Lower basket Cutlery basket *Details may differ depending on the model and market! 1. Wine glass shelf 2. Cup rack 3. Knife stop 1. Cutlery basket with door and folding handle Customer Care Center 1-800-898-1879 www.askousa.com... -
Page 8: Control Panel
Control panel P R O G R A M P R O G R A M 1. Program selector 2. Heavy wash 3. Normal wash �. Quick wash Detergent Dispenser S T A R T S T A R T S T O P S T O P 5. -
Page 9: Basic Course
Basic Course Below are step-by-step instructions to help you ac- hieve the best possible dishwashing results. Load the baskets correctly! Thanks to Self Cleaning System, you do not need to rinse the dishes under running wa- ter. Simply remove large food particles and debris. Convenient and environmentally-friendly! Place glasses, cups, bowls, side plates, and saucers in the upper basket. -
Page 10: Switch On The Main Switch
Twelve grains and higher is extremely hard water and detergent alone may not be enough. You may need to use a water softener to maxi- mize the performance of your dishwasher. Also, in areas with hard water (9+) you may need to wash at lower temperatures to prevent hard water deposits from forming in tank and wash system. -
Page 11: Press Start
Press start The dishwasher will now start. It manages the entire wash automatically. Ensure that the door is properly closed or the machine will not start. The display shows ‘Program started’. If the door is open or not properly closed, ‘Close door’ ap- pears in the display. -
Page 12: Programs
Programs Select a program by pressing the program selector one or more times until the required program symbol lights up. See the Program guide below. Heavy wash The Heavy Wash program should be used for heavily soiled dishes, e.g. saucepans, pots and gratin dishes. -
Page 13: Program Description
Program Description Programview Programs Heavy Normal Program For heavily For nor- info soiled loads, mally soiled such as pots, loads such pans, casse- as plates, roles, etc. glasses, bowls, and lightly soiled pans. Options Prewashes 2 prewashes 2 prewashes with SCS* �ainwash *** 160°F 150°F... -
Page 14: Options
Options Select options To select an option, press one of the option but- tons. Temperature selection * With the temperature option button you can select the wash temperature yourself. You can vary the temperatures as follows: Normal Heavy: 160°F (70°C) Normal: 150°F (65°C) Quick:... -
Page 15: Eco-Dishwashing
Eco-dishwashing Only wash full loads Waiting to run the wash until the machine is full saves energy. Wash at a lower temperature If the dishes are only lightly soiled you can run a Quick wash program and reduce the tempera- ture to 86°F (30°C). -
Page 16: Fragile Dishes
Fragile dishes A number of household goods are not suita- ble for machine washing. This can be due to a variety of reasons. Certain materials cannot withstand intense heat; others can be damaged by the dishwasher detergent. Fragile decoration China with decoration on top of the glaze (the goods have a rough feel) should not be machine washed. -
Page 17: Cleaning
Cleaning The dishwasher tub is made of stainless steel and is kept clean through normal use. However, if you have hard water, limescale de- posits may form in the machine. If this happens, run a normal wash program with two tablespoons of citric acid in the dishwasher detergent compartment. -
Page 18: Drain Pump
Drain pump The pump can be accessed from inside the machine. 1. Cut the power to the machine by pulling out the plug! 2. Remove the coarse filter and pipe section. 3. Remove the small fitted piece at the left of the bottom drain (see the image below). - Page 19 To release the upper spray arm, the upper bas- ket must be removed. 1. Pull out the basket and turn the basket stop outwards on both rails (see picture). The basket can now be removed. 2. Remove the upper spray arm in the same way as the lower arm and clean it.
-
Page 20: Rinse Aid
Rinse aid Adding rinse aid In some cases, drying can be made more effi- cient by using rinse aid. To fill with rinse aid: 1. Turn and lift up the cover of the rinse aid compartment to the right of the dispenser. This is where you top up and set the amount of rinse aid to be dispensed in each wash. -
Page 21: Fault Indications
Fault indications Indication Type of fault L2 flashing Too much water in the dishwasher P R O G R A M P R O G R A M S T A R T S T A R T S T O P S T O P Customer Care Center 1-800-898-1879... -
Page 22: Troubleshooting
Troubleshooting Problems The dishes are not clean Stains or a film on the china Possible causes • The spray arms are not rota- ting. • Old dishwasher detergent. NB! Detergent is a perishable. • Incorrect dosage of deter- gent. • Insufficiently powerful dis- hwashing program. -
Page 23: Possible Causes
Problems The china has a whitish- blue sticky film Stains on stainless steel or silver Stains which remain after dishwashing Rattling sound during dishwashing The machine will not start To restart the machine, press Start/stop for 3 seconds. Now select a new programme and press Start/stop. - Page 24 Problems Water remains in the machine Bad odour in the machine Possible causes • Obstruction in the drain hose. • Kinks in the drain hose. • The filters are clogged. • Objects in the drain pump. • Dirt along the strips and in corners Customer Care Center 1-800-898-1879...
-
Page 25: Performance Information
Performance information Energy standard USA: Technical data Height: Width: Depth: Weight: Water pressure Electrical connection: Rated power: *The weight can vary due to varying specifications. Loading of performance test Upper basket with 10 place settings AHAM DW-1 ANSI/AHA� DW-1-2005 32-9/16” - 33-15/16” 830-880mm 2�”... -
Page 26: Service And Guarantee
5. Replacement parts or repair labor costs for units operated outside the continental United States. 6. Pickup and delivery. ASKO washers are designed to be repaired in the home. In no event shall Asko Appliances Inc. be responsible for any incidental or consequential damages. - Page 27 Warranty from date of purchase. For warranty service, contact our Customer Care Center at the number listed below. Before calling for service or contacting Asko Appliances Inc. regarding a warranty issue, make a note of the model, type name, and serial number.
-
Page 28: Quick Guide
Quick Guide 1. Load the baskets correctly! Thanks to the Self Cleaning System you don’t need to rinse the dishes, simply scrape large food particles and debris. 2. Dispensing dishwasher detergent The detergent compartment has a small compartment for pre-wash and one for main wash. 3.
