Summary of Contents for Citizen CTD 505

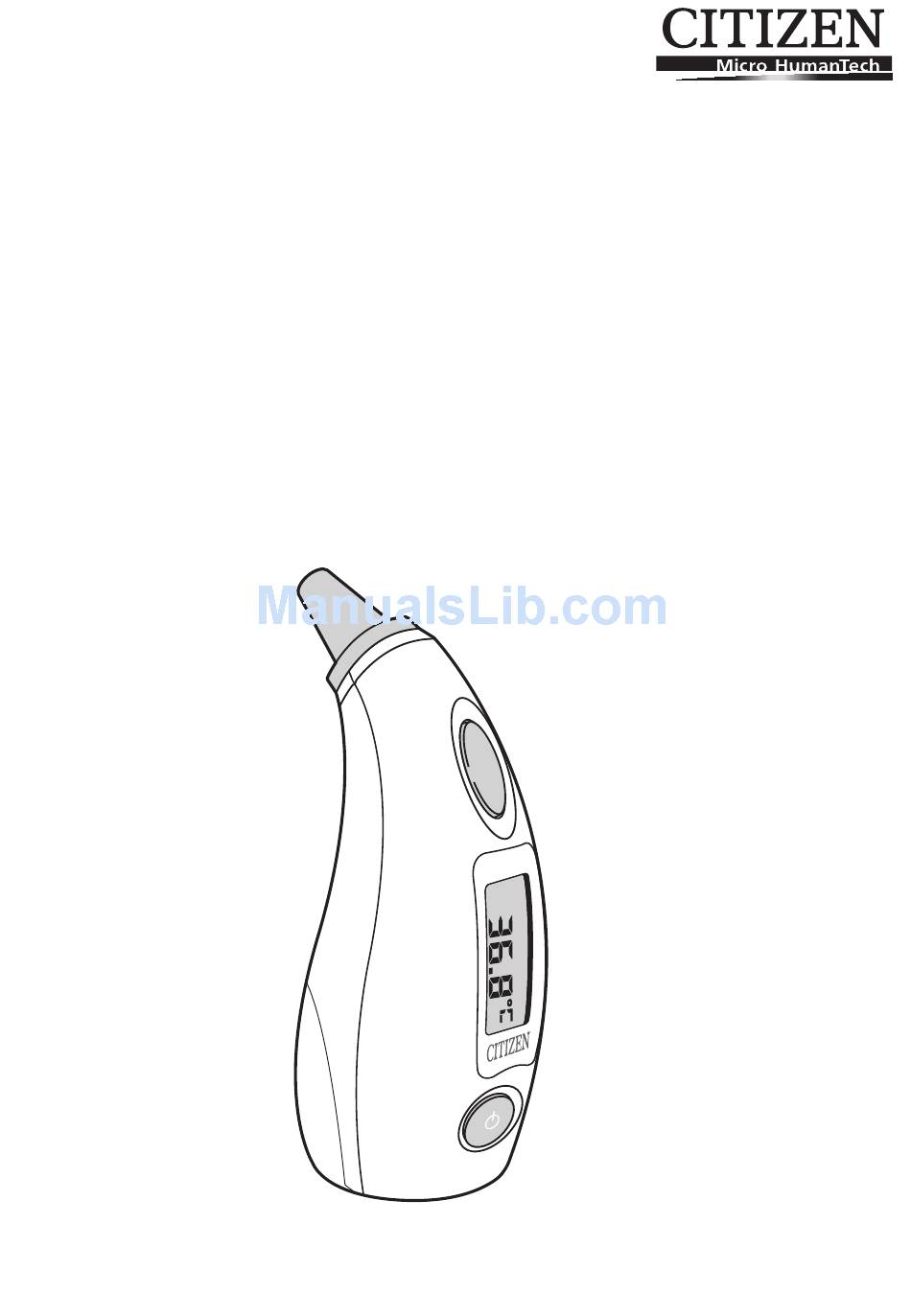

- Page 1 INSTRUCTION MANUAL DIGITAL EAR THERMOMETER CTD 505 Model: (Antibacterial Model) English 1401...
- Page 2 Instruction Manual for Digital Ear Thermometer Model: CTD 505 (Antibacterial Model) PARTS NAMES / Display Symbols Power ON/OFF Button Start Button Sensor LCD Screen Battery Cap ❸ ❹ ❺ Probe Tip ❷ ❻ ❶ ❼ Symbol Description Measuring Result. Displays the result in Fahrenheit or Celsius.
-
Page 3: How To Operate
12. Without regular recalibration, the results may not be accurate. Every CTD505 is calibrated right after production. See “Warranty and Recalibration” for details. 13. Keep the CTD505 away from sunlight and dusty places. Important Notice: The CTD505 does not require a probe cover during use. It is important to clean and disinfect the CTD505 before and after each use. -
Page 4: Recall Memory
RECALL MEMORY START 1. In power-off mode, press and release the button to START enter Memory Recall Mode. Press the button again. The LCD screen displays the fi rst memory set number with the latest measuring result. START 2. Press the button repeatedly to scroll through all 12 stored results in a loop. -
Page 5: Cleaning Instructions
CLEANING INSTRUCTIONS The CTD505 does not require a probe cover during use. Clean and disinfect the CTD505 before and after each use. If you wish to share the CTD505 with others, follow the instructions below. ◆ Preparation 1. Cotton bud: Available in supermarkets. 2. -
Page 6: Maintenance And Storage
MAINTENANCE and STORAGE ◆ Storage 1. If you will not use the CTD505 for over 2 months, remove the battery from the compartment. 2. Always store the CTD505 in its container after use. 3. ONLY the CTD505 probe tip is waterproof. Do not dip it in water or any other liquid. -
Page 7: Troubleshooting
2. Figure: Diurnal Variations in Body Temperature Hours of activity and work Hours of rest and sleep a.m. p.m. a.m. Deg. Source: 1911, Encyclopedia Britannica, 11 edition, Volume 2, Part 1, Slice 1, p95. TROUBLESHOOTING LCD screen Description & Solution fl... -
Page 8: Other Information
LCD screen Description & Solution Outside displayed temperature range I Result is higher than 43.0 °C. ➜ The user should rest in a steady room temperature for at least 30 minutes. Then measure again. Outside displayed temperature range II Result is lower than 34.0 °C. ➜... - Page 9 Warranty & Recalibration Warranty For One Year from Manufacturing Date CITIZEN SYSTEMS JAPAN Co., Ltd. grants a 1 year warranty on the product commencing on the date of purchase. Within the limited time, we will eliminate any defects in the appliance resulting from faults in the material or workmanship free of charge.
-
Page 10: Specifications
Recalibration Notice Every CTD505 is properly calibrated right after production. We recommend that USERs bring the CTD505 to certain laboratories every 2 years for proper recalibration. The CTD505 does not need periodic recalibration, if the user handles it according to this manual. SPECIFICATIONS Measurement method Infrared... - Page 11 Appendix Guidance and manufacturer’s declaration - electromagnetic emissions The device is intended for use in the electromagnetic environments listed below, and should only be used in such environments: Emissions test Compliance Electromagnetic environment - quidance RF emissions CISPR 11 RF energy is used only to maintain the device’s operation.
- Page 12 a). Field strengths from fi xed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fi...
- Page 13 • CITIZEN is a registered trade mark of Citizen Holdings Co., Japan • Design and Specifi cation are subject to change without notice. Distributed by:...
