Citizen CTA301, CTA302, CTA303 - Digital Thermometer Manual

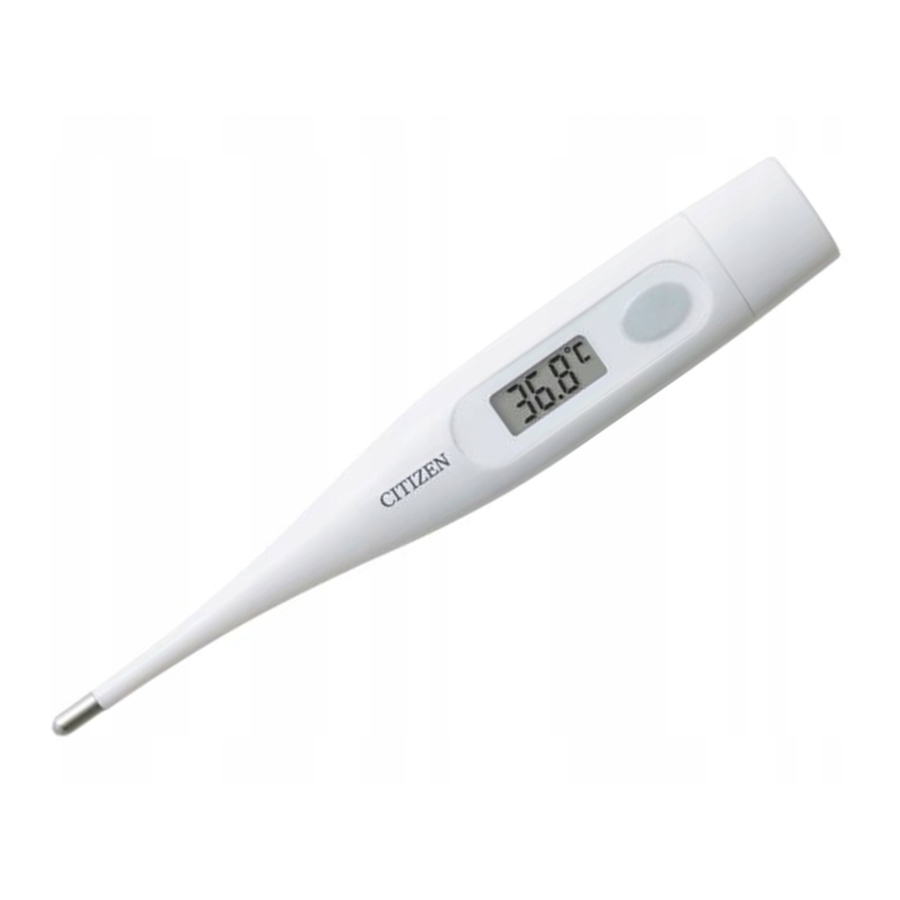

PARTS NAMES

1. Probe
2. Fever Sensor
3. Main Body
4. Display
5. Push Button
6. Battery Cover

Antibacterial Thermometer
The Citizen Digital Thermometer CTA303 is fully compliant with the internationally recognized ISO22196 standard. The main body of the thermometer includes certain special materials, rendering it antibacterial.

PRECAUTIONS

1. The thermometer should only be used under the supervision of an adult.
2. Do not walk, run or talk during temperature taking.
3. Store the unit in the protective case when not in use.
4. Do not store the unit where it will be exposed to direct sunlight, dust or humidity. Avoid extreme temperatures.
5. Dropping or subjecting your thermometer to strong shocks should be avoided.
6. Do not attempt to disassemble the unit, except to replace the battery.

HOW TO SWITCH FROM ˚C TO ˚F (FROM ˚F TO ˚C)

Hold ON/OFF button for 2 sec. Display will activate and ˚C becomes ˚F.

HOW TO OPERATE

1. Press ON/OFF button to activate. The unit would beep and display.
2. Then, the temperature taken last time would be displayed with a "M" mark in the right corner.
3. Then, 37.0˚C (or 98.6˚F) will appear.
4. When Lo and flashing ˚C (˚F) displays, the thermometer is ready for temperature measuring. But if the room temperature is higher than 32.0˚C (89.6˚F), the room temperature would be displayed instead of Lo.
5. The beep will sound when temperature measuring is complete.
6. Press ON/OFF button to turn off the unit.
   (The unit will automatically power off after approximately nine minutes after use.)

Taking an oral temperature

Place the probe tip under the tongue and close the mouth.
Approximate measuring time: 1 minute.

Taking an axillary temperature (under the arm)

Wipe the underarm with a dry towel and place the probe tip under the arm so the tip is touching the skin with the thermometer perpendicular to the body. Position the arm across the chest so the probe tip is well covered by the arm.
Approximate measuring time: 2-3 minutes.
Note: Axillary temperatures are generally 0.5˚C /1.0˚F lower than oral readings.

Taking a rectal temperature

Apply a water-soluble lubricant to the probe cover. Gently insert the probe into the rectum.
Approximate measuring time: 1 minute.
Note: Rectal temperatures are generally 0.5˚C /1.0˚F higher than oral readings.

SPECIFICATIONS

Measurement range	32.0˚C–42.9˚C (90.0˚F–109.9˚F)
Low temperature display	Temperature<32.0˚C (90.0˚F) display: Lo˚C (Lo˚F)
High temperature display	Temperature>=43.0˚C (109.9˚F) display: Hi˚C (Hi˚F)
Display resolution	0.1˚C (0.1˚F)
Accuracy	35.5˚C–42.0˚C±0.1˚C (95.9˚F–107.6˚F±0.2˚F) other range: ±0.2˚C (0.3˚F)
Fever beep sound [≧ 37.8˚C (100.0˚F)]	30 short beep sounds in 10 seconds
Normal beep sound [	10 long beep sounds in 10 seconds
Auto power off	10 minutes ± 2 minutes
Battery	LR41 or SR41 (1.5V)
Life of battery	2 years
Operating condition	Temperature: 10˚C–40˚C (50.0˚F to 104.0˚F) Humidity: 30%–85%RH
Storage condition	Temperature: -10˚C–60˚C (14˚F to 140.0˚F) Humidity: 25%–90%RH
Degree of protection	Type BF applied part

CLEANING INSTRUCTIONS

Before and after each use, clean the thermometer with a soft cloth and isopropyl alcohol diluted with water, or wash with COLD soapy water. Do not soak for an extended period of time or sterilize by boiling method, gas or steam autoclaves

BATTERY REPLACEMENT

The battery in your digital thermometer needs to be replaced when " " appears in the lower right corner of the display. Replace the battery with a 1.5V, LR41 or SR41 or equivalent.

To replace the battery,

1. Pull the battery cover away from the unit.

2. Use a non-metal pointed tool to remove the battery and insert the new battery with the positive(+) side facing up.
3. Carefully slide the battery cover back into place.

Note: Please properly replace the battery away from small children and heat.
