Insignia NS-32D312NA15 Quick Setup Manual

INCLUDED ACCESSORIES
Remote control and
two AAA batteries
+ + A Carefully place your TV face-down on a
cushioned, clean surface.
TV Stand
M4 screws (10mm length) (4 pcs.)
Power adapter
FEATURES
FIND YOUR USER GUIDE ONLINE!
Go to www.insigniaproducts.com, then
click Support & Service. Enter
NS-32D312NA15 in the box under
Manual, Firmware, Drivers & Product
►
Information, then click .
Roku Ready®
Your TV is certified to work with the Roku
Streaming Stick™. Instantly stream 1000+
entertainment channels, including
Netflix, Hulu Plus, Pandora, and more.
Connect the Streaming Stick (not
included) to the MHL jack on your TV
and enjoy.
STOP
Do not plug your power cord in until all
other devices have been connected.
START HERE
1
How do I attach the stand to my TV? (not for wall mounting)
You'll need: Soft surface and Phillips screwdriver
B Secure the stand to the TV with the four
provided screws.
A
B
Remote control sensor
Power indicator
PC/DVI VGA
DC IN ANT / CABLE
AUDIO
(12V) IN
Before using your new product, please read these
instructions to prevent any damage.
WALL MOUNT
How do I prepare my TV for wall mounting? (not for use with a TV stand)
You'll need: Soft surface and Phillips screwdriver
A Carefully place your TV face-down on a cushioned,
clean surface.
OR
B Remove the three screws that secure the stand
column to the TV.
B
M4 screws (10mm length) (4 pcs.)
A
Front
MAKING CONNECTIONS
2
How do I watch TV (cable, satellite, or antenna) or connect a device such as a DVD or Blu-ray disc player, game
console, Roku Streaming Stick™, MHL-enabled device, or tablet?
WHICH CABLES
DO YOU HAVE?
HDMI
(BEST)
Best video quality
COMPONENT
Note: The component and AV jacks are shared. This means you can connect
(BETTER)
only one component or AV device at a time. We suggest upgrading to HDMI
(BEST) if your device supports it.
OR
HDMI 2
HDMI 1
AV
(GOOD) (ARC / DVI) VIDEO / Y
(MHL)
Note: Connect the yellow
video cable to the
green VIDEO/Y jack.
COAXIAL
(GOOD)
Quick Setup Guide
C Remove the stand column.
D See the instructions that came with your wall mount for more information
about how to correctly mount your TV.
C
Multi-purpose jacks: You can plug any device that uses HDMI into any HDMI jack. However,
certain devices must be connected to the ARC or MHL jacks. See the instructions that came
with your Roku® Streaming Stick™ or ARC or MHL-enabled device for more information.
AUDIO/VIDEO OUT
DIGITAL
AV IN
OUTPUT USB AUDIO OUT
P P L -AUDION- R
B R
( OPTICAL )
COMPONENT IN
ANT / CABLE
IN
|

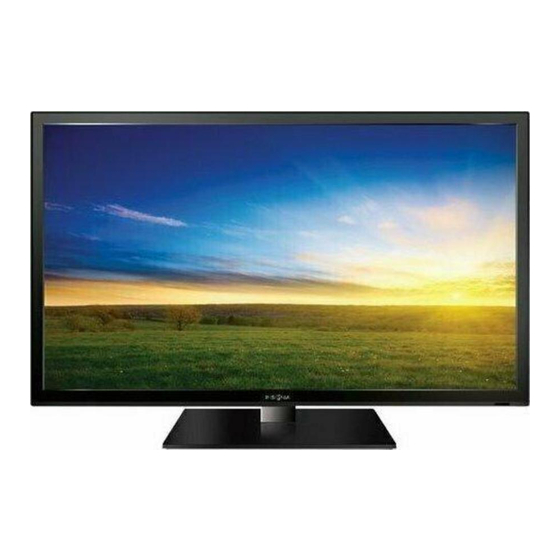

NS-32D312NA15
32" 720p • 60Hz LED TV
Your TV has four VESA mounting
holes on the back. If you attach a
D
wall-mount bracket to the back of
your TV, the bracket must be
securely attached, using all four
holes. If you do not use all four
mounting holes, your TV may fall and cause property damage
or personal injury. See the documentation that came with
your wall mount for complete mounting instructions.
AUDIO/VIDEO OUT
CABLE
