Insignia NS-32D312NA15 Quick Setup Manual

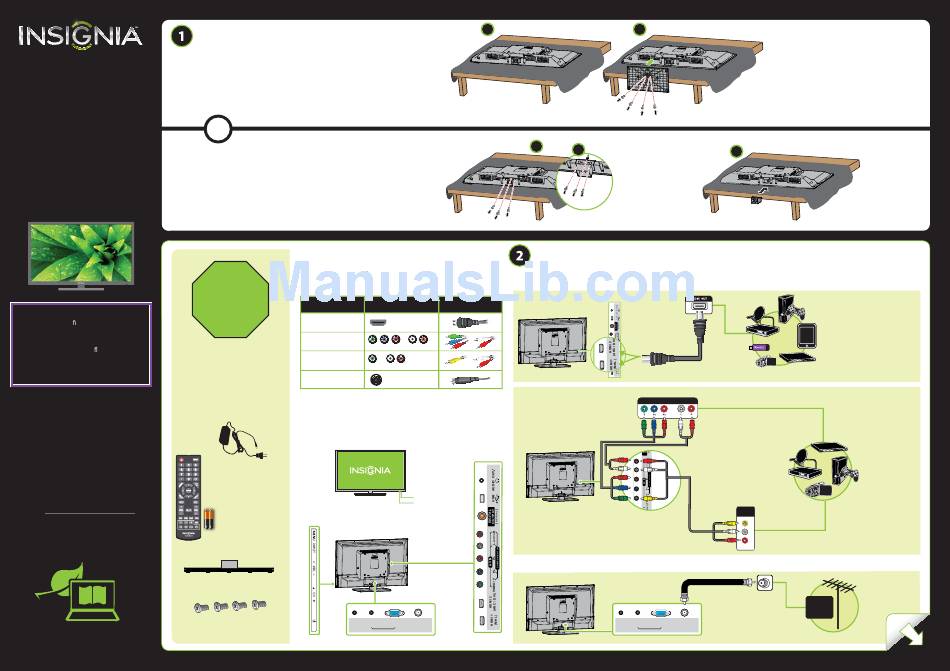

QUICK
SETUP GUIDE

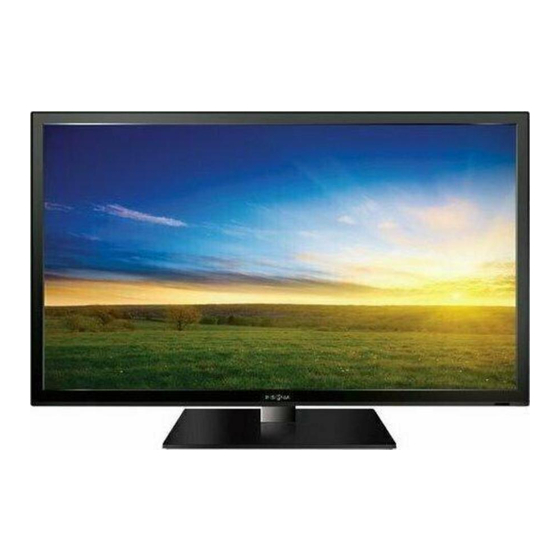

32" LED TV
NS-32D312NA15
Thank you
for purchasing this state-of-the-art
Insignia television. We hope you enjoy
the quality and reliability of this
television for years to come.
Roku Ready®
Your TV is certi ed to work with the
Roku Streaming Stick™.
Instantly stream 1000+ entertainment
channels, including Net ix, Hulu Plus,
Pandora, and more. Connect the
Streaming Stick (not included) to the
Included accessories
purple MHL jack on your TV and enjoy.
FIND YOUR
USER GUIDE ONLINE!
We are going green so a copy of your
User Guide is not provided in the box
but is available online.
Go to www.insigniaproducts.com,
then click Support & Service. Enter your
model number in the box under Manual,
Firmware, Drivers & Product Information,
then click .
Power connector
START HERE
How do I attach the stand to my TV?
(not for wall mounting)
You'll need: Phillips screwdriver and a soft surface to lay the TV on.
A Carefully place your TV face-down on a cushioned, clean surface to protect
the screen.
B Secure the stand to the TV with the four provided screws.
- OR -
How do I prepare my TV for wall mounting
(not for use with a TV stand)
A Carefully place your TV face-down on a cushioned, clean surface to
protect the screen.
B Remove the three screws that secure the stand column to the TV.
C Remove the stand column.
D See the instructions that came with your wall mount for more information
about how to correctly mount your TV.
Which cables do you have?
Your TV has several di erent jacks for connecting devices. For the
STOP!
best video quality, use the best available connection. Use the cables
Do not plug your
that came with your devices.
power adapter in until
all other devices VIDEO QUALITY
have been connected.
BEST
BETTER
Component video and analog audio
GOOD
Composite video and analog audio (AV)
GOOD
Note: You can also connect a DVI device to your TV. See your online User Guide for
connection instructions.
Power adapter
Features
Front view
Remote control
and two AAA batteries
Back view
TV stand
M4 screws
PC/DVI
DC IN
AUDIO
(12V)
(10mm length) (4 pcs.)
Note: Images do not necessarily represent the exact design of your television.
Before using your new product, please read these instructions to prevent any damage.
A
A
MAKING CONNECTIONS
How do I watch TV (cable or satellite box) or connect a device such as a DVD or Blu-ray disc
player, game console, Roku Streaming Stick™, MHL-enabled device, or camcorder?
Using an HDMI cable (BEST)
JACK TYPE CABLE CONNECTOR
HDMI video/audio
Coaxial video/audio
Using component cables (BETTER)
- OR -
Using an AV cable (GOOD)
Remote control sensor
Power indicator
How do I connect my TV to an antenna or cable wall jack?
VGA
ANT / CABLE
IN
B
Front
M4 x 10 mm(4pcs)
B
C
AUDIO/VIDEO OUT
Component cable option
AUDIO/VIDEO
OUT
Note: Connect the yellow video
cable to the green Video/Y jack on
the back of your TV.
PC/DVI VGA
DC IN ANT / CABLE
AUDIO
(12V) IN
Multi-purpose jacks: You can plug any
device that uses HDMI into either HDMI
jack. However, certain devices must be
connected to the ARC/DVI, or MHL jacks.
See the instructions that came with your
ARC, DVI, Roku Streaming Stick™, or
MHL-enabled device for more information.
Note: The HDMI 2 (ARC/DVI) jack is a
shared jack. This means you can only
connect one DVI or ARC device at a time.
Note: The component and AV
jacks are shared. This means
you can connect only one
component or AV device at a
time. We suggest upgrading to
HDMI if your device supports it.
AV cable option
CABLE
OVER
