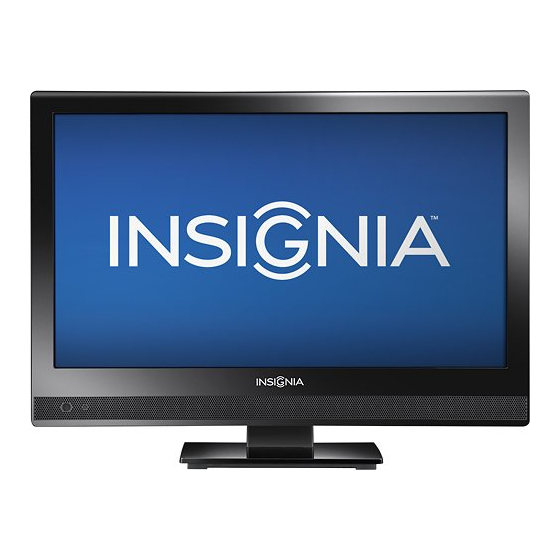

Insignia NS-19E320A13 Quick Setup Manual

19"/22" LED TV

QUICK SETUP

GUIDE
NS-19E320A13/NS-22E340A13
Thank You
for purchasing this fine Insignia television.
We hope you enjoy the quality and reliability
of this product for years to come.
_______________________________
Remote control
and 2 AAA batteries
*
Stand column
Stand base
4 screws (M4 x 14 mm)
WE ARE GOING GREEN!
A copy of your User Guide is not provided
in the box but is available online.
Go to www.insigniaproducts.com, click
Support & Service, enter your model
number in the Product Search field,
then click Search.
Front features
MENU
INPUT
VOL
CH
Remote Power
Note: 19" appearance is shown for illustration purpose.
control indicator
The appearance of your actual TV may differ from the
sensor
illustrations in this guide.
Installing the stand
1 Carefully place your TV screen face-down on a cushioned, clean surface to protect
the screen from damages and scratches.
2 Align the stand column with the TV, then secure the stand column to the TV using
three of the provided screws.
3 Align the stand base with the stand column, then secure the stand base to the
stand column with one of the provided screws.
Stand column
Installing a wall-mount bracket
1 Carefully place your TV screen face-down on a cushioned, clean surface to protect
the screen from damages and scratches.
2 If the stand column is attached to your TV, remove the screws that secure the stand
column to your TV, then remove the stand column.
3 Attach the wall-mount bracket to your TV using the mounting holes on the back of
your TV. See the instructions that came with the wall-mount bracket for information
about how to correctly hang your TV.
Warning
This apparatus is intended to be supported by a UL Listed wall-mount bracket.
Identifying cables
Your TV has several connection types for connecting devices. For the best video quality,
connect a device to the best available connection.
Connection type
Video quality Cable connector
HDMI video/audio Best
OR
Better
Component video
and analog audio
OR
Good
Composite video
and analog audio
You can use the HDMI 1 jack to connect a DVI device to your TV. You need to attach an HDMI-to-DVI
adapter to the end of the HDMI cable that connects to the DVI device's jack.
Connecting a DVD or Blu-ray player, cable box,
satellite receiver, camcorder, or game console
Using an HDMI cable (best)
HDMI OUT
HDMI cable
Note: Cable is not provided.
Using component cables (better)
Stand base
COMPONENT
OUT
Note: Cables are not provided.
Using composite cables (good)
OR
Note: Connect your yellow video cable
connector to the VIDEO/Y jack.
Note: Cable is not provided.
Connecting an antenna/cable wall jack
Connect a coaxial cable (not included) to the ANT/CABLE IN jack on your TV and to the
Antenna or Cable wall jack.
CABLE
Note: Cable is not provided.
AUDIO/VIDEO
OUT
V G A P C /DV I A U DIO
DIG ITA L
/
O U T P U T AN T /
( C O AXIAL ) AU DIO O U T P C I N C AB L E I N
