To Remove the Cover

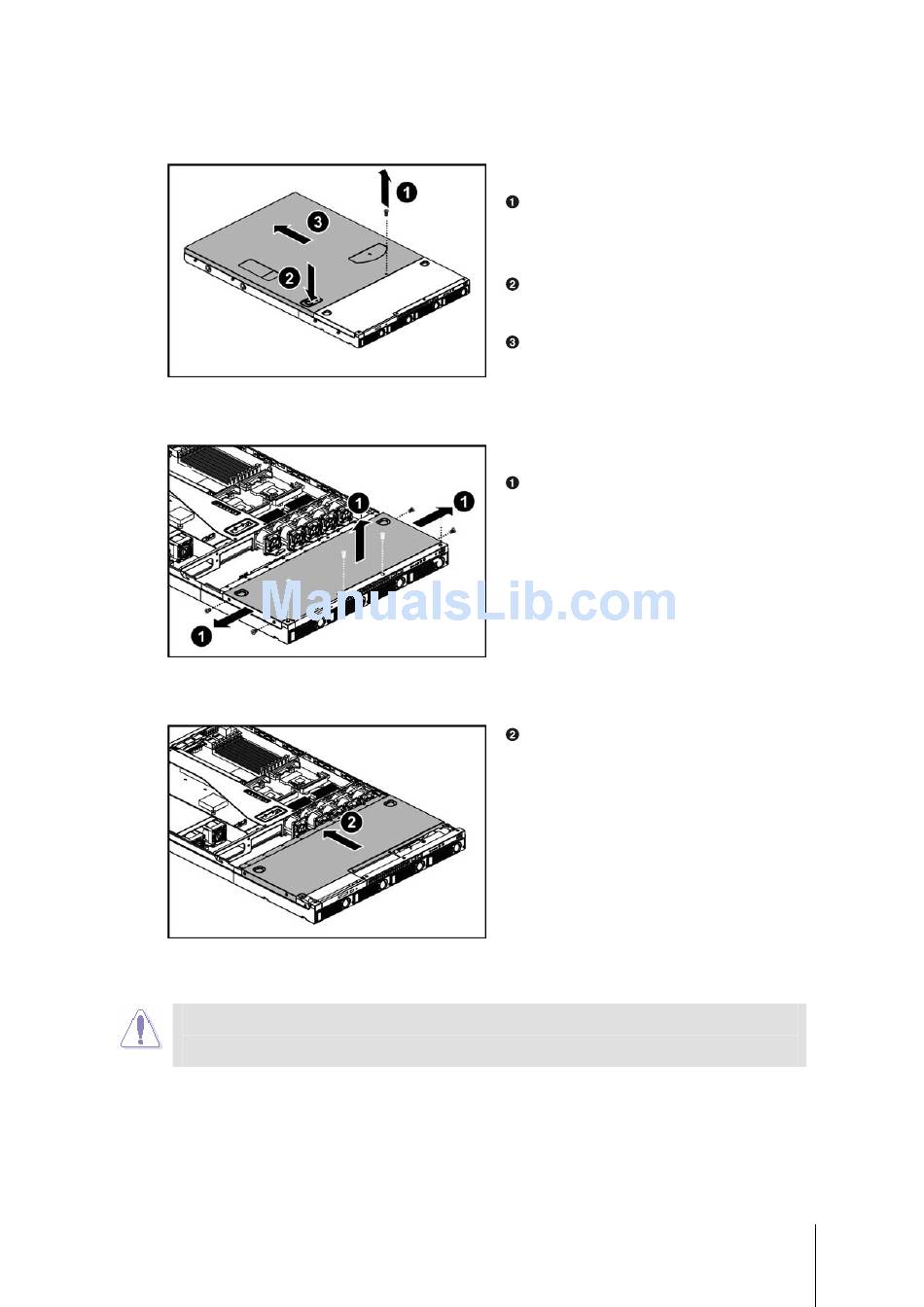

Figure 2-7 Removing the rear top cover

Figure 2-8 Loosing the screws

Figure 2-9 Sliding the front top cover out of the chassis

Caution: This unit must be operated with the chassis top cover installed to ensure
proper cooling.
1230B0001801
To remove the rear top cover:
Loosen the screw on the top of the rear
top cover.
Press the button as the arrow shows.
Slide the rear top cover horizontally to
the back panel.
To remove the front top cover:
Loosen the screws on the top and side
of the front top cover.
Slide the front top cover horizontally
to the back and lift it.
