Diamond View 2115E User Manual

21" (53.3 cm) crt size
Hide thumbs
Table of Contents

Advertisement

Quick Links

DIAMOND VIEW 2115E
Colour Monitor
21” (53.3 cm) CRT Size

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2115E and is the answer not in the manual?

Questions and answers

Related Manuals for Diamond View 2115E

Summary of Contents for Diamond View 2115E

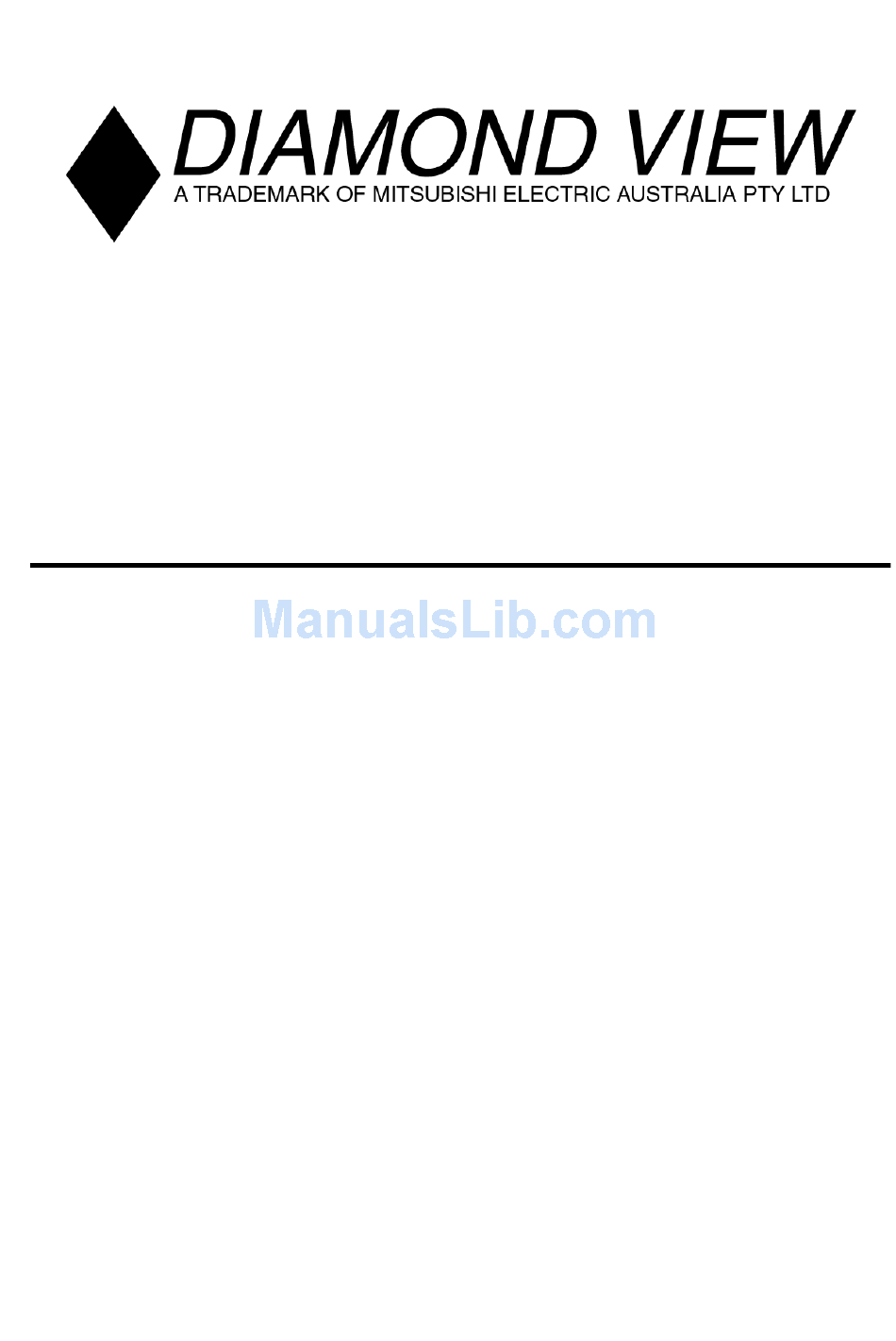

  • Page 1 DIAMOND VIEW 2115E Colour Monitor 21” (53.3 cm) CRT Size...

  • Page 2: Table Of Contents

    Table of Contents 1 Introduction ................1 Unpacking the Package ............ 1 Features ................2 Power Management ............3 Factory Preset Timings ............3 2 Installing the Monitor ........4 Connecting the Signal Cable ..........5 3 Adjusting the Picture ........8 Making Adjustments ............

  • Page 3: Reference Information

    Mitsubishi Electric Australia Pty. Ltd. to notify any person of such revision or changes. Diamond View is a registered trademark of Mitsubishi Electric Australia Pty. Ltd. Microsoft and Windows are registered trademarks of Microsoft Corporation.

  • Page 4: Safety Instructions

    Safety Instructions The AC plug isolates this equipment from the AC supply. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. Slots and openings in the cabinet and the back or bottom are provided for ventilation.
  • Page 5 Maintenance Do not expose the monitor to direct sunlight or heat. Do not spill liquid onto the monitor Do not attempt to open the monitor. You may be hurt by electric shock. For service, call your place of purchase. Opening your monitor may also void warranty.

  • Page 6: Introduction

    1 Introduction Unpacking the Package Check following items. If they are missing or damaged, consult your place of purchase immediately. Colour monitor User’s manual Power cord 15-pin D-SUB Macintosh adaptor signal cable Locate the model name and the serial number labeled on the back of your monitor.

  • Page 7: Features

    Super-fine Dot Pitch Super-fine Dot Pitch Super-fine Dot Pitch With 0.25 mm dot pitch, the Diamond View 2115E colour monitor provides strik- ingly sharp high-resolution images up to 1920 x 1440 pixels. Wide Auto Scanning Range Wide Auto Scanning Range...

  • Page 8: Power Management

    Power Management The Power management of this monitor complies with these VESA power saving modes: Mode Power Horizontal Vertical Consumption Sync Sync < 150W Max. Green Stand-by < 5 W O f f Amber Suspend < 5 W O f f Amber O f f <...

  • Page 9: Installing The Monitor

    2 Installing the Monitor This monitor is equipped with an auto sensing power supply for voltage range of 100~240V AC, 50~60Hz. To install the monitor: 1) Make sure that the system power is turned off. 2) Connect the power cord to the monitor and attach it to power source. 3) Turn the power switch on at the wall socket.

  • Page 10: Connecting The Signal Cable

    Connecting the Signal Cable Your 2115E monitor provides both 15 pin VGA type (D-SUB) and BNC signal connectors. The D-SUB or BNC signals are automatically detected by the monitor. Connecting through D-SUB signal connector 1) Make sure that the system power is turned off.

  • Page 11: Connecting To An Apple

    Connecting to An Apple If you need to connect the monitor to an older-style Apple Macintosh computer, you will need to use the Macintosh adaptor included with your monitor. Before connecting the adaptor please refer to the user's guide of the adaptor to set its option switches.

  • Page 12: Connecting Through Bnc Signal Connector

    Connecting through BNC Signal Connector 1) Make sure that the system power is turned off. 2) Connect the computer end of the BNC cable to the output connector on the video board of your computer. 3) Connect the monitor end of the BNC cable to the BNC receptacle on the back of the monitor.

  • Page 13: Adjusting The Picture

    3 Adjusting the Picture Menu key : enters or changes Main menus. There are three main menus. Enter key : enters sub-menus or selects items. Exit key : goes back to main menus (auto save), or leaves OSD. & key : scrolls the light coloured bar up or down and represents HOT KEY for brightness adjustment.

  • Page 14: Making Adjustments

    Please note that the Auto function is not the same as "Reset" function. The "Reset" function only works if the graphics signal is the same as the monitor’s factory preset signal timings (please see page 3). The Auto function will work with any graphics signal that the 2115E can display. Hot Keys Press to adjust contrast directly.

  • Page 15: Osd Operation

    OSD Operation Press Menu to enter or change Main menus (there are three main menus) Press to scroll light coloured bar to desired items. Press Enter to enter sub-menus. Press ) to do the adjustments. If the sub-menu contains multiple items. Press to scroll light coloured bar to desired items.

  • Page 16: Size & Position

    Luminance Contrast and Brightness adjustments Contrast adjusts the difference between the light and dark areas. Brightness adjusts the brightness of the display. Size & Position Display size and position adjustment Hor. Position adjusts the horizontal position of the display. Hor. Size adjusts the width of the display. Ver.
  • Page 17 Geometry Advanced geometry adjustments Pincushion controls the straightness of the vertical edges of the display. Unbalance adjusts balance when the sides of display are bowed towards left or right Trapezoid makes the vertical edges of the display parallel. Parallelogram corrects image leaning left or right. Rotation corrects screen tilt.

  • Page 18: Osd Position

    OSD Position OSD position adjustments moves the OSD menu position up. moves the OSD menu position down. moves the OSD menu position left. moves the OSD menu position right. Degauss Manual Degauss. To eliminate color shading or impurity induced by re- sidual magnetism.

  • Page 19: Main Menu 2 Color Control

    Main Menu 2 Color Control This main menu is used to set the monitor’s colour balance. C1 ~ C5 are preset colour temperatures that can be used to set the white point for different applications. Factory Default Color Temperature 9300K 6500K 5500K 7100K...

  • Page 20: Main Menu 3 Advanced Display Control

    This sub-menu adjusts RGB (Red, Green, Blue) color balance. Press keys to scroll light coloured bar to desired items then press key to do the adjustments. To reset to factory default values, scroll light coloured bar to item “ Reset to Default”. Main Menu 3 Advanced Display Control This main menu includes six items.
  • Page 21 , green, or blue if the electron beams do not converge correctly. The 2115E monitor provides a convergence adjustment. To properly adjust convergence, it is best to have an image that makes it easy to see any conver- gence error.
  • Page 22 Moire Horizontal & Vertical Moire adjustment Horizontal Moire: adjusts horizontal Moire Vertical Moire: adjusts vertical Moire Moire refers to an interference pattern of dark wavy lines on the screen. It is an interference phenomenon caused by the relationship between the phosphor lay- out and the imaging signal.

  • Page 23: Language Select

    D-Sub Input connector select. The Diamond View 2115E monitor has two types of signal input connector, BNC connector and VGA-type (15 pin D-Sub). The 2115E monitor will automatically detect the type of connector that a signal is connected to. If the two connectors are connected simultaneously, use this adjustment to select the signal that is to be displayed.

  • Page 24: Display Mode

    Purity Colour purity adjustment The purity adjustment is provided to correct for changes in the colour displayed on the monitor that can be caused by the earth's magnetic field or local magnetic fields. For best results, display a white image covering the entire display when changing the purity setting.

  • Page 25: Timing Setting

    The Diamond View 2115E can accept a graphics signal that has a vertical frequency (refresh rate) between 50 Hz and 160 Hz and an horizontal frequency between 30 KHz to 115 KHz.

  • Page 26: Pin Assignments

    Pin Assignments D-SUB Connectors Signal Pin No Separate Composite Sync-on-green Green Green Green + SYNC Blue Blue Blue R-GND R-GND R-GND G-GND G-GND G-GND B-GND B-GND B-GND PC5V(For DDC) PC5V(For DDC) PC5V(For DDC) GND-SYNC GND-SYNC GND-SYNC DDC Data DDC Data DDC Data H-SYNC H/V-SYNC...

  • Page 27: Bnc Connectors

    BNC Connectors Signal Assignment separate composite sync-on-green Blue Blue Blue G/SYNC Green Green Green + SYNC H/H+V H-SYNC H/V-SYNC V-SYNC...

  • Page 28: Troubleshooting

    See Chapter 2, Installing the Monitor. If the problems persist, check this chapter for possible solutions. Windows drivers for the Dia- mond View 2115E monitor are available from the File Downloads section at Mitsubishi Electric Australia’s web site: www.mitsubishi-electric.com.au.
  • Page 29 § Characters look dark; the picture is too small or too large, not centered, etc. Adjust related settings. See Chapter 3, Adjusting the Monitor. § Colours are impure. Check the signal cable and connector pins. If there are bent or missing pins, consult your place of purchase.

  • Page 30: Need More Help

    Need More Help? If your problems remain after checking this manual, please contact your place of purchase or contact: Australia Visit the Mitsubishi Electric Australia web site at www.mitsubishi-electric.com.au Or contact the Service Department for your state: New South Wales and Australian Victoria and Tasmania Capital Territory 4 / 303 Burwood Hwy...

  • Page 31: Specifications

    5 Specifications Picture Size 21” (53.34 cm) diagonal Dot Pitch 0.25 mm dot pitch Surface/Transmission AR, AS/semi-tinted Maximum Viewable Size 20” (51 cm) diagonal Video Input 15-pin, mini D-SUB Connector/ BNC Connector Bandwidth 297 MHz Display Area 390 mm (H) x 295 mm (V) (Preset) 408 mm (H) x 306 mm (V) (Full Scan) Power Supply(Universal) Input voltage...
  • Page 32 Max. Resolution 1920 x 1440 pixels Horizontal Frequency 30-115 KHz Vertical Frequency 50-160 Hz Dimensions (with stand) 508 mm (W) x 515 mm (H) x 512 mm (D) Weight 30 Kg Ambient Temperature Operating +5 °C ~ +40 °C Storage -20 °C ~ +60 °C Humidity Operating...
