Diamond View 1995SL User Manual

Colour monitor 19” (48cm) crt size, 18” (45.7cm) viewable area
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DIAMOND VIEW
1995SL
Colour Monitor
19" (48cm) CRT Size
18" (45.7cm) Viewable Area
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1995SL and is the answer not in the manual?

Questions and answers

Related Manuals for Diamond View 1995SL

Summary of Contents for Diamond View 1995SL

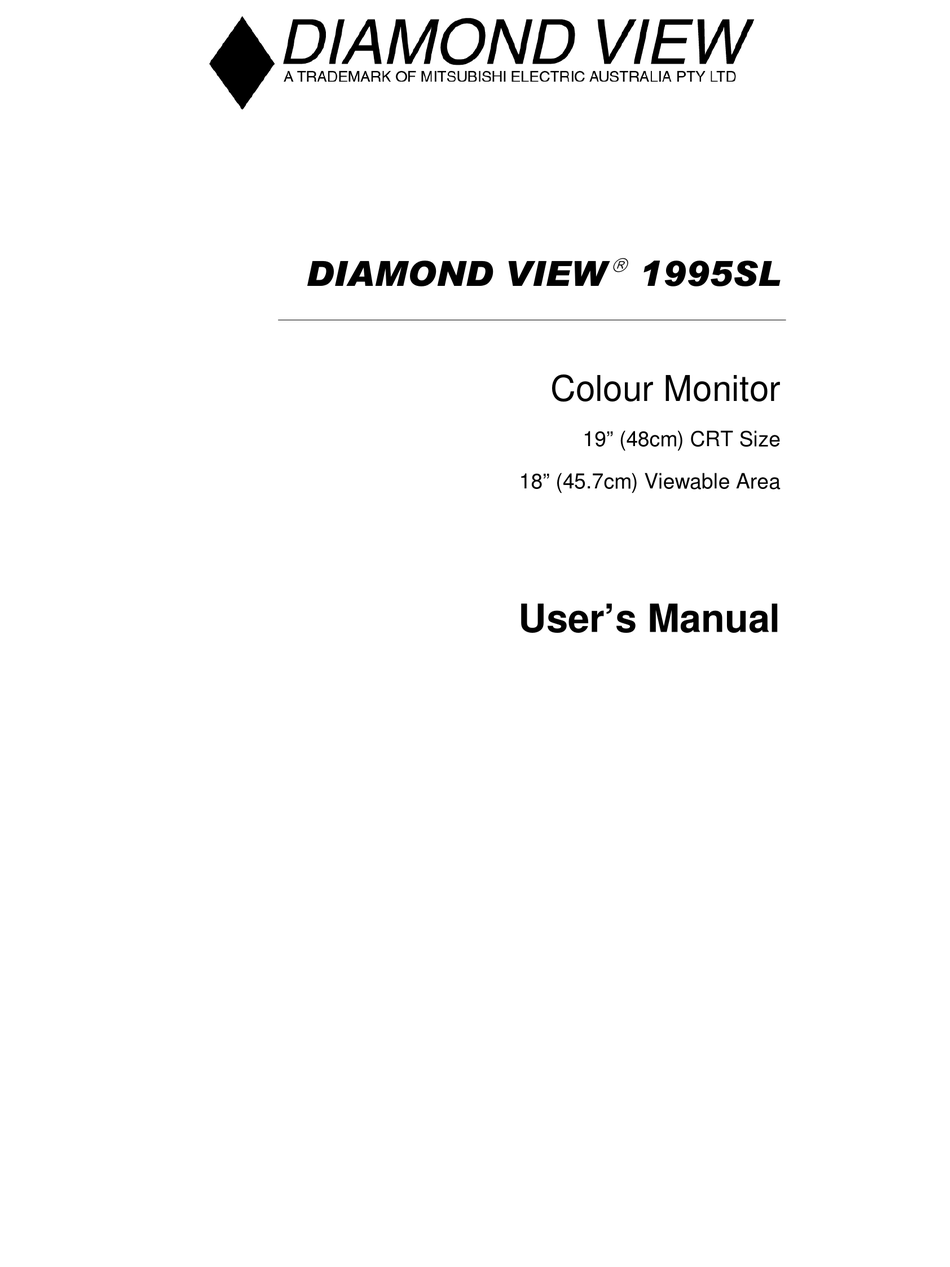

  • Page 1 DIAMOND VIEW  1995SL Colour Monitor 19” (48cm) CRT Size 18” (45.7cm) Viewable Area User’s Manual...
  • Page 2 UG/MO1995SL/0102/2...

  • Page 3: Table Of Contents

    Important Safety Instructions...1 Features ...2 Unpacking the Monitor...3 Installation ...3 Drivers for Windows 95, 98, 2000 and Millennium Edition...4 Adjusting the Monitor ...5 Selecting Functions and Making Adjustments...6 Contrast Hotkey...6 Brightness Hotkey...6 The Main Menu ...6 Make adjustments...7 Timing and Refresh Rate Setting ...11 Factory Preset Timings ...12 Troubleshooting ...13 Specifications ...15...

  • Page 4: Reference Information

    For future reference, write the following information about your monitor in the space below. The serial number is on the back of the product or on the bottom of its stand. Monitor Information Product Name: Diamond View 1995SL Serial Number: Date of Purchase: Dealer Information Dealer:...

  • Page 5: Important Safety Instructions

    Important Safety Instructions Please read the following safety instructions before installing or cleaning your Diamond View monitor: This monitor must be operated from the type of power source indicated on the rating label. If you are not sure of the type of power available in your area, consult your dealer or local electricity supply company.

  • Page 6: Features

    1280 x 1024 pixels at 85Hz. Larger Viewable Size With its 45.7 cm (18”) viewable size, the 1995SL offers a larger viewable screen area than many other 19” monitors. Easy to Use On Screen Display The On-Screen Display (OSD) allows you to adjust all settings simply with on-screen menus.

  • Page 7: Unpacking The Monitor

    (ii) of this manual for future reference. Installation Your monitor is equipped with an automatic power supply with a voltage range from 100 to 240 Volts AC at a frequency of 50 to 60 Hz. To install your Diamond View 1995SL monitor: Make sure that system’s power is turned off.

  • Page 8: Drivers For Windows 95, 98, 2000 And Millennium Edition

    Drivers for Windows 95, 98, 2000 and Millennium Edition Windows will detect the Diamond View 1995SL monitor the first time you turn the computer on after installing it. The Add New Hardware wizard will prompt for drivers.

  • Page 9: Adjusting The Monitor

    Adjusting the Monitor You can adjust the monitor using its On-Screen Display (OSD) menu system. There are 5 buttons that control the monitor: 1. Exit Returns to the last menu page, saves changes or quits the menu system. Move to another menu item or decrease the selected parameter.

  • Page 10: Selecting Functions And Making Adjustments

    1. Press the Exit button to save your changes. The Main Menu The Diamond View 1995SL’s OSD has a in Main Menu organised into 6 groups of functions: Luminance, Geometry, Colour Adjustment, Recall, Degaussing and Miscellaneous. The remainder of this chapter describes the use of each function and the way that you can make adjustments to the image displayed on the monitor’s screen.

  • Page 11: Make Adjustments

    Make adjustments 1. In Main Menu: Press to select the function group with the item that you wish to change. 2. Press Enter to open the Sub Menu. 3. Press to select the item to be changed and press Enter. 4.
  • Page 12 Hor. Position Enter:Save Exit : Exit 5. Press Exit to save the setting. 6. Press Exit to return to main menu. Luminance Contrast changes the difference between the light and dark areas of the displayed image. Brightness adjusts the brightness of the displayed image. Geometry Hor.

  • Page 13: Colour Adjustment

    Unbalance adjusts the pincushion balance if both sides of the image are bowed toward either the left or the right. Trapezoid makes the vertical edges of the image parallel. Parallelogram aligns the top and bottom edges of the image. Top corner adjusts the edge curvature at the top corners of the image.
  • Page 14 Recall/Reset and Image Status Select and press Enter to recall the factory settings for the current graphics signal. The word “Recall” will blink on the screen in the process of recall. This page is also a status display that shows the horizontal and vertical frequencies of the current graphics signal.

  • Page 15: Timing And Refresh Rate Setting

    The monitor will automatically save the changes that you make and use the new settings whenever you turn it on. The Diamond View 1995SL monitor can accept horizontal scanning frequencies ranging from 30 KHz to 95 kHz and vertical frequencies from 50 Hz to 160 Hz.

  • Page 16: Factory Preset Timings

    Factory Preset Timings Mode Resolution Industry 640 x 400 Industry 640 x 480 VESA 800 x 600 VESA 800 x 600 VESA 1024 x 768 VESA 1024 x 768 VESA 1280 x 1024 VESA 1280 x 1024 VESA 1600 x 1200 Vertical Horizontal Frequency (Hz)

  • Page 17: Troubleshooting

    Troubleshooting If you encounter any trouble using the Diamond View 1995SL monitor, make sure that your monitor is properly installed. (For hardware installation, see Chapter 4 of this manual.) If the problems persist, please check this chapter for possible solutions before calling Mitsubishi Electric or one of our Authorised Service Centres.
  • Page 18 Remove any magnetic objects that are near the monitor. These include speakers and power supplies ( AC adaptors ). Colours are impure. Check that the cable is securely connected to the computer. Check the VGA signal cable for damage. If any pins are bent or broken off, contact your dealer or an authorised Mitsubishi Electric service agent (see Chapter 11 for details).

  • Page 19: Specifications

    Video Bandwidth Microprocessor Controlled Graphics Signal Connection Video Input Video Signal Synchronisation Plug & PLay Diamond View 1995SL 19” (48 cm) diagonal short-length cathode ray tube 18” (45.7cm) diagonal 0.26 mm Anti-Glare, Anti-Reflective, Anti- Static coating 1600 x 1200 pixels (at 75 Hz) 1280 x 1024 pixels (at 85 Hz) 30 –...

  • Page 20: User Interface

    User Interface Controls On-Screen Display Functions: Contrast; Brightness; Vert. & Hor. Image Position and Size; Pincushion Amplitude, Phase and Balance; Top and Bottom Corner Pincushion; Color Balance; Degauss; Horiz. and Vert. Moire; Choice of language (6 language OSD); OSD Position; Status Indicator Physical Characteristics Power Management Maximum Power Consumption...

  • Page 21: Service Contacts

    Service Contacts If problems remain after checking this manual, please contact your place of purchase or contact Australian Service Contacts Visit the Mitsubishi Electric Australia web site at www.mitsubishi-electric.com.au For details of your nearest Mitsubishi Electric Authorised Service Centre or contact the Service Department for your state: New South Wales and Australian Capital Territory 348 Victoria Road...

  • Page 22: New Zealand Service Contacts

    Victoria and Tasmania 4 / 303 Burwood Hwy East Burwood, Vic, 3151 Telephone: (03) 9262-9899 Fax: (03) 9262-9850 Western Australia 5 / 329 Collier Road Bassendean, WA, 6054 Telephone: (08) 9377-3411 Fax: (08) 9377-3499 New Zealand Service Contacts Contact: Melco New Zealand Ltd. 1 Parliament St.
