Related Manuals for MartinLogan Center Channel speaker

Summary of Contents for MartinLogan Center Channel speaker

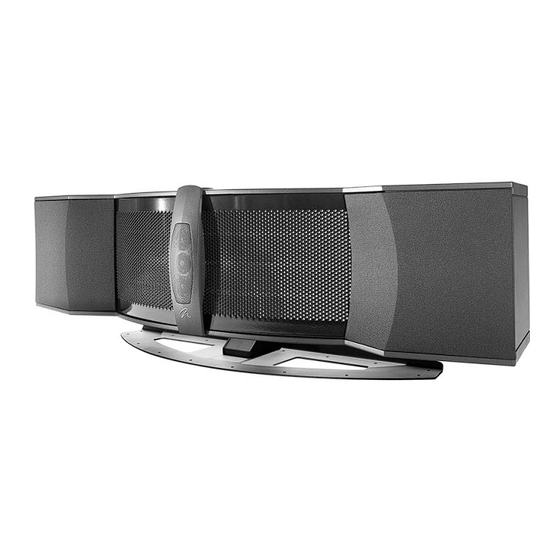

  • Page 1 H E A T E R u s e r ’ s m a n u a l A R T I N O G A N...

  • Page 2: Table Of Contents

    Electrostatic Advantages ......14 MartinLogan Exclusives ......15...

  • Page 3: Installation In Brief

    Please see the Installation section (page 6) of this manual for more details. Step 3: Power Connection (AC) (see warning) MartinLogan speakers require AC power to energize their electrostatic cells. Using the AC power cords provided, plug the Theater in first to the AC power receptacle on the rear panel of the speaker, making sure that you have made a firm connection, and then to the wall outlet.

  • Page 4: Introduction

    NTRODUCTION Congratulations! You have invested in a new world of home theater! The MartinLogan Theater represents the culmination of an intensive, dedicated group research program directed toward establishing a world class reference monitor utilizing leading-edge technology, without compromising durability, reliability, craftsmanship or aesthetic design.

  • Page 5: Operation

    AC Power Connection Because your MartinLogan Theater uses an internal power supply to energize its electrostatic cells with high-voltage DC, it must be connected to an AC power source. For this reason it is provided with the proper IEC standard power cord.

  • Page 6: Installation

    WARNING! Installation other than that described in the body of this document requires specific documentation from MartinLogan. Installation Rubber Bumper Feet If you are using the Theater on top of your television, or setting it on any type of surface, we recommend installing the 5 rubber bumper feet included with the Theater.

  • Page 7: Stand Removal And Installation

    Removing the Stand 1. Support the Theater body by placing the shipping foam on both ends of the speaker, or setting a stack of books beneath both ends of the speaker cabinet. The mount should hang down from the Theater and contact the surface of your table or floor (see figure 4, step A).

  • Page 8: Mounting The Theater On A Wall

    12 inches (30.5 cm) of clearance above or below in order to access the knobs and tilt the speaker up and down. 2. Using a level, vertically measure down 2 from point A and mark this point (point B, see figure 9).
  • Page 9 Figure 5. Using the wall anchors for points C and D. Side view. Figure 6. Using the lag bolt for points C and D. Side view. Figure 7. Hardware included with the Theater. Figure 8. The Theater mounted in various stud configurations. Front View. Please note, to simplify this illustration, the stand is shown without the Theater attached.
  • Page 10 Re-tighten the knobs. With the help of a second person, lift the speaker up, and rotate it (mount and all) so that the mount is parallel to the wall. Hang the Theater on the...

  • Page 11: Dispersion Interactions

    This horizontal dispersion field gives you a choice of good seats for the performance while minimizing interaction with side walls (see figure 10). Figure 10. The MartinLogan Theater delivers a 30 degree wave launch dispersion pattern distributed horizontally. ISPERSION NTERACTIONS...

  • Page 12: Three Major Types Of Dispersion

    By curving the radiating surface, we create the effect of a horizontal arc. This allows the engineers at MartinLogan to control the high frequency dispersion pattern of our transducers. That is why you see the gentle curve on our products.

  • Page 13: Home Theater

    Home theater is a complex purchase and we recommend that you consult your local MartinLogan dealer as they are well versed in this subject Each piece of a surround system can be purchased separately.

  • Page 14: Electrostatic Advantages

    Since the diaphragm of an electrostatic speaker is uniformly driven over its entire area, it can be extremely light and flexible. This allows it to be very responsive to transients, thus perfectly tracing the music signal.

  • Page 15: Martinlogan Exclusives

    This is also why you see the unique “see through” cylindrical shape of all MartinLogan products. Transducer Integrity All MartinLogan transducers begin with two pieces of high- grade, cold rolled steel. These steel pieces are then custom perforated and insulated with a unique composite coating.

  • Page 16: Electrostatic Loudspeaker History

    However, Lodge had no intention for his device to reproduce music because in 1898 there was no way to amplify an electrical signal! As a result, his speaker had nothing to offer over the acoustical gramophones of the period. It was not until 1906 that Dr. Lee DeForrest invented the triode vacuum tube.
  • Page 17 The test instrument needed an extremely accurate speaker, but Janszen found that the cone speakers of the period were too nonlinear in phase and amplitude response to meet his criteria. Janszen believed that electrostats...

  • Page 18: Frequently Asked Questions

    2 Ohms. Could you suggest a list of suitable electronics and cables that would be ideal for MartinLogan speakers? The area of electronics and cable choice is probably the most common type of question that we receive. It is also the most subjective.
  • Page 19 How do MartinLogan speakers hold up over a long term in the humidity of tropical climates? We should tell you that MartinLogan indeed has a very substantial number of customers in tropical regions of the world.

  • Page 20: Troubleshooting

    •Check your speaker wires and connections. •Check all interconnecting cables. Weak Output, Loss of Highs •Check the power cord. Is it properly connected to the speaker? •Is the Theater properly adjusted towards the listening position? Read Installation (pages 6–7) for more information.

  • Page 21: Service

    5 Year Warranty coverage you need to complete and return the Certificate of Registration, included with your speakers, and provide a copy of your dealer receipt, to MartinLogan within 30 days of purchase. MartinLogan may not honor warranty service claims unless...

  • Page 22: Glossary Of Audio Terms

    Impedance. The total opposition offered by an electric circuit to the flow of an alternating current of a single frequency. It is a combination of resistance and reactance and is measured in ohms. Remember that a speaker’s impedance changes with frequency, it is not a constant value.
  • Page 23 Sensitivity. The volume of sound delivered for a given electrical input. Stator. The fixed part forming the reference for the moving diaphragm in a planar speaker. THD. The abbreviation for total harmonic distortion. (See Distortion.) TIM. The abbreviation for transient intermodulation distortion.
  • Page 24 A R T I N O G A N 2101 Delaware Street, Lawrence, Kansas 66046, USA tel 785.749.0133 fax 785.749.5320 www.martinlogan.com ©2000 MartinLogan, All rights reserved Rev. #071300...
