Summary of Contents for Apogee Symphony I/O

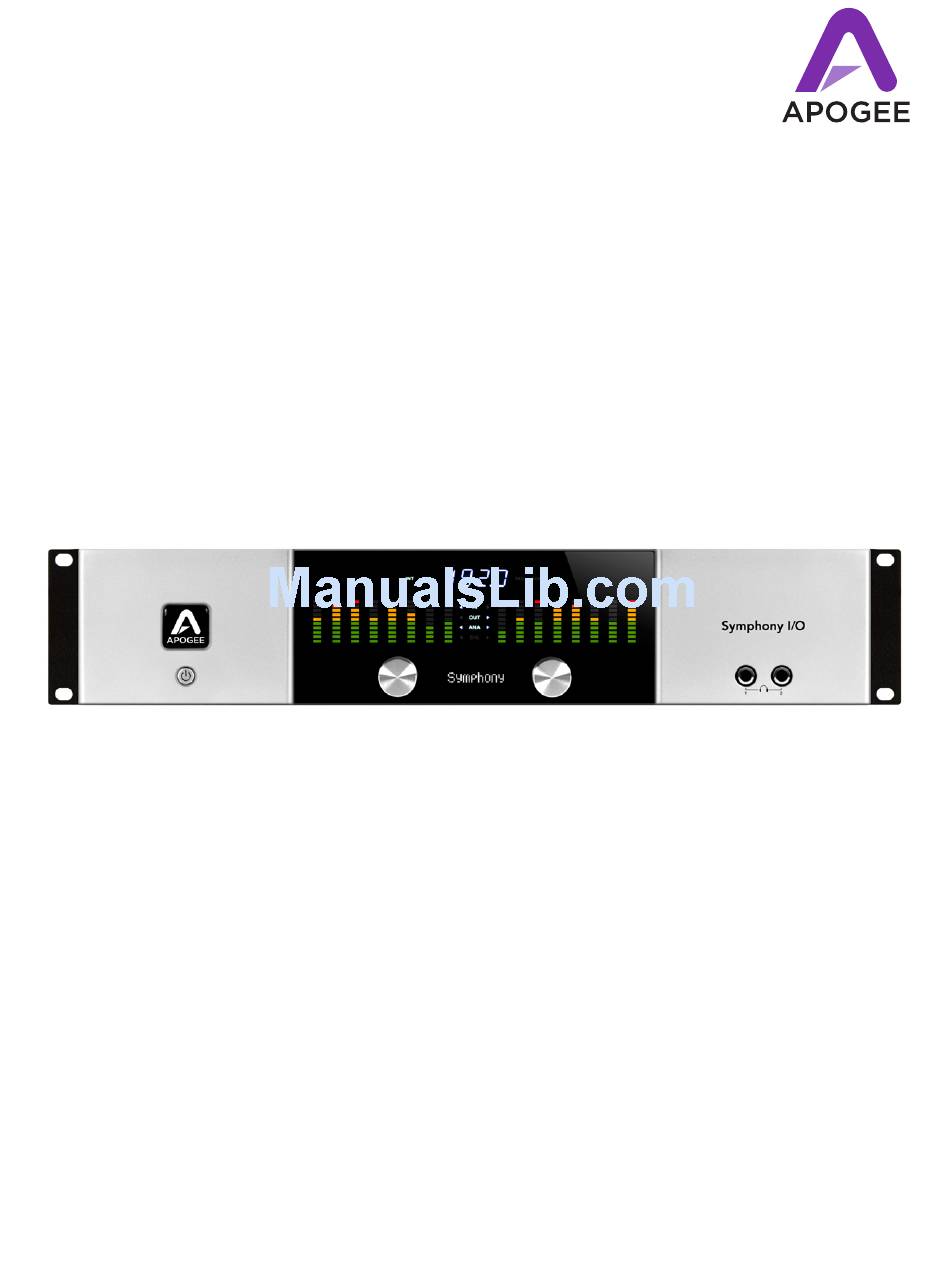

- Page 1 Symphony I/O Connections Instructions & Guidelines...
- Page 2 ✴ Power off Symphony I/O. ✴ Connect Symphony I/O to port 1 of HD core card. ✴ Power up unit. Set Symphony I/O to "Pro Tools HD" Audio Interface Mode (hold in the right encoder to check and change if needed) ✴...
- Page 3 ✴ Power off Symphony I/O. ✴ Connect Symphony I/O to port 1 of Native-HD card. ✴ Power up unit. Set Symphony I/O to "Pro Tools HD" Audio Interface Mode (hold in the right encoder to check and change if you need to) ✴...
- Page 4 64" is selected for input and output. Make sure the "Source" is set to "PCI Card 1, Port 1 (Ch 1-32)". ✴ Wait for Symphony I/O to lock to Internal and display "INT" on the front-panel. (you should hear relays clicking from the Symphony I/O and the exclamation mark icon on the front-panel should go away) The clock source can be changed from front- panel (hold in left encoder) or in Maestro 2.
- Page 5 Symphony I/O Systems: 2 Units NOTE: As of January 28, 2011, a maximum of 2 units is supported. Daisy chaining units is not supported. The Secondary PC32 port on the back of the Symphony I/O is not yet functional. Pro Tools HD ✴...
- Page 6 Maestro 2 control, you have to use Maestro 2 on an Intel Mac, which you can do separately if you connect the units via USB. © Copyright 2011, Apogee Electronics. The information in this document is confidential and proprietary. Redistribution without consent is strictly prohibited.
- Page 7 ✴ Connect 1st Symphony I/O to port 1 of Native-HD card. ✴ Connect 2nd Symphony I/O to port 2 of Native-HD card. ✴ Power up units. Set both Symphony I/O’s in "Pro Tools HD" Audio Interface Mode (hold in the right encoders to check and change if you need to) ✴...
- Page 8 Unit A to Loop Sync In on Unit B and vice versa). Make sure they don't accidentally connect to the WC connectors! ✴ Connect 1st Symphony I/O to Symphony 64 card 1, port 1. ✴ Connect 2nd Symphony I/O to Symphony 64 card 1, port 2.
- Page 9 O for the app in the audio preferences. NOTE: SBUS and VBUS are not available when using ProTools Native due to the 32 channel limit. © Copyright 2011, Apogee Electronics. The information in this document is confidential and proprietary. Redistribution without consent is strictly prohibited.
