Leviton 86A00-2 Installation Instructions

WARNINGS AND CAUTIONS

• Read and understand all instructions. Follow all warnings and instructions marked on the
product.
• Do not use this product near water - e.g., near a tub, wash basin, kitchen sink or laundry tub, in
a wet basement, or near a swimming pool.
• Never push objects of any kind into this product through openings, as they may touch
dangerous voltages.
• SAVE THESE INSTRUCTIONS.

DESCRIPTION

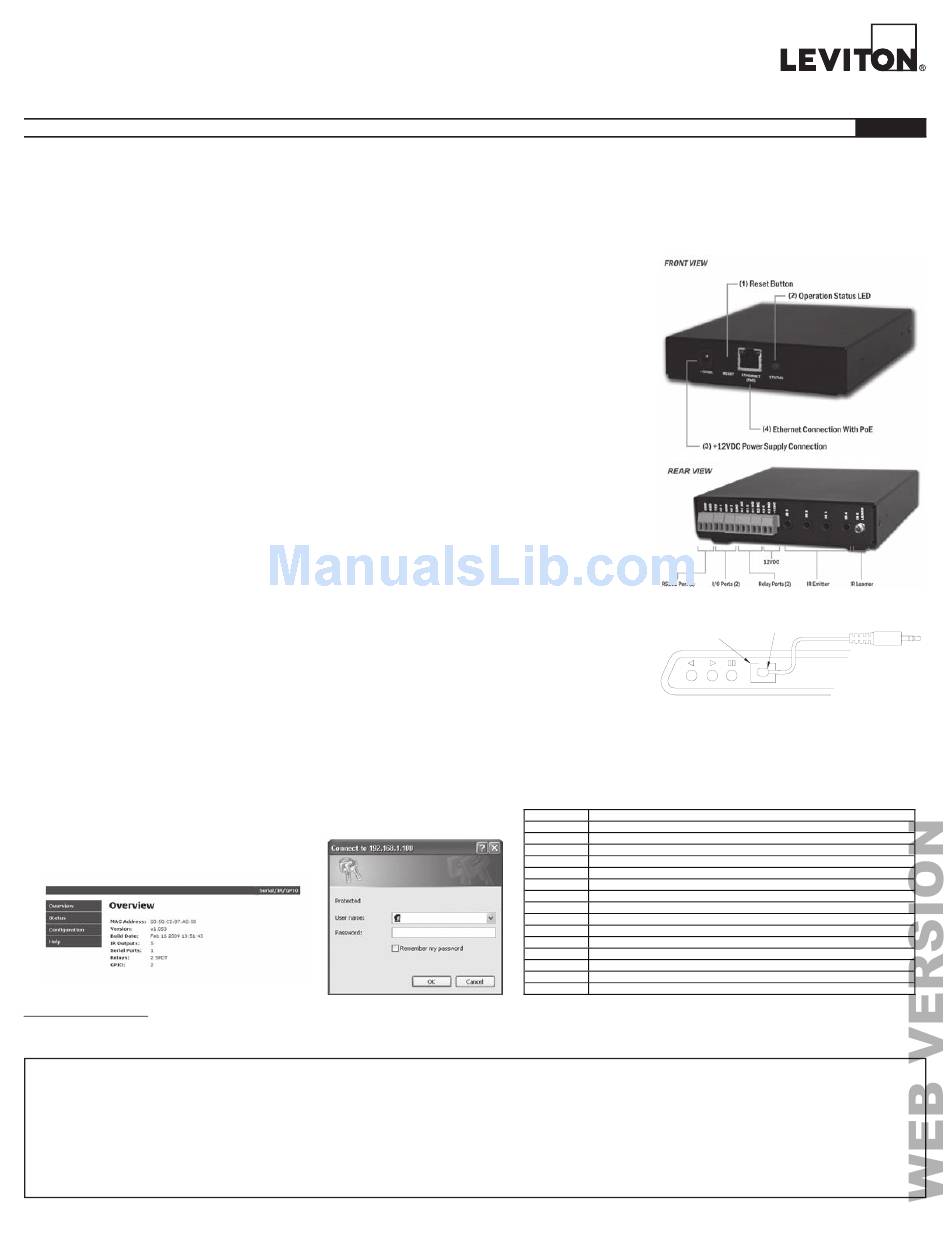

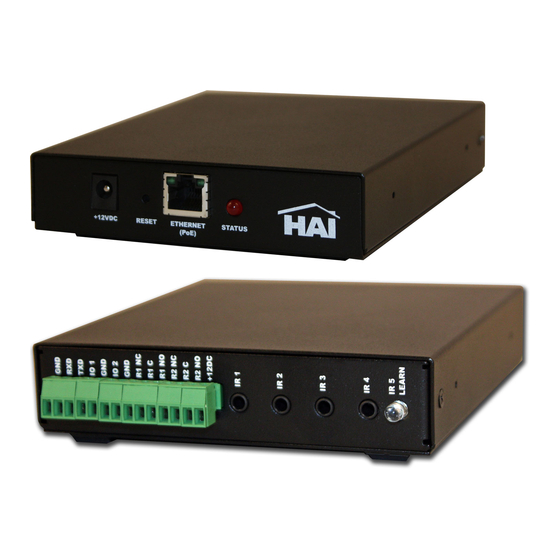

The Model 86A00-2 Home Theater Extender 2 (HTX2) allows you to extend your home control to the audio/video equipment in your
home theater. The HTX2 communicates over Ethernet with an HAI IP-based touchscreen and Snap-Link Mobile for iPhone/iPad.
The HAI IR database includes over 300,000 IR codes and has a built-in IR receiver so that additional IR codes can be learned.
The HTX2 is an IEEE 802.3af compliant Power over Ethernet (PoE) Powered Device (PD). The HTX2 may be powered via
PoE or from the supplied AC Adaptor.
The HTX2 is equipped with serial, digital, and IR ports as well as Form-C relays to interconnect with home theater equipment.
It also has a built-in web server for simple configuration from any web browser.
1. Reset Button:
a. Quick press and release – resets the HTX2.
b. Press and hold until the Operation Status LED comes back on (about 5 seconds) – removes all previously stored
network settings.
c. Press and hold until the Operation Status LED comes on and then goes back off (about 10 seconds) – will default the
HTX2 to factory settings.
2. Operation Status LED:
a. Solid red during normal operation
b. Flashes during activity such as IR emitting or during discovery.
3. +12VDC Power Supply Connection:
a. This is the power connector for the optional +12VDC AC Adaptor.
4. Ethernet Connection With PoE:
a. Connects the HTX2 to a 10BaseT network.
b. Compatible with all 10/100 network switches.
c. This connection supports PoE.
RS232 Port: Standard serial communications for bi-directional control. Bauds are available from 300 through 115200.
I/O Ports: The 2 I/O ports can be configured to act as a digital input or a digital output. For use with voltage and current
sensors to detect the power state (on/off) of a device. Digital outputs are rated for 10mA at 3.3VDC.
Relay Ports: The 2 Form-C relays allow control of any device which requires a contact closure, like a motorized screen or
blinds. They can also source and switch 12VDC for power amplifier triggers. The relays are rated at 2A at 30VDC.
12VDC: This is a general purpose 12VDC voltage output that can be used to power a device or sensor that is rated up to 250mA.
IR Emitter: Connect the 3.5mm connector for each of the supplied IR flashers to the IR Emitter jacks on the HTX2. The IR
flasher is used for sending IR data to control IR equipment.

CONFIGURATION

The network settings of the HTX2 can be configured by navigating to the built-in web server from any web browser. The
HTX2 is shipped from the factory with DHCP enabled. The HTX2 will accept an IP address and other network parameters
from a DHCP server on the network. DHCP facilitate easy first-time setup; however, we recom-
mend that you assign the device a static IP address outside your router's DHCP range to ensure
that the HTX2 will always be available at the same IP address.
Open a new browser window and type in the IP address of the HTX2 to be configured. The HTX2
Overview page will appear. This page contains information such as the device's MAC address,
current firmware revision, and the number of inputs, outputs, and relays.
Select the Configuration button on the menu bar to configure the network settings and serial port
settings. The configuration page is protected with the following credentials:
User name: admin
Password: homeauto
FOR CANADA ONLY
For warranty information and/or product returns, residents of Canada should contact Leviton in writing at Leviton Manufacturing of Canada Ltd to the attention of the Quality
Assurance Department, 165 Hymus Blvd, Pointe-Claire (Quebec), Canada H9R 1E9 or by telephone at 1 800 405-5320.
Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that products manufactured by Leviton under the Leviton brand name ("Product") will be free from defects
in material and workmanship for the time periods indicated below, whichever is shorter: • OmniPro II and Lumina Pro: three (3) years from installation or 42 months from manufacture date.
• OmniLT, Omni IIe, and Lumina: two (2) years from installation or 30 months from manufacture date. • Thermostats, Accessories: two (2) years from installation or 30 months from manufacture date.
• Batteries: Rechargeable batteries in products are warranted for ninety (90) days from date of purchase. Note: Primary (non-rechargeable) batteries shipped in products are not warranted.
Products with Windows Operating Systems: During the warranty period, Leviton will restore corrupted operating systems to factory default at no charge, provided that the product has been used as
®
originally intended. Installation of non-Leviton software or modification of the operating system voids this warranty. Leviton's obligation under this Limited Warranty is limited to the repair or replacement,
at Leviton's option, of Product that fails due to defect in material or workmanship. Leviton reserves the right to replace product under this Limited Warranty with new or remanufactured product.
Leviton will not be responsible for labor costs of removal or reinstallation of Product. The repaired or replaced product is then warranted under the terms of this Limited Warranty for the remainder of
the Limited Warranty time period or ninety (90) days, whichever is longer. This Limited Warranty does not cover PC-based software products. Leviton is not responsible for conditions or applications
beyond Leviton's control. Leviton is not responsible for issues related to improper installation, including failure to follow written Installation and operation instructions, normal wear and
tear, catastrophe, fault or negligence of the user or other problems external to the Product. To view complete warranty and instructions for returning product, please visit us at www.leviton.com.
© 2013 Leviton Mfg. Co., Inc.
HOME THEATER EXTENDER
Cat. No. 86A00-2
Installation Instructions
INSTALLATION
WARNINGS AND CAUTIONS
• Never install communications wiring or components during a lightning storm.
• Never install communications components in wet locations unless the components
are designed specifically for use in wet locations.
• Never touch uninsulated wires or terminals unless the wiring has been disconnected
at the network interface.
• Use caution when installing or modifying communications wiring or components.
LEVITON LIMITED WARRANTY
For Technical Assistance Call: 800-824-3005 - www.leviton.com
Connect to IR Emitter (IR 1 – IR 4) on the HTX2
IR RECEIVER
WINDOW
SOURCE EQUIPMENT
IR Learner: The IR Learner is a built-in IR receiver that is used to add custom
IR codes to your Automation Studio IR Library.
GND RS-232 Ground
RXD RS-232 Receive Data
TXD RS-232 Transmit Data
IO 1 Can be configured as a digital input or digital output
GND Ground
IO 2 Can be configured as a digital input or digital output
GND Ground
R1 NC Relay 1 Normally Closed: Connected to R1 Common when Relay 1 value is "0"
R1 C Relay 1 Common
R1 NO Relay 1 Normally Open: Connected to R1 Common when Relay 1 value is "1"
R2 NC Relay 2 Normally Closed: Connected to R2 Common when Relay 2 value is "0"
R2 C Relay 2 Common
R2 NO Relay 2 Normally Open: Connected to R2 Common when Relay 2 value is "1"
+12DC General purpose voltage output, + 12VDC, 250mA maximum
IR 1 – IR 4 IR Emitter Ports 1-4: Accepts standard 3.5mm tip-positive IR emitters
IR 5 LEARN IR Receiver: Infrared learner target
DI-021-EN862-00A
(86I00-2)
ENGLISH
IR FLASHER
IR
(FRONT)
DI-021-EN862-00A
AR2243
AR2243
