Leviton Berk-Tek EXT-100-Main Manual

Fast Ethernet and PoE+ (Up to 30 W) over UTP

EXT-100-Main Extender Applications

The EXT-100-Main Extender Solution is designed to supercharge the downlink ports of a
standard Ethernet switch delivering 10/100 Mbps symmetrical (full duplex) and PoE over
four-pair UTP infrastructure with distances up to 2,000 ft (610 m). The EXT-100 offering is
designed specifically to enable easy deployment over UTP for reaches beyond that of
standard Ethernet eliminating the costs and disruption associated with IDF closet
requirements.
10/100 Mbps (full duplex, symmetrical) & PoE+ over UTP with 2,000 ft (610 m) reach.
Standard PoE Switch
SFP 1 SFP+1 37 13 41 21 31 29 19 27 43 47 17 33 3 5 1 9 11 7 15 35 39 45 25 23
SFP+2 SFP 2 44 48 42 46 40 24 16 36 32 26 34 28 30 14 20 22 18 38 12 8 4 6 2 10
EXT-100 max. power 30 W
*EXT-100-Main can be powered locally for use with non-PoE switches.

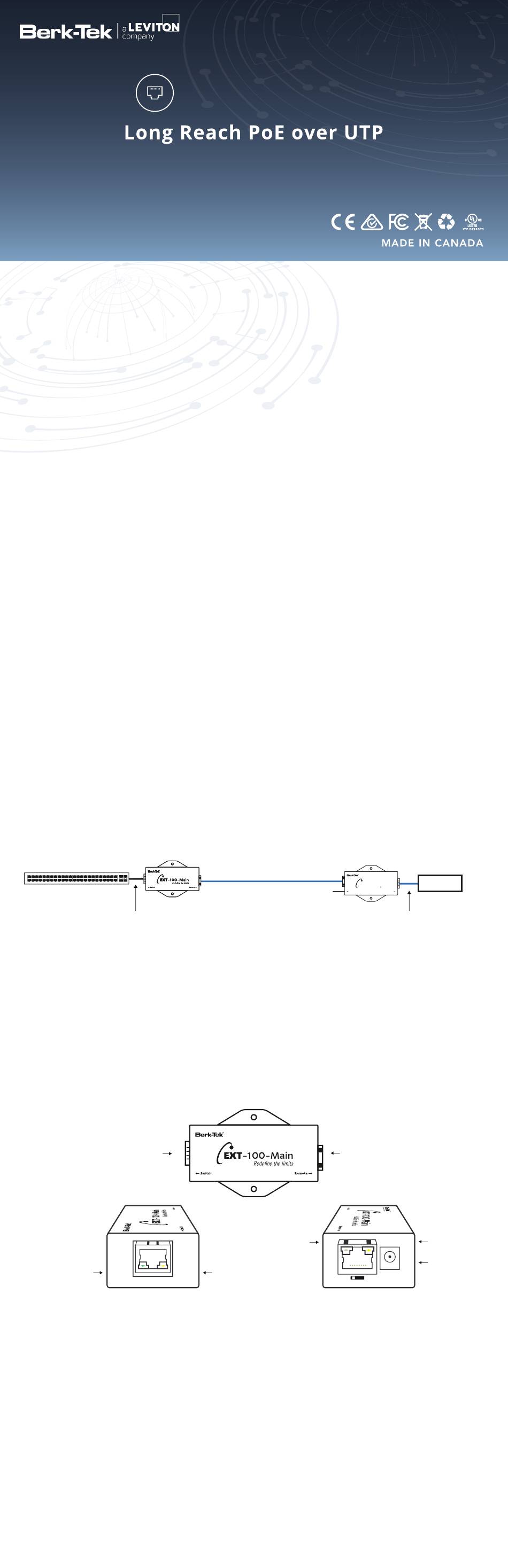

EXT-100-Main Quick Install Guide

To Switch
Link
1. Remove the EXT-100-Main from its packaging.
2. Must ensure cable is properly terminated before connecting any EXT-100 product.
3. Remove all legacy equipment from the UTP cable infrastructure.
NOTE: In order to avoid damage to devices, it is important that only IP devices are connected when you
connect the EXT-100-Main.
4. Connect EXT-100-Main (Switch side) to downlink port on switch.
5. Connect the Network Infrastructure cable from the EXT-100-Main (Remote side) to EXT-100-Remote (Main
side)
6. Using Cat 5e or higher category cable, connect the device to the EXT-100-Remote (Device side).
NOTE: Berk-Tek recommends using LANmark IP (22AWG) or higher for indoor applications; LANmark-6 OSP,
LANmark-1000 OSP, or LANmark-10G OSP should be used for outdoor applications.
The EXT-100-Remote must be installed either indoors or in a NEMA rated box appropriate for the installation
environment.
Installations must be compliant with the requirements of the local authority having jurisdiction.
1-800-BERK-TEK (1-800-237-5835) | +1-717-354-6200
www.leviton.com/ns

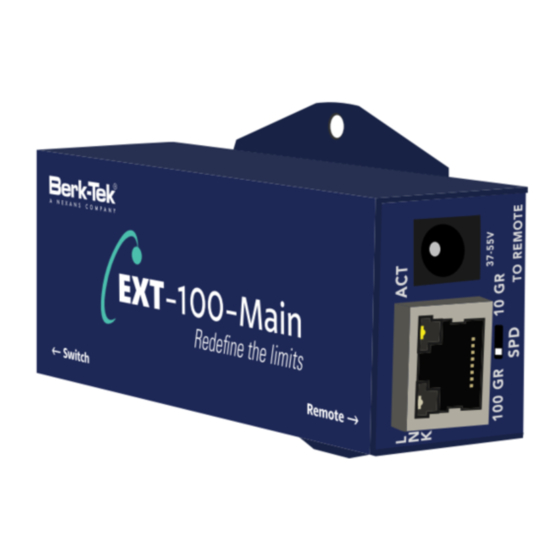

EXT-100-Main
EXT-100-Main
• Paired with EXT-100-Remote
• Up to 30 W PoE
• Local power option
• IEEE compliant
EXT-100-Main
*
The max length supported
between the EXT-100-Main
and the PoE Switch is 328 ft
(100 m)
LNK ACT
Activity
TO SWITCH
Four-Pair UTP Cable
up to 2,000 ft (610 m)
Local Power Option
The max length supported
between the EXT-100-Remote
Link/Speed
Green:
100Mbps
Orange:
10Mbps
EXT-100-Remote
EXT-100-Remote
Rede ne the limits
Main Device
and the Device is 328 ft
(100 m)
To Remote
(EXT-100-Remote)
ACT
LNK
37-55V
100 GR 10 GR
SPD
TO REMOTE
Copyright 2019 Berk-Tek LLC.
DEVICE
Activity
37-55V
DC IN
445-0028-A
