Leviton Berk-Tek EXT-100-Remote Manual

Fast Ethernet and PoE+ (Up to 30 W) over UTP
EXT-100-Remote Adapter Applications
The EXT-100-Remote adapter enables extended Ethernet and PoE reach beyond traditional
distances using four-pair UTP infrastructure. When paired with the EXT-100-Main the
adapter delivers 10/100 Mbps, symmetrical full duplex. The EXT-100 offering is designed
specifically to enable easy deployment over UTP for reaches beyond that of standard
Ethernet eliminating the costs and disruption associated with IDF closet requirements.
10/100 Mbps (full duplex, symmetrical) & PoE+ over UTP with 2,000 ft (610 m) reach.
Standard PoE Switch
SFP 1 SFP+1 39 15 17 37 3 5 1 9 11 7 41 47 43 13 21 45 35 31 25 33 29 27 19 23
SFP 2 SFP+2 12 8 26 48 4 6 2 10 20 38 34 40 42 36 32 28 44 30 24 46 22 14 18 16
EXT-100 max. power 30 W
*EXT-100-Main can be powered locally for use with non-PoE switches.
EXT-100-Remote Quick Install Guide
(EXT-100-Main)
Link/Speed
Green:
100Mbps
Orange:
10Mbps
LNK/SPD
1. Remove the EXT-100-Remote from its packaging.
2. Must ensure cable is properly terminated before connecting any EXT-100 product.
3. In order to avoid damage to devices, it is important that only IP devices are connected when you
connect the EXT-100-Main.
4. Connect the Network Infrastructure cable from the EXT-100-Main to the EXT-100-Remote (Main
side).
5. Using Cat 5e or higher category cable, connect the device to the EXT-100-Remote (Device Side).
NOTE: Berk-Tek recommends using LANmark IP (22AWG) or higher for indoor applications;
LANmark-6 OSP, LANmark-1000 OSP, or LANmark-10G OSP should be used for outdoor applica-
tions.
The EXT-100-Remote must be installed either indoors or in a NEMA rated box appropriate for the
installation environment.
Installations must be compliant with the requirements of the local authority having jurisdiction.
1-800-BERK-TEK (1-800-237-5835) | +1-717-354-6200
www.leviton.com/berktek
EXT-100-Remote
EXT-100-Remote
• Paired with EXT-100-Main
• Up to 30 W PoE
• PoE mode A and mode B
• Local power option
• IEEE compliant

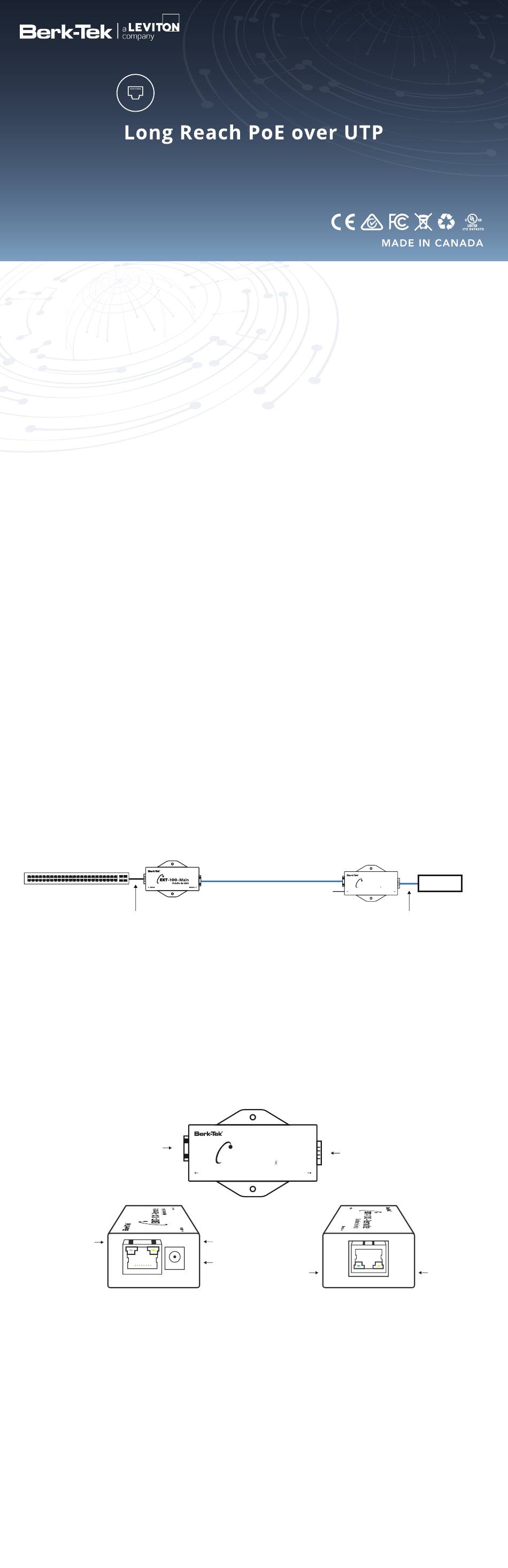

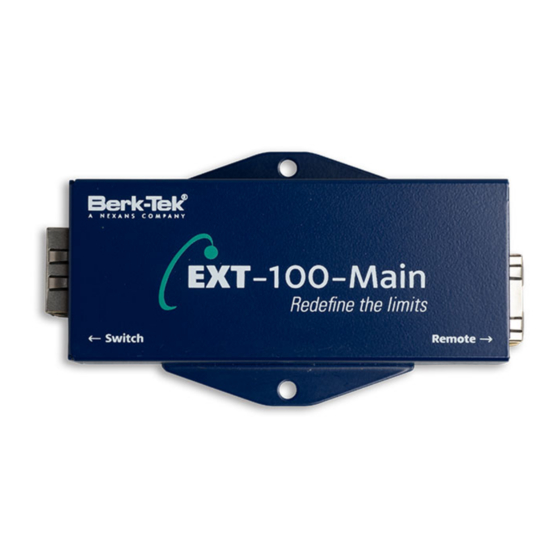

EXT-100-Main
*
The max length supported
between the EXT-100-Main
and the PoE Switch is 328 ft
(100 m)
To Main
Main
Activity
37-55V
DC IN
37-55V
ACT
DC IN
TO MAIN
Four-Pair UTP Cable
up to 2,000 ft (610 m)
Local Power Option
The max length supported
between the EXT-100-Remote
EXT-100-Remote
Rede ne the limits
Device
Link
EXT-100-Remote
EXT-100-Remote
Rede ne the limits
Main Device
and the Device is 328 ft
(100 m)
To Device
LNK ACT
TO DEVICE
