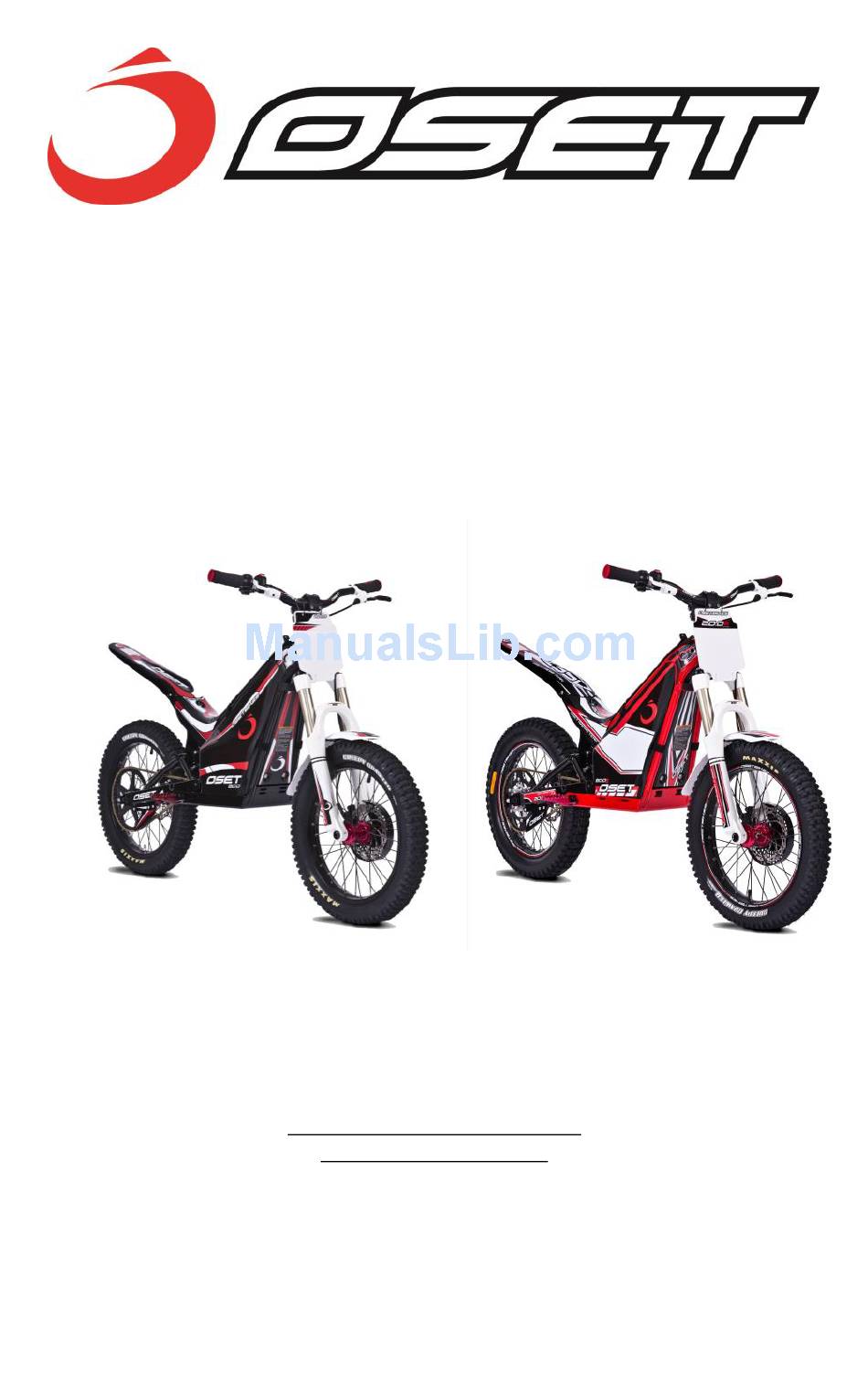

Page 1: Owners Manual
OWNERS MANUAL 2015 OSET 20.0 Eco & 20.0 Racing OSET Corp 425 Kristen Ct, Unit 6 Montrose, CO 81401, USA 303 990-2390. http://www.OSETBIKES.com info@OSETBIKES.com INS011416 - v1.0... -
Page 2: Introduction
They are brilliant for practicing in back yards; front yards, garages, and even indoors! OSET Mini Bikes are designed for off road use only and must not be used on public roads or sidewalks. Please check and obey all local laws. OSET’s may only be ridden in safe areas where all laws are being followed and all required permissions are given. -
Page 3: Please Read
See distributor contact information on the osetbikes.com web site. OFF ROAD USE ONLY! OSET Mini Bikes are designed for off road use only and must not be used on public roads or sidewalks. Please check and obey all local laws. -
Page 4: Warnings, Cautions And Notes
Please read, understand and follow all Warning, Caution and Note notices on your OSET electric bike and those included in this Manual. If you do not understand any of this important information, please contact your selling dealer/distributor or the OSET Customer... - Page 5 WARNING: OFFROAD USE ONLY. It is illegal and hazardous to use this vehicle on streets and thoroughfares. Use on streets exposes the rider to hazards from motorists and other vehicles. Use on streets can lead to accidents resulting in death or serious injury, and property damage.
- Page 6 Please don’t ever allow your OSET to be ridden without one. Riders should also wear suitable riding gear - gloves, eye protection and boots. Boots should NOT HAVE LACES.
- Page 7 • It’s the law; obey it: Obey all laws. OSET’s are for OFF-ROAD USE ONLY. OSET bikes can not be used on public roads or sidewalks. The purchaser, owner, and/or riders of this machine are directly responsible to know and obey all local, state, and federal laws regarding the riding and use of this machine.
- Page 8 PLEASE call OSET Customer Service. WARNING! OSET Bikes are designed to operate at specific voltages only. Use of any other battery with a voltage higher than that specified will result in motor failure. OSET CORP considers such modifications and/or changes to its...
-
Page 9: Table Of Contents
Page 24 Battery Disposal: Page 24 Wiring & wiring diagram Page 25 Electrical diagnostic flow chart Page 27 Setting Up Your OSET for Riding: Page 28 Riding Instructions and Safety Tips: Page 29 1. Stationary Learning: Page 29 2. First Ride: Page 30 3. -
Page 10: Specifications - Oset 20.0 Eco
- Foot pegs - Cast Alloy. - Handlebars - Alloy. Motor: - 1200w 48v OSET Neodymium magnet DC motor. Gearing: - 10T front sprocket, 86T rear. #219 chain. Controller: - 48 volt, 100 amp pulse width modulating, with inline relay and fuse. -
Page 11: Oset 20.0 Racing
- Foot pegs - Forged Alloy. - Handlebars - Alloy. Motor: -1200w 48v OSET Neodymium magnet DC motor. Gearing: - 10T front sprocket, 86T rear. #219 chain. Controller: - 48 volt, 100 amp pulse width modulating, with inline relay and fuse. -
Page 12: Unpacking And Assembly
1/ Hex Key set (Allen keys) 1/ Manual for air forks 1/ Manual for rear shock 2. Place your OSET on a solid & level stand, with both wheels off the ground. 3. Remove all the packing materials. - Page 13 4. Using the supplied Allen keys, make sure the steering stem is in the forward facing position and tighten the top and side bolts securely and evenly. Secure the handlebars tightly in the steering stem. Double check tightness and alignment. Adjust the brake lever positions and reach to suit the rider.
- Page 14 16. Compress and check each brake lever in turn. The lever should not compress completely to the bar. Each individual brake should hold the bike securely when you push the OSET against the brake. If your brake needs adjustment, follow the instructions on page 19. Learning riders should be aware which lever operates which brake.
-
Page 15: Switches, Dials And Indicators
WARNING! The power must be switched to the off position before attaching and plugging in the charger. SWITCHES, DIALS & INDICATORS: The key switch is located on top of the tank, in front of the rubber bung. The charge port can be found on the left side of the frame next to the steerer tube. Key Switch: A responsible adult can remove the key The key switch turns the power on... -
Page 16: Power Dial
DRIVE TRAIN: Your OSET features a traditional chain and sprockets. It is direct drive, with no gears. With the motor mounted in the swingarm, suspension movement has no effect on tension. -
Page 17: Motor Performance
MOTOR PERFORMANCE & MAINTENANCE: The OSET motor has been designed for high performance. Do not power wash the motor. Check that the sprocket bolt is tight periodically. Water proof grease can be applied around the shaft where it enters the motor for additional protection from the elements. -
Page 18: Suspension
Front Suspension: OSET 20.0 The front suspension is an ‘air’ fork. A specific air pump is required to add pressure which can be purchased from OSET. The fork is also adjustable for rebound with a simple dial. Rebound dial. -
Page 19: Daily Maintenance And Cleaning
FRONT WHEEL REMOVAL AND INSTALLATION: Please refer to the section on assembling your OSET bike (page 12) for information on installing the front wheel, and reverse the instructions for removal. REAR WHEEL REMOVAL AND INSTALLATION: 1. -
Page 20: Brake Adjustment
Ref 3 Ref 4 Ref 5 Ref 6 To re-install the wheel reverse the above procedures. Ensure the chain is correctly adjusted and lubricated, the wheel is aligned, and all nuts and bolts are tight BRAKE ADJUSTMENT: A separate owners’ manual is provided with full details on brake maintenance and adjustment. - Page 21 - With the wheel raised, pull the brake lever. This will allow the caliper to ‘center’ on the disc. - With the lever still holding the pads tightly on the disc, re-tighten the caliper bolts. - If the wheel does not spin freely with the brake released and further adjustment is required beyond the limits of the built in adjustment, the caliper position itself can be adjusted further by the use of spacer washers.
-
Page 22: Battery Use, Care And Maintenance
BRAKE ADJUSTMENT AND OPERATION: All brakes need periodic adjustment. If and when your brake shows any decline in efficiency or needs adjustment, it is very strongly recommended you take your bike to your local retailer for maintenance. Improper adjustment of your brake can cause poor braking and could lead to an accident and very serious injury BATTERY USE, CARE AND MAINTENANCE: For the proper use, maintenance and storage of the battery pack, it is crucially... -
Page 23: Important Notes About Charging
Never overcharge. Remove from the charger after 5 hours maximum. • Fully charge the batteries before using your OSET electric bike for the first time. 5 hours maximum. • Fully charge the batteries for the first three charges after using your OSET bike. - Page 24 ‘balance’ the batteries (see below). The multimeter is also very useful in diagnosing any electrical problems on the bike. OSET recommend ‘balancing’ the batteries periodically. This can be done with a 12v smart charger, such as the CTEK charger from OSET. Each 12v battery can be charged individually this way.
-
Page 25: Battery Removal And Installation
20.0 48V system. LONG TERM STORAGE: If you do not plan to use your OSET for an extended period of time (1 month or more), remove the batteries from the bike for storage. • Fully charge the batteries before storing. -
Page 26: Wiring & Wiring Diagram
WARNING! There are no user serviceable elements incorporated into the motor, motor controller, batteries, battery charger, throttle, or wiring harness of your OSET electric bike. DO NOT ATTEMPT TO DISASSEMBLE OR ADJUST ANY OF THESE COMPONENTS. Doing so may cause extensive damage to these components, will void your warranty, and may cause a hazardous condition. - Page 27 WIRING DIAGRAM:...
-
Page 28: Electrical Diagnostic Flow Chart
Electrical Diagnostic Flow Chart:... -
Page 29: Setting Up Your Oset For Riding
SETTING UP YOUR OSET FOR RIDING: Set the speed dial to the correct level for the rider. Low for non- experts and all riders under 10 years old. ALWAYS CHECK BEFORE RIDING. Set the ‘response’ dial to the correct level for the rider. -
Page 30: Riding Instructions And Safety Tips
NOTE! As the responsible adult, you must ensure that the OSET and its rider are ready to ride, every time. The bike must be set to the abilities of the rider, and you must ALWAYS supervise when, where and how the bike is ridden. Children can lose concentration quickly, and be distracted easily. -
Page 31: First Ride
When stopped, turn the power off. WARNING! OFF ROAD USE ONLY! OSET Mini Bikes are designed for off road use only and must not be used on public roads or sidewalks. Please check and obey all local laws. CAUTION! If the rider drops the bike, ensure that the power is turned OFF before lifting the bike. -
Page 32: Learning To Stand Up
OSET bikes are designed to be ridden standing up. If the machine is too large for the child, they will have no leverage on the bike, and be unable to develop techniques. - Page 33 This manual should be enough to get you started. Further techniques can not be covered in this manual. When learning any technique the most important thing is to do so slowly and safely. Remember that OSET bikes are a Trials bike design, and therefore designed and developed for slow speed riding.
- Page 34 WARNING! BE SAFE! Never use OSET bikes in unsafe situations! Follow all instructions. Follow all laws. VISIT THE OSET WEB SITE FOR YOUR COUNTRY TO: BUY SPARE PARTS AND ACCESSORIES. READ ARTICLES ON ADVANCED MACHINE SET-UP AND TECHNIQUES. Importer information can be found on www.osetbikes.com.
-
Page 35: Contact Us
The liability of OSET hereunder is expressly limited to the replacement of goods complying with this warranty or at the sole election of OSET to the repayment of an amount equivalent to the purchase price of the product in question. CAUTION: Some states...
