Page 1: Table Of Contents
Wiring Page 28 Wiring Diagram Page 29 Electrical Diagnostic Flow Chart Page 30 OSET Corp Setting Up Your OSET for Riding: Page 31 Riding Instructions & Safety Tips Page 32 425 Kristen Ct, Unit 6 Stationary Learning: Page 32 Montrose, CO 81401, USA...
Page 2: Introduction
OSET’s are amazingly capable, and can be used from the earliest stages of learning to ride all the way through to off road competitions. The secret of learning to ride well is being able to ride a lot. OSET’s enable this to happen, OFF ROAD USE ONLY! and can make the learning process very gratifying for both the children and the adults.
Page 3: Warnings, Cautions And Notes
Please read, understand and follow all Warning, Caution and Note notices on your increases the likelihood of loss-of-control and a fall. OSET electric bike and those included in this Manual. • The rider should be securely seated on the vehicle ready to ride with the kickstand up before turning on the vehicle.
Page 4: Safety Responsibilities
Before each ride, check that the throttle and brake controls are  It’s the law; obey it: Obey all laws. OSET’s are for OFF-ROAD USE ONLY. OSET bikes operating freely. Adjust and lubricate the drive chain as necessary. See pages 18-30 of this can not be used on public roads or sidewalks.
Page 5: Summary
- Low (515mm), Mid (530mm), High (550mm) - Ground Clearance - Low (170mm), Mid (185mm), High (200mm) OSET Bikes are designed to operate at specific voltages only. Use of any other battery with - Handlebar Height - Low (805mm), Mid (810mm), High (815mm) a voltage higher than that specified will result in motor failure.
Page 6: Unpacking And Assembly
If you cannot resolve a problem using this owner’s manual, contact your OSET authorized dealer, or call the OSET Customer Service Department for assistance. NOTE If you purchased your OSET at a local retailer your machine may be fully adjusted and ready (1.) (2.) (3.) to ride.
Page 7: Switches
Adjusting rear calliper. Ensure rear wheel is clear of ground and turn by hand and For maximum battery life, always fully charge before operating your OSET for the first check brakes are not binding. If they are, loosen cap screws and adjust.
Page 8: Dials And Indicators
When dial is turned to the fully clockwise position, the bike will have a maximum speed, Your OSET features a traditional chain and sprockets. It is direct drive, with no gears. when in the anti-clockwise position the speed will With the motor mounted in the swing arm, suspension movement has no effect on tension.
Page 9: Motor Care
Re-insert shock bolt & tighten nut (see image 2 below). MOTOR PERFORMANCE & MAINTENANCE The OSET motor has been designed for high performance. DO NOT POWER WASH THE MOTOR. Check that the sprocket bolt is tight periodically. Waterproof grease can be applied around the shaft where it enters the motor for additional protection from the elements.
Page 10: Suspension
The front suspension is an ‘air’ fork. A specific air pump is required to add pressure which can be purchased from your local OSET dealer. The fork is also adjustable for rebound & preload Lift the bike onto a block or stand so the wheels are off the ground.
Page 11: Brake Adjustment
In this way, the calliper can be lined up perfectly. Please Note: This section of the user manual only applies to bikes supplied with an official OSET lithium battery pack & charger. For bikes supplied with other batteries, please see the suppliers instructions for battery removal & charging.
Page 12: Charging Instructions
CHARGING INSTRUCTIONS IMPORTANT NOTES ABOUT CHARGING • Ensure that the key switch on your OSET is switched OFF & the battery discharge plug is disconnected before connecting the charger to the battery’s charge port (see guide below). • It normally takes up to seven hours to charge your batteries from a fully discharged condition.
Page 13: Battery Use, Care & Maintenance
BATTERY USE, CARE AND MAINTENANCE BATTERY CARE & DISPOSAL Your OSET features a 48v drive system, for use with a sealed 48V lithium battery. WARNING! Under NO circumstances should this battery box be opened by anyone other than a trained OSET technician.
Page 14: Wiring
Failure to follow this instruction could result in permanent damage, and LONG TERM STORAGE If you do not plan to use your OSET for an extended period of time (1 month or more), remove the battery from the bike for storage.
Page 15: Wiring Diagram
WIRING DIAGRAM ELECTRICAL DIAGNOSTIC FLOW CHART...
Page 16: Setting Up Your Oset For Riding
ALWAYS CHECK BEFORE RIDING. As the responsible adult, you must ensure that the OSET and its rider are ready to ride, every time. The bike must be set to the abilities of the rider, and you must ALWAYS supervise when, Set the ‘response’...
Page 17: First Ride
When stopped, turn the power off. WARNING! OFF ROAD USE ONLY! OSET Mini Bikes are designed for off road use only and must not be used on public roads or sidewalks. Please check and obey all local laws. CAUTION If the rider drops the bike, ensure that the power is turned OFF before lifting the bike. It is...
Page 18 It will not be possible without the rider under- The OSET Limited Warranty does not cover or apply to any OSET product used for rental or standing all the intricacies of balance, body position, and throttle control.
Page 19 OSET CONTACT INFORMATION NOTES WARNING! BE SAFE! Never use OSET bikes in unsafe situations! Follow all instructions. Follow all laws. VISIT THE OSET WEB SITE FOR YOUR COUNTRY TO: BUY SPARE PARTS AND ACCESSORIES. READ ARTICLES ON ADVANCED MACHINE SET-UP AND TECHNIQUES.
Page 20 NOTES http://www.OSETBIKES.com info@OSETBIKES.com...

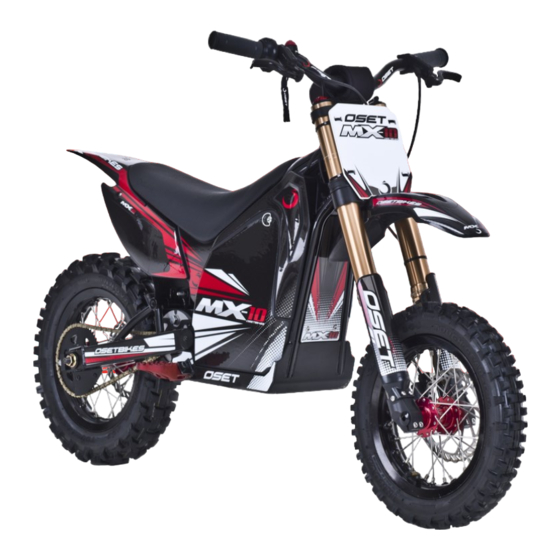

oset MX-10 2017 Owner's Manual
