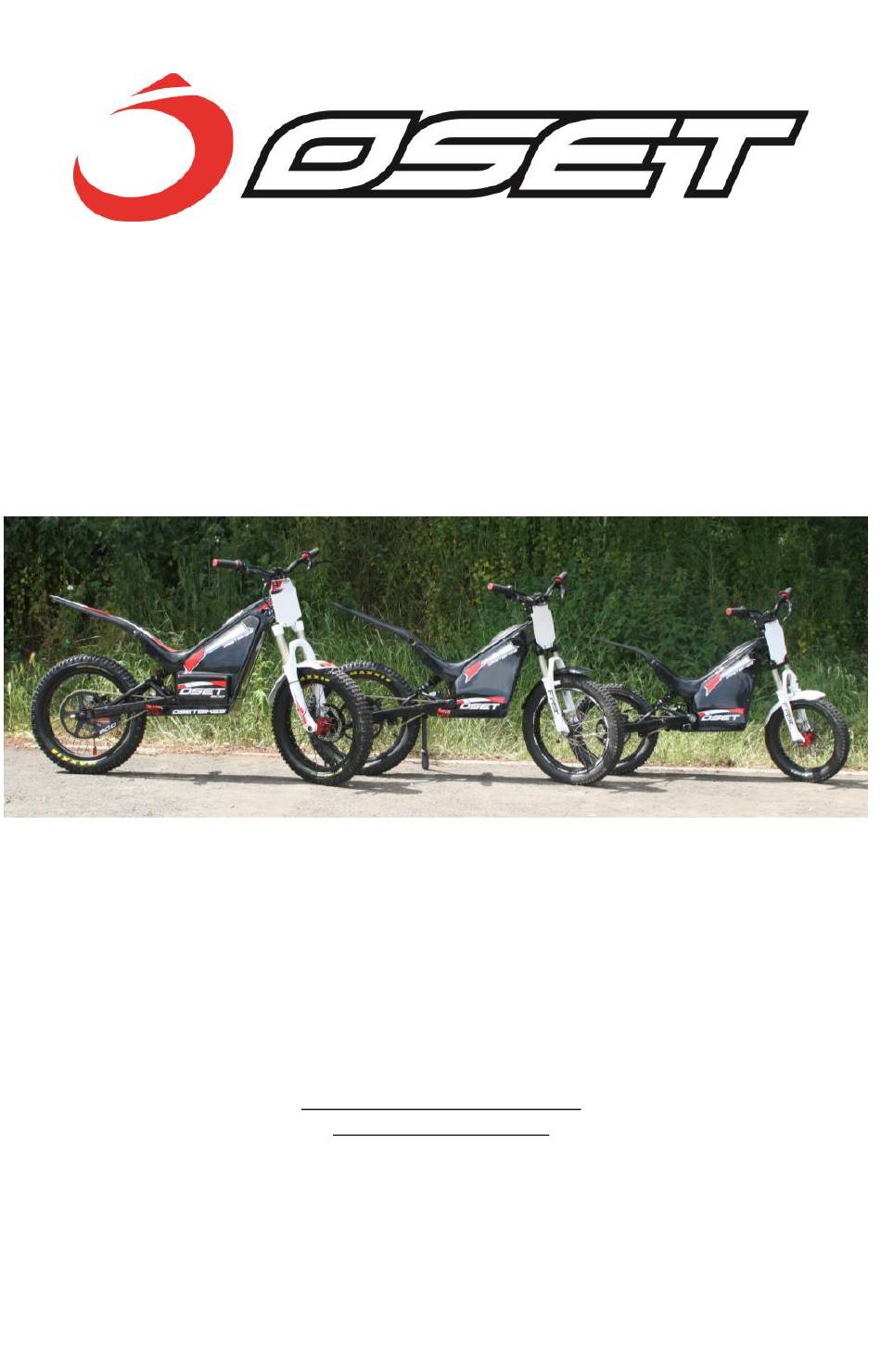

- Page 1 OWNERS MANUAL OSET 16.0, 20 Light & 20.0 OSET CORP 146 W. Irvington Place, Denver, CO 80223. USA. 303 990-2390. http://www.OSETBIKES.com info@OSETBIKES.com...
-
Page 2: Introduction
They are brilliant for practicing in back yards, front yards, garages, and even indoors! OSET Mini Bikes are designed for off road use only and must not be used on public roads or sidewalks. Please check and obey all local laws. OSET’s may only be ridden in safe areas where all laws are being followed and all required permissions are given. -
Page 3: Please Read
See distributor contact information on the osetbikes.com web site. OFF ROAD USE ONLY! OSET Mini Bikes are designed for off road use only and must not be used on public roads or sidewalks. Please check and obey all local laws. -
Page 4: Warnings, Cautions And Notes
Please read, understand and follow all Warning, Caution and Note notices on your OSET electric bike and those included in this Manual. If you do not understand any of this important information, please contact your selling dealer/distributor or the OSET Customer Service Department. - Page 5 It is illegal and hazardous to use this vehicle on streets and thoroughfares. Use on streets exposes the rider to hazards from motorists and other vehicles. Use on streets can lead to accidents resulting in death or serious injury, and property damage.
- Page 6 Exceeding the weight limitations will adversely affect the handling of the machine, and potentially cause damage. • It’s the law; obey it: Obey all laws. OSET’s are for OFF-ROAD USE ONLY. OSET bikes can not be used on public roads or sidewalks. The purchaser, owner, and/or riders of this machine are directly responsible to know and obey all local, state, and federal laws regarding the riding and use of this machine.
- Page 7 AT LEAST once a year. It’s a small investment in the well- being of the rider. • Batteries: We have equipped your OSET electric bike with sealed lead acid batteries. We have devoted an entire chapter of this manual to the batteries.
- Page 8 PLEASE call OSET Customer Service. WARNING! OSET Bikes are designed to operate at specific voltages only. Use of any other battery with a voltage higher than that specified will result in motor failure. OSET CORP considers such modifications and/or changes to its...
-
Page 9: Table Of Contents
Page 29 Long Term Storage: Page 30 Battery Disposal: Page 30 Wiring & wiring diagram Page 32 Setting Up Your OSET for Riding: Page 33 Riding Instructions and Safety Tips: Page 34 1. Stationary Learning: Page 34 2. First Ride: Page 35 3. -
Page 10: Oset
SPECIFICATIONS - OSET16.0 Performance: - Maximum Speed - 15mph - Maximum Range - 8 miles - Weight Limit (Rider) - 80lbs (36.5kg) NOTE! Many factors affect speed and range capabilities. Terrain, average speed, rider weight, tire pressures, wind, hills etc all have an impact. Chassis: - Frame - Steel... -
Page 11: Oset 20.0 Light
SPECIFICATIONS – OSET 20.0 Light Performance: - Maximum Speed - 14mph - Maximum Range - 8 miles Weight Limit (Rider) - 90lbs (41.0kg) NOTE! Many factors affect speed and range capabilities. Terrain, average speed, rider weight, tire pressures, wind, hills etc all have an impact. -
Page 12: Oset
SPECIFICATIONS – OSET 20.0 Performance: - Maximum Speed - 15/20mph - Maximum Range - 10 miles - Weight Limit (Rider) - 100lbs (45.5kg) NOTE! Many factors affect speed and range capabilities. Terrain, average speed, rider weight, tire pressures, wind, hills etc all have an impact. -
Page 13: Key Components
The maximum speed dial, throttle response dial and power dial are located underneath the rubber bung in the ‘tank’ area. The OSET 16.0, 20.0 Light and 20.0 features front and rear hydraulic disc brakes. A disc guard protects the front disc on the 20.0... -
Page 14: Unpacking And Assembly
NOTE! If you purchased your OSET at a local retailer your machine may be fully adjusted and ready to ride. If you purchased your OSET in the carton, please carefully follow the instructions below and any supplemental instructions to finish the assembly and adjustment of your OSET. - Page 15 2. Place your OSET on a solid & level stand, with both wheels off the ground. 3. Remove all the packing materials. 4. Using the supplied allen wrench, make sure the steering stem is in the forward facing position and tighten the top and side bolts securely and evenly. Secure the handlebars tightly in the steering stem.
- Page 16 40 psi. Light riders can use lower pressures. 13. Unpack batteries from box (shipped separately). A - 16.0 & 20.0 Light - Install the batteries as indicated page 29 B – 20.0 - Install the batteries as indicated (picture 8 & 9) It is vital that connections are made correctly.
-
Page 17: Switches, Dials And Indicators
WARNING! The power must be switched to the off position before attaching and plugging in the charger. SWITCHES, DIALS & INDICATORS: The key switch is located on top of the tank, in front of the rubber bung. The charge port can be found on the left side of the frame next to the steerer tube. functionality. -
Page 18: Power Dial
Power dial: B This is the most important adjustability feature on the bike and must ALWAYS start with the slowest setting, and make changes in very small increments. It may appear that the highest power will be suitable for an advanced rider, but it must be understood that there is a lot of power available. -
Page 19: Drive Train
DRIVE TRAIN: Your OSET features a traditional chain and sprockets. It is direct drive, with no gears. With the motor mounted in the swingarm, suspension movement has no effect on tension. However, the chain does need to be checked and adjusted regularly, especially when the bike is new. -
Page 20: Motor Performance
Fork air pump (not supplied) Rear Suspension: Your OSET is equipped with a single coil spring type rear shock. For a harder/stiffer ride at the rear tighten the adjustment ring in a clockwise direction. For a softer ride, loosen the adjuster by turning anti-clockwise. It also features a... -
Page 21: Daily Maintenance And Cleaning
Optional springs are available from OSET to adjust the spring rate. DAILY MAINTENANCE AND CLEANING: Keep your OSET clean and dry. Clean using the recommended procedure. Check all components for tightness and adjustment, including handlebars, levers, axles, chain, brakes. -
Page 22: Front Wheel Removal/Installation
FRONT WHEEL REMOVAL AND INSTALLATION: Please refer to the section on assembling your OSET bike (page 15) for information on installing the front wheel, and reverse the instructions for removal. REAR WHEEL REMOVAL AND INSTALLATION: 1. Ensure power is switched off and the key removed. -
Page 23: Brake Adjustment
BRAKE ADJUSTMENT: A separate owners’ manual is provided with full details on brake maintenance and adjustment. Please read for full information. The brakes are self adjusting to a point, but correct alignment is vital to get the maximum performance. The pads must be equidistant from the disc for maximum efficiency. - Page 24 Inspect pads. Adjust lever reach. - The brake levers can be adjusted for ‘reach’. Use a small 2mm allen key. Turn anti-clockwise to bring the reach closer to the bar (for smaller hands). NOTE: Brake pads should be inspected regularly for wear and replaced when necessary.
-
Page 25: Battery Use, Care And Maintenance
If you have any questions about the batteries or their usage, please do not hesitate to contact the OSET Customer Service Department. WARNING! Never short circuit the discharge terminals of the batteries. A short circuit will damage the battery and could cause a fire resulting in severe injury or death, and property damage. -
Page 26: Charging Instructions
"starved electrolyte." The AGM Battery will not leak acid if broken. • Check that the charger is switched to the correct voltage for your country. • Ensure that the Power Switch on your OSET is switched OFF before connecting the charger to the charge port. -
Page 27: Important Notes About Charging
Never overcharge. Remove from the charger after 5 hours maximum. • Fully charge the batteries before using your OSET electric bike for the first time. 5 hours maximum. • Fully charge the batteries for the first three charges after using your OSET bike. - Page 28 ‘balance’ the batteries (see below). The multimeter is also very useful in diagnosing any electrical problems on the bike. OSET recommend ‘balancing’ the batteries periodically. This can be done with a 12v smart charger, such as a Battery Tender or Optimate (available from motorcycle shops and some automotive stores).
-
Page 29: Battery Removal And Installation
BATTERY REMOVAL AND INSTALLATION: Ensure power is turned off, and remove the key. Undo the Velcro tie straps on the sides and on the top flap. Carefully slide the battery connectors off, one at a time. Note the direction and position of the batteries, and the terminal for each wire. -
Page 30: Long Term Storage
LONG TERM STORAGE: If you do not plan to use your OSET for an extended period of time (1 month or more), remove the batteries from the bike for storage. • Fully charge the batteries before storing. • Fully recharge the batteries at least every 60 days of storage. - Page 31 THESE COMPONENTS. Doing so may cause extensive damage to these components, will void your warranty, and may cause a hazardous condition. If you cannot resolve a problem using this owners manual, contact your OSET authorized dealer, or call the OSET Customer Service Department for...
-
Page 32: Wiring & Wiring Diagram
WIRING DIAGRAM:... -
Page 33: Setting Up Your Oset For Riding
SETTING UP YOUR OSET FOR RIDING: Set the speed dial to the correct level for the rider. Low for non- experts and all riders under 10 years old. ALWAYS CHECK BEFORE RIDING. Set the ‘response’ dial to the correct level for the rider. -
Page 34: Riding Instructions And Safety Tips
NOTE! As the responsible adult, you must ensure that the OSET and its rider are ready to ride, every time. The bike must be set to the abilities of the rider, and you must ALWAYS supervise when, where and how the bike is ridden. Children can lose concentration quickly, and be distracted easily. -
Page 35: First Ride
When stopped, turn the power off. WARNING! OFF ROAD USE ONLY! OSET Mini Bikes are designed for off road use only and must not be used on public roads or sidewalks. Please check and obey all local laws. CAUTION! If the rider drops the bike, ensure that the power is turned OFF before lifting the bike. -
Page 36: Learning To Stand Up
OSET bikes are designed to be ridden standing up. If the machine is too large for the child, they will have no leverage on the bike, and be unable to develop techniques. - Page 37 This manual should be enough to get you started. Further techniques can not be covered in this manual. When learning any technique the most important thing is to do so slowly and safely. Remember that OSET bikes are a Trials bike design, and therefore designed and developed for slow speed riding.
-
Page 38: Contact Us
WARNING! BE SAFE! Never use OSET bikes in unsafe situations! Follow all instructions. Follow all laws. VISIT THE OSET WEB SITE FOR YOUR COUNTRY TO: BUY SPARE PARTS AND ACCESSORIES. READ ARTICLES ON ADVANCED MACHINE SET-UP AND TECHNIQUES. Importer information can be found on www.osetbikes.com. -
Page 39: Limited Warranty
The liability of OSET hereunder is expressly limited to the replacement of goods complying with this warranty or at the sole election of OSET to the repayment of an amount equivalent to the purchase price of the product in question. CAUTION: Some states...
