Rheem Classic Plus 05EAUER User Instructions

GAS FURNACES
RGLQ- SERIES
Models with Input Rates from
50,000 to 150,000 BTU/HR
[15 to 44 kW]
(U.S. & Canadian Models)
SUPER QUIET 80
✝
(A.F.U.E. ) TWO STAGE
DOWNFLOW
GAS FURNACES

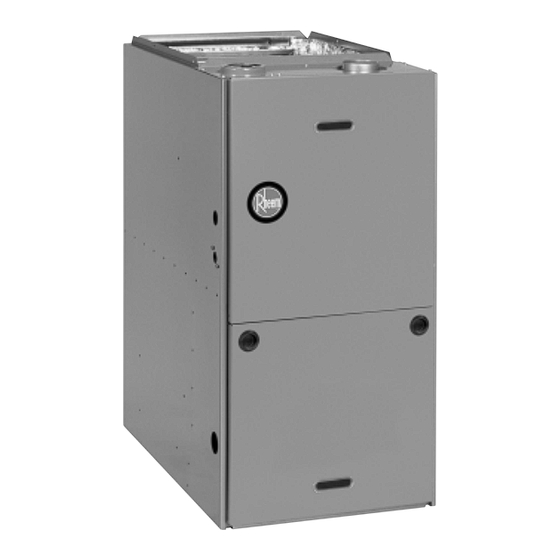

The Rheem Classic ® Plus Super Quiet 80
downflow gas furnaces is designed for installation in clos-
ets, alcoves, utility rooms, or attics. The design is certified
by CSA International.
Features
Patented heat exchanger, constructed of both stainless
s
and aluminized steel for the maximum in corrosion
resistance.
Low profile "34 inch" [864 mm] design is lighter and easier
s
to handle, and leaves room for optional equipment.
Left or right side gas and electric inlet connections with
s
quick, simple change.
Direct spark ignition.
s
Integrated control board with humidifier and electronic air
s
cleaner hookups.
Insulated blower compartment, a two stage gas valve and
s
a specially designed two speed draft inducer motor make
it one of the quietest furnaces on the market today.
Pre-paint galvanized steel cabinet.
s
Grab-holes in doors to aid in easy door removal and
s
replacement.
Compatible with single or two-stage thermostat. (For opti-
s
mal performance, two-stage thermostat recommended.)
A variety of cooling coils and plenums designed to use with
Rheem Classic ® Plus Super Quiet 80
naces are available as optional accessories.
✝A.F.U.E. (Annual Fuel Utilization Efficiency) calculated in accordance with Department
of Energy test procedures.
FORM NO. G11-491 REV. 1
Supersedes Form No. G11-491
™
™ 2-Stage line of
™ 2-Stage gas fur-
ENER UIDE
AFUE
Annual Fuel Utilization Efficiency -
THIS MODEL
80.0%
MID HIGH
78% 82% 88% 97%
