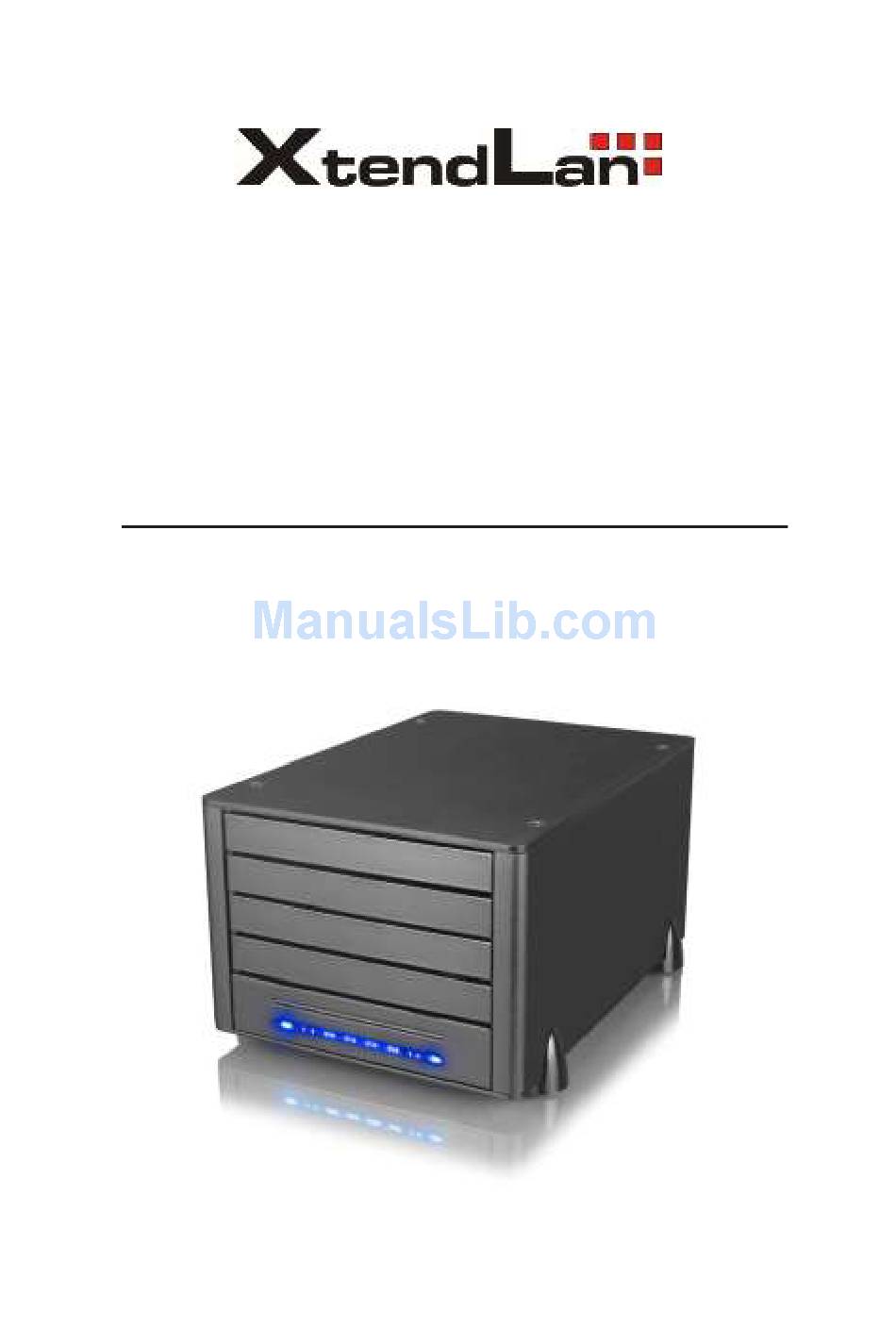

- Page 1 XL-RAID4-USB3 User Manual...
-
Page 3: Table Of Contents
Index Chapter 1 Product Introduction ..............4 Hardware Introduction..............4 Accessories..................4 LED Instruction................5 Chapter 2 Installation ..................6 Hardware Installation..............6 Precaution before Application............7 Hard Disk Formatting..............7 Chapter 3 Device Management ..............12 Data Rebuilding................12 GUI (Graph User Interface) Monitoring Software...... -
Page 4: Chapter 1 Product Introduction
Chapter 1 Product Introduction 1.1 Hardware Introduction Front View HDD Tray Power LED Temp LED HDD-0 LED HDD-1 LED HDD-2 LED HDD-3 LED Fan LED Power LED Rear View HDD Tray Locking Switch HDD Tray Ejection Button Power Switch DC IN USB 3.0 Port eSATA Port 1.2 Accessories... -
Page 5: Led Instruction
Please make sure that the related accessories and product body are not damaged or missing. If you have any question, please contact the local distributor or the retailer you purchase from for help. 1.3 LED Instruction Status LED Status Power On/ System Awaiting Power LED Blue Lights/ On Access... -
Page 6: Chapter 2 Installation
Chapter 2 Installation 2.1 Hardware Installation 1. Firstly, push the HDD tray locking switch to the “Open” position, and then remove the HDD tray by pressing the HDD tray ejection button. 2. Remove the dummy HDD from the HDD tray, and install your HDD into the tray. Secure the HDD with supplied screws to avoid any damage to the HDD due to unnecessary movement. -
Page 7: Precaution Before Application
2.2 Precaution before Application 1. We suggest you to use brand new 2.5-inch SATA HDD with the same brand and model number for the best performance. When any of the HDD is failed, please ensure that the capacity of the new HDD is the same or bigger than the original one. - Page 8 3) Enter into “Device Manager” and click on the new hard disk, first “initialize” it, and after the initialization, you can follow your habit or requirement to “format” the file type you want. 4) After clicking on “New Partition,” the system will show the relevant window to guide you to format the hard disk.
- Page 9 5) After setting the hard disk format and partition you want, the system will automatically begin to format it. 6) After formatting, the window will display the current hard disk status. At “My Computer,” you will also be able to see the newly added hard disk. 7) Finish.
- Page 10 2. MAC System 1) Enter into Disk Utility of your computer. 2) Click on this hard disk device. 3) Add in R4 hard disk name and do formatting operation. Choose hard disk formatting and disk drive name setting (can be set as R4). Installation...
- Page 11 4) After finish setting the disk drive, click clear key and start formatting the hard disk. 5) Setting is finished, you can start using this product. Installation...
-
Page 12: Chapter 3 Device Management
Chapter 3 Device Management 3.1 Data Rebuilding R4 offers RAID 5 function to protect your data security and with a hard disk failure tolerance. When a hard disk fails, simply replace a new hard disk and R4 will automatically rebuild data to the newly replaced hard disk to recover the origin stored data. - Page 13 2) Event Log Viewer Click this interface, all information of events that happened in R4 will appear. 3) Basic RAID Configuration In this interface, you can set RAID level and delete RAID. If you select the item for password when you set the RAID level, it can prevent the RAID configuration from being deleted.
- Page 14 2. Advanced Mode 1) Email Notification and Event Settings With this item, you can set the events that need to be noted and send the related information to designated mailbox through email. 2) Advanced RAID Configuration In this interface, you can set RAID level and delete RAID. If you select the item for password when you set the RAID level, it can prevent the RAID configuration from being deleted.
- Page 15 Attention : Downloading firmware at will may cause your system unable to operate normally. If your system is functioning normally, we suggest that you do not update your firmware. Should you have any doubts on firmware updating, please first contact the technical service staff of XTENDLAN Technology Inc. or email us at: support@xtendlan.com...
