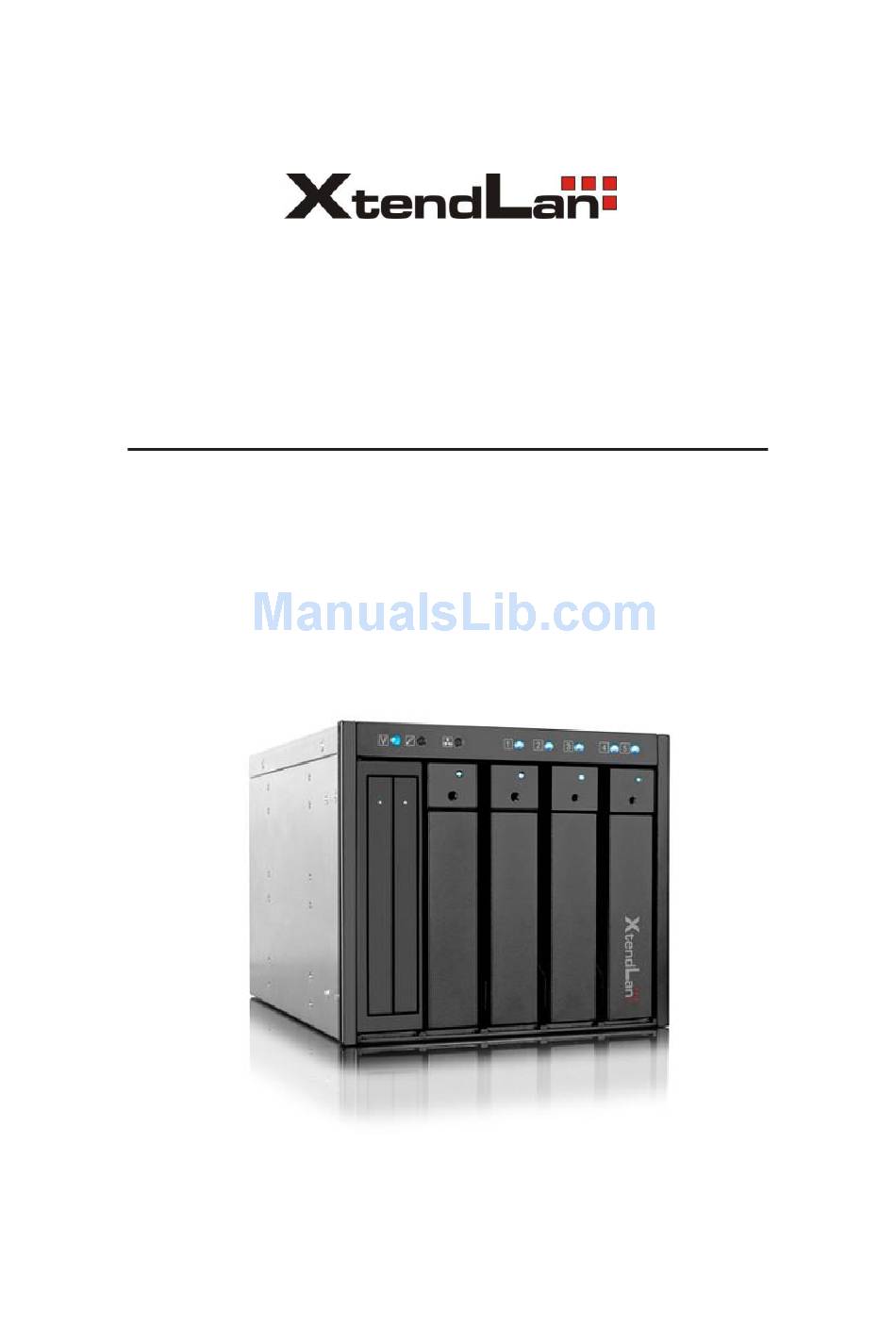

- Page 1 XL-RAID-526SA User Manual...
- Page 2 This manual will introduce XL-RAID-526SA. Before starting to use XL-RAID-526SA, we suggest you to first read this manual. Although the information in the manual have been carefully confirmed before publication, but the actual product specifications will base according to delivery. For any updated...
-
Page 3: Table Of Contents
Index Quick Installation Guide ................4 Chapter 1 RAID Setting ................9 Setting RAID for 2.5’’ HD …………..........9 Setting RAID for 3.5’’HD ………............ 9 Hard Disk Formatting............... 11 Chapter 2 System Manager ................. 16 System GUI..................16 GUI for 2.5” HD …………..............16 RAID Information................ -
Page 4: Quick Installation Guide
XL-RAID-526SA Quick Installation Guide I. Product Diagrams and Contents of Product Package Front View Rear View 1. Power LED 1. 6cm Cooling Fan 2. SATA Port For 3.5” HDD 2. System Temperature LED 3. SATA Port For 2.5” HDD 3. Fan Rotation Speed LED 4. - Page 5 Content of the Package Item Quantity XL-RAID-526SA Device Quick Installation Guide CD (User Guide) Accessory Kit Please make sure that the related accessories and the product body are not damaged or missing. If you have any questions, please contact the distributor or the retailers that you purchased from.
- Page 6 3. Concerning for 3.5” HDD device, we strongly suggest that the RAID mode should be decided before starting use 3-bay RAID. If you need to reset the RAID mode after using XL-RAID-526SA, please remember to backup your data to other hard drives or the data may lose!
- Page 7 Push the tray panel as the direction of the arrow, the front panel will automatically bounce and open to 90 degrees. Install hard drives into XL-RAID-526SA HDD slot (the HDD bottom is toward to right side) and make sure the HDD is properly fix to the right position and then cover the front panel.
- Page 8 DC connectors are well connected. 3) XL-RAID-526SA has two SATA ports, one for 2 x 2.5” HDD(RAID1) and another one for 4 x 3.5” HDD(RAID Mode), please make sure two of them are well connected to motherboard or SATA card.
-
Page 9: Chapter 1 Raid Setting
After the hardware is installed, you should set the RAID (Redundant Array of Independent Disk) level. Otherwise, the computer system will not correctly identify XL-RAID-526SA. Under XL-RAID-526SA framework, as 2.5’’ HD and 3.5’’ HD are independent to each other, they must be set respectively. After setting, the two sets of SATA (Serial Advanced Technology Attachment) interface must be connected to read the two sets of corresponding RAID. - Page 10 A. RAID 0 The capacities of all four 3.5’’HDs are added together and accelerate the reading speed. If the capacities of the four HDs are different from each other, you can use the HD with the lowest capacity as the basis for adding. For example, if RAID 0 needs to be set for one 100GB HD and three 500GB HDs, the total capacity should be: 100GB x 4 = 400GB.
-
Page 11: Hard Disk Formatting
3. Hard Disk Formatting 1) To format the disk, right click “My Computer”. When the options in the menu appear, select “Manage”. 2) As shown below, click Disk Management, and the unformatted disk will appear (like the one in red frame). RAID Setting... - Page 12 3) Right click Disk 1, and three options will appear. Then please select Initialize Disk 4) Click OK. RAID Setting...
- Page 13 5) Click Next. 6) Click Next. RAID Setting...
- Page 14 7) Click Next. 8) Select “Perform a quick format”, then click Next. RAID Setting...
- Page 15 9) After above procedures are completed, click Finish. 10) The system will then format the disk. Once the formatting is done, the following interface will appear. 11) Once the formatting process is completed, the disk can be put into use. RAID Setting...
-
Page 16: Chapter 2 System Manager
Chapter 2 System Manager 1. System GUI XL-RAID-526SA provides two independent RAIDs, which are managed through SATA interface and two different types of GUI. Software “RAID_GUI.exe” (for 2.5’’HD only) and “RAIDGuide Manager” (for 3.5’’HD only) is equipped. 2. GUI for 2.5’’ HD (2-bay) You can install GUI exclusively used for SR2045 to watch the state of RAID. -
Page 17: Firmware Upgrading
2.2 Firmware Upgrading 1) You may upgrade the firmware through GUI. Click “Load Firmware” to select the firmware to be upgraded. 2) After selecting the firmware, click “Start Upgrade” to start the upgrading. System Manager... -
Page 18: Gui For 3.5''Hd
3) After the upgrading is completed, the information indicating successful upgrading will appear. After the device is powered on again, the new firmware can be used. 3. GUI for 3.5’’HD (3-bay) You can install GUI exclusively used for JMb393 to set RAID level and other advanced functions. The software “RAIDGuide Manager”... - Page 19 Basic Information of HDD RAID Status System Manager...
- Page 20 2) Event Log Viewer Click this interface, all information of events that happened in XL-RAID-526SA will appear. 3) Basic RAID Configuration In this interface, you can set RAID level (for details, “Chapter 1—2. Setting RAID for 3.5’’HD (3-bay)” ) and delete RAID.
- Page 21 If you select the item for password when you set the RAID level, it can prevent the RAID configuration from being deleted. Once the password is set, it must be entered before the RAID item is deleted. RAID Finish Status System Manager...
-
Page 22: Advanced Mode
3.2 Advanced Mode In advanced mode, multiple options are provided to facilitate the operation of the user. 1) Email Notification and Event settings With this item, you can set the events that need to be noted and send the related information to designated mailbox through email. - Page 23 3) Firmware Information In this interface, you can view the information of the firmware version and upgrade the firmware. System Manager...
- Page 24 4) RAID Settings In this interface, you can set the waiting time for RAID group, and the priority level when data are re-configured for RAID group. The higher the priority level is, the more functions will be mobilized for data re-configuration. System Manager...
