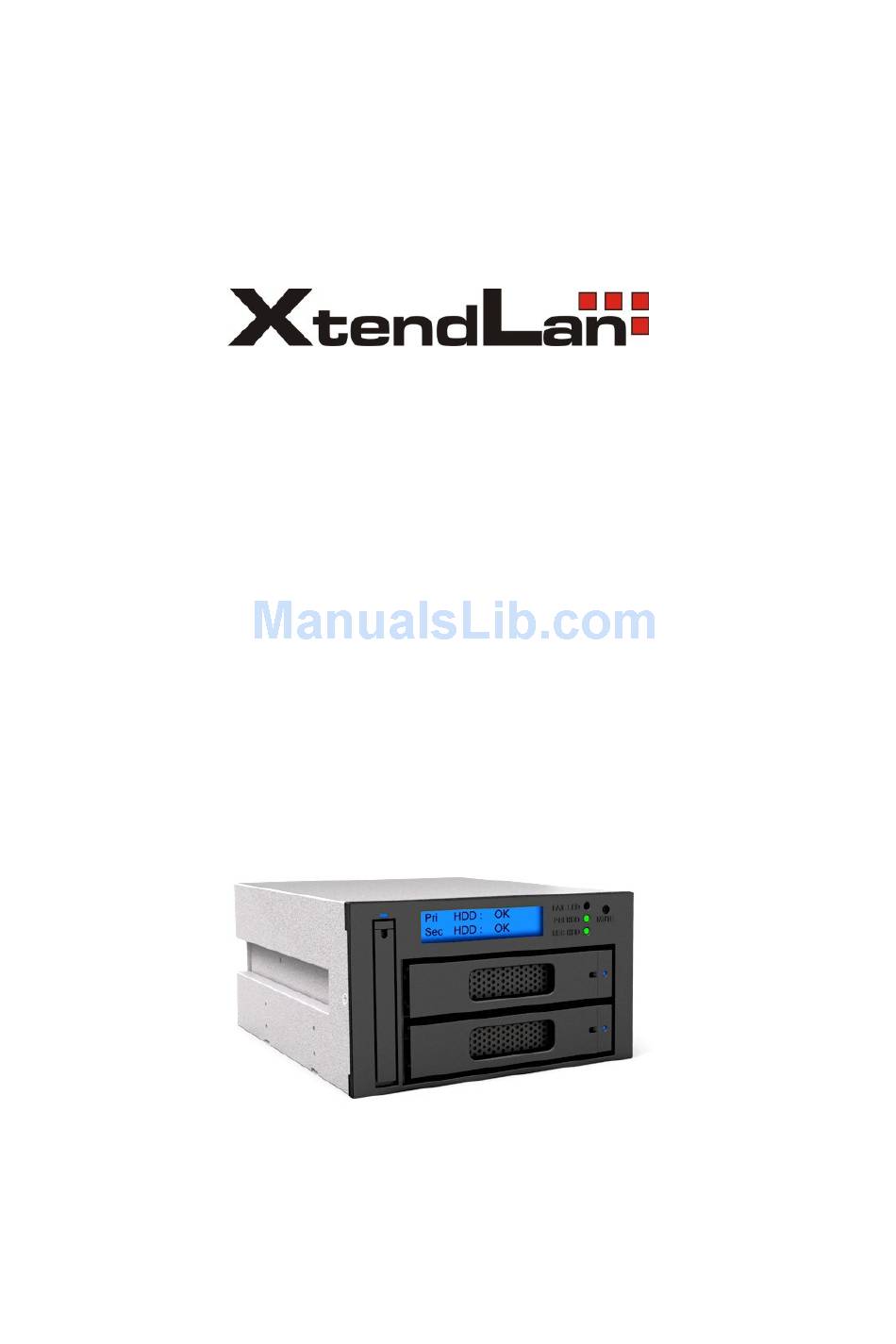

- Page 1 XL-RAID-213SA User Manual...
-
Page 2: Table Of Contents
Introduction English Thank you for purchasing our products. This manual will introduce the XL-RAID-213SA Series. Before using your XL-RAID-213SA, please read this manual thoroughly. Table of Contents Package Contents and Product Views Operating Information Hardware Requirements and Precautions Hardware Installation Procedure... -
Page 3: Operating Information
Front View 1. 2.5" HDD status indicator LED 2. 2.5" HDD tray ejector opening 3. 2.5" HDD tray ejector handle 4. LCD Display 5. LED of failure Alarm 6. Pri. HDD status indicator 7. Sec. HDD status indicator 8. Mute Button 9. -
Page 4: Hardware Installation Procedure
Stardom will not be responsible for any lost of data caused during the use of the unit or the recovery of the data lost. 10. XL-RAID-213SA complies with standard RAID Level 1 and RAID Level 0 definitions. Note：... -
Page 5: Connecting To Computer
RAID 1 mode by setting the jumper on the top of the two pins. 1. RAID 1 Mode a). Place two new hard drives into XL-RAID-213SA and strongly suggest you to use two identical hard drives to get the equal capacity. If the capacity is different, XL-RAID-213SA is... -
Page 6: Computer Set Up
Set the hard drive to AUTO in the computer’s BIOS. When the computer is turned on, the system will retrieve the following information: 2. In XL-RAID-213SA, the installed hard drive can be detected by the Device Manager of Computer Management for Windows. -
Page 7: Hard Disk Status On Lcd Screen
The hard drive Hot Swap and Auto Rebuilding functions are available. (The Hot Swap & Auto Rebuilding functions are applicable in) 1. Off-line Back up When the data is stored within XL-RAID-213SA, the user can remove one of the hard drives from... - Page 8 3. The LCD Display Message During Hot Swap and Auto Rebuilding When the XL-RAID-213SA detects a hard drive missing or a hard drive failure, the Buzzer will go off and the LCD display screen will display the following messages: 4.
- Page 9 8. When the cooling fan module is not functional or rotates very slowly, “F” will be displayed on the upper right-hand corner of screen. (As shown in illustration) 9. If the temperature is higher than the default setting (a preset number, typically 65°C or 149°F), LCD shows T:...
-
Page 10: Gui Monitoring Software And Firmware Update
CD-ROM. ※ The HDD1 equals to Pri HDD and HDD2 equals to Sec HDD. 1. RAID Information This GUI will auto detects the connected XL-RAID-213SA and reveals relative information accordingly. 2. Firmware Upgrade You may update the firmware via this GUI, simply click on “Load” button to locate the firmware file to proceed. - Page 11 3. E-Mail Notify Configuring an e-mail address for notification of drive malfunctioning or being removed. 3-1 Setup 1). Insert “Outgoing” SMTP and e-mail name and address. 2). If it is passwords required, select the option “SMTP Login Authentication” and insert the passwords.
- Page 12 3). When the configuration completed, click on the “OK” button to save. ※ Device must be connected in operational states during configurations to take effects. 4. About Indicates GUI Management Software version...
-
Page 13: Frequently Asked Questions
11. Frequently Asked Questions Unstable system after connecting XL-RAID-213SA After installing XL-RAID-213SA, we are unable to start the computer or the computer can not locate XL-RAID-213SA upon startup. 1. Please check whether the readings on the XL-RAID-213SA LCD display screen appear normal. - Page 14 About Auto Rebuilding Function What will happen if we turn off the computer’s power while XL-RAID-213SA is still executing data auto rebuilding? Under the mirror mode (RAID 1), if the power is out of the auto rebuilding process, the controller will remember when completion percentage of the auto rebuilding process and resume the rebuilding process when the power is back on.
